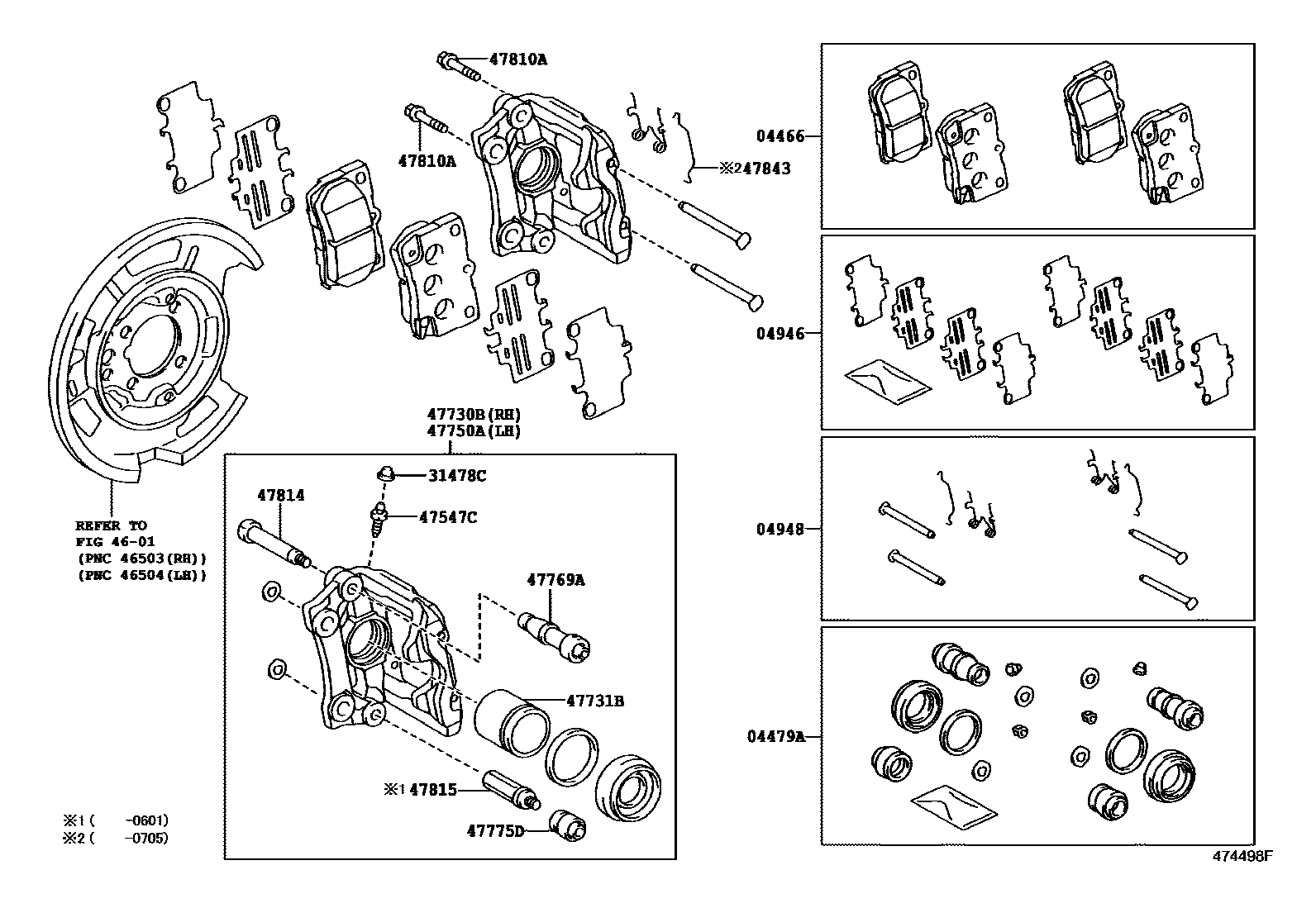

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30210iGRX12#200710-200904

MARK AK PA561H

main04466-30230iGRX12#200904-201009

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0P010iGRX12#200510-200601

main04479-0P020iGRX12#200710

sub04479-0N030

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0P010iGRX12#200510-200710

04948FITTING KIT, DISC BRAKE, REAR

main04948-0P010iGRX12#200510-200705

main04948-0P020iGRX12#200705-200710

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010×2iGRX12#200510-200512

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGRX12#200510-200512

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-0P010iGRX12#200510-200601

main47830-0P011iGRX12#200601-200710

47731BPISTON, REAR DISC BRAKE

main47831-30300×2iGRX12#200904-200911

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0P010iGRX12#200510-200601

main47850-0P011iGRX12#200601-200710

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-0P010×2iGRX12#200510-200512

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-0P010×2iGRX12#200510-200601

main47875-0P011×2iGRX12#200601-200710

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iGRX12#200510-200710

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300×2iGRX12#200510-200512

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-30300×2iGRX12#200510-200601

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300×2iGRX12#200510-200705

16 parts on this diagram · 2 diagrams in section
