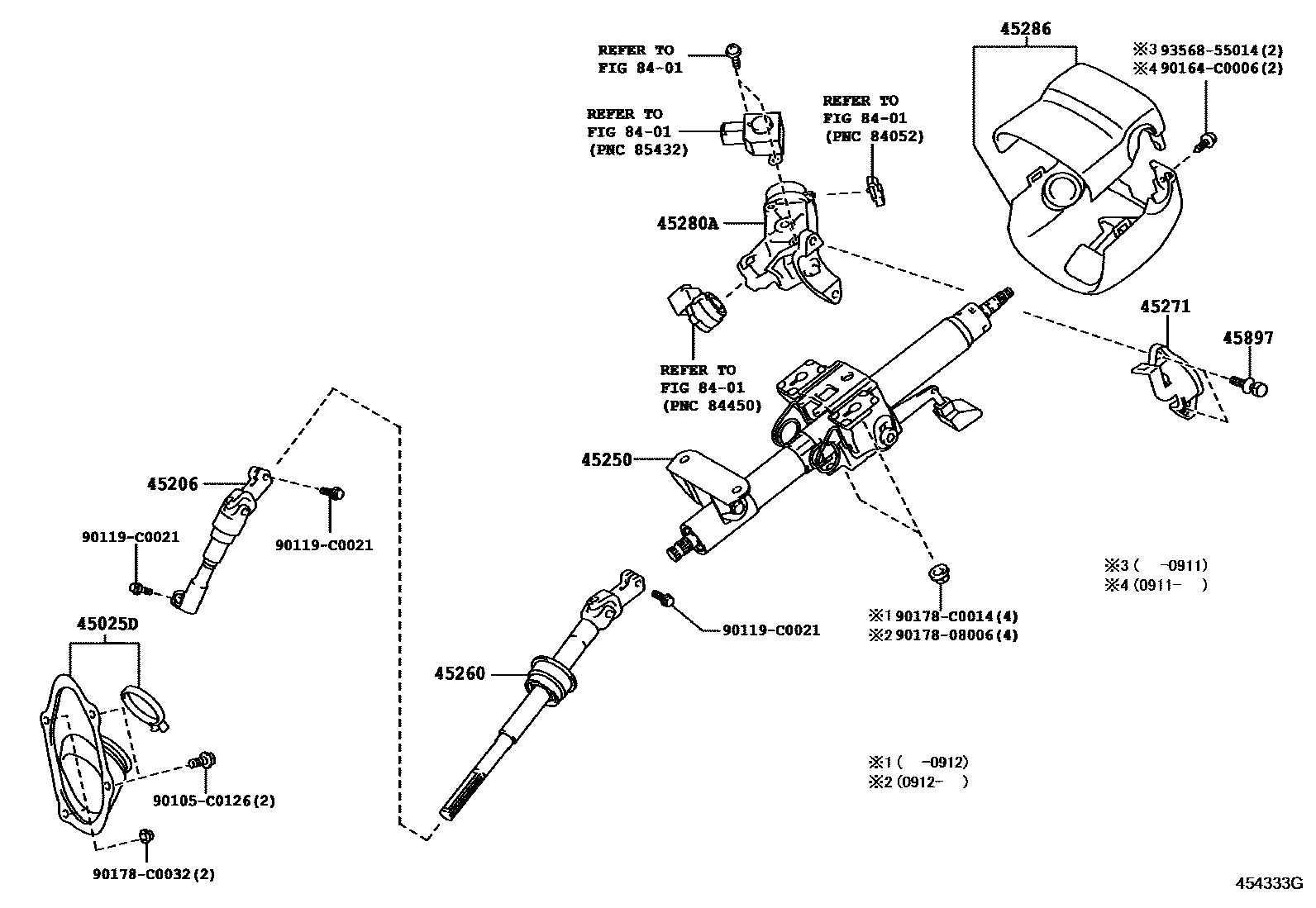

STEERING COLUMN & SHAFT

0001 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0P010iGRX12#200510-200710

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-0N010iGRX12#200510-200601

sub45206-0N020

main45206-0N020iGRX12#200602-200710

45250COLUMN ASSY, STEERING

main45250-0P010iGRX122200510-200710

main45250-0P020iGRX121200510-200710

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0P010iGRX12#200510-200709

sub45260-0P011

main45260-0P011iGRX12#200710

45271CLAMP, STEERING COLUMN, UPPER

main45271-0P010iGRX12#200510-200710

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0P010iGRX122200510-200703

sub45280-0P011

main45280-0P011iGRX122200704-201009

45286COVER, STEERING COLUMN

main45286-0P901iGRX122200510-200710

main45286-0P902iGRX12#..25V,30V200510-200710

45897BOLT, STEERING LOCK SET

main45897-12020iGRX12#200510-200710

8401

90105C0126

main90105-C0126

90119C0021

main90119-C0021

90164C0006

main90164-C0006

9017808006

main90178-08006

90178C0014

main90178-C0014

90178C0032

main90178-C0032

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
