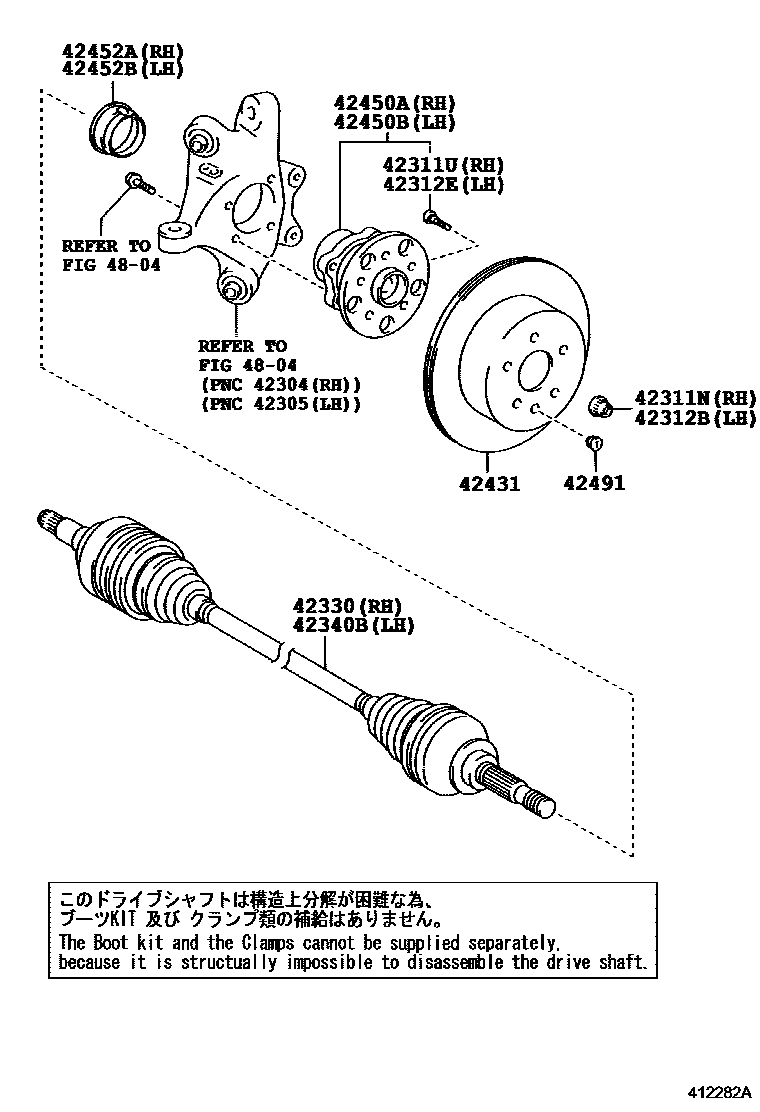

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGRX12#200510-200710

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070×5iGRX12#200510-200710

sub90942-02049

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGRX12#200510-200710

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070×5iGRX12#200510-200710

sub90942-02049

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0N020iGRX12#200510-200603

main42330-0N021iGRX12#200604-200611

main42330-0N022iGRX12#200612-200710

sub42330-0N023

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-0N020iGRX12#200510-200603

main42340-0N021iGRX12#200604-200611

main42340-0N022iGRX12#200612-200710

sub42340-0N023

42431DISC, REAR

main42431-0P010×2iGRX12#200510-200710

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0N010iGRX12#200510-200710

sub42410-0N011

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0N010iGRX12#200510-200710

sub42410-0N011

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42451-30020iGRX12#200510-200710

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42451-30020iGRX12#200510-200710

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iGRX12#200510-200710

4804

13 parts on this diagram · 1 diagram in section
