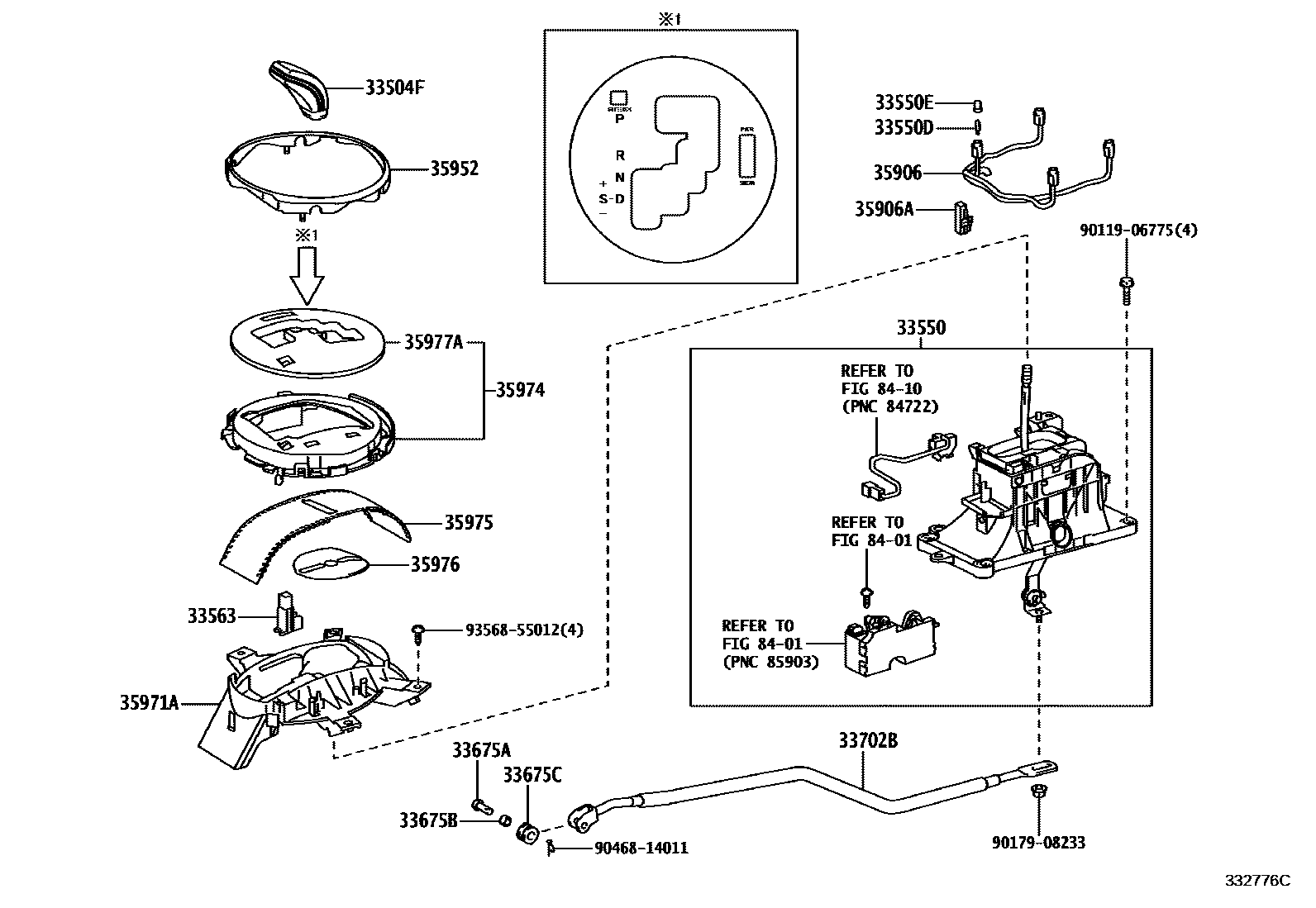

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22200-C0iGRX12#200510-200710

BLACK,TRIM0#,2#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-0P010iGRX122..25200710-201009

main33550-0P020iGRX12#..25V,30V200710-201009

33550DBULB, POSITION INDICATOR LAMP

main90010-01119×4iGRX12#200510-200710

12V1.12W

33550ECAP, POSITION INDICATOR LAMP

main84998-22010×4iGRX12#200510-200710

33563BUTTON, SHIFT LOCK RELEASE

main33563-22100iGRX12#200510-200710

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iGRX12#200510-200710

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGRX12#200510-200710

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGRX12#200510-200710

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGRX122200510-200710

main33702-30580iGRX121200510-200710

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-22110iGRX12#200510-200710

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-11967iGRX12#200510-200710

35952LENS, POSITION INDICATOR

main35952-22030iGRX12#200510-200710

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-22230iGRX12#200510-200710

35974HOUSING, POSITION INDICATOR, LOWER

main35907-0P010iGRX12#200510-200710

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30280iGRX12#200510-200710

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-30090iGRX12#200510-200710

35977APLATE, POSITION INDICATOR HOUSING

main35977-22060iGRX12#200510-200710

8401

8410

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

9356855012

main93568-55012

23 parts on this diagram · 1 diagram in section
