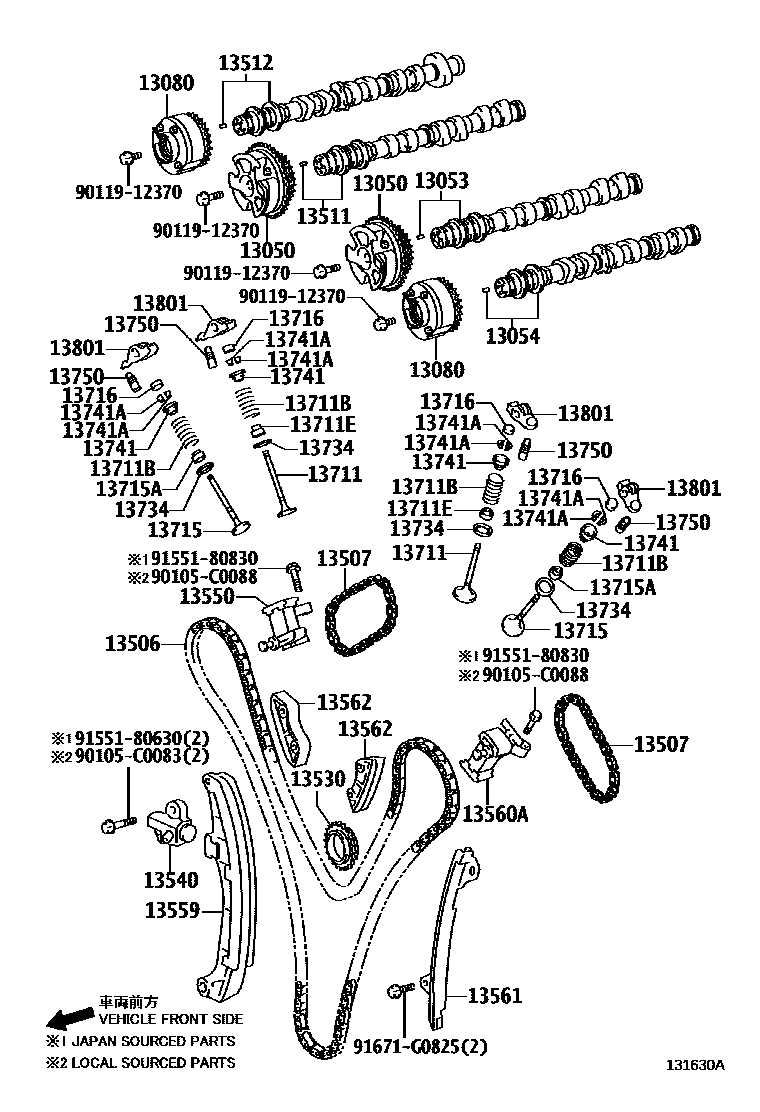

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
sub13050-31041
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13550TENSIONER ASSY, CHAIN, NO.2
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13560ATENSIONER ASSY, CHAIN, NO.3
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
(L)
(J)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
(J)
(L)
13715ASEAL, EXHAUST VALVE STEM OIL
(J)
(L)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
90105C0083
main90105-C0083
90105C0088
main90105-C0088
9011912370
main90119-12370
9155180630
main91551-80630
9155180830
main91551-80830
91671G0825
main91671-G0825
32 parts on this diagram · 1 diagram in section
