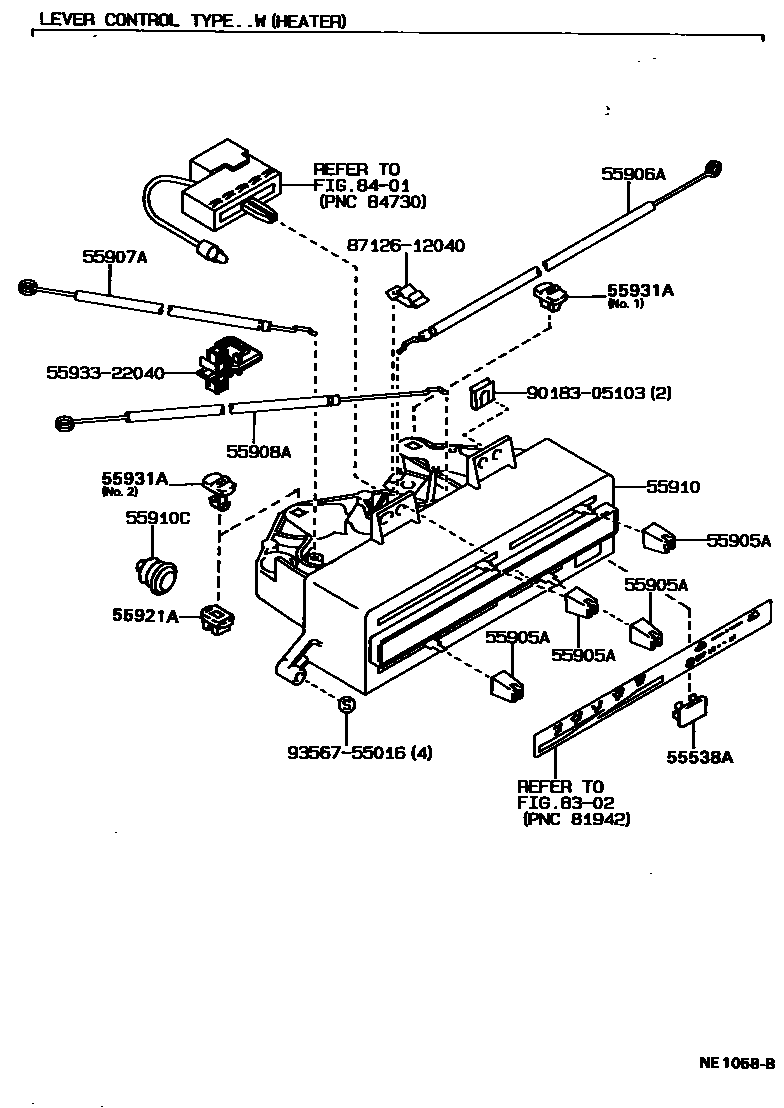

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1CONTROL 0003 1CONTROL 0004 1 0005 1AUTO AIR CONDITIONER SENSOR 0006 1AIR DUCTS 0007 1AIR DUCTS

55538ACOVER, COOLER SWITCH HOLE

main55538-22060iRX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN198808-199008

55905AKNOB, HEATER CONTROL

main55905-22260×2iMX83;GX81..5F199008-199608

TEMP & BLOWER

main55905-22280×2iGX81..4FC;LX80,MX81,RX8#199008-199608

MODE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-22130iGX81,RX80..RHD198808-199302

main55906-22140iLX80,MX81,RX8#..LHD199008-199608

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-22200iMX83198808-199205

W(PUSH TYPE HEATER CONTROL)

main55907-22210iGX81,RX80..RHD198808-199205

main55907-22220iLX80,MX81,RX8#..LHD199008-199608

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-22060iGX81,RX80..RHD198808-199302

main55908-22080iGX81,LX80,MX81,RX8#..LHD198808-199008

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-22400iGX81,RX80..RHD198808-199302

sub55910-22401

sub55907-22211

main55910-22410iRX80..RHD198808-199302

W(BOOST VENTILATOR)

main55910-22430iGX81,LX80,MX81,RX8#..LHD198808-199008

LEVER CONTROL TYPE

main55910-22440iLX80,RX80..LHD199008-199302

W(BOOST VENTILATOR)

main55910-22460iMX83198808-199302

W(PUSH TYPE HEATER CONTROL)

main55910-22470iGX81,MX81..LHD..GEN198808-199008

W(AUTO AIR CONDITIONER)

main55910-22480iMX83199008-199302

W(AUTO AIR CONDITIONER)

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-13024iGX81,LX80,MX81,RX8#198808-199008

55921ARETAINER, HEATER CONTROL

main55921-22060iGX81,LX80,MX81,RX8#198912-199008

55931ASHAFT, HEATER CONTROL LEVER

main55931-22070iMX83198912-199008

NO.1

main55931-22080iGX81..4FC;LX80,MX81,RX8#199008-199608

NO.2

8302

8401

5593322040GUIDE, LEVER, NO.2

main55933-22040

8712612040CLAMP, HEATER CONTROL

main87126-12040

9018305103

main90183-05103

9356755016

main93567-55016

15 parts on this diagram · 7 diagrams in section
