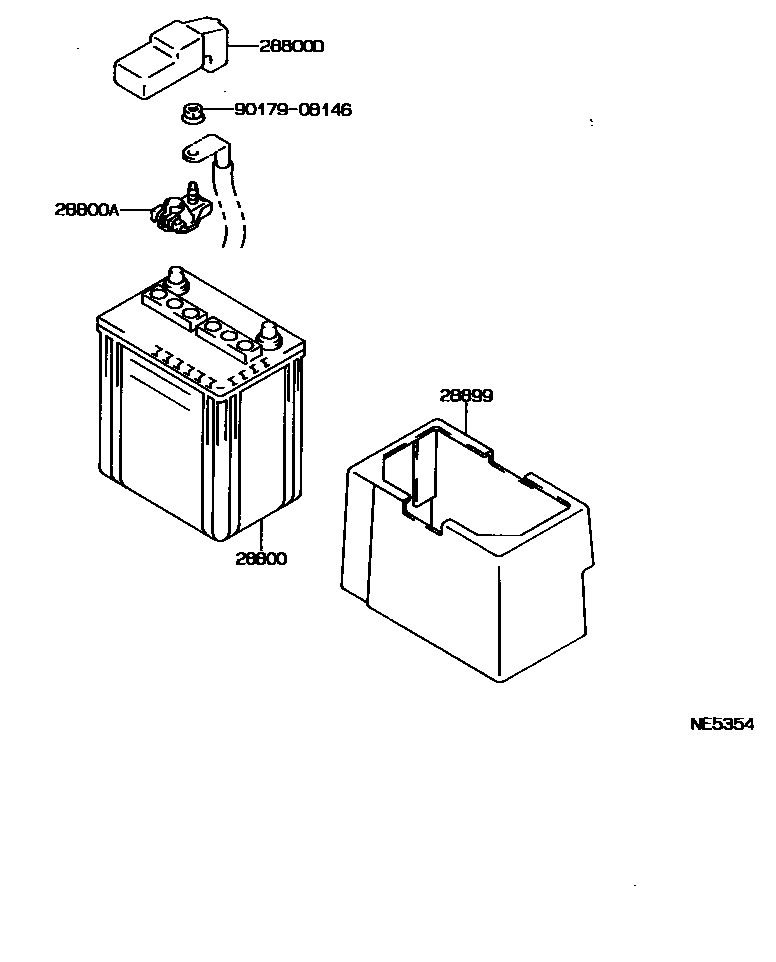

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i22R..RX8#198808-199608

55D23R

sub28800-15020

main28800-15050i1GFE..GX81;5ME..MX81..5F198808-199008

55D23L

sub28800-42030

main28800-37011i22R..RX80..RHD;22R..RX8#..LHD..5F198808-199308

34B19R

sub28800-24030

main28800-42130i2L..LX80..5F198808-199302

75D31L

sub28800-42010

main28800-43011i1GFE..GX81198808-198908

46B24L

sub28800-62040

main28800-44021i22R..RX8#..5F..V198808-199608

46B24R

sub28800-33050

main28800-54310i2L..LX80..4FC198808-199302

140D38L

main28800-62040i1GFE..GX81199008-199302

46B24L

main28800-64070i2L..LX80..4FC198808-198912

95D31L

sub28800-64180

main28800-64180i2L..LX80..4FC199008-199302

95D31L

sub28800-64182

main28800-70060i5ME..MX81..5F198808-199302

50D20L

sub28800-64030

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i22R..RX8#198808-199608

SUMITOMO

sub90982-05057

main90982-05028i22R..RX8#199008-199608

SUMITIMO

sub90982-05057

main90982-05030i22R..RX81..5F;22R..RX80..GEN;22R..RX80..4FC..V198808-199608

W(55D23R BATTERY),SUMITOMO

main90982-05030i2L..LX80..5F198808-198908

SUMUTOMO

main90982-05030i5ME..MX81;2L,7MGE..LX80,MX83..4FC198808-199302

SUMITOMO

main90982-05030i1GFE..GX81198808-199302

W(55D23L-MF BATTERY),SUMITOMO

main90982-05034i1GFE..GX81198810-199302

YAZAKI

main90982-05035i2L,5ME,7MGE..LX80,MX8#198810-199302

YAZAKI

main90982-05035i1GFE..GX81198810-199302

W(55D23L-MF BATTERY),YAZAKI

main90982-05036i22R..RX8#198810-199608

YAZAKI

main90982-05037i22R..RX81..5F;22R..RX80..GEN;22R..RX80..4FC..V198810-199608

W(55D23R BATTERY),YAZAKI

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8#198808-199608

28899INSULATOR, BATTERY

main28899-54010i2L..LX80198808-199302

sub28899-35010

main28899-54020i2L..LX80198808-199302

W(140D 38L BATTERY)

main28899-70030i5ME..MX81..5F198808-199302

main28899-70040i5ME,7MGE..MX8#..4FC198808-199302

W(55D23R BATTERY)

main28899-70050i1GFE..GX81198808-199302

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
