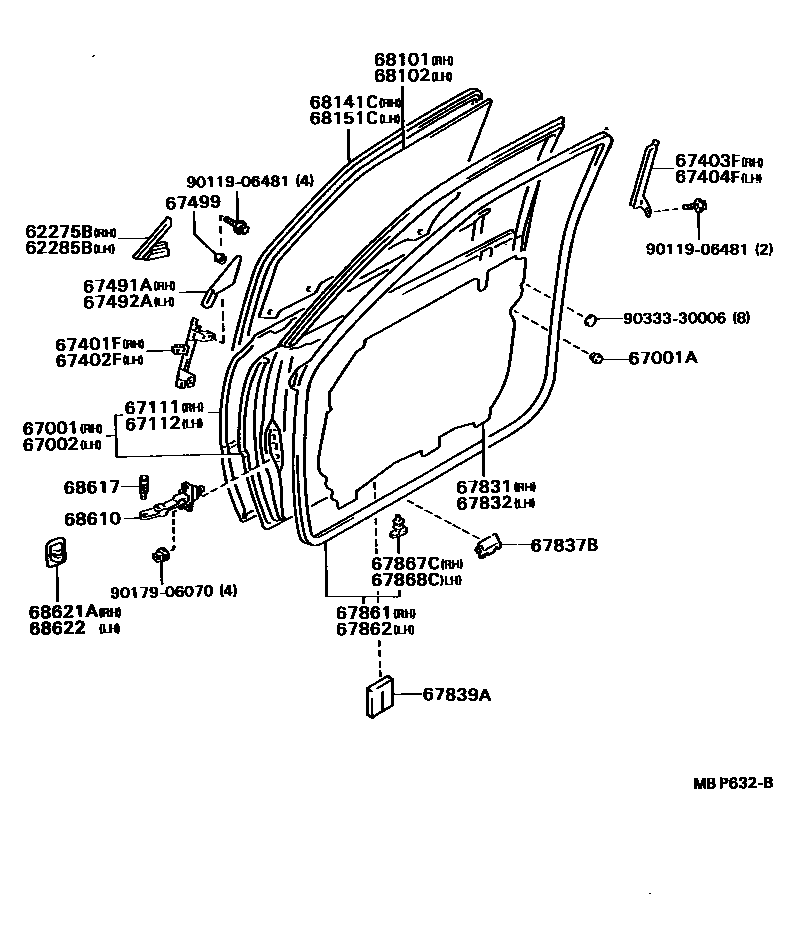

FRONT DOOR PANEL & GLASS

0001 1 0002 1

62275BCOVER, SIDE WINDOW, RH

main62275-22010iGX81,LX80,MX8#,RX8#198808-199608

62285BCOVER, SIDE WINDOW, LH

main62285-22010iGX81,LX80,MX8#,RX8#198808-199608

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22300iGX81,LX80,MX81,RX8#..GEN198808-199302

main67001-22310iMX8#,RX8#..ARL,V198808-199608

67001ACUSHION, FRONT DOOR PANEL

main90541-09063iGX81,LX80,MX8#,RX8#198808-199608

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22310iGX81,LX80,MX81,RX8#..GEN198808-199302

main67002-22320iMX8#,RX8#..ARL,V198808-199608

67111PANEL, FRONT DOOR, OUTER RH

main67111-22170iGX81,LX80,MX8#,RX8#198808-199608

67112PANEL, FRONT DOOR, OUTER LH

main67112-22180iGX81,LX80,MX8#,RX8#198808-199608

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22100iGX81,LX80,MX8#,RX8#198808-199608

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22100iGX81,LX80,MX8#,RX8#198808-199608

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-22060iMX81,RX8#..V198808-199608

main67403-22080iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-22060iMX81,RX8#..V198808-199608

main67404-22080iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22080-01iGX81,LX80,MX8#,RX8#199008-199302

BLACK,TRIM1#,3#,4#

main67491-22080-01iRX81199302-199608

BLACK,TRIM3#

main67491-22080-01iGX81,LX80,MX8#,RX8#198808-199008

BLACK,TRIM3#,4#,8#

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22080-01iGX81,LX80,MX8#,RX8#198808-199008

BLACK,TRIM3#,4#,8#

main67492-22080-01iGX81,LX80,MX8#,RX8#199008-199302

BLACK,TRIM1#,3#,4#

main67492-22080-01iRX81199302-199608

BLACK,TRIM3#

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30020iGX81,LX80,MX8#,RX8#198808-199608

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22160iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

W(6 SPEAKER)

main67831-22160iMX83..GLX198808-199302

main67831-22170iMX81,RX8#..(GD,GL)..V198808-199004

W(6 SPEAKER)

sub67831-22160

main67831-22200iMX83..GL;GX81,LX80,MX81,RX8#..GEN198808-199608

main67831-22210iMX81,RX8#..V198808-199004

sub67831-22200

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-22080iMX83..GLX198808-199302

main67832-22080iGX81,LX80,MX81,RX8#..(GL,GLX)..GEN198808-199302

W(6 SPEAKER)

main67832-22090iMX83..GL;GX81,LX80,MX81,RX8#..GEN198808-199608

main67832-22100iMX81,RX8#..(GD,GL)..V198808-199004

W(6 SPEAKER)

sub67832-22080

main67832-22110iMX81,RX8#..V198808-199004

sub67832-22090

67837BSEAL, FRONT DOOR DUST PROOF

main67837-22030iMX83198808-199302

67839ACOVER, FRONT DOOR SERVICE HOLE, LOWER

main67839-22010iGX81,LX80,MX8#,RX8#198808-199608

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22230iGX81,LX80,MX8#,RX8#198808-199608

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22230iGX81,LX80,MX8#,RX8#198808-199608

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-12050iGX81,LX80,MX8#,RX8#198808-199608

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-12050iGX81,LX80,MX8#,RX8#198808-199608

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-22270iGX81,LX80,MX8#,RX8#198808-199608

*TT,T=4.0

main68111-22290iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

*TEM,T=4.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-22250iGX81,LX80,MX8#,RX8#198808-199608

*TT,T=4.0

main68112-22270iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

*TEM,T=4.0,BRONZE

68141CRUN, FRONT DOOR GLASS, RH

main68141-22150iGX81,LX80,MX8#,RX8#198808-199608

68151CRUN, FRONT DOOR GLASS, LH

main68151-22090iGX81,LX80,MX8#,RX8#198808-199608

68610CHECK ASSY, FRONT DOOR

main68610-22040iGX81,LX80,MX8#,RX8#198808-199008

main68610-22050iGX81,LX80,MX8#,RX8#199008-199608

68617PIN, FRONT DOOR CHECK

main68617-12030iGX81,LX80,MX8#,RX8#198902-199302

main68617-20011iGX81,LX80,MX8#,RX8#198808-198902

main68617-23010iRX81199302-199608

68621ACOVER, FRONT DOOR CHECK, RH

main68621-22020iGX81,LX80,MX8#,RX8#199008-199608

68622COVER, FRONT DOOR CHECK, LH

main68622-22020iGX81,LX80,MX8#,RX8#199008-199608

9011906481

main90119-06481

9017906070

main90179-06070

9033330006

main90333-30006

33 parts on this diagram · 2 diagrams in section
