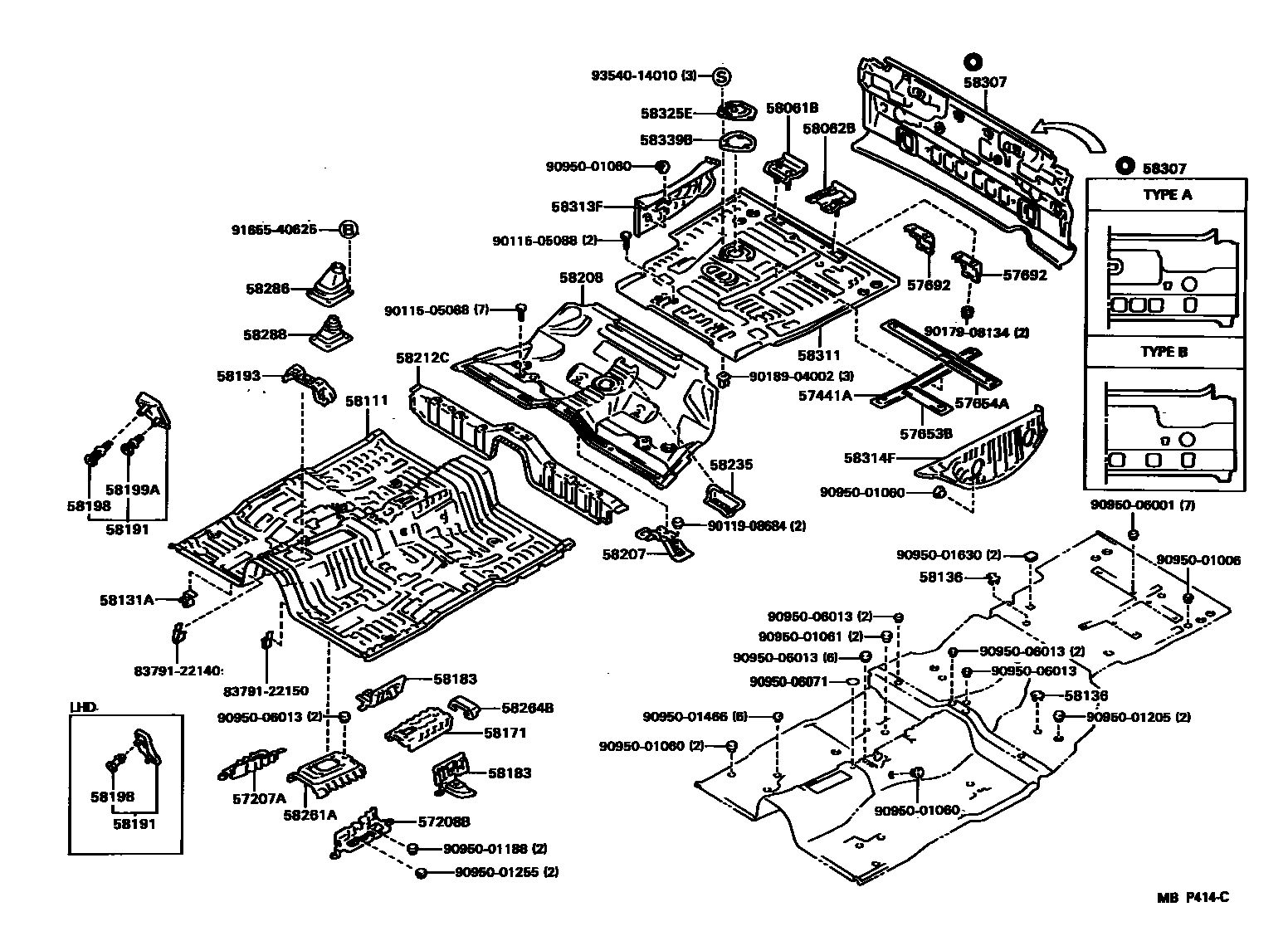

FLOOR PAN & LOWER BACK PANEL

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-22030iGX81,LX80,MX8#,RX8#¥2,640198808-199512

main57207-43010iRX81¥2,100199512-199608

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-22040iGX81,LX80,MX8#,RX8#¥2,200198808-199608

57441AMEMBER, REAR FLOOR CENTER, NO.1

main57441-22020iGX81,LX80,MX8#,RX8#¥2,140198808-199608

57653BMEMBER, REAR FLOOR CROSS, FRONT LH

main57653-22080iGX81,LX80,MX8#,RX8#¥2,370198808-199608

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57654-22040iGX81,LX80,MX8#,RX8#¥2,340198808-199608

57692BRACKET, FUEL TANK MOUNTING, REAR CENTER

main57692-22020iGX81,LX80,MX8#,RX8#¥2,240198808-199608

58061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, RH

main58061-22010iGX81,LX80,MX8#,RX8#¥1,680198808-199608

58062BBRACKET SUB-ASSY, FUEL TANK MOUNTING, LH

main58062-22020iGX81,LX80,MX8#,RX8#¥1,870198808-199608

58111PAN, FRONT FLOOR

main58111-22150iGX81,LX80,MX8#,RX8#¥48,300198808-199512

sub58111-43020¥51,900

main58111-43020iRX81¥51,900199512-199608

sub58111-43021¥51,900

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-22040iGX81,LX80,MX8#,RX8#¥520198808-199608

58136COVER, FRONT FLOOR HOLE

main58136-24010iGX81,LX80,MX81,RX8#..GEN¥390198808-199302

sub90950-06002¥60

main58136-24010iMX8#,RX8#..ARL,V¥390198808-199608

FOR CENTER FLOOR PAN

sub90950-06002¥60

58171REINFORCEMENT, PARKING BRAKE BASE

main58029-22040iGX81,LX80,MX8#,RX8#¥9,500198808-199608

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-22030iGX81,LX80,MX8#,RX8#¥3,820198808-199608

RH

main58184-22030iGX81,LX80,MX8#,RX8#¥3,480198808-199608

LH

58191FOOTREST, FRONT FLOOR

main58191-22030iGX81,RX80..RHD..5F¥1,740198808-199302

main58191-22040iGX81,MX83,RX80..RHD..4FC¥3,600198808-199302

main58192-22030iGX81,LX80,MX81,RX8#..LHD¥4,510198808-199608

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-22050iGX81,LX80,MX8#,RX8#¥1,850198808-199608

58198CLIP, FOOTREST

main58198-22020iGX81,MX83,RX80..RHD¥250198808-199302

main58198-22050iGX81,LX80,MX81,RX8#..LHD¥210198808-199608

58199ACLIP, FOOTREST, NO.2

main58199-22020iGX81,MX83,RX80..RHD¥180198808-199302

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-22050iGX81,LX80,MX8#,RX8#¥1,900198808-199608

58208PAN, CENTER FLOOR

main58211-22050iGX81,LX80,MX8#,RX8#¥27,800198808-199608

58212CPAN, CENTER FLOOR, FRONT

main58212-22060iGX81,LX80,MX8#,RX8#¥18,700198808-199608

58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING

main58235-22030iLX80,RX80¥2,160198808-198903

sub58235-22031¥2,210

main58235-22031iLX80,RX80¥2,210198903-199302

58261ACOVER, TRANSMISSION

main58261-22210iGX81,MX81..5F¥3,610198808-199302

main58261-22220iGX81,LX80,MX8#,RX8#..4FC¥3,620198808-199608

main58261-22230iRX8#..5F¥3,610198808-199608

main58261-22240iLX80..5F¥3,620198808-199302

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-22040iGX81,LX80,MX8#,RX8#¥1,130198808-199608

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-22070iGX81,MX81..5F¥4,360198808-199005

sub58280-22071¥3,440

main58280-22071iGX81,MX81..5F¥3,440199005-199302

main58280-22080iLX80,RX8#..5F¥4,320198808-199608

58288SEAL, SHIFT LEVER BOOT

main58288-22030iGX81,MX81..5F¥1,670198808-199005

sub58288-22031¥1,600

main58288-22031iGX81,MX81..5F¥1,600199005-199302

main58288-22040iLX80,RX8#..5F¥1,350198808-199608

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-22490iMX83¥20,800198808-199008

TYPE B

main58307-22500iMX81,RX8#..V¥20,800198808-199608

TYPE B

main58307-22510iGX81,LX80,MX81,RX8#..GEN¥21,000198808-199008

TYPE B

main58307-22511iGX81,LX80,RX80¥19,700199008-199302

TYPE A

main58307-22550iGX81,RX80..RHD¥19,700199008-199302

TYPE B

main58307-22560iMX83¥19,800199008-199302

TYPE A

sub58307-22511¥19,700

58311PAN, REAR FLOOR

main58311-22120iGX81,LX80,MX8#,RX8#¥28,000198808-199008

sub58311-22121¥27,700

sub90950-06060¥110

main58311-22121iGX81,LX80,MX8#,RX8#¥27,700199008-199608

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-22040iGX81,LX80,MX8#,RX8#¥3,870198808-199608

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-22100iGX81,LX80,MX8#,RX8#¥3,720198808-199608

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-22040iGX81,LX80,MX8#,RX8#¥800198808-199608

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-22030iGX81,LX80,MX8#,RX8#¥410198808-199608

8379122140

main83791-22140¥320

8379122150

main83791-22150¥320

9011505088

main90115-05088¥120

9011908684

main90119-08684¥120

9017908134

main90179-08134¥90

9018904002

main90189-04002¥100

9095001006

main90950-01006¥260

9095001060

main90950-01060¥200

9095001061

main90950-01061¥240

9095001188

main90950-01188¥190

9095001205

main90950-01205¥240

9095001255

main90950-01255¥170

9095001466

main90950-01466¥180

9095001630

main90950-01630¥240

9095006001

main90950-06001¥170

9095006013

main90950-06013¥120

9095006071

main90950-06071¥180

9165540625

main91655-40625¥100

9354014010

main93540-14010¥100

50 parts on this diagram · 1 diagram in section
