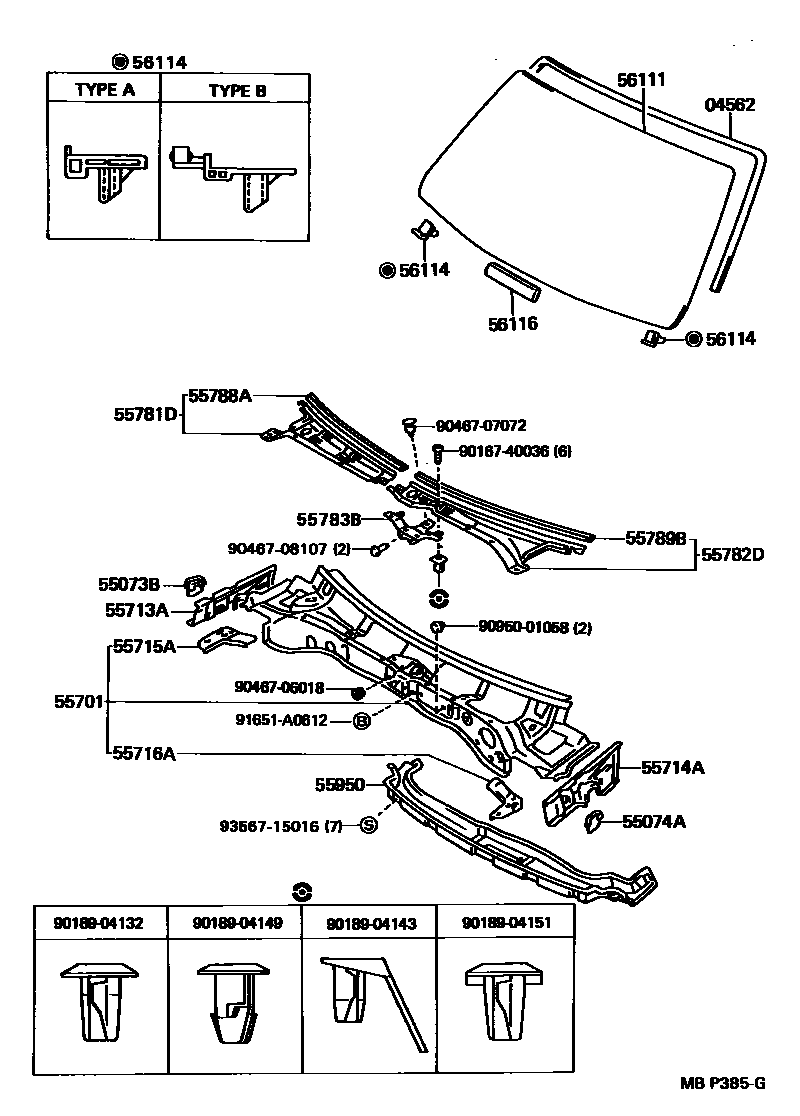

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iGX81,LX80,MX8#,RX8#198808-199008

55073BSEAL SUB-ASSY, COWL WATER EXTRACT, NO.1

main55073-22030iGX81,LX80,MX8#,RX8#198808-199608

55074ASEAL SUB-ASSY, COWL WATER EXTRACT, NO.2

main55074-22040iGX81,LX80,MX8#,RX8#198808-199608

55701PANEL SUB-ASSY, COWL

main55700-22810iGX81,MX83,RX80..RHD198808-199302

main55700-2A010iGX81,LX80,MX81,RX8#..LHD198808-199608

55713APANEL, COWL TOP SIDE, RH

main55713-22060iGX81,LX80,MX8#,RX8#198808-199608

55714APANEL, COWL TOP SIDE, LH

main55714-22060iGX81,LX80,MX8#,RX8#198808-199608

55715ABRACE, COWL TOP TO APRON, RH

main55715-22080iGX81,LX80,MX8#,RX8#198808-199608

55716ABRACE, COWL TOP TO APRON, LH

main55716-22070iGX81,LX80,MX8#,RX8#198808-199608

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-22160iGX81,MX83,RX80..RHD198808-199302

main55781-22170iGX81,RX80..RHD198808-199302

COLD SPEC

main55781-22180iGX81,LX80,MX81,RX8#..LHD198808-199608

main55781-22190iGX81,LX80,MX81,RX80..LHD..GEN198808-199302

COLD SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-22060iGX81,MX83,RX80..RHD198808-199302

main55782-22070iGX81,RX80..RHD198808-199302

COLD SPEC

main55782-22080iGX81,LX80,MX81,RX8#..LHD198808-199608

main55782-22090iGX81,LX80,MX81,RX80..LHD..GEN198808-199302

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-22090iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main55783-22100iMX81,RX8#..V198808-199608

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-22070iGX81,LX80,MX8#,RX8#198808-199608

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-22040iGX81,LX80,MX8#,RX8#198808-199608

55950NOZZLE ASSY, DEFROSTER

main55951-22110iGX81,MX83,RX80..RHD198808-199302

main55951-22120iGX81,LX80,MX81,RX8#..LHD198808-199608

56111GLASS, WINDSHIELD

main56111-22540iMX81,RX8#..XL198808-199608

*TL,T=4.7,BLUE

main56111-22550iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199608

*TL,T=4.7,BLUE

main56111-22560iMX83198808-199302

*TL,T=4.7

main56111-22580iGX81,LX80,MX81,RX8#..GD,GL,GLX199008-199302

*TL,T=4.7,BRONZE,1W(TOP SHADE)

sub56111-22650

56114RETAINER, WINDSHIELD GLASS

main56114-22010×2iGX81,LX80,MX8#,RX8#198808-199608

YELLOW

main56114-22020×2iGX81,LX80,MX8#,RX8#198808-199608

WHITE

main56114-22030×2iGX81,LX80,MX8#,RX8#198808-199608

GREEN

56116SPACER, WINDSHIELD GLASS

main56116-22040iGX81,LX80,MX8#,RX8#198808-199201

main56116-22041iGX81,LX80,MX8#,RX8#199201-199608

9016740036

main90167-40036

9018904132

main90189-04132

9018904143

main90189-04143

9018904149

main90189-04149

9018904151

main90189-04151

9046706018

main90467-06018

9046707072

main90467-07072

9046708107

main90467-08107

9095001058

main90950-01058

91651A0612

main91651-A0612

9356715016

main93567-15016

28 parts on this diagram · 1 diagram in section
