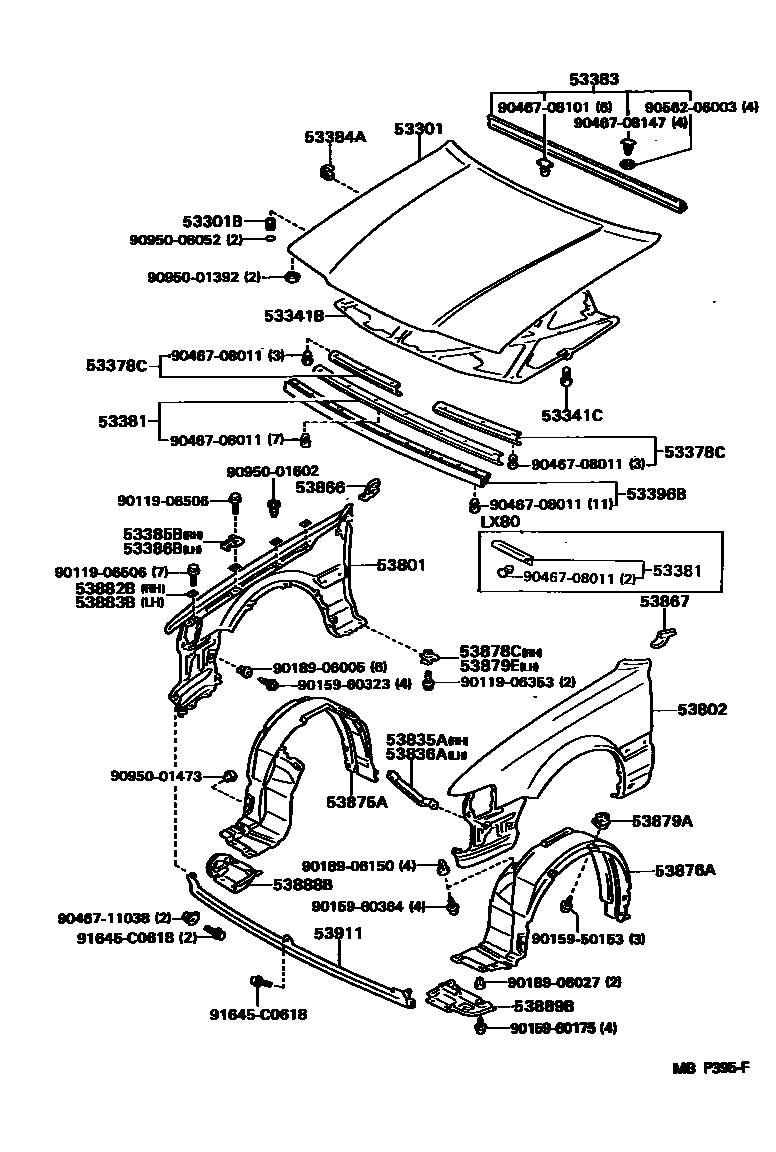

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-22250iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main53301-22270iMX81,RX8#..V198808-199608

53301BCUSHION, HOOD BUMPER

main90541-15004iGX81,LX80,MX8#,RX8#198808-199608

53341BINSULATOR, HOOD

main53341-22090iGX81,LX80,MX8#,RX8#198808-199608

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iGX81,LX80,MX8#,RX8#198808-199608

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-22020iLX80198808-199302

RH

main53379-22010iLX80198808-199302

LH

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22080iGX81,MX8#,RX8#198808-199608

main53381-22090iLX80198808-199302

COLD SPEC

53383SEAL, HOOD TO COWL TOP

main53383-22050iGX81,LX80,MX8#,RX8#198808-199608

53384ABUMPER, FENDER TO HOOD

main53384-24010iGX81,LX80,MX8#,RX8#198808-199608

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iGX81,LX80,MX8#,RX8#198808-199608

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iGX81,LX80,MX8#,RX8#198808-199608

53396BSEAL, RADIATOR SUPPORT TO HEADLAMP

main53396-22040iGX81,LX80,MX8#,RX8#198808-198811

sub53396-22041

main53396-22041iGX81,LX80,MX8#,RX8#198811-199009

sub53396-22042

main53396-22042iGX81,LX80,MX8#,RX8#199009-199608

53801FENDER SUB-ASSY, FRONT RH

main53801-2A230iMX81..GD198808-199302

main53801-2A240iMX81,RX81..GL,XL198808-199608

main53801-2A350iMX83199008-199302

main53801-2A370iLX80,RX80199008-199302

sub53801-2A360

main53801-2A380iGX81199008-199302

sub53801-2A310

53802FENDER SUB-ASSY, FRONT LH

main53802-2A210iMX81..GD198808-199302

main53802-2A220iLX80,MX8#,RX8#..GL,XL198808-199608

main53802-2A330iMX83199008-199302

main53802-2A350iLX80,RX80199008-199302

sub53802-2A340

main53802-2A360iGX81199008-199302

sub53802-2A290

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-22030iMX81,RX81198808-199608

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-22030iGX81,LX80,MX8#,RX8#198808-199608

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22060iGX81,LX80,MX8#,RX8#198808-199608

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22060iGX81,LX80,MX8#,RX8#198808-199608

53875ALINER, FRONT FENDER, RH

main53875-22050iGX81,LX80,MX8#,RX8#198808-199608

53876ALINER, FRONT FENDER, LH

main53876-22050iGX81,LX80,MX8#,RX8#198808-199608

53878CSPACER, FRONT FENDER

main53878-14020iGX81,LX80,MX8#,RX8#198808-199608

53879ARETAINER, FRONT FENDER LINER

main53879-22030iGX81,LX80,MX8#,RX8#198808-199608

53879ESPACER, FRONT FENDER, LH

main53878-14020iGX81,LX80,MX8#,RX8#199008-199608

53882BSEAL, FRONT FENDER, RH

main53882-16030iRX81199302-199608

53883BSEAL, FRONT FENDER, LH

main53882-16030iRX81199302-199608

53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2

main53888-22010iMX81,RX81198808-199608

main53888-22020iGX81,LX80,MX83,RX80199008-199302

53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2

main53889-22010iGX81,LX80,MX8#,RX8#198808-199608

main53889-22020iGX81,LX80,MX83,RX80199008-199302

53911PANEL, FRONT VALANCE

main53911-22170iGX81,LX80,MX8#,RX8#198808-199608

9011906353

main90119-06353

9011906506

main90119-06506

9015950153

main90159-50153

9015960175

main90159-60175

9015960323

main90159-60323

9015960364

main90159-60364

9018906005

main90189-06005

9018906027

main90189-06027

9018906150

main90189-06150

9046708011

main90467-08011

9046708101

main90467-08101

9046708147

main90467-08147

9046711038

main90467-11038

9056206003

main90562-06003

9095001392

main90950-01392

9095001473

main90950-01473

9095001602

main90950-01602

9095006052

main90950-06052

91645C0618

main91645-C0618

46 parts on this diagram · 1 diagram in section
