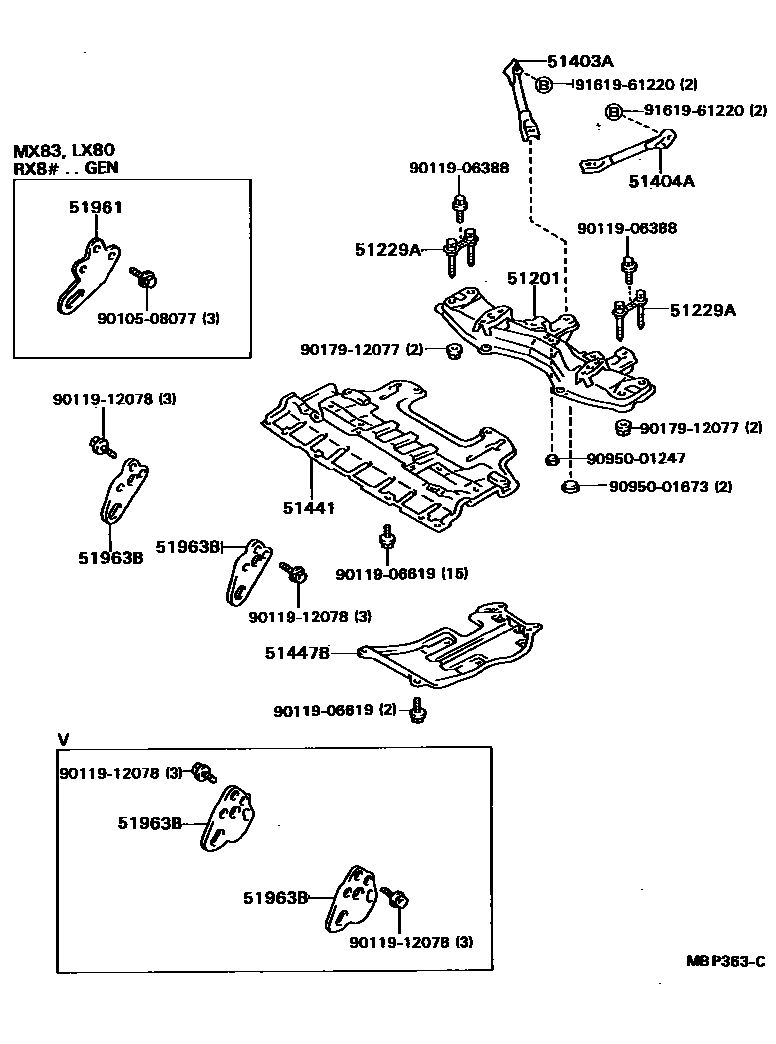

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22420iMX83198808-199002

main51201-22421iMX83199002-199302

main51201-22430iGX81..RHD198808-199302

main51201-22470iRX80..RHD198808-199302

main51201-22480iGX81..LHD198808-199302

main51201-22490iRX8#..LHD198808-199608

main51201-22500iLX80198808-199302

main51201-22510iMX81198808-199002

main51201-22511iMX81199002-199302

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-22050iGX81,LX80,MX8#,RX8#198808-199608

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-22010iLX80,RX8#..LHD198808-199608

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-22010iLX80,RX8#..LHD198808-199608

51441COVER, ENGINE UNDER, NO.1

main51405-22040iLX80198808-199302

main51441-22160iGX81,MX8#,RX8#198808-199608

51447BPROTECTOR, OIL PAN

main51447-22040iRX80..LHD..5F..GEN198808-199608

main51447-22050iLX80..5F198808-199302

51961HOOK, NO.1

main51961-22040iGX81,MX8#..ARL,GEN198808-199008

51963BHOOK, TRANSPORT, FRONT RH

main51963-22040iGX81,LX80,MX8#,RX8#..ARL,GEN198808-199302

main51963-22080iMX81,RX8#..V198808-199608

9010508077

main90105-08077

9011906388

main90119-06388

9011906619

main90119-06619

9011912078

main90119-12078

9017912077

main90179-12077

9095001247

main90950-01247

9095001673

main90950-01673

9161961220

main91619-61220

16 parts on this diagram · 2 diagrams in section
