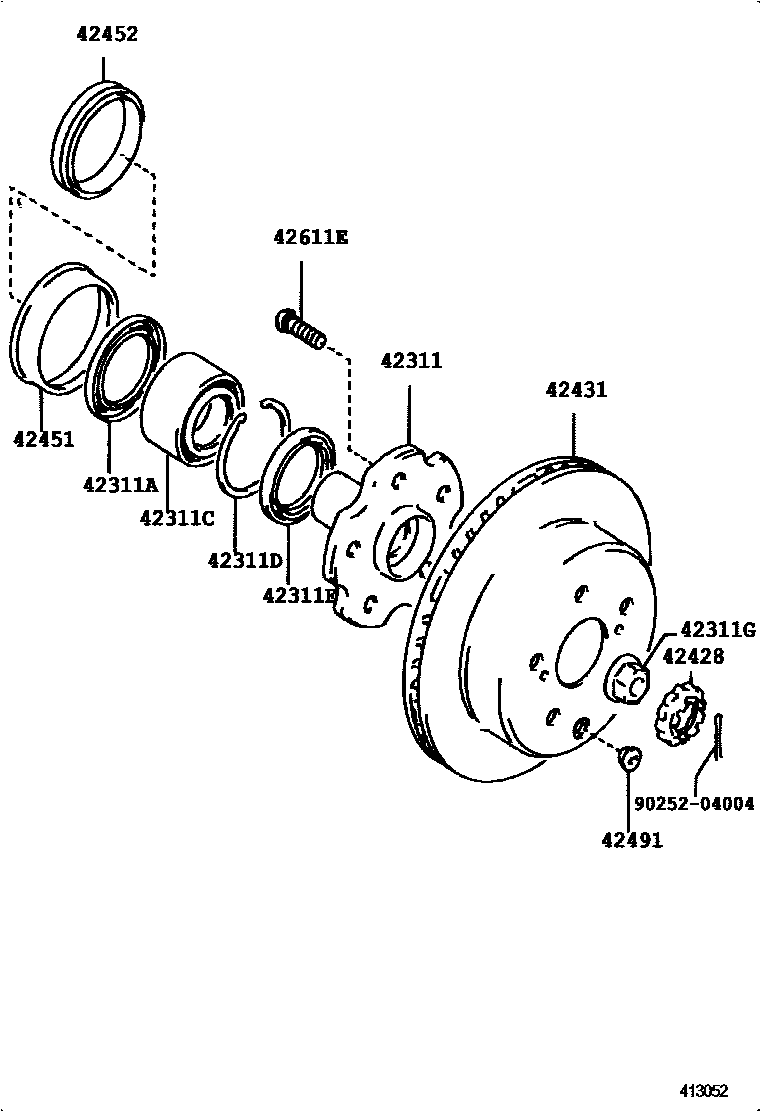

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311SHAFT, REAR AXLE

main42311-22120×2iGX81,MX8#,RX81199008-199302

main42311-22140×2iRX80..5F198808-199302

main42311-22160×2iLX80;RX80..4FC198808-199302

main42311-22170×2iRX81199302-199608

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059×2iLX80,RX80198808-199302

main90311-63001×2iGX81,MX8#,RX81199008-199608

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-43005×2iGX81,MX8#,RX81198808-199008

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-85002×2iGX81,MX8#,RX81198808-199008

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90311-57001×2iGX81,MX8#,RX81199008-199608

42311GNUT(FOR REAR AXLE SHAFT)

main90179-24007×2iGX81,MX8#,RX81198808-198909

main90179-26006×2iRX81199302-199608

42428PLATE, REAR AXLE LOCK NUT

main42428-22010×2iGX81,MX8#,RX81198808-198909

main42428-24010×2iRX81199302-199608

42431DISC, REAR

main42431-22100×2iGX81,MX8#,RX81198808-199008

main42431-22150×2iMX8#..GD,GLX199008-199302

TIRE SIZE 185/70R14

main42431-22210×2iRX81199302-199608

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-14010iGX81,MX8#,RX81199008-199608

42452DEFLECTOR, REAR WHEEL BEARING DUST, NO.2

main42452-14010×2iMX83198808-199302

main42452-14020×2iGX81,MX81,RX81199005-199608

main42452-28020×2iGX81,MX81,RX81199004-199005

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iGX81,MX8#,RX81198808-199608

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iLX80,RX80198808-199302

main90942-02049×10iGX81,MX8#,RX81198808-199008

main90942-02070×10iGX81,MX8#,RX81199212-199608

9025204004

main90252-04004

13 parts on this diagram · 4 diagrams in section
