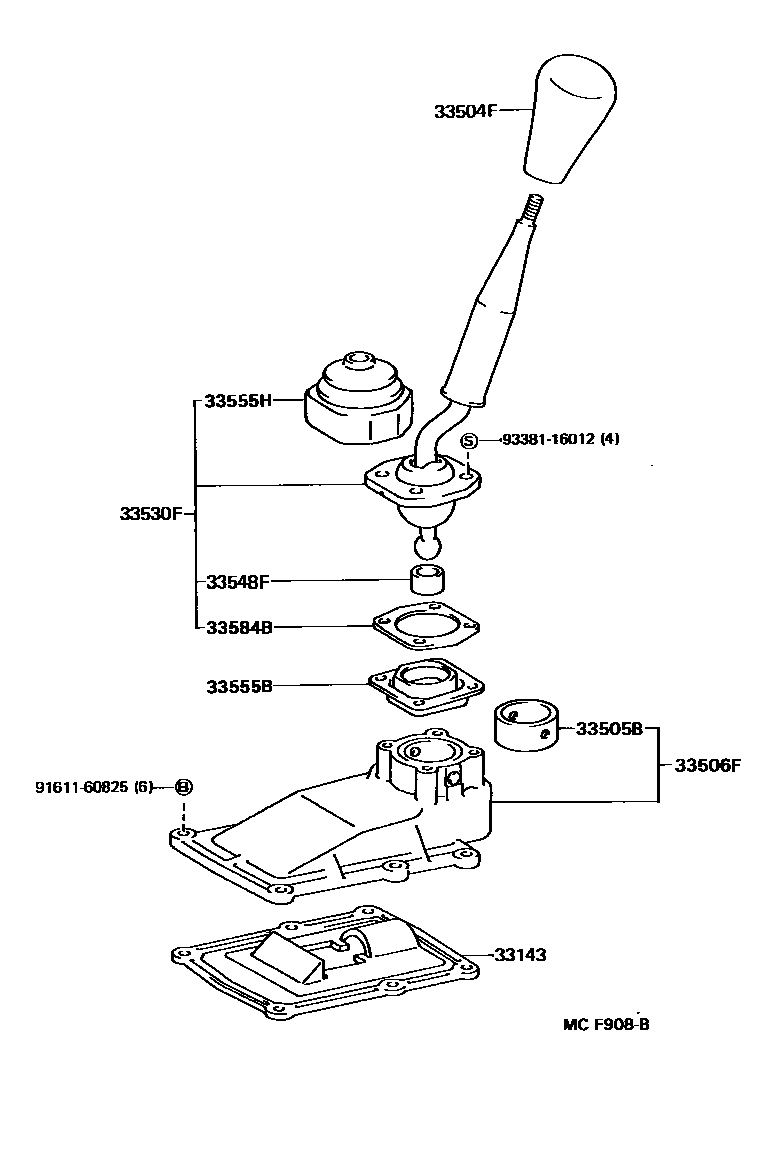

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGX81,LX80,MX81,RX8#..5F198808-199111

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-D1iRX81..5F199308-199608

NEW MAROON,NEW MAROON,TRIM3#

main33504-24010-57iGX81,LX80,MX81,RX8#..5F..(GL,GLX,XL)198908-199008

DARK BLUE,TRIM8#

main33504-24010-58iGX81,LX80,MX81,RX8#..5F..(GL,GLX,XL)198909-199308

NEW MAROON,TRIM3#

main33504-24010-59iGX81,LX80,MX81,RX8#..5F..(GL,GLX,XL)198908-199302

SABLE,TRIM4#

main33504-24010-B0iGX81,LX80,MX81,RX8#..5F..(GL,GLX,XL)199008-199302

MEDIUM GRAY,TRIM1#

main33504-24020-26iMX81..5F..GD198909-199302

SABLE,TRIM4#

sub33504-22140

main33504-24020-34iMX81..5F..GD198909-199008

DARK BLUE,TRIM8#

sub33504-22140

main33504-24020-52iMX81..5F..GD198909-199302

NEW MAROON,TRIM3#

sub33504-22140

main33504-24020-53iMX81..5F..GD199008-199302

MEDIUM GRAY,TRIM1#

sub33504-22140

main33542-22160-02iGX81,MX83,RX80..RHD..4FC198808-199302

NEW MAROON,TRIM3#

main33542-22160-03iGX81,MX83,RX80..RHD..4FC199008-199302

MEDIUM GRAY,TRIM1#

main33542-22160-04iGX81,MX83,RX80..RHD..4FC198808-199008

DARK BLUE,TRIM8#

main33542-22160-06iGX81,MX83,RX80..RHD..4FC198808-199302

SABLE,TRIM4#

main33542-22170-02iLX80,MX81,RX8#..LHD..4FC198808-199308

NEW MAROON,TRIM3#

main33542-22170-03iLX80,MX81,RX8#..LHD..4FC199008-199302

MEDIUM GRAY,TRIM1#

main33542-22170-04iLX80,MX81,RX8#..LHD..4FC198808-199008

DARK BLUE,TRIM8#

main33542-22170-06iLX80,MX81,RX8#..LHD..4FC198808-199302

SABLE,TRIM4#

main33542-22180-02iMX83199008-199302

AUSTRALIA PACKAGE,NEW MAROON,TRIM3#

main33542-22180-06iMX83199008-199302

AUSTRALIA PACKAGE,SABLE,TRIM4#

main33542-22180-13iMX83199008-199302

AUSTRALIA PACKAGE,MEDIUM GRAY,TRIM1#

main33542-30260-D0iRX81..4FC199308-199608

MAROON,TRIM3#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-20010iRX81..5F199406-199608

main33505-22010iGX81,LX80,MX81..5F198808-199111

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-12030iLX80..5F198808-199302

main33570-22070iRX8#..5F198808-199111

main33570-22080iGX81,MX81..5F198808-199302

main33570-30010iRX8#..5F199111-199608

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-22180iGX81..RHD..5F198808-198908

sub33530-22181

main33530-22190iGX81,MX81..LHD..5F198808-199111

main33530-22191iGX81,MX81..5F199111-199302

main33530-22260iRX80..RHD..5F198808-199111

main33530-22261iRX80..RHD..5F199111-199302

main33530-22270iLX80,RX8#..LHD..5F198808-199111

main33530-22271iLX80,RX8#..LHD..5F199111-199608

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGX81,LX80,MX81,RX8#..5F198808-199109

main33548-35010iGX81,LX80,MX81,RX8#..5F199109-199203

33555BOOT, SHIFT LEVER

main33555-22080iGX81,LX80,MX8#,RX8#..4FC198808-199608

33555BBOOT, SHIFT & SELECT LEVER

main33555-22090iGX81,MX81..5F198808-198904

33555HBOOT, SHIFT & SELECT LEVER, NO.4

main33555-22050iGX81,LX80,MX81,RX8#..5F198808-199608

33584BGASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGX81,LX80,MX81,RX8#..5F198808-199608

9161160825

main91611-60825

9338116012

main93381-16012

12 parts on this diagram · 4 diagrams in section
