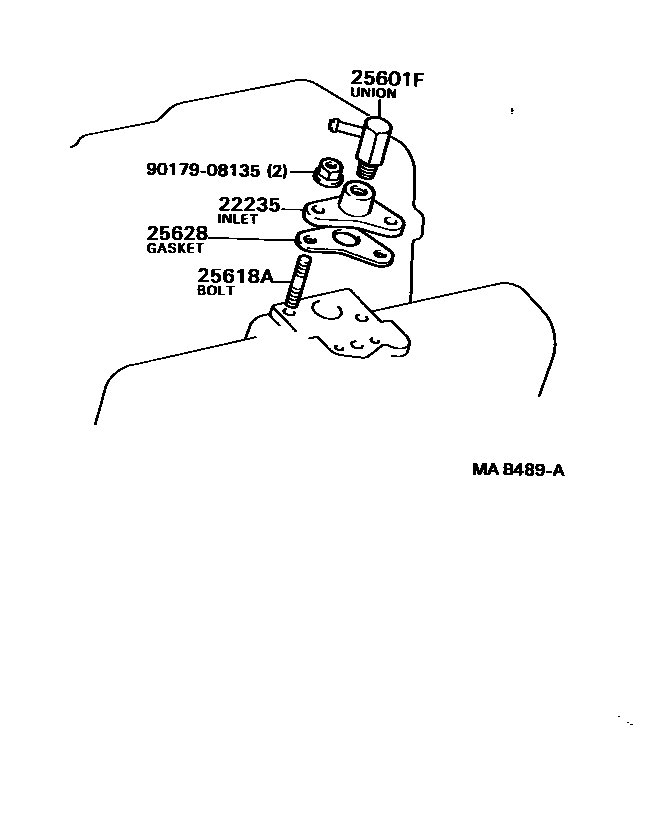

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

22235INLET, AUXILIARY AIR

main22235-43010i5ME..MX81198808-199302

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i22R..RX8#..4FC..V198808-199608

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027i5ME..MX81198808-199302

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025×2i5ME..MX81198808-199302

25628GASKET, EGR INLET

main25628-35030i22R..RX8#..4FC..V198808-199608

main25628-42010i7MGE..MX83198808-198908

main25628-42020i7MGE..MX83198908-199302

main25628-45020i5ME..MX81198808-199302

sub25628-43040

9017908135

main90179-08135

6 parts on this diagram · 3 diagrams in section
