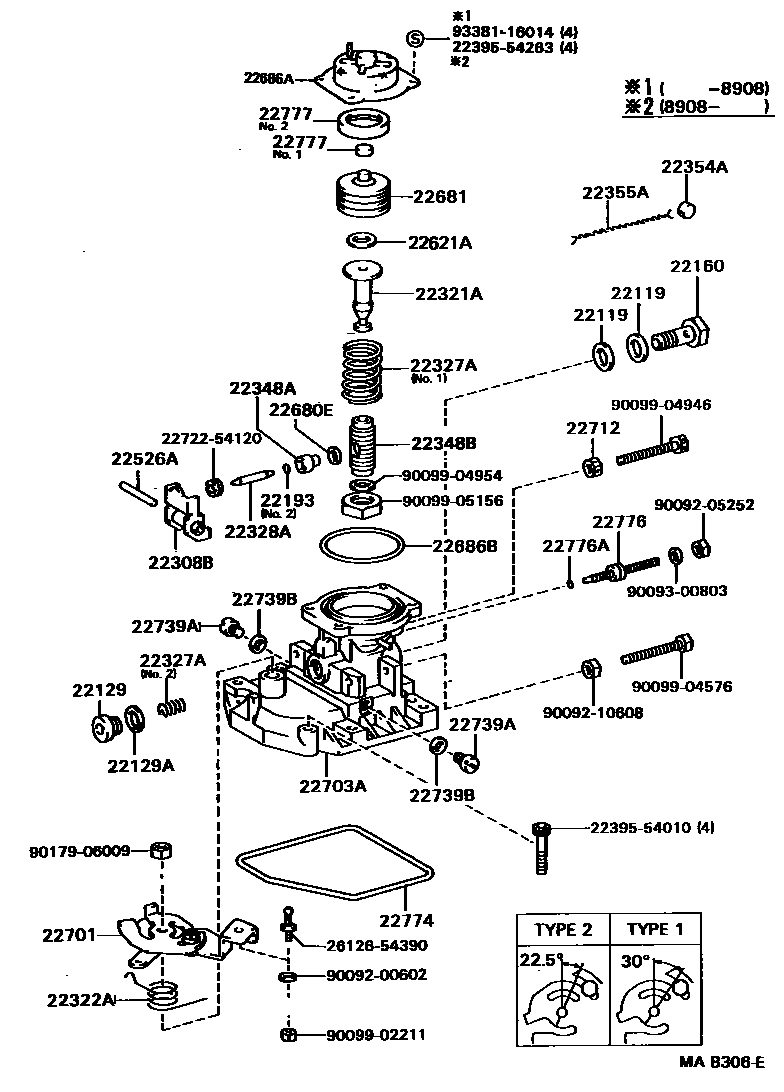

INJECTION PUMP BODY
22119WASHER, AIR BLEEDER NIPPLE
22129PLUG, SCREW
22129AWASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)
22160SCREW SUB-ASSY, OVERFLOW
22193RING, O(FOR LEVER CONNECTING PIN)
NO.2
NO.1
22308BLEVER SUB-ASSY, CONTROL
22321AROD, PUSH
22327ASPRING(FOR BELLOWS)
NO.1
NO.2
22328APIN, LEVER CONNECTING
22348ABUSHING, GUIDE
22348BBUSHING, GUIDE(FOR LEVER CONNECTING PIN)
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22526APIN, LEVER SUPPORT
22621AWASHER, TIMER ADJUSTING
T=1.0
T=0.2
T=0.7
T=0.9
T=0.3
22680EWASHER, COPPER PLATE
22681BELLOWS SUB-ASSY, PNEUMATIC
22686ACOVER, PNEUMATIC BELLOWS
sub22682-54351
22686BRING, O(FOR BELLOWS COVER)
22701LEVER SUB-ASSY, ADJUSTING
TYPE 1
TYPE 2
TYPE 1
TYPE 2
22703ACOVER SUB-ASSY, GOVERNOR
22712NUT, ROCK
22739BOLT, GOVERNOR LINK SUPPORT
22739ABOLT, GOVERNOR LINK SUPPORT NO.2
22739BWASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
22777CAP, RUBBER(FOR BELLOWS)
NO.1
NO.2
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2272254120NUT, GOVERNOR SHAFT ROCK
main22722-54120
2612654390JOINT(FOR VENTURI)
main26126-54390
9009200602
main90092-00602
9009205252
main90092-05252
9009210608
main90092-10608
9009300803
main90093-00803
9009902211
main90099-02211
9009904576
main90099-04576
9009904946
main90099-04946
9009904954
main90099-04954
9009905156
main90099-05156
9017906009
main90179-06009
9338116014
main93381-16014
45 parts on this diagram · 3 diagrams in section
