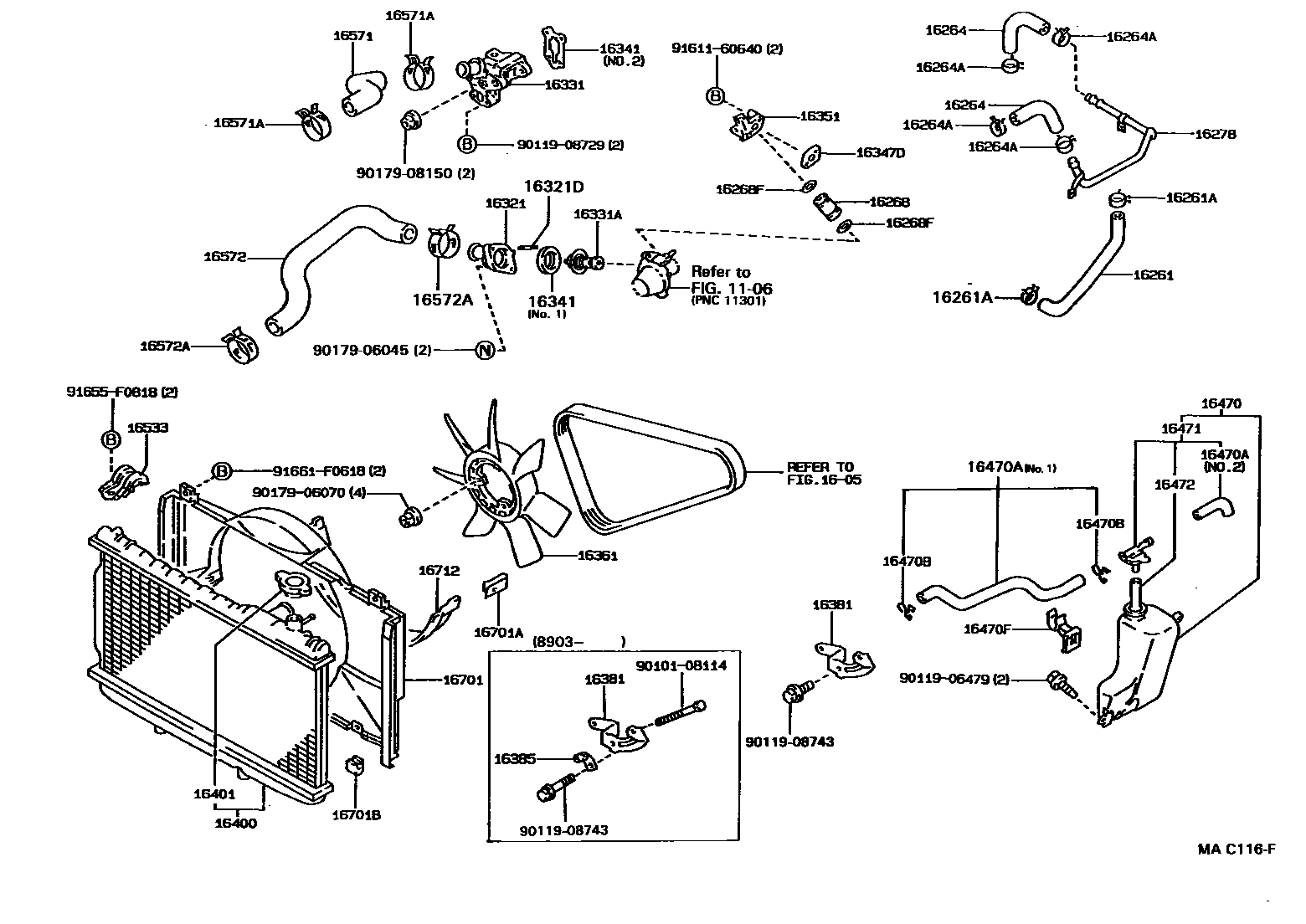

RADIATOR & WATER OUTLET
1106
1605
16261HOSE, WATER BY-PASS
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321INLET, WATER
16321DBOLT, STUD(FOR WATER INLET)
16331ATHERMOSTAT
*WAX 88-100
*WAX 88-100
*WAX 82-95
*WAX 88-100
16341GASKET, WATER OUTLET
NO.1
NO.2
16347DGASKET, WATER BY-PASS
16351OUTLET, WATER BY-PASS
sub16351-70011
16361FAN
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
HEAT PROOFING PACKAGE
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
*H,L=400,NO.1
NO.1
NO.1
NO.2
NO.2
L=600
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470FCLAMP, RADIATOR RESERVE TANK HOSE
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
L=600
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
ENGINE SIDE
PUMP SIDE
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
NO.1
NO.2
16712SHROUD, FAN, NO.2
W(AIR CONDITIONER)
9010108114
main90101-08114
9011906479
main90119-06479
9011908729
main90119-08729
9011908743
main90119-08743
9017906045
main90179-06045
9017906070
main90179-06070
9017908150
main90179-08150
9161160640
main91611-60640
91655F0818
main91655-F0818
91661F0618
main91661-F0618
46 parts on this diagram · 7 diagrams in section
