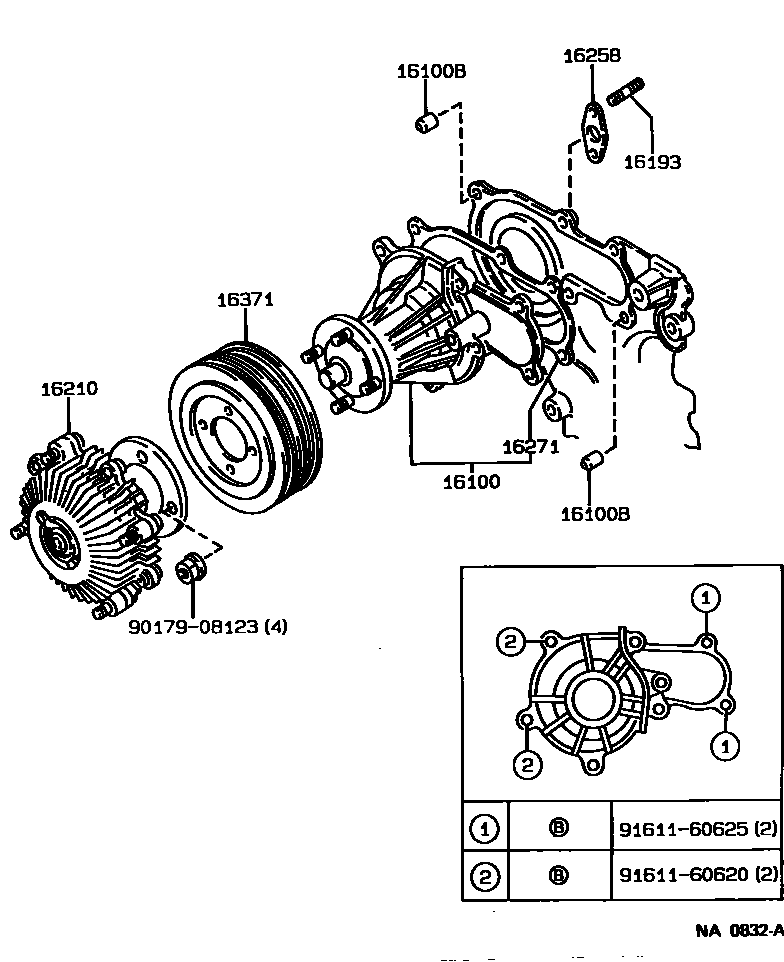

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-39346i22R..RX8#198808-199608

main16100-49755i7MGE..MX83198808-199008

sub16100-49756

main16100-49795i5ME..MX81198808-199002

main16100-49796i5ME..MX81199002-199302

main16100-49805i7MGE..MX83199008-199302

main16100-59155i2L..LX80198808-199302

sub16100-59255

main16100-79115i1GFE..GX81198808-199007

main16100-79116i1GFE..GX81199007-199302

sub16100-79117

sub90119-08B68

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040×2i1GFE..GX81198808-199302

main16185-70010×2i7MGE..MX83198808-199302

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GFE..GX81198808-199302

main16193-41031i5ME..MX81198808-199302

L=42

main16193-45100×5i5ME..MX81199008-199302

L=23.5

16210COUPLING ASSY, FLUID

main16210-38050i22R..RX8#198808-199608

main16210-42060i5ME,7MGE..MX8#198808-199302

main16210-54130i2L..LX80198808-199302

main16210-70040i1GFE..GX81198808-199302

16258GASKET(FOR HEATER RETURN)

main16258-15011i1GFE..GX81198808-199009

main16258-70020i1GFE..GX81199009-199302

16271GASKET, WATER PUMP

main16124-70041i1GFE..GX81199102-199302

main16124-88300i1GFE..GX81198808-199102

main16271-41011i5ME..MX81198808-199001

main16271-43010i5ME..MX81199001-199302

main16271-54020i2L..LX80198808-199302

sub16271-54030

16371PULLEY, FAN

main16173-35020i22R..RX8#198808-199608

main16173-42020i7MGE..MX83198808-199302

main16173-43040i5ME..MX81198808-199302

main16371-54030i2L..LX80198808-199302

main16371-70060i1GFE..GX81198808-199302

sub16371-70061

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

10 parts on this diagram · 5 diagrams in section
