13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54030i198808-199302

main13503-70060i198808-198907

sub13503-70061

main13503-70061i198907-199302

sub13503-70080

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-42020i198808-199302

main13505-54020i198808-199111

sub13505-54021

main13505-54021i199111-199302

main13505-70030i198808-199302

13505ASPRING, TENSION(FOR IDLER)

main90506-12054i198808-199302

sub90506-13003

main90506-18060i198808-199302

main90507-18008i198808-199302

13511CAMSHAFT

main13501-42030i198808-199302

main13501-45030i198808-199302

main13501-54050i198808-199302

main13501-70070i198808-199302

main13511-35010i198808-199608

13512CAMSHAFT, NO.2

main13502-42010i198808-199302

main13502-70030i198808-199302

13522GEAR, PUMP DRIVE SHAFT

main13522-41011i198808-199302

13522PPULLEY, PUMP DRIVE SHAFT

main13524-42010i198808-199302

main13524-70040i198808-199302

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-35020i198808-199608

main13523-43010i198808-199302

13523PPULLEY, CAMSHAFT TIMING

main13523-42010i198808-199302

main13523-54040i198808-199302

main13523-70040i198808-199302

13529GEAR, CAMSHAFT SUB

main13529-70010i198808-199302

13568BELT, TIMING

main13568-42010i198808-199004

UNITTA

sub13568-42011

main13568-42011i199004-199205

UNITTA

sub13568-49015

main13568-49015i199205-199302

main13568-54070i198808-199205

sub13568-59065

main13568-59065i199205-199302

sub13568-59066

main13568-70080i198808-199205

sub13568-79085

main13568-79085i199205-199302

13579WASHER, CAMSHAFT TIMING GEAR BOLT

main13579-70010i198808-199302

main90201-16328i198808-199302

13711VALVE, INTAKE

main13711-35051i198808-199608

main13711-42020i198808-199302

main13711-43020i198808-199302

main13711-54020i198808-199302

main13711-70050i198808-199302

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02015i198808-199008

EXHAUST

main90913-02015i199008-199302

EXHAUST SIDE

main90913-02022i198808-199008

INTAKE

main90913-02022i199008-199302

INTAKE SIDE

main90913-02053i198808-199302

sub90913-02110

main90913-02062i198808-199302

main90913-02071i198808-199302

main90913-02072i198808-199211

sub90913-02102

main90913-02102i199211-199608

13711BSPRING, COMPRESSION(FOR INNER)

main90501-26001i198808-199302

main90501-31007i198808-199302

sub90501-29041

main90501-33011i198808-199302

main90504-49001i198808-199302

13715VALVE, EXHAUST

main13715-17010i199003-199302

main13715-35040i198808-199608

main13715-42010i198808-199302

main13715-45020i198808-199302

main13715-54040i198808-199003

main13715-70050i198808-199302

13734SEAT, VALVE SPRING

main13734-16010i198808-199302

main90201-16023i198808-199302

13741RETAINER, VALVE SPRING

main13741-16010i198808-199302

main13741-38010i198808-199608

main13741-41010i198808-199302

main13741-54020i198808-199302

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i198808-199608

main90913-03014i198808-199302

main90913-03021i198808-199302

13751LIFTER, VALVE

main13751-16010i198808-199302

main13751-54010i198808-199302

13751DPAD, VALVE ADJUSTING

main13753-16020i198808-199302

T=2.50

main13753-16040i198808-199302

T=2.55

main13753-16060i198808-199302

T=2.60

sub13753-16351

main13753-16080i198808-199302

T=2.65

sub13753-16371

main13753-16100i198808-199302

T=2.70

sub13753-16401

main13753-16120i198808-199302

T=2.75

sub13753-16421

main13753-16140i198808-199302

T=2.80

sub13753-16451

main13753-16160i198808-199302

T=2.85

sub13753-16471

main13753-16180i198808-199302

T=2.90

sub13753-16501

main13753-16200i198808-199302

T=2.95

sub13753-16521

main13753-16220i198808-199302

T=3.00

sub13753-16551

main13753-16240i198808-199302

T=3.05

sub13753-16571

main13753-16260i198808-199302

T=3.10

sub13753-16601

main13753-16280i198808-199302

T=3.15

sub13753-16621

main13753-16300i198808-199302

T=3.20

sub13753-16651

main13753-16320i198808-199302

T=3.25

main13753-16340i198808-199302

T=3.30

main13753-16660i198808-199302

T=2.00

main13753-16670i198808-199302

T=2.05

main13753-16680i198808-199302

T=2.10

main13753-16690i198808-199302

T=2.15

main13753-16700i198808-199302

T=2.20

main13753-16710i198808-199302

T=2.25

main13753-16720i198808-199302

T=2.30

main13753-16730i198808-199302

T=2.35

main13753-16740i198808-199302

T=2.40

main13753-16750i198808-199302

T=2.45

1501

1709

9010510212

main90105-10212

9011908936

main90119-08936

9011910741

main90119-10741

9017908071

main90179-08071

9020642001

main90206-42001

9052041004

main90520-41004

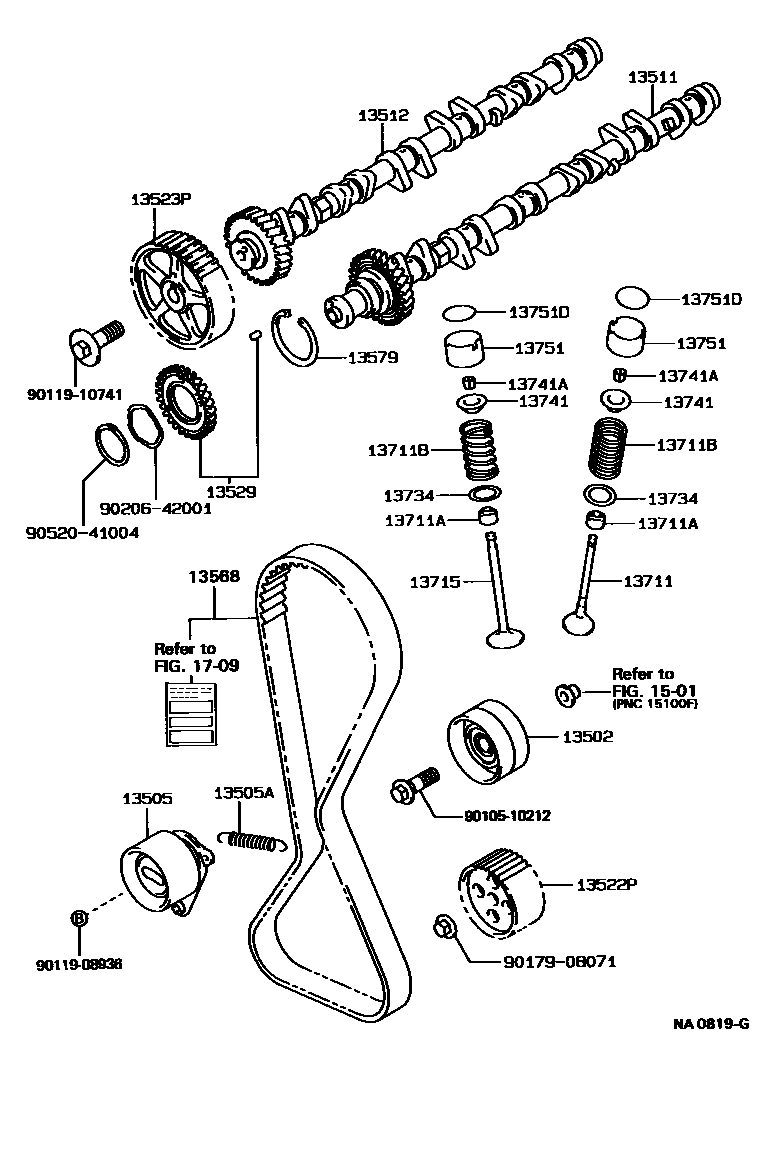

CAMSHAFT & VALVE
