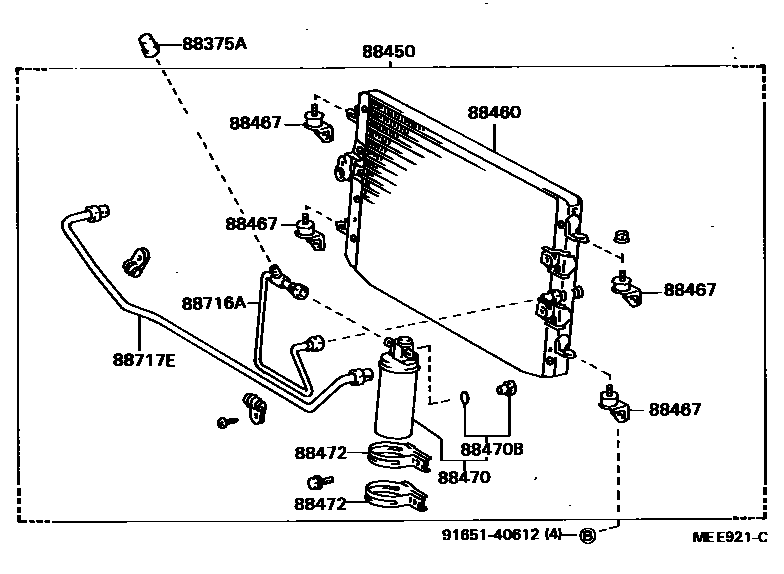

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0005 1 0008 1 0009 1 0010 1 0012 1 0013 1 0015 1 0017 1 0019 1 0020 1 0021 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iMX73..GEN,ME;MX73..GLX..(ARL,SA);GX71,RX70,71,72,YX70198703-198808

main88375-30270iRX72..ME;MX73..EFI;MX73..GLX..TWC;GX71,RX70,71,YX70198408-198703

88450CONDENSER ASSY, W/RECEIVER

main88460-22230iGX71,MX73..RHD198408-198501

main88460-22231iGX71,MX73..GLX..SA198608-198808

main88460-22240iRX70..RHD198408-198501

main88460-22241iRX70,72,YX70..RHD198501-198808

sub88460-22243

main88460-22250iGX71,MX7#..LHD198408-198501

main88460-22251iGX71,MX7#..LHD198501-198504

sub88460-22310

main88460-22260iRX70..LHD198408-198501

main88460-22261iRX72..ME;RX70,71..LHD198501-198703

main88460-22263iRX7#..LHD198703-198808

main88460-22294iMX73..GLX..ARL;GX71,MX73..RHD..(GEN,SA)198703-198808

88460CONDENSER ASSY, COOLER

main88460-22270iGX71,MX7#198408-198501

main88460-22271iGX71,MX73..GLX..SA198608-198808

W/MANUAL *AIC

main88460-22280iLX7#,RX70198408-198501

main88460-22281iRX7#,YX70198608-198808

main88460-22301iMX73..GD,GT,GTX198504-198808

main88460-22320iLX70198608-198808

88467CUSHION, COOLER CONDENSER, NO.1

main88467-22060×4iMX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70198408-198608

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iMX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70198408-198608

main88470-22010iRX7#..LHD198804-198808

88470BBOLT, FUSE

main88475-12020iMX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70198408-198608

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090×2iMX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70198408-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22430iGX71,MX73..GLX..SA198608-198808

W/MANUAL *AIC

main88716-22450iRX72..ME;RX70,71,YX70198608-198703

main88716-22451iRX7#,YX70198703-198804

main88716-22580iGX71,MX7#..LHD..(GL,GLX)198508-198608

main88716-22581iGX71,MX73..LHD198608-198703

main88716-22582iGX71,MX73..LHD198703-198808

main88716-22631iGX71,MX73..RHD..GLX..(ARL,GEN)198608-198808

W/*AAC

main88716-22632iMX73..GLX..ARL;GX71,MX73..RHD..(GEN,SA)198703-198808

main88716-22641iLX70198608-198808

main88716-2A100iRX7#..LHD198804-198808

88717EPIPE, COOLER REFRIGERANT SUCTION, E

main88717-22230iRX70,72,YX70..RHD198408-198808

main88717-22250iGX71,MX7#..LHD..(GL,GLX)198504-198508

main88717-22310iGX71,MX7#..LHD..(GL,GLX)198508-198608

main88717-22311iMX73..ME198608-198803

main88717-22312iMX73..ME198803-198808

9165140612

main91651-40612

10 parts on this diagram · 14 diagrams in section
