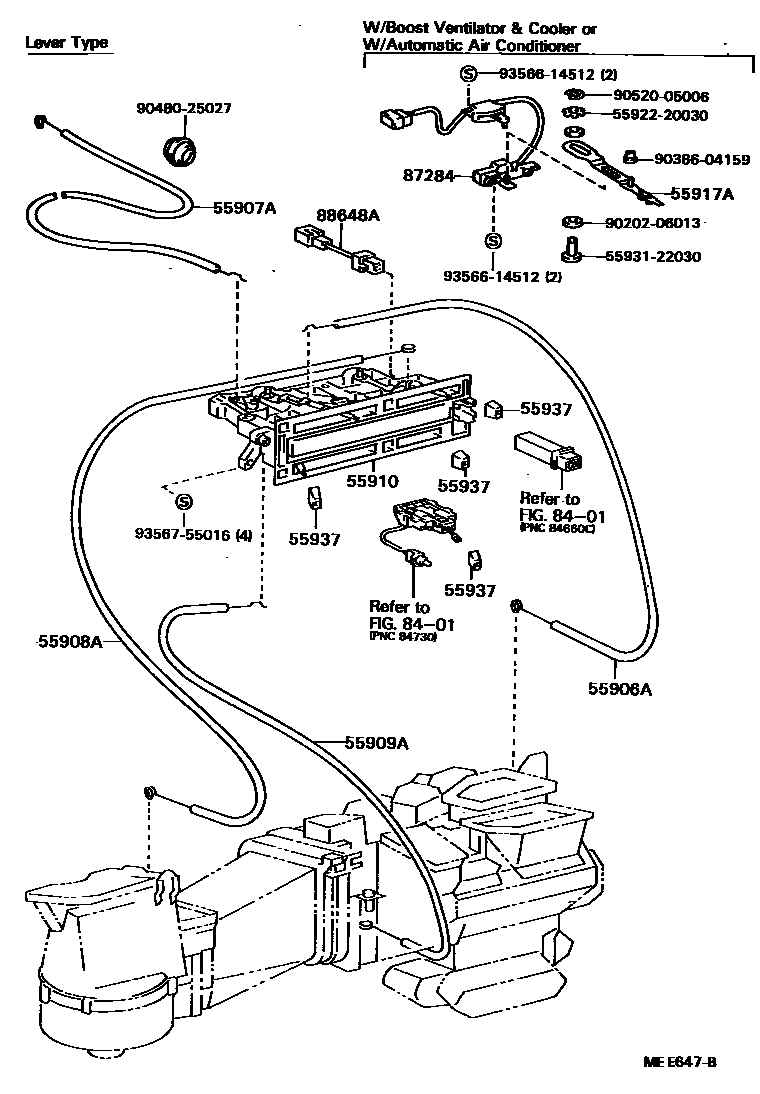

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-22100iGX71,RX70,72,YX70..RHD198408-198808

main55906-22100iRX70..XL..ME198408-198508

W/*BV ONLY

main55906-22110iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-22160iMX73..XL..SA198408-198808

main55907-22170iGX71,LX7#,RX70..LHD198408-198808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-22050iMX73..RHD..(ARL,EUR)198408-198808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-22040iGX71,LX7#,RX70,YX70198408-198808

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-22280iMX73..GLX..SA198411-198808

W/PUSH TYPE *AAC

main55910-22290iGX71,RX70,72,YX70..SA198408-198808

W/*HEA,W/*HEA & COOLER

main55910-22290iMX73..XL..SA198701-198808

main55910-22300iGX71..RHD198408-198808

W/*AAC

main55910-22300iRX70,72..RHD..GEN198408-198808

W/*BV & COOLER

main55910-22310iRX70,72..RHD..GEN198408-198808

W/*BV ONLY

main55910-22320iGX71,LX70,MX73,RX7#..LHD198408-198808

W/*HEA

main55910-22330iGX71..LHD..GEN198408-198608

W/*AAC

main55910-22330iMX7#..LHD..EUR198408-198608

W/LEVER TYPE *AAC

main55910-22340iRX70..XL..ME198408-198808

W/*BV

main55910-22350iMX73..LHD..EUG198408-198608

W/*HEA

main55910-22360iRX70..XL..ME198408-198808

W/*BV & COOLER

main55910-22380iGX71..GEN198608-198808

W/*AAC

main55910-22390iMX73..GD,GTX198612-198808

W/*AAC

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-22070iRX70,72..RHD..GEN198408-198808

W/*BV & COOLER

main55917-22080iLX70..GEN198408-198808

W/*BV & COOLER

55937KNOB, HEATER CONTROL LEVER

main55905-22150iMX73..GLX..SA198411-198808

W/PUSH TYPE *AAC

main55905-22151iMX73..(GD,GLX,GTX)..(GEN,ME)198608-198808

W/*AAC

main55905-30081iMX73..ARL198608-198808

main55905-30081iGX71,RX70,YX70..RHD198408-198608

W/LEVER TYPE

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-22040iMX73..GLX..SA198411-198808

W/PUSH TYPE *AAC

main88032-22050iMX73..RHD..GLX..(ARL,EUR)198408-198808

W/*AAC

main88032-22051iGX71..GEN198608-198808

W/*AAC

main88032-22060iMX7#..LHD198408-198608

W/LEVER TYPE *AAC

main88032-22060iGX71..LHD..GEN198408-198608

W/*AAC

main88032-22070iRX70,72..RHD..GEN198408-198808

W/*BV & COOLER

main88032-22080iRX70..XL..ME198408-198808

W/*BV & COOLER

88648AWIRING, COOLER

main88648-22140iMX73..ARL198608-198808

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5593122030CLAMP, HEATER CONTROL WIRE

main55931-22030

9020206013

main90202-06013

9038604159

main90386-04159

9048025027

main90480-25027

9052005006

main90520-05006

9356614512

main93566-14512

9356755016

main93567-55016

18 parts on this diagram · 8 diagrams in section
