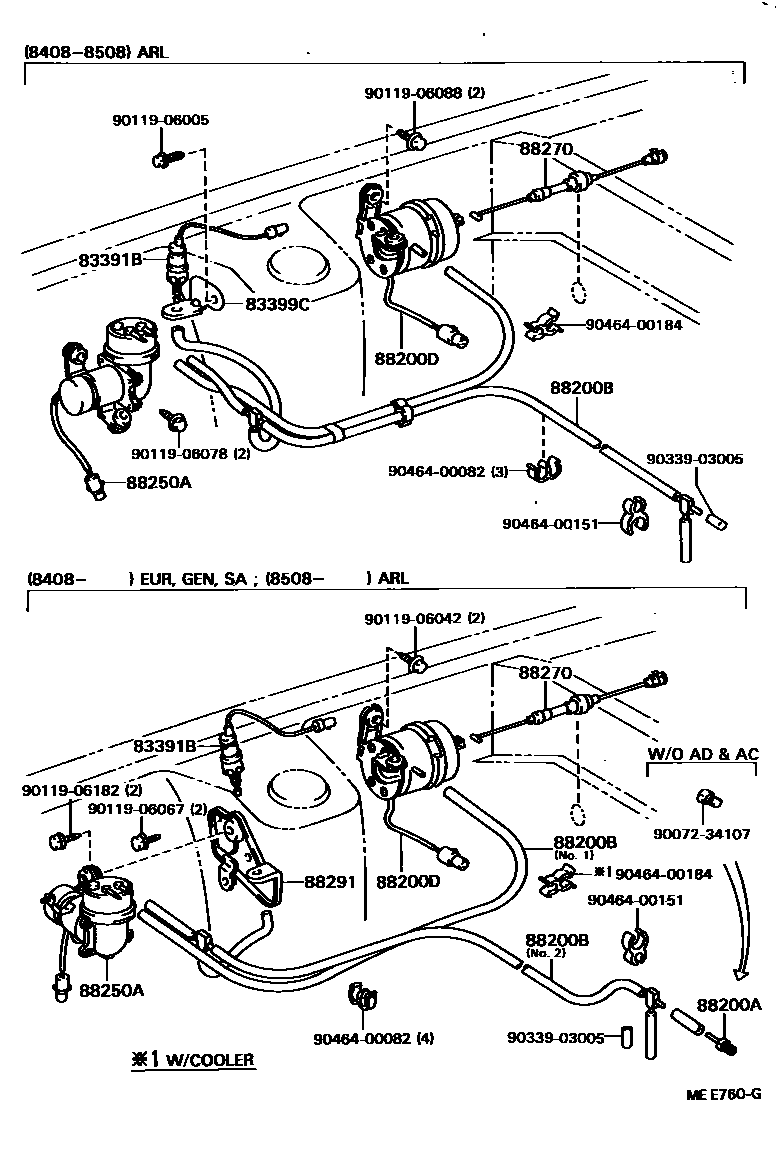

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0005 1

83391BSWITCH, AUTO DRIVE VACUUM

main83391-22040iMX73..GD,GLX,GT,GTX198608-198808

83399CBRACKET, VACUUM SWITCH

main83399-20070iMX73..ARL198408-198508

sub83399-27040

main83399-22011iGX71..SA198502-198808

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51093iMX73..EUR,GEN,SA198408-198608

UNION

main90414-04002iMX73..LHD..EUG198408-198608

WAY

88200BHOSE, CRUISE CONTROL VACUUM

main88283-22040iMX73..GLX..ARL198508-198608

NO.2

main88283-22050iGX71..ME198408-198608

NO.3

main88283-22060iMX73..LHD..EUG198408-198608

NO.2

main88283-22070iMX73..ARL198408-198508

main88283-22090iMX73..GD198411-198808

NO.3

main88283-22100iGX71..SA198502-198808

main90445-08206iMX73..LHD..EUG198408-198608

NO.3

main90445-08209iMX73..LHD..EUG198408-198505

L=1500,NO.1

main90445-08218iMX73..LHD..EUG198505-198608

L=1650,NO.1

sub90999-92007

main90445-08223iGX71..ME198408-198608

NO.1

main90445-08249iMX73..ME198411-198608

NO.1

main90447-04097iMX73..GD198608-198808

NO.1

main95411-10160iMX73..GLX..ARL198508-198608

*H,L=510,NO.1

sub90999-92003

main95411-19930iMX73..GD198408-198808

*H,L=90,MARK=#*,NO.2

sub90999-92002

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-22110iMX73..RHD..GLX198408-198608

sub88200-22210

sub91655-40616

main88200-22111iMX73..GLX..SA198708-198801

main88200-22112iMX73..GLX..SA198801-198808

main88200-22120iMX73..LHD..EUG198408-198608

sub88200-22121

main88200-22130iGX71..ME198408-198608

sub88200-22131

main88200-22140iMX73..ME198411-198608

sub88200-22141

main88200-22150iMX73..GLX..(ARL,GEN)198608-198609

sub88200-22200

sub91655-40616

main88200-22151iMX73..GLX..(ARL,GEN)198609-198808

sub88200-22152

sub91655-40616

main88200-22170iMX73..GD198608-198801

main88200-22171iMX73..GD198801-198808

88250APUMP ASSY, CRUISE CONTROL

main88250-22010iMX73..GLX198608-198804

main88250-22011iMX73..GLX198804-198808

main88250-22021iMX73..LHD..EUG198408-198608

sub88250-22022

main88250-22030iMX73..HT198504-198801

main88250-22031iMX73..GD198801-198808

main88250-22040iMX73..ARL198408-198508

sub88250-22041

main88250-22050iGX71..SA198502-198801

main88250-22051iGX71..SA198801-198808

88270CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)

main83731-22010iGX71..SA198502-198808

main83731-22011iMX73..GLX..(ARL,GEN)198608-198808

main83731-22030iMX73..LHD..EUG198408-198608

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-22070iMX73..GLX198608-198808

main88291-22080iMX73..LHD..EUG198408-198608

main88291-22090iMX73..GD198408-198808

main88291-22100iGX71..SA198502-198808

9007234107

main90072-34107

9011906005

main90119-06005

9011906042

main90119-06042

9011906067

main90119-06067

9011906078

main90119-06078

9011906088

main90119-06088

9011906182

main90119-06182

9033903005

main90339-03005

9046400082

main90464-00082

9046400151

main90464-00151

9046400184

main90464-00184

19 parts on this diagram · 4 diagrams in section
