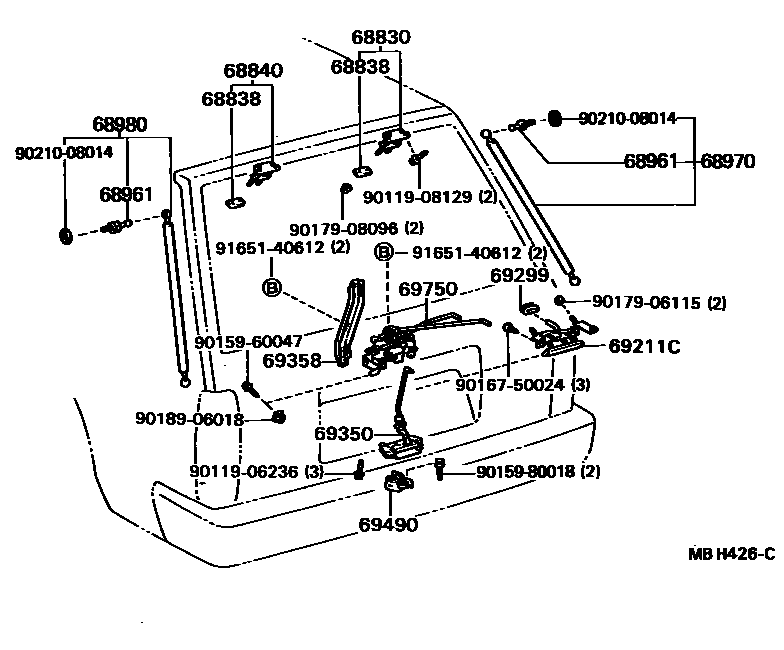

BACK DOOR LOCK & HANDLE

68830HINGE ASSY, BACK DOOR, RH

main68810-23010iLX70,MX72,RX70,72..WG198504-198808

sub68810-23011

main68810-91704iLX70,MX72,RX70..WG198411-198504

sub68810-23010

68838PAD, BACK DOOR HINGE, NO.1

main68838-23010iLX70,MX72,RX70,72..WG198504-198808

sub68838-23011

main68838-91701iLX70,MX72,RX70..WG198411-198504

68840HINGE ASSY, BACK DOOR, LH

main68810-23010iLX70,MX72,RX70,72..WG198504-198808

sub68810-23011

main68810-91704iLX70,MX72,RX70..WG198411-198504

sub68810-23010

68961BOLT, BACK DOOR STAY

main68961-12010iLX70,MX72,RX70..WG198411-198501

main68961-23010iLX70,MX72,RX70,72..WG198501-198808

68970STAY ASSY, BACK DOOR, RH

main68950-29305iRX70..WG..XL..(GEN,ME)198411-198505

sub68950-29395

sub68960-29235

main68950-29315iRX70..WG..(GEN,SA);LX70,MX72,RX70..WG..GL198411-198505

W/RR WIPER

sub68950-29405

sub68960-29245

main68950-29395iRX70,72..WG..XL..(GEN,ME)198505-198808

main68950-29405iRX70..WG..GL;RX72..WG..4FC;RX72..WG..5F..GL;RX72..WG..5F..(GEN,SA);LX70,MX72,RX70..WG..(EUR,GEN,SA)198505-198808

W/RR WIPER

68980STAY ASSY, BACK DOOR

main68950-29305iRX70..WG..XL..(GEN,ME)198411-198505

sub68950-29395

sub68960-29235

main68950-29315iRX70..WG..(GEN,SA);LX70,MX72,RX70..WG..GL198411-198505

W/RR WIPER

sub68950-29405

sub68960-29245

main68960-29235iRX70,72..WG..XL..(GEN,ME)198505-198808

main68960-29245iRX70..WG..GL;RX72..WG..4FC;RX72..WG..5F..GL;RX72..WG..5F..(GEN,SA);LX70,MX72,RX70..WG..(EUR,GEN,SA)198505-198808

W/RR WIPER

69211CHANDLE, BACK DOOR OUTSIDE

main69209-23010iLX70,MX72,RX70,72..WG198411-198808

69299GROMMET, BACK DOOR HANDLE

main69299-91701iLX70,MX72,RX70,72..WG198411-198808

69350LOCK ASSY, BACK DOOR

main69350-23010iLX70,MX72,RX70,72..WG198411-198808

69358PROTECTOR, BACK DOOR LOCK

main69358-23010iLX70,MX72,RX70,72..WG198411-198808

69490STRIKER ASSY, BACK DOOR LOCK

main69430-23010iLX70,MX72,RX70,72..WG198411-198808

69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL

main69790-23010iRX70..WG..XL..(GEN,ME)198411-198808

main69790-23020iRX70,72..WG..SA;LX70,MX72,RX70,72..WG..GL198411-198808

9011906236

main90119-06236

9011908129

main90119-08129

9015960047

main90159-60047

9015980018

main90159-80018

9016750024

main90167-50024

9017906115

main90179-06115

9017908096

main90179-08096

9018906018

main90189-06018

9021008014

main90210-08014

9165140612

main91651-40612

22 parts on this diagram · 1 diagram in section
