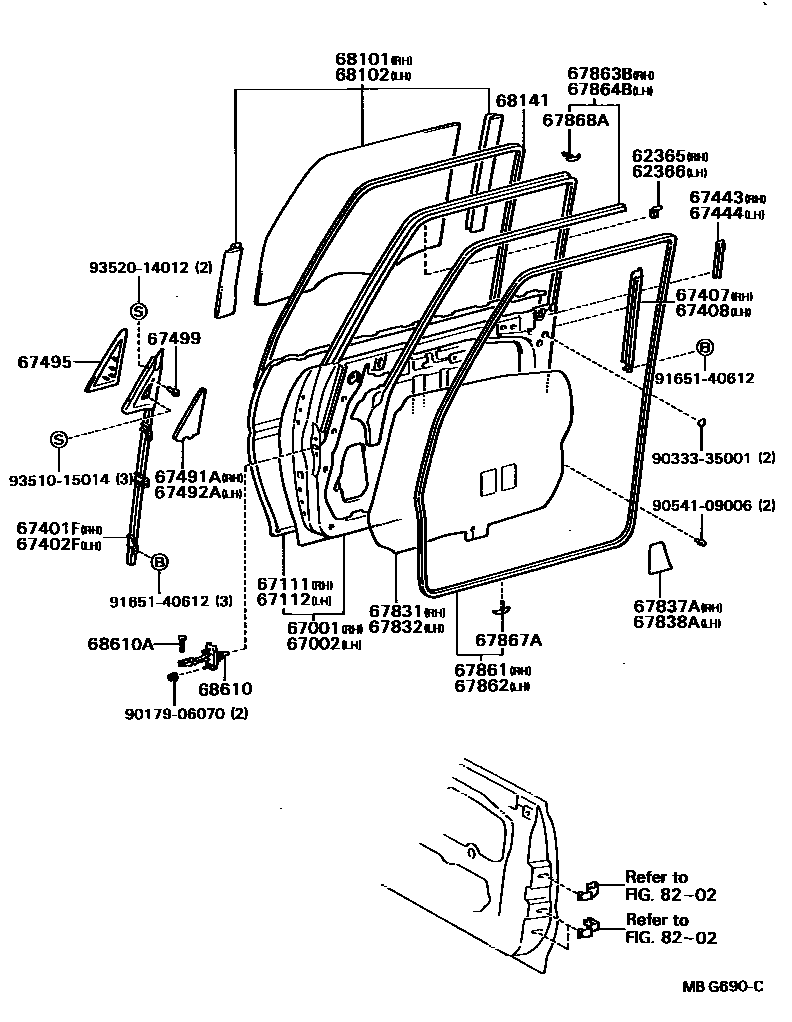

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62365CLIP, DOOR WINDOW GLASS, FRONT RH

main62369-22020iMX73..GL..ARL;MX73..GLX..(ARL,EUR)198408-198808

W/FRAME MOULDING

main62369-22030iMX73..XL198408-198808

W/O FRAME MOULDING

main62369-22040iGX71,LX70,RX7#..(SED,WG)..(GEN,ME)198608-198808

W/FRAME MOULDING

62366CLIP, DOOR WINDOW GLASS, FRONT LH

main62369-22020iGX71,LX70,MX73,RX70..(SED,WG)..(GEN,ME,SA)198408-198808

W/FRAME MOULDING

main62369-22030iMX73..XL198408-198808

W/O FRAME MOULDING

main62369-22040iGX71,LX70,RX7#..(SED,WG)..(GEN,ME)198608-198808

W/FRAME MOULDING

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22220iMX73,RX72..(SED,WG)..ME198408-198808

main67001-22220iGX71,MX73,RX70..(SED,WG)..ME198408-198508

SAUDI ARABIA SPEC

main67001-22230iGX71,MX73,RX70..(SED,WG)..ME198408-198508

EXCL/SAUDI ARABIA

main67001-22230iGX71,LX7#,MX7#,RX7#,YX70..EUR,GEN,SA198408-198808

main67001-22280iGX71,MX73,RX70..HT198504-198508

SAUDI ARABIA SPEC

main67001-22280iGX71,MX73,RX70,72..HT198508-198808

main67001-22290iGX71,MX73,RX70..HT198504-198508

EXCL/SAUDI ARABIA

sub67001-22280

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22220iGX71,MX73,RX70..(SED,WG)..ME198408-198508

SAUDI ARABIA SPEC

main67002-22220iMX73..ARL198408-198808

main67002-22230iGX71..RHD;GX71..EUG198408-198808

main67002-22230iGX71,RX70..(SED,WG)..ME198408-198508

EXCL/SAUDI ARABIA

main67002-22280iGX71..LHD..GEN198408-198808

main67002-22280iMX73..GD198411-198508

EXCL/SAUDI ARABIA

main67002-22290iGX71,MX73,RX70,72..HT198508-198808

main67002-22290iGX71,MX73,RX70..HT198504-198508

SAUDI ARABIA SPEC

main67002-22300iGX71,MX73,RX70..HT198504-198508

EXCL/SAUDI ARABIA

sub67002-22290

67111PANEL, FRONT DOOR, OUTER RH

main67111-22130iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main67111-22160iGX71,MX73,RX70,72..HT198504-198808

67112PANEL, FRONT DOOR, OUTER LH

main67112-22140iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main67112-22170iGX71,MX73,RX70,72..HT198504-198808

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-22130iGX71,MX73,RX70,72..HT198504-198808

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22080iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-22130iGX71,MX73,RX70,72..HT198504-198808

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22080iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-22040iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

main67403-22050iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-22040iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

main67404-22050iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

67443PROTECTOR, FRONT DOOR LOCKING ROD, RH

main67443-22010iGX71,MX73,RX70,YX70..SA198601-198608

67444PROTECTOR, FRONT DOOR LOCKING ROD, LH

main67444-22010iGX71,MX73,RX70,YX70..SA198601-198808

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main67491-22070iGX71,MX73,RX70,72..HT198504-198808

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main67492-22070iGX71,MX73,RX70,72..HT198504-198808

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-22030iGX71,LX7#,RX7#..LHD..(GL,XL)..(EUR,GEN)198408-198808

RH

main67496-22030iRX70,72..RHD..GEN198408-198808

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22070iMX73,RX72..HT198708-198808

main67831-22100iGX71,LX7#,MX7#,RX7#..(SED,WG)..(EUR,GEN,ME)198408-198808

sub67831-22130

main67831-22120iGX71,MX73,RX70,72..HT198504-198708

sub67831-22140

main67831-22130iGX71,LX70,MX73,RX7#..GEN,ME198506-198808

DUST PROOF OR COLD SPEC

main67831-22130iLX70,RX70..LHD..GEN198502-198506

CHINA SPEC

main67831-22130iMX73..ARL198408-198808

main67831-22130iGX71,MX73,RX70,72,YX70..SA198601-198808

DUST PROOF

main67831-22140iGX71,MX73,RX70,72..HT198506-198708

DUST PROOF

main67831-22150iMX73,RX72..HT198708-198808

DUSTPROOF

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-22130iGX71,MX73,RX70,72,YX70..SA198408-198808

main67831-22130iLX70,RX70..LHD..GEN198502-198506

CHINA SPEC

main67831-22130iGX71,LX70,MX73,RX7#..GEN,ME198506-198808

DUST PROOF OR COLD SPEC

main67831-22140iGX71,MX73,RX70,72..HT198506-198708

DUST PROOF

main67831-22150iMX73,RX72..HT198708-198808

DUST PROOF

main67832-22010iGX71,LX7#,MX7#,RX7#..(SED,WG)..(EUR,GEN,ME)198408-198808

sub67831-22130

main67832-22030iGX71,MX73,RX70,72..HT198504-198708

sub67831-22140

main67832-22050iMX73,RX72..HT198708-198808

67837ASEAL, FRONT DOOR VENT, RH

main67837-22010iGX71,MX73,RX70,72..HT198506-198808

DUST PROOF

main67837-22020iMX73..ARL198408-198808

main67837-22020iLX70,RX70..LHD..GEN198502-198506

CHINA SPEC

main67837-22020iGX71,LX70,MX73,RX7#..GEN,ME198506-198808

DUST PROOF OR COLD SPEC

67838ASEAL, FRONT DOOR VENT, LH

main67838-22010iGX71,MX73,RX70,72..HT198506-198808

DUST PROOF

main67838-22020iLX70,RX70..LHD..GEN198502-198506

CHINA SPEC

main67838-22020iMX73..ARL198408-198808

main67838-22020iGX71,LX70,MX73,RX7#..GEN,ME198506-198808

DUST PROOF OR COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22140iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main67861-22160iGX71,MX73,RX70..HT198504-198608

sub67861-22210

main67861-22210iMX73,RX72..HT198608-198808

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22140iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main67862-22160iGX71,MX73,RX70..HT198504-198608

sub67862-22190

main67862-22190iMX73,RX72..HT198608-198808

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-22010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-22010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

RH

main67868-22010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

LH

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main67869-30020iGX71,MX73,RX70,72..HT198504-198808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-22090iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

*TT,T=4.0,*TT,T=4.0

main68101-22100iMX73..(GD,GLX)..(EUR,GEN,ME)198408-198808

*TEM,T=4.0,BRONZE,*TEM,T=4.0,BRONZE

main68111-22260iGX71,MX73,RX70,72..HT198504-198808

*TT,T=5.0,*TT,T=5.0

main68111-22280iGX71,MX73,RX70,72..HT198504-198808

*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-22090iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

*TT,T=4.0,*TT,T=4.0

main68102-22100iLX70,RX7#..SED..GL198408-198808

*TEM,T=4.0,BRONZE,*TEM,T=4.0,BRONZE

main68112-22260iGX71,MX73,RX70,72..HT198504-198808

*TT,T=5.0,*TT,T=5.0

main68112-22280iGX71,MX73,RX70,72..HT198504-198808

*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE

68141RUN, FRONT DOOR GLASS

main68141-22070iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

RH

main68141-22090iLX70,RX70..WG..(EUR,GEN)198411-198608

RH,COLD SPEC

sub68141-22070

main68151-22020iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

LH

main68151-22040iLX70,RX70..WG..(EUR,GEN)198411-198608

LH,COLD SPEC

sub68151-22020

68610CHECK ASSY, FRONT DOOR

main68610-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

68610APIN(FOR FRONT DOOR CHECK)

main68617-22020iGX71,LX7#,MX7#,RX7#,YX70198507-198808

main68617-90A00iGX71,LX7#,MX7#,RX70,YX70198408-198507

sub68617-90A01

8202

9017906070

main90179-06070

9033335001

main90333-35001

9054109006

main90541-09006

9165140612

main91651-40612

9351015014

main93510-15014

9352014012

main93520-14012

40 parts on this diagram · 3 diagrams in section
