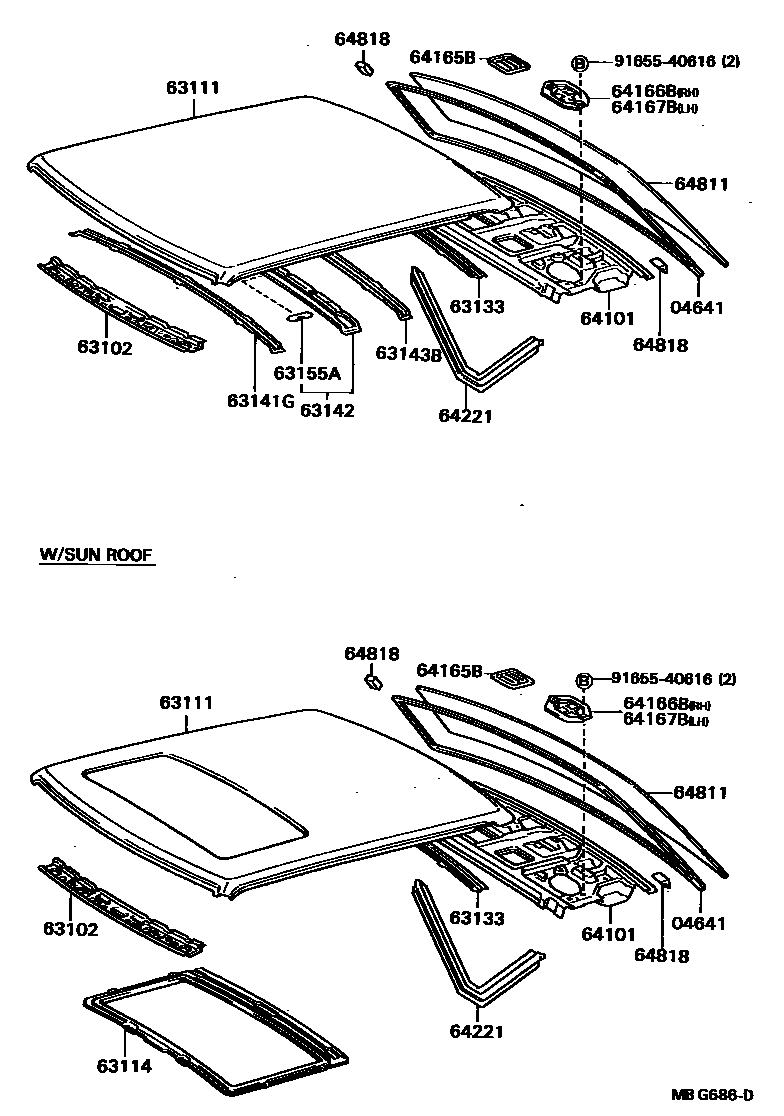

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-22090iLX70,RX7#,YX70..SED198608-198808

W/O MAP LAMP

main63102-22100iGX71,MX73..GD,GLX198408-198508

W/MAP LAMP

main63102-22130iGX71,RX70..HT198504-198608

main63102-22140iMX73..GTX198608-198808

main63102-23020iLX70,MX72,RX70,72..WG198411-198808

63111PANEL, ROOF

main63111-22130iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main63111-22140iGX71,LX7#,MX73,RX7#..SED..(GD,GL,GLX)198408-198808

W/SUN ROOF

main63111-22160iGX71,MX73,RX70,72..HT198504-198808

main63111-23010iLX70,MX72,RX70,72..WG198411-198808

sub63111-91619

63114REINFORCEMENT, ROOF PANEL, REAR

main63142-20020iMX73..SED..ME198608-198808

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-23010iLX70,MX72,RX70,72..WG198411-198808

sub63105-23020

main63133-22060iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main63133-22080iGX71,MX73,RX70,72..HT198504-198808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main63143-22090iGX71,MX73,RX70,72..HT198504-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-22090iGX71,MX73,RX70,72..HT198504-198808

main63141-22060iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main63141-23900iLX70,MX72,RX70,72..WG198411-198808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-22090iGX71,MX73,RX70,72..HT198504-198808

main63143-23010iLX70,MX72,RX70,72..WG198411-198808

main63144-22010iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

63155APLATE, ROOF PANEL REINFORCEMENT

main63155-22020×2iGX71,LX7#,MX7#,RX7#,YX70198408-198808

64101PANEL SUB-ASSY, UPPER BACK

main64101-22170iGX71,LX7#,MX73,RX70,YX70..SED..(EUR,GEN,ME,SA)198408-198507

main64101-22190iGX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,ME,SA)198507-198808

main64101-22200iMX73..ARL198408-198808

main64101-22220iGX71,MX73,RX70,72..HT198504-198808

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-22010×2iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-22010iMX73,RX72..GT198608-198701

main64166-22030iMX73,RX72..SED..XL..ME198708-198808

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64166-22010iMX73,RX72..GT198608-198701

main64167-22030iGX71,LX71,MX73..GL..EUR198408-198608

64221BRACE, REAR SEAT CUSHION SUPPORT

main64221-22020iGX71,LX7#,MX73,RX7#..(HT,SED)..(ARL,EUR,GEN,ME)198408-198808

64811GLASS, BACK WINDOW

main64811-22350iRX72..SED..GL..ME198708-198808

*TT,T=4.0,*TT,T=4.0

main64811-22360iMX73..EUG;GX71,LX7#,RX7#,YX70..SED;MX73..SED..(ARL,GEN,ME,SA)198408-198808

*EHTT,T=4.0,*EHTT,T=4.0

main64811-22390iLX70,RX7#..SED..GL198408-198808

*EHT,T=4.0,BRONZE,*EHT,T=4.0,BRONZE

main64811-22400iGX71,LX71,MX73..EUR198408-198608

COLD SPEC,*EHTT,T=4.0

main64811-22410iMX73..TWC198408-198608

*EHT,T=4.0,BRONZE

sub64811-22411

main64811-22420iMX73..GTX198608-198808

*TT,T=4.0,*EHTT,T=4-0

main64811-22490iMX73,RX72..GT198608-198808

*EHTT,T=4.0,*EHTT,T=4.0

main64811-22500iMX73,RX72..GT198608-198808

*EHTT,T=4.0,BRONZE,*EHTT,T=4.0,BRONZE

main64811-22510iMX73..GTX198608-198808

*TT,T=4.0,BRONZE,*EHTT,T=4-0,BRONZE

64818SPACER, BACK WINDOW GLASS

main64818-22010×2iGX71,MX73,RX70,72..HT198504-198808

12.5X20X7.3

main64818-22030×2iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

10X6X20

main64818-22040×2iGX71,MX73,RX70,72..HT198504-198808

12.5X20X5.8

main64818-22050×2iGX71,MX73,RX70,72..HT198504-198808

12.5X20X8.8

main64819-22010×2iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

12X5X20

main64819-22020×2iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

12X3X20

main64819-22030×2iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

12X7X20

9165540616

main91655-40616

17 parts on this diagram · 3 diagrams in section
