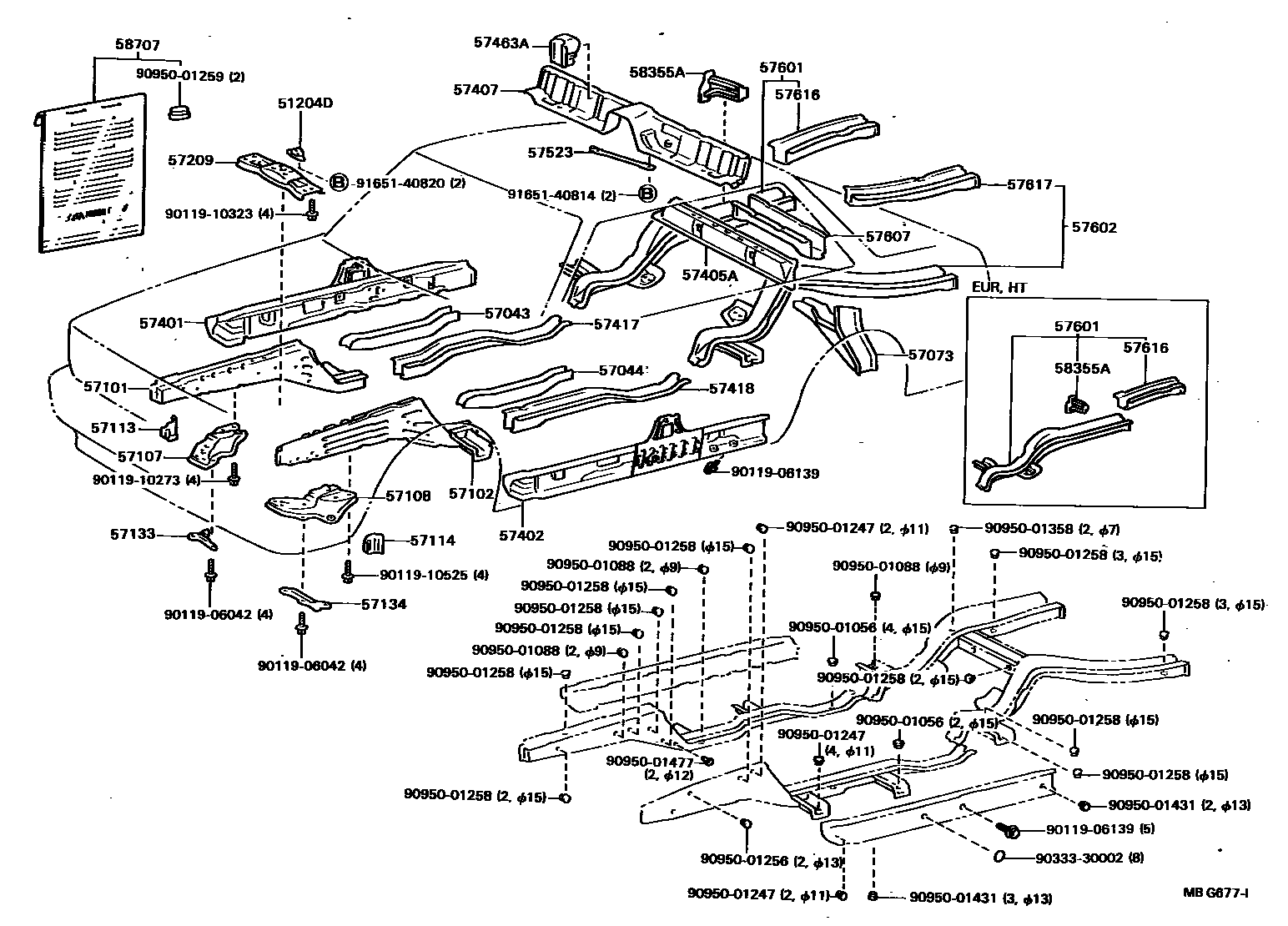

FLOOR SIDE MEMBER

0001 1 0002 1

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22040iGX71..EUG198508-198608

main51204-22050iMX73..4FC198408-198808

main51204-22070iMX72198411-198608

main51204-22080iGX71198608-198808

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-22030iGX71,LX7#,MX7#,RX7#..LHD198507-198808

main57241-22020iGX71,LX7#,MX7#,RX70..LHD198408-198507

sub57241-22021

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-22010iGX71,LX7#,MX7#,RX7#..LHD198507-198808

main57242-22020iGX71,LX7#,MX7#,RX70..LHD198408-198507

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-22040iLX70,RX70,72,YX70..HT,SED198408-198808

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22250iGX71,MX73,RX70,72,YX70..RHD198408-198808

main57101-22260iMX73,RX72..ME198608-198808

main57101-22270iGX71,LX70,RX7#..LHD..GEN198408-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22290iGX71,MX73,RX70,72,YX70..RHD198408-198808

main57102-22300iMX73,RX72..ME198608-198808

main57102-22310iGX71,LX7#,MX7#,RX70..LHD198408-198808

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22070iGX71,LX7#,MX7#,RX7#,YX70198408-198808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22140iGX71,LX7#,MX7#,RX7#,YX70198408-198808

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22060iGX71,LX7#,MX7#,RX70,YX70198408-198808

main57113-22070iMX73,RX72..ME198608-198808

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22060iGX71,LX7#,MX7#,RX70,YX70198408-198808

main57114-22070iMX73,RX72..ME198608-198808

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-22020iLX70,RX7#..GEN,ME198408-198808

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-22010iLX70,RX7#..GEN,ME198408-198808

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-22130iYX70198502-198808

main57255-22190iLX7#,RX7#198408-198808

main57255-22200iGX71,MX7#..4FC198408-198808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22080iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,SA198408-198808

sub57401-22170

sub61335-22040

sub61343-22913

main57401-22110iGX71,LX7#,MX7#,RX70,72..(SED,WG)..(EUR,ME)198408-198808

sub57401-22111

sub61335-22040

sub61343-22914

main57401-22120iGX71,MX73,RX70,72..HT198504-198808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22080iGX71,LX70,MX73,RX7#,YX70..ARL,GEN,SA198408-198808

sub57402-22170

sub61335-22040

sub61344-22913

main57402-22110iGX71,LX7#,MX7#,RX70,72..(SED,WG)..(EUR,ME)198408-198808

sub57402-22111

sub61335-22040

sub61344-22914

main57402-22120iGX71,MX73,RX70,72..HT198504-198808

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-22050iGX71,LX71,MX73198408-198608

main57407-22060iLX70,RX70,72,YX70..HT,SED198408-198808

main57407-22070iGX71,MX73,RX71,73198608-198808

main57407-23010iLX70,MX72,RX70,72..WG198411-198808

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-22040iGX71,MX73,RX70,YX70..RHD198408-198506

sub57417-22050

main57417-22050iGX71,LX7#,MX7#,RX70..LHD198408-198808

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-22040iGX71,MX73,RX70,YX70..RHD198408-198506

sub57418-22050

main57418-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

57463AREINFORCEMENT, CENTER FLOOR CROSSMEMBER

main57463-22020iGX71,MX73..SED..ME198507-198808

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-22010iGX71,LX71,MX73,RX71,73198408-198808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22250iGX71,MX73..HT198510-198808

main57601-22270iGX71,LX71,MX73..EUR198408-198608

main57601-22911iGX71,MX73,RX71,73..ARL,GEN,SA198408-198808

main57601-22912iLX70,RX70,YX70..HT,SED198408-198808

main57601-22916iLX70,RX70,72..(HT,SED)..(GEN,ME)198608-198808

main57601-23020iLX70,MX72,RX70,72..WG198411-198808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22230iGX71,MX73..SED..(ARL,GEN,ME,SA)198408-198808

main57602-22240iLX70,RX70,YX70..HT,SED198408-198808

main57602-22241iLX70,RX70,72..SED..GEN198608-198808

main57602-22250iMX73..ME198510-198808

main57602-22270iGX71,LX71,MX73..EUR198408-198608

main57602-23020iLX70,MX72,RX70,72..WG198411-198808

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-22060iGX71,LX71,MX73,RX71,73198408-198808

main57605-22070iLX70,RX70,72,YX70..HT,SED198408-198808

main57652-91604iLX70,MX72,RX70,72..WG198411-198808

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-22900iGX71,LX71,MX73..SED198408-198808

main57615-22901iLX70,RX70,72,YX70..HT,SED198408-198808

main57615-22902iGX71,MX73..HT198510-198808

main57615-23010iLX70,MX72,RX70..WG198411-198603

sub57615-23020

main57615-23020iLX70,MX72,RX70,72..WG198603-198808

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-22900iGX71,LX71,MX73198408-198808

main57616-22901iLX70,RX70,72,YX70..HT,SED198408-198808

main57616-22902iGX71,MX73..HT198510-198808

main57616-23010iLX70,MX72,RX70..WG198411-198603

sub57616-23020

main57616-23020iLX70,MX72,RX70,72..WG198603-198808

58355AREINFORCEMENT, FLOOR SIDE PLATE, RH

main58355-22030iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

58707PLUG SET, HOLE

main58707-22020iGX71,LX71,MX73..EUR198408-198608

9011906042

main90119-06042

9011906139

main90119-06139

9011910273

main90119-10273

9011910323

main90119-10323

9011910525

main90119-10525

9033330002

main90333-30002

9095001056

main90950-01056

9095001088

main90950-01088

9095001247

main90950-01247

9095001256

main90950-01256

9095001258

main90950-01258

9095001259

main90950-01259

9095001358

main90950-01358

9095001431

main90950-01431

9095001477

main90950-01477

9165140814

main91651-40814

9165140820

main91651-40820

45 parts on this diagram · 2 diagrams in section
