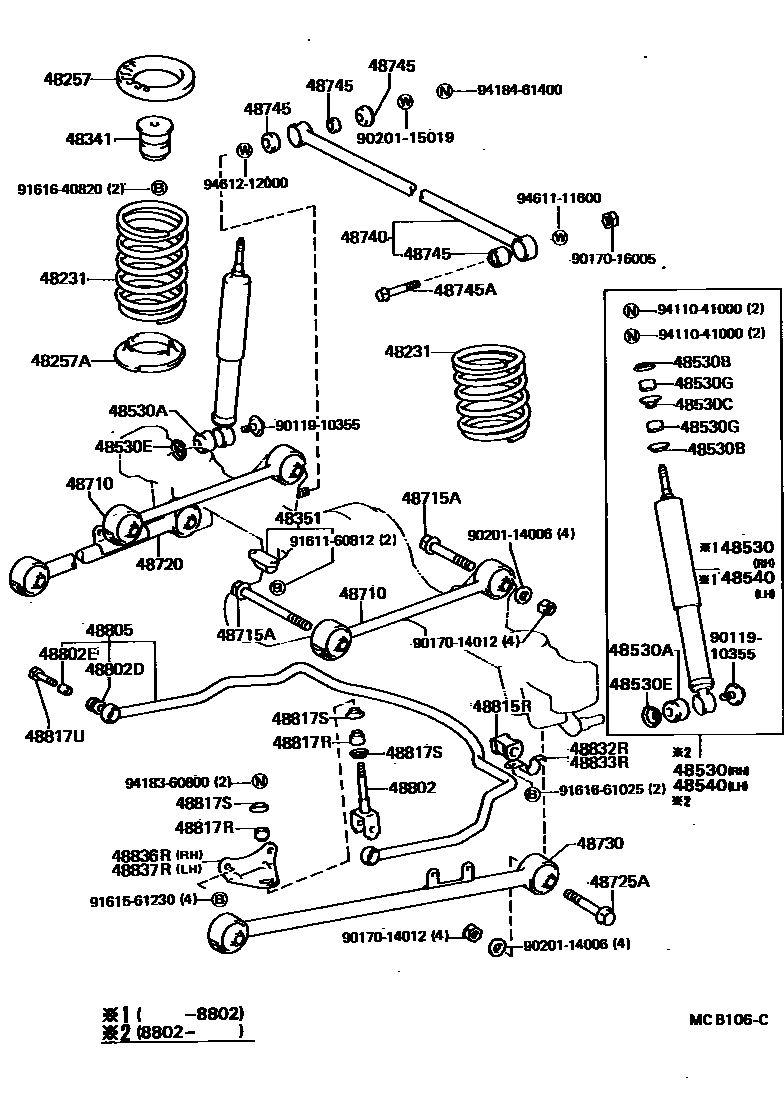

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-22710iLX70,RX70,72,YX70..SED198408-198808

main48231-22750iGX71..EUG198408-198608

main48231-22750iMX73..ARL198608-198808

MALAYSIA SPEC

main48231-22760iGX71..EFI198408-198808

main48231-22770iLX71;MX73..GEN,SA198408-198808

main48231-22790iRX72..HT,SED198608-198808

sub48231-22850

main48231-22790iRX70..SED198408-198808

HARSH ROAD PACKAGE

sub48231-22850

main48231-22820iLX70..GEN198408-198808

HARSH ROAD PACKAGE

main48231-22830iLX70..5F..GEN198502-198808

TAXI SPEC

sub48231-22820

main48231-22850iRX70..LHD..MTM..GEN198502-198808

TAXI SPEC

main48231-22870iMX73..ME198608-198808

main48231-23130iRX70..WG198411-198808

HARSH ROAD PACKAGE

main48231-23130iRX72..WG198608-198808

main48231-23150iLX70,RX70,72..WG198411-198808

main48231-23160iMX72198411-198608

main48231-23190iRX72..WG198608-198808

HARSH ROAD PACKAGE

main48231-2A010iRX72..HT,SED198608-198808

HARSH ROAD PACKAGE

48257INSULATOR, REAR COIL SPRING

main48257-22020iLX70,RX70,72,YX70..HT,SED198408-198808

main48257-22030iGX71,LX71,MX73,RX71,73198408-198808

main48257-23010iLX70,MX72,RX70,72..WG198411-198808

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-22010iLX70,RX70,72,YX70..HT,SED198408-198808

sub48258-14030

main48258-22041iGX71,LX71,MX73,RX71,73198408-198808

RH

main48258-22050iGX71,LX71,MX73,RX71,73198408-198808

LH

main48258-30010iLX70,MX72,RX70,72..WG198411-198808

48341BUMPER, REAR SPRING

main48341-22080iLX70,RX70,72,YX70198408-198808

main48341-24010iGX71,LX71,MX73,RX71,73198408-198808

48351BUMPER, DIFFERENTIAL CARRIER

main48351-12020iLX70,RX70,72,YX70..HT,SED198605-198705

main48351-19035iLX70,RX70,YX70..HT,SED198408-198605

sub48351-12020

main48351-20020iLX70,RX70,72..WG198605-198808

main48351-29065iMX72198411-198608

main48351-29075iLX70,RX70..WG198411-198605

sub48351-20020

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-22540iMX73..SWZ198408-198608

sub48531-80350

main48531-22550iLX71198408-198608

sub48531-80345

main48531-22560iGX71..RHD..GEN198608-198705

MALAYSIA SPEC

sub48531-80350

main48531-22560iGX71,MX73..EUG198408-198608

sub48531-80350

main48531-22570iGX71..RHD..GEN198408-198802

INDONESIA SPEC

sub48531-80355

main48531-22580iMX73..ARL,GEN,ME,SA198408-198802

sub48531-80360

main48531-22610iLX70,RX70,72,YX70..HT,SED198408-198802

sub48531-80325

main48531-22710iMX73..GEN198608-198802

sub48531-80385

main48531-22720iRX71,73198608-198802

sub48531-80390

main48531-23180iRX70,72..WG198411-198802

sub48531-80365

main48531-23190iLX70..EUG198411-198608

sub48531-80005

main48531-23210iMX72198411-198608

sub48531-29775

main48531-80325iLX70,RX72,YX70..HT,SED198802-198808

sub48531-80185

main48531-80355iGX71..RHD..GEN198802-198808

INDONESIA SPEC

sub48531-80191

main48531-80360iGX71198802-198808

sub48531-80192

main48531-80365iRX72..WG198802-198808

MARK 48531-23180

sub48531-80193

main48531-80385iMX73..GEN198802-198808

sub48531-80197

main48531-80390iRX73198802-198808

sub48531-80360

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iGX71,LX7#,MX7#,RX70,YX70198408-198506

main90385-16004iGX71,LX7#,MX7#,RX7#,YX70198506-198808

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iGX71,LX7#,MX7#,RX7#,YX70198408-198808

T=2.3,LWR

main90948-02045iLX70,MX72,RX70,72..WG198411-198808

T=3.2,UPR

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02075iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10004iGX71,LX7#,MX7#,RX7#,YX70198408-198808

LWR

main90540-10005iLX70,MX72,RX70,72..WG198411-198808

UPR

main90948-01003iGX71,LX7#,MX73,RX70,72,YX70..HT,SED198408-198808

UPR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-22540iMX73..SWZ198408-198608

sub48531-80350

main48531-22550iLX71198408-198608

sub48531-80345

main48531-22560iGX71,MX73..EUG198408-198608

sub48531-80350

main48531-22560iGX71..RHD..GEN198608-198705

MALAYSIA SPEC

sub48531-80350

main48531-22570iGX71..RHD..GEN198408-198802

INDONESIA SPEC

sub48531-80355

main48531-22580iMX73..ARL,ME,SA198408-198802

sub48531-80360

main48531-22610iLX70,RX70,72,YX70..HT,SED198408-198802

sub48531-80325

main48531-22710iMX73..GEN198608-198802

sub48531-80385

main48531-22720iRX71,73198608-198802

sub48531-80390

main48531-23180iRX70,72..WG198411-198802

sub48531-80365

main48531-23190iLX70..EUG198411-198608

sub48531-80005

main48531-23210iMX72198411-198608

sub48531-29775

main48531-80325iLX70,RX72,YX70..HT,SED198802-198808

sub48531-80185

main48531-80355iGX71..RHD..GEN198802-198808

INDONESIA SPEC

sub48531-80191

main48531-80360iMX73..ARL,ME,SA198802-198808

sub48531-80192

main48531-80365iRX72..WG198802-198808

MARK 48531-23180

sub48531-80193

main48531-80385iMX73..GEN198802-198808

sub48531-80197

main48531-80390iRX73198802-198808

sub48531-80360

48710ARM ASSY, UPPER CONTROL

main48710-22190iRX70,72,YX70..HT,SED198408-198808

main48710-22210iLX70..5F..GEN198408-198808

main48710-23070iLX70,MX72,RX70,72..WG198411-198808

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14009iLX70,RX70,72..WG198411-198808

BODY X CONTROL ARM

main90105-14027iLX70,MX72,RX70,72,YX70198408-198808

AXLE HOUSING X CONTROL ARM

main90105-14029iLX70,RX70,72,YX70..HT,SED198408-198808

BODY X CONTROL ARM

48720ARM ASSY, LOWER CONTROL, RH

main48720-22180iLX70..5F..GEN198408-198808

main48720-22190iLX70..4FC198408-198808

main48720-22200iRX72..HT,SED198708-198808

main48720-23060iLX70,MX72,RX70,72..WG198411-198808

48725BUSH, LOWER CONTROL ARM

main48725-22050iGX71,LX71,MX73..EUR198408-198608

OUTER

sub48725-22051

main48725-22060iGX71,LX71,MX73..EUR198408-198608

INNER

sub48725-22061

main48725-22070iRX72..ME;GX71,MX73,RX71..ARL,GEN,ME,SA198408-198702

OUTER

sub48725-22071

main48725-22071iGX71,MX73,RX71,72,73198702-198808

OUTER

main48725-22080iRX72..ME;GX71,MX73,RX71..ARL,GEN,ME,SA198408-198702

INNER

sub48725-22081

main48725-22081iGX71,MX73,RX71,72,73198702-198808

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14027iLX70,MX72,RX70,72..WG198411-198808

main90105-14028iLX70,RX70,72,YX70..HT,SED198408-198808

48730ARM ASSY, LOWER CONTROL, LH

main48720-22180iLX70..5F..GEN198408-198808

main48720-22190iLX70..4FC198408-198808

main48720-23060iLX70,MX72,RX70,72..WG198411-198808

48740ROD ASSY, REAR LATERAL CONTROL

main48740-22060iLX70,RX70,72,YX70..HT,SED198408-198808

main48740-23020iLX70,MX72,RX70,72..WG198411-198808

48745BUSH, LATERAL CONTROL ROD

main48706-22030iLX70,RX70,72,YX70..HT,SED198408-198808

BODY SIDE

main48706-23010iLX70,MX72,RX70,72..WG198411-198808

BODY SIDE

main90385-20001iLX70,MX72,RX70,72,YX70198408-198808

L=15,HOUSING SIDE

main90386-20001iLX70,MX72,RX70,72,YX70198408-198808

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16006iLX70,RX70,72,YX70..HT,SED198408-198808

main90106-12002iLX70,MX72,RX70,72..WG198411-198808

48802LINK SUB-ASSY, STABILIZER

main48802-12010iLX70,MX72,RX70,72,YX70198408-198808

48802DBUSH, STABILIZER LINK

main90385-11021iLX70,MX72,RX70,72,YX70198408-198808

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iLX70,MX72,RX70,72,YX70198408-198808

48805BAR SUB-ASSY, REAR STABILIZER

main48805-22060iLX70,RX70,72,YX70..HT,SED198408-198808

main48805-23010iRX70,72..WG198411-198808

main48805-23030iMX72198411-198608

main48805-23050iLX70..EUG198411-198608

48815RBUSH, STABILIZER(FOR REAR)

main48815-12110iLX70,RX70,72,YX70..HT,SED198408-198808

main48815-12120iMX72198411-198608

main48815-22080iLX70..EUG198408-198808

main48815-22090iGX71,MX73..SA198603-198808

main48815-22100iGX71..RHD..GEN198608-198705

MALAYSIA SPEC

main48815-22100iGX71..EUG198408-198608

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iGX71,LX7#,MX7#,RX7#,YX70198408-198808

T=1.2

main90948-02025iGX71,LX7#,MX7#,RX7#,YX70198408-198808

T=1.0

48817UBOLT(FOR REAR STABILIZER)

main90101-08095iGX71,LX71,MX73,RX71,73198408-198808

main91112-41040iLX70,MX72,RX70,72,YX70198408-198808

sub91111-41040

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-22030iLX70,MX72,RX70,72,YX70198408-198808

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-22030iLX70,MX72,RX70,72,YX70198408-198808

48836RBRACKET, REAR STABILIZER END, RH

main48825-22020iLX70,MX72,RX70,72,YX70198408-198808

48837RBRACKET, REAR STABILIZER END, LH

main48825-22020iLX70,MX72,RX70,72,YX70198408-198808

9011910355

main90119-10355

9017014012

main90170-14012

9017016005

main90170-16005

9020114006

main90201-14006

9020115019

main90201-15019

9161160812

main91611-60812

9161561230

main91615-61230

9161640820

main91616-40820

9161661025

main91616-61025

9411041000

main94110-41000

9418360800

main94183-60800

9418461400

main94184-61400

9461111600

main94611-11600

9461212000

main94612-12000

47 parts on this diagram · 3 diagrams in section
