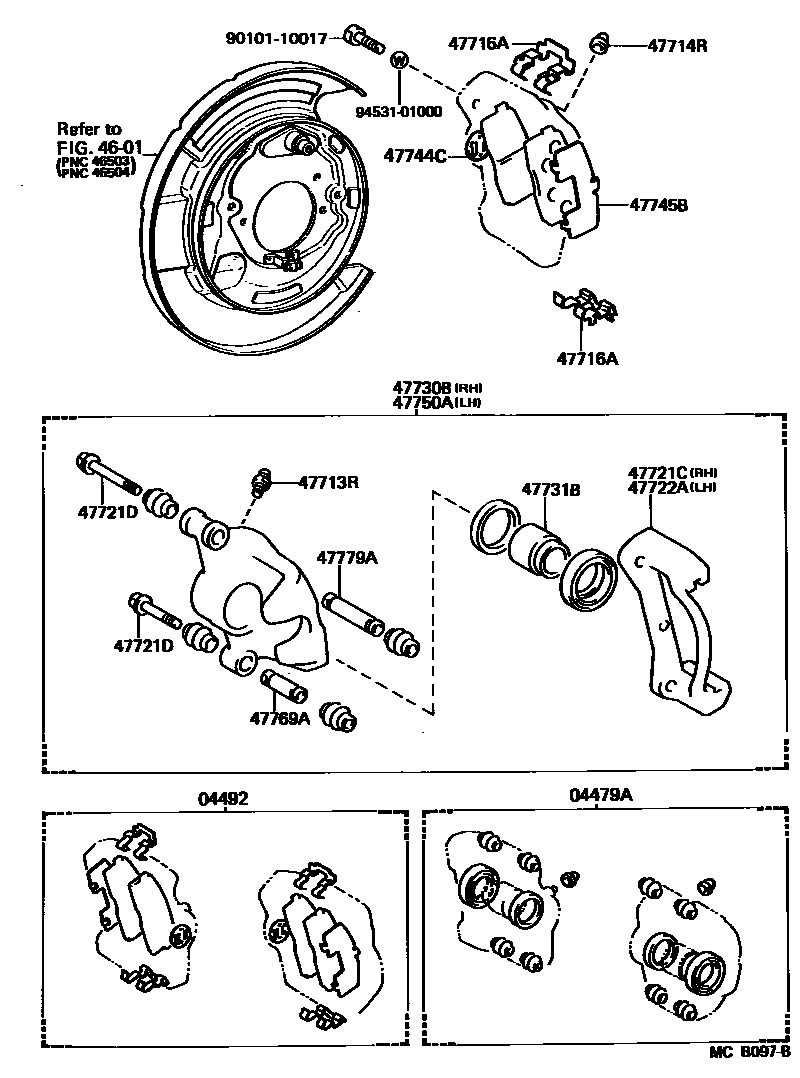

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14090iGX71,MX73..EUR¥2,130198408-198608

main04479-30090iMX73..ARL,GEN,ME,SA¥3,600198408-198808

04492PAD KIT, DISC BRAKE, REAR

main04492-14070iGX71,MX73..EUR¥9,000198408-198608

sub04492-14071

main04492-22050iGX71..GEN¥7,700198408-198808

sub04492-22070¥8,100

main04492-22070iMX73¥8,100198612-198808

sub04466-22110¥9,600

4601

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGX71,MX73..EUR¥200198408-198608

main47547-35020iGX71..GEN¥220198408-198808

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMX73;GX71..EUR,GEN¥160198408-198808

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14090iGX71,MX73..EUR¥310198408-198608

main47716-40020iGX71..GEN¥380198408-198808

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-22040iGX71..GEN¥8,100198408-198808

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-08431iGX71,MX73..EUR¥220198408-198608

*8-1.25PX62-20

main90119-09005iGX71..GEN¥210198408-198808

*9-1.25PX62.5-20,L=62.5

main90119-09006iMX73..ARL,GEN,ME,SA¥260198408-198808

*9-1.25PX85-20,L=85

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-22040iGX71..GEN¥8,100198408-198808

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-14150iGX71,MX73..EUR¥42,300198408-198608

main47730-22140iGX71..GEN¥42,200198408-198808

47731BPISTON, REAR DISC BRAKE

main47731-14100iGX71,MX73..EUR¥1,840198408-198608

main47731-30060iGX71..GEN¥2,410198408-198808

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-22060iMX73..ARL,GEN,ME,SA¥270198408-198808

main47744-22091iMX73..ARL,GEN,ME¥270198701-198808

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-14060iGX71,MX73..EUR¥260198408-198608

main47745-22051iMX73..ARL,GEN,ME¥270198701-198808

main47745-40030iMX73..ARL,GEN,ME,SA¥270198408-198808

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14160iGX71,MX73..EUR¥42,300198408-198608

main47750-22140iGX71..GEN¥42,200198408-198808

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iGX71,MX73..EUR¥680198408-198608

main47769-40020iGX71..GEN¥740198408-198808

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-40020iGX71..GEN¥940198408-198808

9010110017

main90101-10017¥130

9453101000

main94531-01000¥90

18 parts on this diagram · 3 diagrams in section
