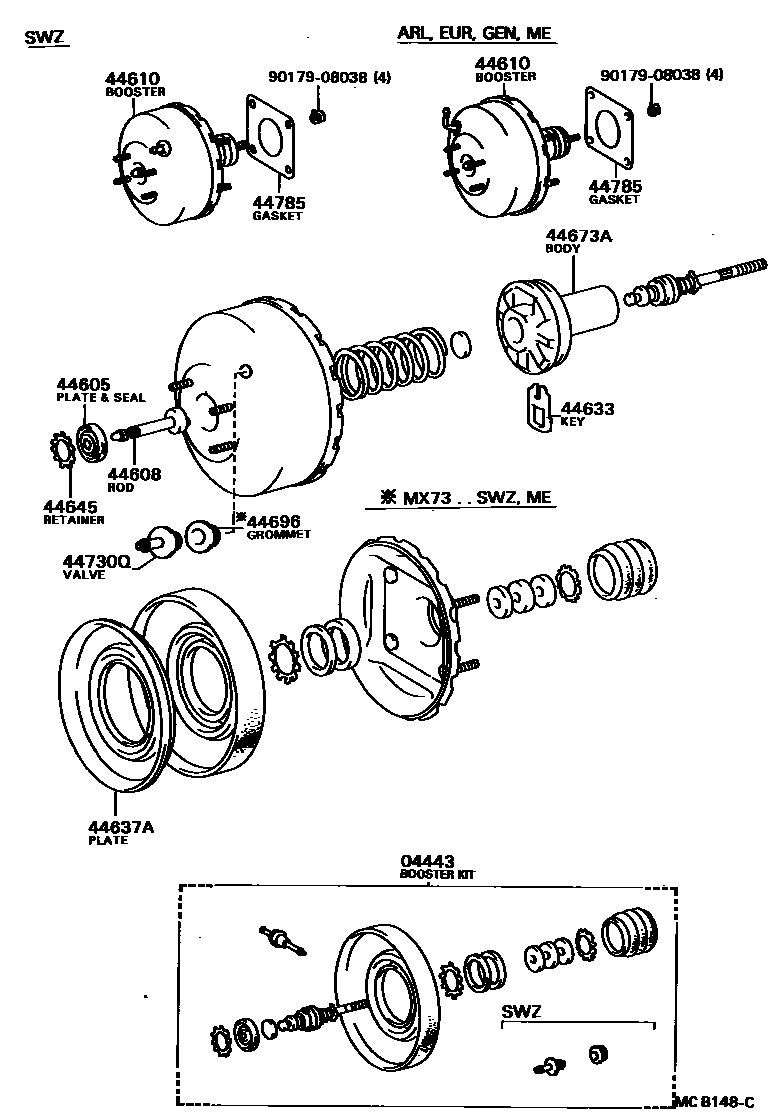

BRAKE BOOSTER & VACUUM TUBE

0001 1GEN) 0006 1 0007 1 0008 1 0011 1 0012 1 0014 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1

04443BOOSTER KIT, BRAKE

main04443-22390iGX71..GEN198408-198808

main04443-22390iGX71..ME198502-198508

JKC

main04443-22400iMX73..LHD..EFI198408-198508

main04443-22410iGX71..SA198502-198808

main04443-22410iGX71..ME198408-198502

AISIN

main04443-22420iLX7#..EUG198408-198502

AISIN

main04443-22430iRX70..LHD198408-198502

main04443-22440iLX70198408-198502

main04443-22450iMX73..ARL198408-198808

main04443-22470iRX70,72..SA198411-198808

main04443-22480iRX70,72..RHD..GEN198408-198808

main04443-22500iRX70..LHD198502-198808

main04443-22510iLX70..GEN198502-198808

JKC

main04443-22520iLX7#..EUG198502-198608

main04443-22530iMX7#..LHD..EFI198508-198808

JKC

main04443-22540iMX7#..LHD..EFI198508-198808

AISIN

main04443-22550iRX72..ME198608-198808

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iLX7#..EUG198408-198808

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iGX71..SA198408-198808

main44606-20800iMX7#..LHD..EFI198508-198808

AISIN

main44606-30460iMX73..ARL198408-198808

main44608-17090iMX73..ME198708-198808

JKC

main44608-20810iMX7#..LHD..EFI198508-198708

JKC

main44608-32020iRX7#..LHD198408-198808

44610BOOSTER ASSY, BRAKE

main44610-22440iGX71,LX7#..GL..(EFI,TD)198408-198502

AISIN

main44610-22450iGX71,YX70..SA198502-198808

main44610-22460iLX70..GEN198411-198502

AISIN

main44610-22460iLX70,RX70..LHD198408-198411

main44610-22490iMX73..ARL198408-198808

main44610-22500iMX72198411-198808

main44610-22510iRX70,72..RHD..GEN198408-198808

main44610-22520iMX73..LHD..EFI198408-198508

main44610-22540iMX73..LHD..EUG198408-198608

main44610-22550iMX73..ARL198408-198808

main44610-22580iRX70,72..ME198502-198808

JKC

main44610-22580iGX71..LHD..(EUR,GEN)198408-198808

main44610-22590iLX70..GEN198502-198808

JKC

main44610-22620iGX71..ME198508-198808

44633KEY, BOOSTER VALVE PLUNGER

main44633-20810iMX7#..EFI198508-198607

JKC

sub44633-20811

main44633-20811iMX7#..LHD..EFI198607-198808

JKC

main44633-20811iGX71..ME198607-198608

main44633-28130iLX70..GEN198408-198808

44637APLATE, BOOSTER DIAPHRAGM

main44637-20810iGX71..ME198508-198808

JKC

main44637-32020iLX70..GEN198502-198808

main44637-32040iMX73..EFI198408-198808

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iMX73..EFI198408-198808

44673ABODY, BOOSTER VALVE

main44673-16060iLX70..GEN198502-198808

main44673-20810iGX71..ME198508-198808

JKC

main44673-28190iMX73..EFI198408-198808

44696GROMMET, CHECK VALVE

main90480-24439iMX72;RX70,72..RHD198408-198808

main90480-24517iMX73..LHD..EFI198408-198508

sub90480-24015

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-22080iMX72;RX70,72..RHD198408-198808

main44730-30010iMX73..LHD..EFI198408-198508

44785GASKET, BRAKE BOOSTER

main44785-32010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9017908038

main90179-08038

12 parts on this diagram · 15 diagrams in section
