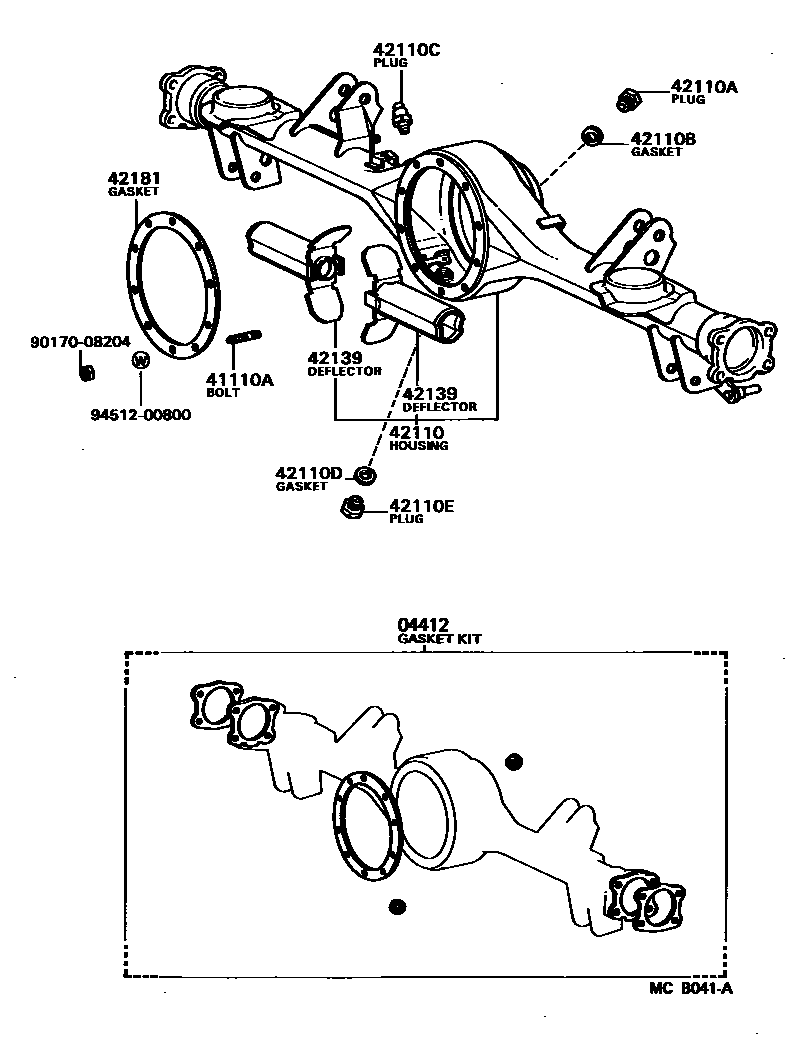

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0009 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-20030iLX70,MX72,RX70,72,YX70198408-198808

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14180iRX73198502-198808

*FGR=41:11=3.727

main41110-14230iGX71..4FC..SA198502-198510

*FGR=41:10=4.100

sub41110-14231

main41110-14231iGX71..4FC..SA198510-198803

main41110-14360iLX71..5F198408-198608

main41110-14370iMX73..5F..ME198408-198808

main41110-20241iYX70198502-198808

*FGR=41:10=4.100

main41110-20251iRX72..5F..SA198408-198807

*FGR=43:11=3.909

sub41110-22240

main41110-20320iLX70..EUG198411-198510

sub41110-20321

main41110-20321iLX70..EUG198510-198608

*FGR=43:12=3.583

main41110-22131iRX71198608-198705

*FGR=43:11=3.909

main41110-22141iGX71..GEN198408-198808

*FGR=41:10=4.100

main41110-22160iLX71,MX73..4FC..EUR198408-198608

main41110-22160iMX73..4FC..ME198411-198504

*AXC=F312

main41110-22180iMX73..4FC..(GD,GT,GTX)198504-198808

*AXC=F292

main41110-22180iGX71..ME198408-198608

main41110-22190iGX71..EUG198408-198608

main41110-22230iRX72..5F198608-198808

*FGR=41:11=3.727

main41110-22240iLX70198807-198808

*FGR=43:11=3.909

main41110-22290iMX73..XL..ME198711-198808

S.ARABIA TAXI SPEC

main41110-22320iMX73..5F..SA198705-198808

*FGR=43:11=3.909

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08106iRX72..4FC198411-198808

S=17 & 12,L=72,L=86

main90116-08235iLX70,MX72,RX70,72,YX70198408-198808

S=12 & 15,L=34,L=34

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-22190iLX70,RX70,YX70..HT,SED198408-198601

sub42110-22220

main42110-22220iLX70,RX70..LHD..MTM..GEN198502-198601

TAXI SPEC

main42110-22220iLX70,RX70..SED198408-198601

HARSH ROAD PACKAGE

main42110-22220iLX70,RX70,72,YX70..HT,SED198601-198808

main42110-23090iLX70,MX72,RX70,72..WG198411-198808

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iLX70,MX72,RX70,72,YX70198606-198808

main90341-18049iLX70,MX72,RX70,YX70198408-198606

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iLX70,MX72,RX70,72,YX70198408-198808

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iLX70,MX72,RX70,72,YX70198408-198808

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iLX70,MX72,RX70,72,YX70198408-198808

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iLX70,MX72,RX70,72,YX70198408-198808

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iLX70,MX72,RX70,72,YX70198408-198808

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iLX70,MX72,RX70,72,YX70198408-198808

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 5 diagrams in section
