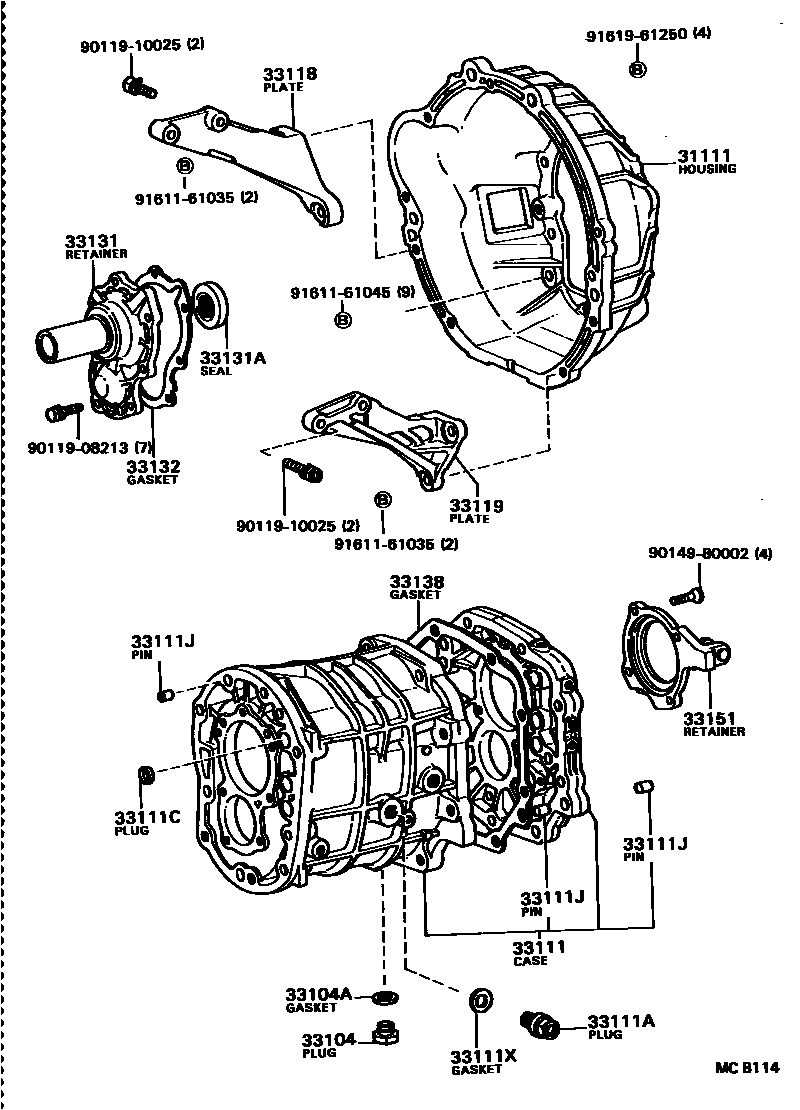

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

31111HOUSING, CLUTCH

main31111-20171iRX7#..MTM198408-198808

main31111-22091iMX73..5F198408-198808

main31111-22111iLX7#..5F198408-198808

sub31111-22112

main31111-22130iGX71..5F198408-198808

main31111-30190iYX70198502-198808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33111CASE, MANUAL TRANSMISSION

main33101-22021iGX71,MX73,RX70..MTM198408-198808

sub33101-22031

main33101-22030iLX7#,YX70..5F198408-198808

sub33101-22031

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRX7#..MTM198408-198808

main33118-22040iMX73..5F198408-198605

main33118-22050iGX71..5F198408-198604

sub33118-22051

main33118-22051iGX71..5F198604-198808

main33118-22060iMX73..5F198605-198808

main33118-25020iLX7#..5F198408-198808

main33118-28010iYX70198502-198808

33119PLATE, STIFFENER, LH(MTM)

main33119-22021iRX7#..MTM198408-198808

sub33119-22022

main33119-22030iMX73..5F198408-198808

main33119-22041iGX71..5F198408-198604

sub33119-22042

main33119-22042iGX71..5F198604-198808

main33119-25020iLX7#..5F198408-198808

main33119-28010iYX70198502-198808

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

sub33131-22021

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33138GASKET, INTERMEDIATE PLATE

main33142-22010iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

9011908213

main90119-08213

9011910025

main90119-10025

9014980002

main90149-80002

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

21 parts on this diagram · 5 diagrams in section
