CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14040iMX73..5F198701-198704

sub04311-14041

main04311-14041iMX73..5F..ME198704-198808

sub04311-22050

main04311-22020iMX73..5F198408-198701

sub04311-22021

main04311-30080iGX71,LX7#,RX7#,YX70..MTM198408-198704

sub04311-14020

main04311-32030iGX71,LX70,RX7#,YX70..5F198708-198808

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iMX73..5F..SA198408-198808

main47202-12050iMX73..5F..ME198408-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22101iYX70198502-198701

sub31410-22102

main31410-22102iYX70198701-198704

sub31410-22103

main31410-22103iYX70198704-198808

sub31410-22104

main31410-22110iMX73..5F198408-198701

sub31410-22111

main31410-22111iMX73..5F198701-198704

sub31410-22112

main31410-22112iMX73..5F198704-198808

sub31410-35142

main31410-22140iGX71,LX7#,RX7#..MTM198502-198701

sub31410-35180

main31410-22141iGX71,LX70,RX7#..5F198701-198704

sub31410-22142

main31410-22142iMX73..5F..SA198704-198808

sub31410-22240

main31410-24012iGX71,LX7#,RX70..MTM198408-198502

sub31410-22140

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iGX71,LX7#,MX73,RX7#..LHD..MTM198408-198808

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main31427-22010iMX73..5F198408-198808

main47231-30010iMX73..5F..SA198408-198808

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iGX71,LX7#,MX73,RX7#,YX70..MTM198408-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22060iMX73..5F198408-198808

main31451-22070iGX71,LX70,RX7#,YX70..5F198609-198808

main31451-30060iGX71,LX7#,RX7#,YX70..MTM198408-198609

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iGX71,LX7#,RX7#,YX70..MTM198501-198808

sub31404-28012

main31404-30041iGX71,LX7#,RX70..MTM198408-198501

main31453-22010iMX73..5F198408-198611

sub31453-35010

main31453-35010iMX73..5F198611-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iMX73..5F198408-198808

main31454-24010iGX71,LX7#,RX7#,YX70..MTM198408-198808

9017908038

main90179-08038

9412040800

main94120-40800

9454200800

main94542-00800

9471290800

main94712-90800

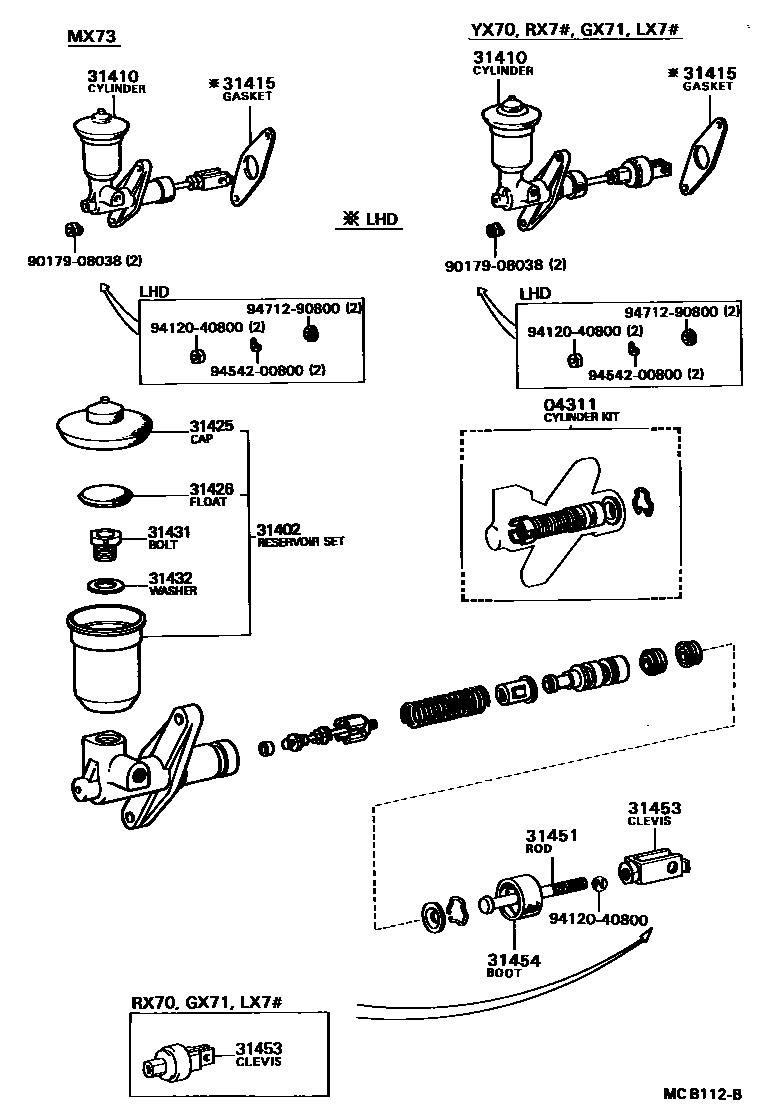

15 parts on this diagram · 1 diagram in section
