CRANKSHAFT & PISTON

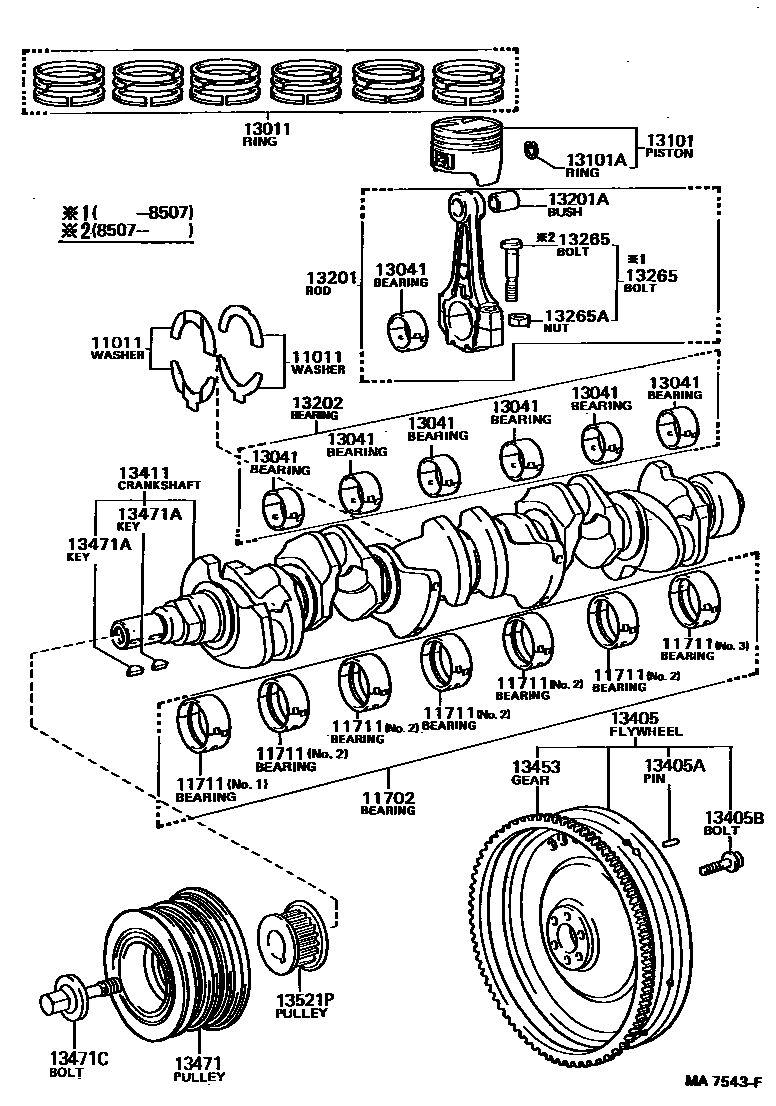

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-25010i198502-198808
STD
main11011-35020i198408-198808
STD,STD
main11011-43010i198408-198808
STD,STD
main11011-54010i198408-198808
STD,STD
sub11011-54020
main11011-70010i198408-198808
STD
main11012-35030i198408-198808
O/S 0.125,O/S 0.125
main11012-43010i198408-198808
O/S 0.125,O/S 0.125
main11012-54010i198408-198808
O/S 0.125,O/S 0.125
sub11012-54020
main11013-35030i198408-198808
O/S 0.250,O/S 0.250
main11013-43010i198408-198808
O/S 0.250,O/S 0.250
main11013-54010i198408-198808
O/S 0.250,O/S 0.250
sub11013-54020
11702BEARING SET, CRANKSHAFT
main11704-35040i198408-198808
U/S 0.25,U/S 0.25
main11704-43010i198408-198808
U/S 0.25,U/S 0.25
main11704-54060i198408-198803
U/S 0.25,U/S 0.25
sub11704-54061
main11704-54061i198803-198808
U/S 0.25,U/S 0.25
sub11704-54080
main11704-70012i198408-198502
U/S 0.25,U/S 0.25
main11704-70020i198502-198801
U/S 0.25,U/S 0.25
sub11704-70021
main11704-70021i198801-198805
U/S 0.25,U/S 0.25
sub11704-70022
sub11704-88301
main11704-70022i198805-198808
U/S 0.25,U/S 0.25
main11704-71020i198603-198808
U/S 0.25,U/S 0.25
main11705-43010i198408-198808
U/S 0.50,U/S 0.50
main11705-54060i198408-198803
U/S 0.50,U/S 0.50
sub11705-54061
main11705-54061i198803-198808
U/S 0.50,U/S 0.50
sub11705-54080
11711BEARING, CRANKSHAFT
main11071-43010-01i198408-198808
NO.1 MARK"1",MARK 1
main11071-43010-02i198408-198808
NO.1 MARK"2",MARK 2
main11071-43010-03i198408-198808
NO.1 MARK"3",MARK 3
main11071-43010-04i198408-198808
NO.1 MARK"4",MARK 4
main11071-43010-05i198408-198808
NO.1 MARK"5",MARK 5
main11071-70010-01i198502-198801
NO.1,MARK"1",MARK 1
sub11071-70011
main11071-70010-02i198502-198801
NO.1,MARK"2",MARK 2
sub11071-70011
main11071-70010-03i198502-198801
NO.1,MARK"3",MARK 3
sub11071-70011
main11071-70010-04i198608-198801
NO.1,MARK"4",MARK 4
sub11071-70011
main11071-70010-05i198608-198801
NO.1,MARK"5",MARK 5
sub11071-70011
main11071-70011-01i198801-198805
NO.1,MARK"1",MARK 1
sub11071-70012
sub11071-88300
main11071-70011-02i198801-198805
NO.1,MARK"2",MARK 2
sub11071-70012
sub11071-88300
main11071-70011-03i198801-198805
NO.1,MARK"3",MARK 3
sub11071-70012
sub11071-88300
main11071-70011-04i198801-198805
NO.1,MARK"4",MARK 4
sub11071-70012
sub11071-88300
main11071-70011-05i198801-198805
NO.1,MARK"5",MARK 5
sub11071-70012
sub11071-88300
main11071-70012-01i198805-198808
NO.1,MARK"1",MARK 1
sub11071-70013
main11071-70012-02i198805-198808
NO.1,MARK"2",MARK 2
sub11071-70013
main11071-70012-03i198805-198808
NO.1,MARK"3",MARK 3
sub11071-70013
main11071-70012-04i198805-198808
NO.1,MARK"4",MARK 4
sub11071-70013
main11071-70012-05i198805-198808
NO.1,MARK"5",MARK 5
sub11071-70013
main11701-35030-03i198408-198808
MARK"3",MARK 3
main11701-35030-04i198408-198808
MARK"4",MARK 4
main11701-35030-05i198408-198808
MARK"5",MARK 5
main11701-43010-01i198408-198808
NO.2 MARK"1",MARK 1
main11701-43010-02i198408-198808
NO.2 MARK"2",MARK 2
main11701-43010-03i198408-198808
NO.2 MARK"3",MARK 3
main11701-43010-04i198408-198808
NO.2 MARK"4",MARK 4
main11701-43010-05i198408-198808
NO.2 MARK"5",MARK 5
main11701-54060-01i198408-198803
MARK"1",MARK 1
sub11701-54061
main11701-54060-02i198408-198803
MARK"2",MARK 2
sub11701-54061
main11701-54060-03i198408-198803
MARK"3",MARK 3
sub11701-54061
main11701-54061-01i198803-198808
MARK"1",MARK 1
sub11701-54080
main11701-54061-02i198803-198808
MARK"2",MARK 2
sub11701-54080
main11701-54061-03i198803-198808
MARK"3",MARK 3
sub11701-54080
main11701-63021-01i198801-198805
NO.2,3,MARK"1",MARK 1
sub11701-63022
main11701-63021-02i198801-198805
NO.2,3,MARK"2",MARK 2
sub11701-63022
main11701-63021-03i198801-198805
NO.2,3,MARK"3",MARK 3
sub11701-63022
main11701-63021-04i198801-198805
NO.2,3,MARK"4",MARK 4
sub11701-63022
main11701-63021-05i198801-198805
NO.2,3,MARK"5",MARK 5
sub11701-63022
main11701-70012-01i198408-198502
MARK"1",MARK 1
sub11701-63021
main11701-70012-02i198408-198502
MARK"2",MARK 2
sub11701-63021
main11701-70012-03i198408-198502
MARK"3",MARK 3
sub11701-63021
main11701-70020-01i198502-198801
NO.2,3,MARK"1",MARK 1
sub11701-63021
main11701-70020-02i198502-198801
NO.2,3,MARK"2",MARK 2
sub11701-63021
main11701-70020-03i198502-198801
NO.2,3,MARK"3",MARK 3
sub11701-63021
main11701-70020-04i198608-198801
NO.2,3,MARK"4",MARK 4
sub11701-63021
main11701-70020-05i198608-198801
NO.2,3,MARK"5",MARK 5
sub11701-63021
main11701-70021-01i198805-198808
NO.2,3,MARK"1",MARK 1
sub11701-70022
main11701-70021-02i198805-198808
NO.2,3,MARK"2",MARK 2
sub11701-70022
main11701-70021-03i198805-198808
NO.2,3,MARK"3",MARK 3
sub11701-70022
main11701-70021-04i198805-198808
NO.2,3,MARK"4",MARK 4
sub11701-70022
main11701-70021-05i198805-198808
NO.2,3,MARK"5",MARK 5
sub11701-70022
main11701-71020-01i198502-198808
MARK"1",MARK 1
main11701-71020-02i198502-198808
MARK"2",MARK 2
main11701-71020-03i198502-198808
MARK"3",MARK 3
main11701-88300-01i198408-198502
MARK"1",MARK 1
sub11701-88360
main11701-88300-02i198408-198502
MARK"2",MARK 2
sub11701-88360
main11701-88300-03i198408-198502
MARK"3",MARK 3
sub11701-88360
13011RING SET, PISTON
main13011-35071i198608-198808
STD,STD
main13011-37070i198408-198608
STD
sub13011-37071
main13011-37071i198608-198705
STD,STD
main13011-42010i198708-198808
STD,STD
sub13011-42011
main13011-42040i198602-198808
STD,STD
sub13011-42060
main13011-43030i198408-198808
STD,STD
sub13011-43031
main13011-43050i198508-198602
STD
sub13011-42040
main13011-43080i198408-198708
STD,STD
sub13011-42010
main13011-54060i198408-198509
STD,STD
sub13011-54061
main13011-54061i198509-198710
STD,STD
sub13011-54062
main13011-54062i198710-198808
STD,STD
main13011-70030i198408-198808
STD,STD
main13011-70051i198512-198608
STD
main13011-70060i198408-198512
STD
main13011-71030i198502-198702
STD,STD
sub13011-71031
main13011-71031i198702-198808
STD,STD
sub13011-71032
main13013-35071i198608-198808
O/S 0.50,O/S 0.50
main13013-37070i198408-198608
O/S 0.50
sub13013-37071
main13013-37071i198608-198705
O/S 0.50,O/S 0.50
main13013-42040i198602-198808
O/S 0.50,O/S 0.50
sub13013-42060
main13013-43030i198408-198808
O/S 0.50,O/S 0.50
sub13013-43031
main13013-43050i198508-198602
O/S 0.50
sub13013-42040
main13013-43080i198408-198708
O/S 0.50,O/S 0.50
sub13013-42011
main13013-54060i198408-198509
O/S 0.50
sub13013-54061
main13013-54061i198509-198710
O/S 0.50,O/S 0.50
sub13013-54062
main13013-54062i198710-198808
O/S 0.50,O/S 0.50
main13013-70030i198408-198808
O/S 0.50,O/S 0.50
main13013-70051i198512-198608
O/S 0.50
main13013-70060i198408-198512
O/S 0.50
main13013-71030i198502-198702
O/S 0.50,O/S 0.50
sub13013-71031
main13013-71031i198702-198808
O/S 0.50,O/S 0.50
sub13013-71032
main13014-42040i198602-198808
O/S 0.75,O/S 0.75
sub13014-42060
main13014-43030i198408-198808
O/S 0.75,O/S 0.75
sub13014-43031
main13014-43050i198508-198602
O/S 0.75
sub13014-42040
main13014-43080i198408-198708
O/S 0.75,O/S 0.75
sub13014-42010
main13014-70030i198408-198808
O/S 0.75,O/S 0.75
main13014-71030i198502-198702
O/S 0.75
sub13014-71031
main13014-71031i198702-198808
O/S 0.75,O/S 0.75
sub13014-71032
main13015-35071i198608-198808
O/S 1.00,O/S 1.00
main13015-37070i198408-198608
O/S 1.00
sub13015-37071
main13015-37071i198608-198705
O/S 1.00,O/S 1.00
main13015-42040i198602-198808
O/S 1.00,O/S 1.00
sub13015-42060
main13015-43030i198408-198808
O/S 1.00,O/S 1.00
sub13015-43031
main13015-43050i198508-198602
O/S 1.00
sub13015-42040
main13015-43080i198408-198708
O/S 1.00,O/S 1.00
sub13015-42010
main13015-70030i198408-198808
O/S 1.00,O/S 1.00
main13015-71030i198502-198702
O/S 1.00,O/S 1.00
sub13015-71031
main13015-71031i198702-198808
O/S 1.00,O/S 1.00
sub13015-71032
13041BEARING, CONNECTING ROD
main13041-35030-0Ai198408-198808
MARK"A",MARK A
sub13041-35030
main13041-35030-0Bi198408-198808
MARK"B",MARK B
sub13041-35030
main13041-35030-0Ci198408-198808
MARK"C",MARK C
sub13041-35030
main13041-42010-01i198408-198808
MARK"1",MARK 1
main13041-42010-02i198408-198808
MARK"2",MARK 2
main13041-42010-03i198408-198808
MARK"3",MARK 3
main13041-42010-04i198408-198808
MARK"4",MARK 4
main13041-42010-05i198408-198808
MARK"5",MARK 5
main13041-54013-01i198408-198808
MARK"1",MARK 1
sub13041-54024
main13041-54013-02i198408-198808
MARK"2",MARK 2
sub13041-54024
main13041-54013-03i198408-198808
MARK"3",MARK 3
sub13041-54024
main13041-54040-01i198408-198608
MARK"1",MARK 1
sub13041-54041
main13041-54040-02i198408-198608
MARK"2",MARK 2
sub13041-54041
main13041-54040-03i198408-198608
MARK"3",MARK 3
sub13041-54041
main13041-70010-03i198408-198801
MARK"3",MARK 3
main13041-70010-04i198408-198801
MARK"4",MARK 4
main13041-70010-05i198408-198801
MARK"5",MARK 5
main13041-70020-03i198801-198808
MARK"3",MARK 3
sub13041-70021
main13041-70020-04i198801-198808
MARK"4",MARK 4
sub13041-70021
main13041-70020-05i198801-198808
MARK"5",MARK 5
sub13041-70021
main13041-71021-06i198502-198808
MARK"6",MARK 6
sub13041-71011
main13041-71021-07i198502-198808
MARK"7",MARK 7
sub13041-71011
main13041-71021-08i198502-198808
MARK"8",MARK 8
sub13041-71011
main13041-88300-03i198408-198608
MARK"3",MARK 3
main13041-88300-04i198408-198608
MARK"4",MARK 4
main13041-88300-05i198408-198608
MARK"5",MARK 5
13101PISTON SUB-ASSY, W/PIN
main13101-35031i198608-198801
STD,STD
sub13101-35032
main13101-35032-01i198801-198808
STD,STD,MARK"1",MARK 1
main13101-35032-02i198801-198808
STD,STD,MARK"2",MARK 2
main13101-35032-03i198801-198808
STD,STD,MARK"3",MARK 3
main13101-37060i198408-198607
STD
sub13101-37061
main13101-37061i198607-198705
STD,STD
main13101-43011i198408-198801
STD,STD
main13101-43011-00i198801-198808
STD,STD,MARK"0",MARK 0
sub13101-43011
main13101-43011-01i198801-198808
STD,STD,MARK"1",MARK 1
sub13101-43011
main13101-43011-02i198801-198808
STD,STD,MARK"2",MARK 2
sub13101-43011
main13101-43011-03i198801-198808
STD,STD,MARK"3",MARK 3
sub13101-43011
main13101-43011-04i198801-198808
STD,STD,MARK"4",MARK 4
sub13101-43011
main13101-43041i198411-198801
STD,STD
main13101-43041-00i198801-198808
STD,STD,MARK"0",MARK 0
sub13101-43041
main13101-43041-01i198801-198808
STD,STD,MARK"1",MARK 1
sub13101-43041
main13101-43041-02i198801-198808
STD,STD,MARK"2",MARK 2
sub13101-43041
main13101-43041-03i198801-198808
STD,STD,MARK"3",MARK 3
sub13101-43041
main13101-43041-04i198801-198808
STD,STD,MARK"4",MARK 4
sub13101-43041
main13101-43051i198408-198801
STD,STD
main13101-43051-00i198801-198808
STD,STD,MARK"0",MARK 0
sub13101-43051
main13101-43051-01i198801-198808
STD,STD,MARK"1",MARK 1
sub13101-43051
main13101-43051-02i198801-198808
STD,STD,MARK"2",MARK 2
sub13101-43051
main13101-43051-03i198801-198808
STD,STD,MARK"3",MARK 3
sub13101-43051
main13101-43051-04i198801-198808
STD,STD,MARK"4",MARK 4
sub13101-43051
main13101-54030i198408-198608
STD,STD
main13101-54060i198408-198801
STD,STD
main13101-54060-01i198801-198808
STD,STD,MARK"1",MARK 1
sub13101-54060
main13101-54060-02i198801-198808
STD,STD,MARK"2",MARK 2
sub13101-54060
main13101-54060-03i198801-198808
STD,STD,MARK"3",MARK 3
sub13101-54060
main13101-70010i198408-198801
STD,STD
main13101-70031i198408-198512
STD,STD
main13101-70032i198512-198608
STD,STD
sub13101-70033
main13101-70060-01i198801-198808
STD,STD,MARK"1",MARK 1
main13101-70060-02i198801-198808
STD,STD,MARK"2",MARK 2
main13101-70060-03i198801-198808
STD,STD,MARK"3",MARK 3
main13101-72010i198502-198802
STD,STD
main13101-72010-01i198802-198808
STD,STD,MARK"1",MARK 1
sub13101-72010
main13101-72010-02i198802-198808
STD,STD,MARK"2",MARK 2
sub13101-72010
main13101-72010-03i198802-198808
STD,STD,MARK"3",MARK 3
sub13101-72010
main13103-35041i198608-198801
O/S 0.50,O/S 0.50
sub13103-35042
main13103-35042i198801-198808
O/S 0.50,O/S 0.50
main13103-37070i198408-198607
O/S 0.50
sub13103-37071
main13103-37071i198607-198705
O/S 0.50,O/S 0.50
main13103-43031i198408-198808
O/S 0.50,O/S 0.50
main13103-43051i198411-198808
O/S 0.50,O/S 0.50
main13103-43061i198408-198808
O/S 0.50,O/S 0.50
main13103-54030i198408-198608
O/S 0.50,O/S 0.50
main13103-54060i198408-198808
O/S 0.50,O/S 0.50
main13103-70010i198408-198801
O/S 0.50,O/S 0.50
main13103-70031i198408-198512
O/S 0.50,O/S 0.50
main13103-70032i198512-198608
O/S 0.50,O/S 0.50
sub13103-70033
main13103-70060i198801-198808
O/S 0.50,O/S 0.50
main13103-72010i198502-198808
O/S 0.50,O/S 0.50
main13104-43031i198408-198808
O/S 0.75,O/S 0.75
main13104-43051i198411-198808
O/S 0.75,O/S 0.75
main13104-43061i198408-198808
O/S 0.75,O/S 0.75
main13104-70010i198408-198801
O/S 0.75,O/S 0.75
main13104-70060i198801-198808
O/S 0.75,O/S 0.75
main13104-72010i198502-198808
O/S 0.75,O/S 0.75
main13105-35041i198608-198801
O/S 1.00,O/S 1.00
sub13105-35042
main13105-35042i198801-198808
O/S 1.00,O/S 1.00
main13105-37070i198408-198607
O/S 1.00
sub13105-37071
main13105-37071i198607-198705
O/S 1.00,O/S 1.00
main13105-43031i198408-198808
O/S 1.00,O/S 1.00
main13105-43051i198411-198808
O/S 1.00,O/S 1.00
main13105-43061i198408-198808
O/S 1.00,O/S 1.00
main13105-70010i198408-198801
O/S 1.00,O/S 1.00
main13105-70060i198801-198808
O/S 1.00,O/S 1.00
main13105-72010i198502-198808
O/S 1.00,O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-21088i198408-198808
main90521-25001i198408-198808
main90521-25105i198408-198808
main90521-29003i198408-198808
main90521-31001i198408-198608
13201ROD SUB-ASSY, CONNECTING
main13201-39015i198412-198808
main13201-39025i198408-198412
sub13201-39015
main13201-43011i198408-198503
sub13201-49025
main13201-49025i198503-198808
sub13201-49026
main13201-59016i198408-198807
sub13201-59017
main13201-59017i198807-198808
main13201-59026i198408-198608
sub13201-59027
main13201-71011i198502-198808
main13201-79025i198408-198410
sub13201-79026
main13201-79026i198410-198608
main13201-79055i198408-198410
sub13201-79056
main13201-79056i198410-198801
main13201-79115i198801-198808
sub13201-79116
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73066i198408-198808
main90999-73070i198408-198801
main90999-73072i198408-198808
main90999-73083i198408-198807
main90999-73094i198408-198608
sub90999-73118
main90999-73117i198807-198808
13202BEARING SET, CONNECTING ROD
main13204-35040i198408-198808
U/S 0.25,U/S 0.25
main13204-42010i198408-198808
U/S 0.25,U/S 0.25
main13204-54013i198408-198808
U/S 0.25,U/S 0.25
sub13204-54024
main13204-54040i198408-198608
U/S 0.25,U/S 0.25
sub13204-54041
main13204-70010i198408-198801
U/S 0.25,U/S 0.25
main13204-70020i198801-198808
U/S 0.25,U/S 0.25
sub13204-70021
main13204-71021i198603-198808
U/S 0.25,U/S 0.25
sub13204-71011
main13205-42010i198408-198808
U/S 0.50,U/S 0.50
main13205-54013i198408-198808
U/S 0.50,U/S 0.50
sub13205-54024
main13205-54040i198408-198608
U/S 0.50,U/S 0.50
sub13205-54041
13265BOLT, CONNECTING ROD
main13265-29015i198408-198507
sub13265-70010
sub90170-09001
main13265-29025i198502-198808
main13265-39025i198408-198808
main13265-49025i198408-198808
main13265-54011i198408-198807
sub13265-54020
main13265-54020i198807-198808
sub13265-54021
main13265-70010i198507-198801
sub13265-70020
main13265-70020i198801-198808
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198408-198808
main90170-09195i198408-198808
main90170-10005i198408-198807
sub90179-10123
main90170-10198i198408-198808
main90179-10123i198807-198808
13405FLYWHEEL SUB-ASSY
main13405-35021i198803-198808
main13405-39225i198408-198803
N=115
sub13405-35021
main13405-49175i198408-198808
main13405-54060i198805-198808
main13405-59066i198408-198805
main13405-79015i198408-198608
main13405-79025i198408-198808
main13405-79055i198502-198808
sub13405-71011
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198408-198808
L=23,OD=8,L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198408-198808
*10-1.25PX26-18
main90105-12011i198408-198501
*12-1.25PX29-19
main90105-12109i198501-198808
*12-1.25PX29-19
main90913-01011i198408-198808
*11-1.25PX26-18
13411CRANKSHAFT
main13401-54021i198408-198608
main13401-54030i198408-198805
main13401-54031i198805-198808
main13411-38010i198408-198808
main13411-45013i198408-198808
main13411-70902i198408-198801
sub13411-70906
main13411-70903i198408-198608
sub13411-70904
main13411-70907i198801-198808
main13411-72010i198502-198808
sub13411-72900
13453GEAR, FLYWHEEL RING
main13453-20010i198408-198808
N=115
main13453-54010i198408-198808
N=101
13471PULLEY, CRANKSHAFT
main13407-41030i198408-198808
main13407-43020i198408-198808
main13407-70050i198706-198808
main13407-70060i198408-198706
sub13407-70050
main13407-88301i198408-198608
main13408-54020i198408-198808
main13408-71010i198502-198808
main13470-35020i198408-198808
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05003i198408-198808
main90280-05010i198408-198609
main95161-10519i198609-198808
main95161-20519i198804-198808
main95161-20622i198408-198808
sub95161-30622
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-14004i198408-198808
main90105-14013i198502-198808
sub90105-14069
main90105-16011i198408-198808
main90105-18001i198408-198808
*18-1.5PX40-20
main90119-14005i198408-198808
*14-1.5PX40-31
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-33010i198502-198808
main13521-35010i198408-198808
N=18
sub13521-75010
main13521-41011i198408-198808
N=20
13521PPULLEY, CRANKSHAFT TIMING
main13521-43020i198408-198808
main13521-54020i198408-198808
N=21
main13521-70030i198408-198808
main13521-88300i198408-198608

22 parts on this diagram · 7 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
