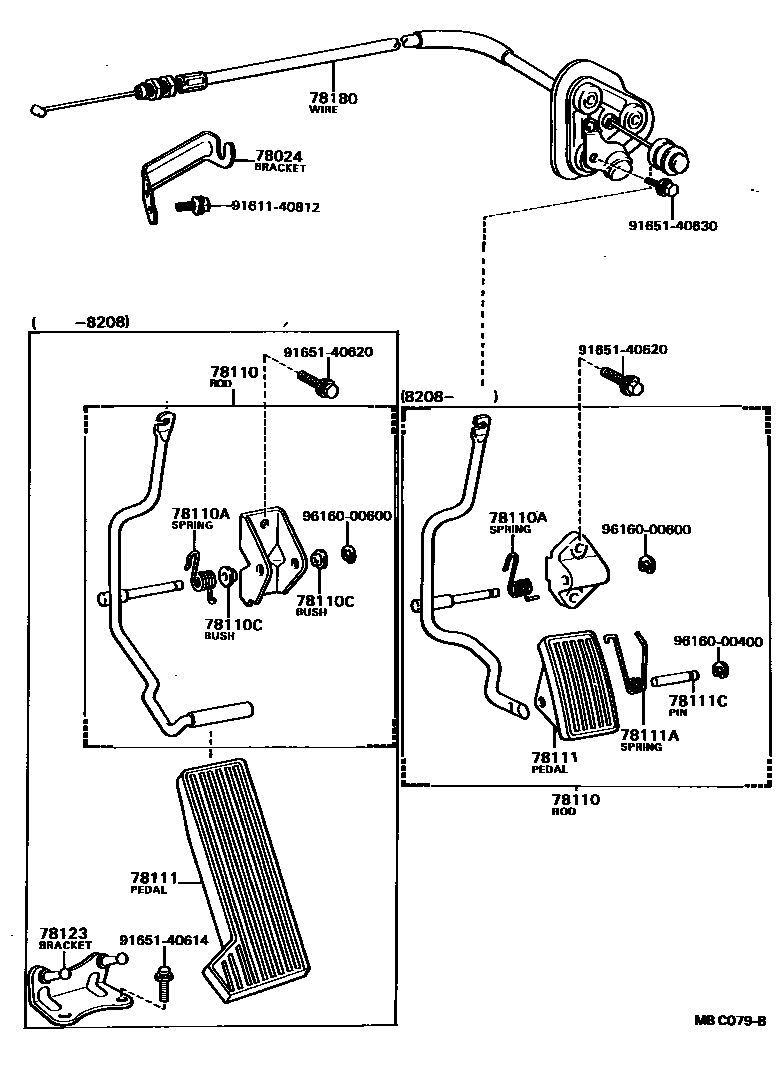

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22010iGX6#..LHD198208-198407

W/O AUTO DRIVE

main78184-12050iTX62198107-198504

main78184-22060iRX62198107-198208

main78184-22070iGX6#..RHD198208-198504

main78184-22081iRX60..RHD198009-198101

main78184-22082iRX60..RHD198101-198504

main78184-22090iGX6#..LHD198208-198407

main78184-30070iMX6#198009-198504

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22070iMX62198009-198208

main78120-22080iTX62198107-198208

main78120-22090iGX6#,MX6#..RHD198208-198504

main78120-22100iTX62198209-198504

main78120-22120iRX60..LHD198009-198407

sub78120-22110

main78120-22130iLX60..LHD198009-198407

main78120-22140iLX60,RX60..RHD198009-198208

main78120-22150iLX60,RX60..RHD198208-198504

main78120-22180iGX6#..LHD198208-198407

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18006iLX60,MX62,RX6#..RHD198009-198208

main90508-20027iTX62198107-198208

main90508-20030iTX62198209-198504

main90508-23018iLX60,RX60..LHD198009-198407

main90508-23037iGX6#,LX60,MX62,RX60..RHD198208-198212

main90508-23061iGX6#..LHD198208-198407

main90508-23076iGX6#,LX60,MX6#,RX60..RHD198212-198504

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08003iGX6#,LX60,RX60..LHD198009-198407

main90386-08014iTX62198305-198504

main90386-08164iTX62198107-198305

78111PEDAL, ACCELERATOR

main78111-12100iLX60,RX60..LHD198009-198504

main78111-30080iLX60,MX62,RX6#,TX62..RHD198009-198208

sub78111-30081

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23003iGX6#,LX60,MX6#,RX60,TX62198009-198504

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iLX60,RX60..LHD198009-198504

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-22040iRX60,TX62..SA198009-198208

78180WIRE ASSY, ACCELERATOR

main78180-22091iTX62198107-198504

main78180-22161iMX6#198009-198504

main78180-22181iRX60..RHD198009-198407

main78180-22191iLX60..RHD198009-198407

main78180-22211iRX62198107-198208

main78180-22230iLX60..LHD198009-198407

main78180-22280iGX6#..RHD198208-198504

main78180-22310iGX6#..LHD198208-198407

main78180-22400iGX6#..LHD198208-198407

W/O AUTO DRIVE

main78180-22850iRX60198408-198504

9161140812

main91611-40812

9165140614

main91651-40614

9165140620

main91651-40620

9165140630

main91651-40630

9616000400

main96160-00400

9616000600

main96160-00600

15 parts on this diagram · 7 diagrams in section
