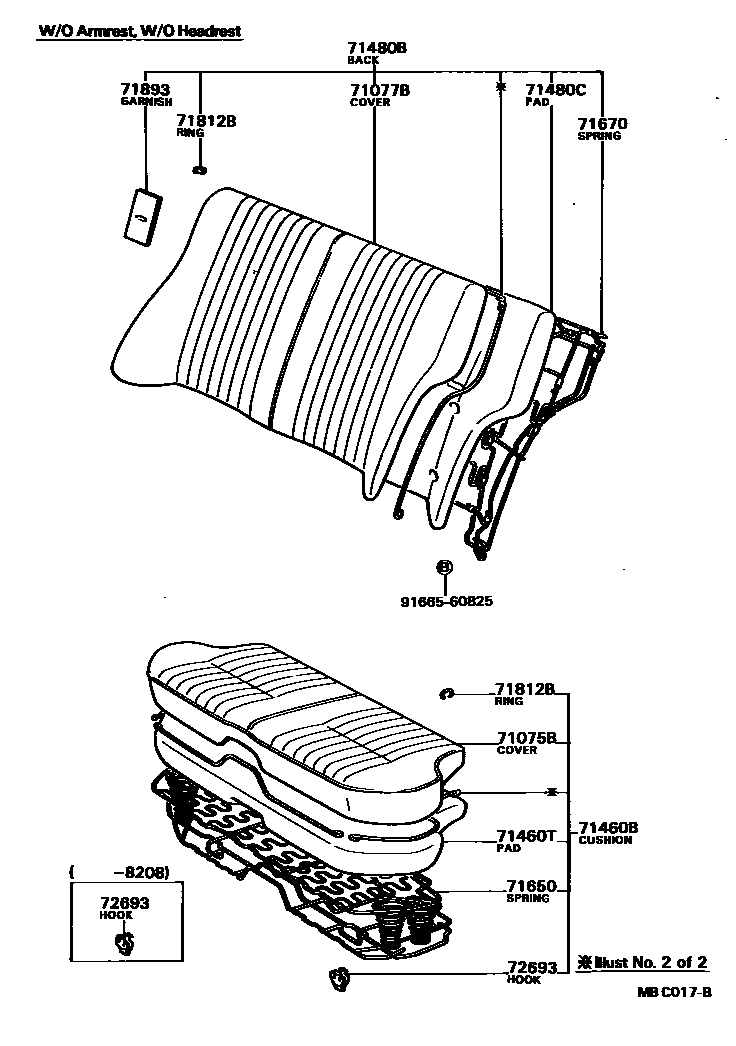

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-22450-03iLX60,TX62..SED..STD198009-198110

PF,GRAY,GRAY,TRIM2#

main71075-22450-04iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198009-198110

PF,BLUE,BLUE,TRIM8#

main71075-22450-05iLX60,TX62..SED..STD198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71075-22451-03iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198110-198208

PF,GRAY,GRAY,TRIM2#

main71075-22451-04iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198110-198208

PF,BLUE,BLUE,TRIM8#

main71075-22451-05iLX60,TX62..SED..STD198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71075-22452-02iLX60..LHD..EUG198208-198504

PF,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-22452-04iLX60..LHD..EUG198208-198504

PF,BLUE,BLUE,TRIM8#

main71075-22452-06iRX60..DLX..GEN;LX60,TX62..GEN,SA198208-198504

PF,L-BROWN,BROWN,TRIM4#

main71075-22481-02iGX61,RX60..GL..EUR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-22481-04iGX61,RX60..GL..EUR198208-198407

FB,BLUE,BLUE,TRIM8#

main71075-22481-06iGX61,RX60..GL..EUR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71075-22520-03iRX60..SED..(3H,4H)..GEN198009-198208

PF,GRAY,GRAY,TRIM2#

main71075-22520-04iRX60..SED..(3H,4H)..GEN198009-198208

PF,BLUE,BLUE,TRIM8#

main71075-22520-05iRX60..SED..(3H,4H)..GEN198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71075-22530-03iMX62,RX60..GL,SXL198009-198108

FB-F,GRAY,GRAY,TRIM2#

main71075-22530-04iMX62,RX60..GL,SXL198009-198108

FB-F,BLUE,BLUE,TRIM8#

main71075-22530-05iMX62,RX60..GL,SXL198009-198108

FB-F,GREIGE,BEIGE,TRIM4#

main71075-22531-02iMX62,RX60..GL..(ARL,GEN,ME)198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

sub71075-22542

main71075-22531-04iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,BLUE,BLUE,TRIM8#

sub71075-22542

main71075-22531-06iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,L-BROWN,BROWN,TRIM4#

sub71075-22542

main71075-22531-12iGX60..LHD198208-198308

FB,WINE,WINE,TRIM5#

sub71075-22542

main71075-22550-03iLX60,RX60..SED..(DLX,STD,XL)198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71075-22550-04iLX60,RX60..SED..(DLX,STD,XL)198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71075-22550-05iLX60,RX60..SED..(DLX,STD,XL)198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71075-22550-08iLX60,RX60..SED..(DLX,XL)198009-198208

FB-E,IVORY,IVORY,TRIM0#

main71075-22551-02iLX60,RX60..DLX198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-22551-04iLX60,RX60..DLX198208-198504

FB,BLUE,BLUE,TRIM8#

main71075-22551-06iLX60,RX60..DLX198208-198504

FB,L-BROWN,BROWN,TRIM4#

main71075-22600-03iMX62,RX60..GL,SXL198108-198208

FB-F,GRAY,GRAY,TRIM2#

main71075-22600-04iMX62,RX60..GL,SXL198108-198208

FB-F,BLUE,BLUE,TRIM8#

main71075-22600-05iMX62,RX60..GL,SXL198108-198208

FB-F,GREIGE,BEIGE,TRIM4#

main71075-22660-02iMX62,RX60..GL..(ARL,GEN)198308-198504

FB,DEEP MAROON,RED/MAROON,TRIM3#

sub71075-22700

main71075-22660-04iGX60,MX6#,RX60..GL198308-198504

FB,BLUE,BLUE,TRIM8#

sub71075-22700

main71075-22660-06iGX60,MX6#,RX60..GL198308-198504

FB,L-BROWN,BROWN,TRIM4#

sub71075-22700

main71075-22660-12iRX60..ME198308-198407

FB,WINE,RED/MAROON,TRIM5#

sub71075-22700

main71075-22660-12iGX60..LHD198308-198407

FB,DARK WINE,RED/MAROON,TRIM5#

sub71075-22700

main71075-91643-03iRX60..WG..(3H,4H)198009-198208

PF,GRAY,GRAY,TRIM2#

main71075-91643-04iRX60..WG..(3H,4H)198009-198208

PF,BLUE,BLUE,TRIM8#

main71075-91643-05iRX60..WG..(3H,4H)198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71075-91645-03iLX60,MX62,RX6#..WG198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71075-91645-04iLX60,MX62,RX6#..WG198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71075-91645-05iLX60,MX62,RX6#..WG198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71075-91650-03iLX60..WG..STD198009-198110

PF,GRAY,GRAY,TRIM2#

main71075-91650-04iLX60..WG..STD198009-198110

PF,BLUE,BLUE,TRIM8#

main71075-91650-05iLX60..WG..STD198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71075-91652-03iLX60..WG..STD198110-198208

PF,GRAY,GRAY,TRIM2#

main71075-91652-04iLX60..WG..STD198110-198208

PF,BLUE,BLUE,TRIM8#

main71075-91652-05iLX60..WG..STD198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71075-91655-02iLX60,RX60..WG198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-91655-04iLX60,RX60..WG198208-198504

FB,BLUE,BLUE,TRIM8#

main71075-91655-06iLX60,RX60..WG198208-198504

FB,LIGHT BROWN,BROWN,TRIM4#

main71075-91656-02iMX62..WG198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-91656-04iMX62..WG198208-198308

FB,BLUE,BLUE,TRIM8#

main71075-91656-06iMX62..WG198208-198308

FB,LIGHT BROWN,BROWN,TRIM4#

main71075-91659-02iMX62..WG198308-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-91659-04iMX62..WG198308-198407

FB,BLUE,BLUE,TRIM8#

main71075-91659-06iMX62..WG198308-198407

FB,LIGHT BROWN,BROWN,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-22530-03iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198009-198110

PF,GRAY,GRAY,TRIM2#

main71077-22530-04iLX60,TX62..SED..STD198009-198110

PF,BLUE,BLUE,TRIM8#

main71077-22530-05iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71077-22531-03iLX60,TX62..SED..STD198110-198208

PF,GRAY,GRAY,TRIM2#

main71077-22531-04iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198110-198208

PF,BLUE,BLUE,TRIM8#

main71077-22531-05iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71077-22532-02iRX60..SED..DLX..GEN;LX60,TX62..SED..(GEN,SA)198208-198504

PF,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22532-04iRX60..SED..DLX..GEN;LX60,TX62..SED..(GEN,SA)198208-198504

PF,BLUE,BLUE,TRIM8#

main71077-22532-06iRX60..SED..DLX..GEN;LX60,TX62..SED..(GEN,SA)198208-198504

PF,L-BROWN,BROWN,TRIM4#

main71077-22610-03iRX60..SED..(3H,4H)..GEN198009-198208

PF,GRAY,GRAY,TRIM2#

main71077-22610-04iRX60..SED..(3H,4H)..GEN198009-198208

PF,BLUE,BLUE,TRIM8#

main71077-22610-05iRX60..SED..(3H,4H)..GEN198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71077-22620-03iLX60..SED;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71077-22620-04iLX60,RX60..SED..(DLX,STD,XL)..(GEN,ME,SA)198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71077-22620-05iLX60..SED;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71077-22620-08iLX60,RX60..SED..(DLX,XL)..(GEN,ME,SA)198009-198208

FB-E,IVORY,IVORY,TRIM0#

main71077-22621-02iLX60,RX60..SED..(GEN,ME,SA)198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22621-04iLX60,RX60..SED..(GEN,ME,SA)198208-198504

FB,BLUE,BLUE,TRIM8#

main71077-22621-06iLX60,RX60..SED..(GEN,ME,SA)198208-198504

FB,L-BROWN,BROWN,TRIM4#

main71077-22630-03iMX62,RX60..GL,SXL198009-198108

FB-F,GRAY,GRAY,TRIM2#

main71077-22630-04iMX62,RX60..GL,SXL198009-198108

FB-F,BLUE,BLUE,TRIM8#

main71077-22630-05iMX62,RX60..GL,SXL198009-198108

FB-F,GREIGE,BEIGE,TRIM4#

main71077-22631-03iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198108-198208

FB-F,GRAY,GRAY,TRIM2#

main71077-22631-04iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198108-198208

FB-F,BLUE,BLUE,TRIM8#

main71077-22631-05iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198108-198208

FB-F,GREIGE,BEIGE,TRIM4#

main71077-22632-02iMX62,RX60..GL..(ARL,GEN,ME)198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22632-04iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,BLUE,BLUE,TRIM8#

main71077-22632-06iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,L-BROWN,BROWN,TRIM4#

main71077-22632-12iGX60..LHD198208-198308

FB,WINE,RED/MAROON,TRIM5#

main71077-22640-03iRX60..GL..(EUR,GEN)198009-198108

FB-F,*ELR,GRAY,GRAY,TRIM2#

main71077-22640-04iRX60..GL..(EUR,GEN)198009-198108

FB-F,*ELR,BLUE,BLUE,TRIM8#

main71077-22640-05iRX60..GL..(EUR,GEN)198009-198108

FB-F,*ELR,GREIGE,BEIGE,TRIM4#

main71077-22641-03iRX60..GL..(EUR,GEN)198108-198208

FB-F,*ELR,GRAY,GRAY,TRIM2#

main71077-22641-04iRX60..GL..(EUR,GEN)198108-198208

FB-F,*ELR,BLUE,BLUE,TRIM8#

main71077-22641-05iRX60..GL..(EUR,GEN)198108-198208

FB-F,*ELR,GREIGE,BEIGE,TRIM4#

main71077-22642-02iGX60..RHD198208-198308

FB,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22642-04iGX60,RX60..GL..GEN198208-198308

FB,*ELR,BLUE,BLUE,TRIM8#

main71077-22642-06iGX60,RX60..GL..GEN198208-198308

FB,*ELR,L-BROWN,BROWN,TRIM4#

main71077-22650-03iLX60..SED..STD..EUG198009-198110

PF,*ELR,GRAY,GRAY,TRIM2#

main71077-22650-04iLX60..SED..STD..EUG198009-198110

PF,*ELR,BLUE,BLUE,TRIM8#

main71077-22650-05iLX60..SED..STD..EUG198009-198110

PF,*ELR,GREIGE,BEIGE,TRIM4#

main71077-22651-03iLX60..SED..STD..EUG198110-198208

PF,*ELR,GRAY,GRAY,TRIM2#

main71077-22651-04iLX60..SED..STD..EUG198110-198208

PF,*ELR,BLUE,BLUE,TRIM8#

main71077-22651-05iLX60..SED..STD..EUG198110-198208

PF,*ELR,GREIGE,BEIGE,TRIM4#

main71077-22660-03iLX60,RX60..SED..(DLX,STD)..EUR198009-198208

FB-E,*ELR,BLACK,GRAY,TRIM2#

main71077-22660-04iLX60,RX60..SED..(DLX,STD)..EUR198009-198208

FB-E,*ELR,BLUE,BLUE,TRIM8#

main71077-22660-05iLX60,RX60..SED..(DLX,STD)..EUR198009-198208

FB-E,*ELR,D-BROWN,BEIGE,TRIM4#

main71077-22661-02iRX60..SED..LHD..(4F,4FC)..DLX..GEN198208-198407

FB,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22661-02iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

FB-H,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22661-02iLX60,RX60..SED..DLX..EUR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22661-04iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

FB-H,*ELR,BLUE,BLUE,TRIM8#

main71077-22661-04iRX60..SED..RHD..DLX..GEN198208-198407

FB,*ELR,BLUE,BLUE,TRIM8#

main71077-22661-04iLX60,RX60..SED..DLX..EUR198208-198407

FB,BLUE,BLUE,TRIM8#

main71077-22661-06iRX60..SED..(4F,4FC)..DLX..GEN198308-198407

FB-H,*ELR,L-BROWN,BROWN,TRIM4#

main71077-22661-06iRX60..SED..LHD..(4F,4FC)..DLX..GEN198208-198407

FB,*ELR,L-BROWN,BROWN,TRIM4#

main71077-22661-06iLX60,RX60..SED..DLX..EUR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71077-22760-02iGX61,RX60..GL..EUR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22760-04iGX61,RX60..GL..EUR198208-198407

FB,BLUE,BLUE,TRIM8#

main71077-22760-06iGX61,RX60..GL..EUR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71077-22770-02iLX60..EUG198208-198407

PF,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22770-02iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

PF,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22770-04iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

PF,*ELR,BLUE,BLUE,TRIM8#

main71077-22770-04iLX60..EUG198208-198407

PF,BLUE,BLUE,TRIM8#

main71077-22770-06iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

PF,*ELR,L-BROWN,BROWN,TRIM4#

main71077-22770-06iLX60..EUG198208-198407

PF,L-BROWN,BROWN,TRIM4#

main71077-22800-02iGX60,MX63..RHD198308-198504

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71077-22800-02iGX60,MX63..RHD198308-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22800-04iGX60,MX6#,RX60..GL198308-198504

FB,BLUE,BLUE,TRIM8#

main71077-22800-06iGX60,MX6#,RX60..GL198308-198504

FB,L-BROWN,BROWN,TRIM4#

main71077-22800-12iRX60..ME198308-198407

FB,WINE,RED/MAROON,TRIM5#

main71077-22800-12iGX60..LHD198308-198407

FB,DARK WINE,RED/MAROON,TRIM5#

main71077-22810-02iGX60..RHD198308-198504

FB,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22810-02iRX60..GL..GEN198308-198407

FB,*ELR,DEEP MAROON,RED/MAROON,TRIM3#

main71077-22810-04iGX60,RX60..GL..GEN198308-198407

FB,*ELR,BLUE,BLUE,TRIM8#

main71077-22810-06iGX60,RX60..GL..GEN198308-198407

FB,*ELR,L-BROWN,BROWN,TRIM4#

main71077-22810-12iGX60..LHD198308-198407

FB,*ELR,DARK WINE,RED/MAROON,TRIM5#

main71077-22810-12iRX60..ME198308-198407

FB,*ELR,WINE,RED/MAROON,TRIM5#

main71077-91663-03iRX60..WG..(3H,4H)198009-198208

PF,GRAY,GRAY,TRIM2#

main71077-91663-04iRX60..WG..(3H,4H)198009-198208

PF,BLUE,BLUE,TRIM8#

main71077-91663-05iRX60..WG..(3H,4H)198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71077-91665-03iLX60,MX62,RX6#..WG198202-198208

FB-E,GRAY,GRAY,TRIM2#

main71077-91665-04iLX60,MX62,RX6#..WG198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71077-91665-05iLX60,MX62,RX6#..WG198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71077-91670-03iLX60..WG..STD198009-198110

PF,GRAY,GRAY,TRIM2#

main71077-91670-04iLX60..WG..STD198009-198110

PF,BLUE,BLUE,TRIM8#

main71077-91670-05iLX60..WG..STD198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71077-91672-03iLX60..WG..STD198110-198208

PF,GRAY,GRAY,TRIM2#

main71077-91672-04iLX60..WG..STD198110-198208

PF,BLUE,BLUE,TRIM8#

main71077-91672-05iLX60..WG..STD198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71077-91675-02iLX60,RX60..WG198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-91675-04iLX60,RX60..WG198208-198504

FB,BLUE,BLUE,TRIM8#

main71077-91675-06iLX60,RX60..WG198208-198504

FB,LIGHT BROWN,BROWN,TRIM4#

main71077-91676-02iMX62..WG198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-91676-04iMX62..WG198208-198308

FB,BLUE,BLUE,TRIM8#

main71077-91676-06iMX62..WG198208-198308

FB,LIGHT BROWN,BROWN,TRIM4#

main71077-91683-02iMX62..WG198308-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-91683-04iMX62..WG198308-198407

FB,BLUE,BLUE,TRIM8#

main71077-91683-06iMX62..WG198308-198407

FB,LIGHT BROWN,BROWN,TRIM4#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-22420-03iMX62,RX60..GL,SXL198009-198108

FB-F,GRAY,GRAY,TRIM2#

main71460-22420-04iMX62,RX60..GL,SXL198009-198108

FB-F,BLUE,BLUE,TRIM8#

main71460-22420-05iMX62,RX60..GL,SXL198009-198108

FB-F,GREIGE,BEIGE,TRIM4#

main71460-22421-02iMX62,RX60..GL..(ARL,GEN,ME)198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22421-04iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,BLUE,BLUE,TRIM8#

main71460-22421-06iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,L-BROWN,BROWN,TRIM4#

main71460-22421-12iGX60..LHD198208-198308

FB,WINE,WINE,TRIM5#

main71460-22450-03iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198009-198110

PF,GRAY,GRAY,TRIM2#

main71460-22450-04iLX60,TX62..SED..STD198009-198110

PF,BLUE,BLUE,TRIM8#

main71460-22450-05iLX60,TX62..SED..STD198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71460-22451-03iLX60,TX62..SED..STD198110-198208

PF,GRAY,GRAY,TRIM2#

main71460-22451-04iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198110-198208

PF,BLUE,BLUE,TRIM8#

main71460-22451-05iLX60,TX62..SED..STD198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71460-22452-02iTX62;RX60..4H..ME198209-198504

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71460-22452-02iLX60..LHD..EUG198208-198407

PF,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22452-04iLX60..LHD..EUG198208-198504

PF,BLUE,BLUE,TRIM8#

main71460-22452-06iLX60..LHD..EUG198208-198407

PF,L-BROWN,BROWN,TRIM4#

main71460-22452-06iTX62;RX60..4H..ME198209-198504

PF,D-BROWN,BROWN,TRIM4#

main71460-22481-02iGX61,RX60..GL..EUR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22481-04iGX61,RX60..GL..EUR198208-198407

FB,BLUE,BLUE,TRIM8#

main71460-22481-06iGX61,RX60..GL..EUR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71460-22520-03iRX60..SED..(3H,4H)..GEN198009-198208

PF,GRAY,GRAY,TRIM2#

main71460-22520-04iRX60..SED..(3H,4H)..GEN198009-198208

PF,BLUE,BLUE,TRIM8#

main71460-22520-05iRX60..SED..(3H,4H)..GEN198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71460-22550-03iLX60,RX60..SED..(DLX,STD,XL)198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71460-22550-04iLX60,RX60..SED..(DLX,STD,XL)198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71460-22550-05iLX60,RX60..SED..(DLX,STD,XL)198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71460-22550-08iRX60..SED..5F..SA198009-198407

FB-E,IVORY,IVORY,TRIM0#

main71460-22600-03iMX62,RX60..GL,SXL198108-198208

FB-F,GRAY,GRAY,TRIM2#

main71460-22600-04iMX62,RX60..GL,SXL198108-198208

FB-F,BLUE,BLUE,TRIM8#

main71460-22600-05iMX62,RX60..GL,SXL198108-198208

FB-F,GREIGE,BEIGE,TRIM4#

main71460-22670-02iLX60,RX60..SED..DLX198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22670-04iLX60,RX60..SED..DLX198208-198504

FB,BLUE,BLUE,TRIM8#

main71460-22670-06iLX60,RX60..SED..DLX198208-198504

FB,L-BROWN,BROWN,TRIM4#

main71460-22710-02iMX62,RX60..GL..(ARL,GEN)198308-198504

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71460-22710-04iGX60,MX6#,RX60..GL198308-198504

FB,BLUE,BLUE,TRIM8#

main71460-22710-06iGX60,MX6#,RX60..GL198308-198504

FB,L-BROWN,BROWN,TRIM4#

main71460-22710-12iGX60..LHD198308-198407

FB,DARK WINE,RED/MAROON,TRIM5#

main71460-22710-12iGX60..LHD198308-198407

FB,WINE,RED/MAROON,TRIM5#

main71460-91672-03iRX60..WG..(3H,4H)198009-198208

PF,GRAY,GRAY,TRIM2#

main71460-91672-04iRX60..WG..(3H,4H)198009-198208

PF,BLUE,BLUE,TRIM8#

main71460-91672-05iRX60..WG..(3H,4H)198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71460-91674-03iLX60,MX62,RX6#..WG198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71460-91674-04iLX60,MX62,RX6#..WG198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71460-91674-05iLX60,MX62,RX6#..WG198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71460-91677-03iLX60..WG..STD198009-198110

PF,GRAY,GRAY,TRIM2#

main71460-91677-04iLX60..WG..STD198009-198110

PF,BLUE,BLUE,TRIM8#

main71460-91677-05iLX60..WG..STD198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71460-91680-03iLX60..WG..STD198110-198208

PF,GRAY,GRAY,TRIM2#

main71460-91680-04iLX60..WG..STD198110-198208

PF,BLUE,BLUE,TRIM8#

main71460-91680-05iLX60..WG..STD198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71460-91683-02iLX60,RX60..WG198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-91683-04iLX60,RX60..WG198208-198504

FB,BLUE,BLUE,TRIM8#

main71460-91683-06iLX60,RX60..WG198208-198504

FB,LIGHT BROWN,BROWN,TRIM4#

main71460-91684-02iMX62..WG198208-198305

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-91684-04iMX62..WG198208-198305

FB,BLUE,BLUE,TRIM8#

main71460-91684-06iMX62..WG198208-198305

FB,LIGHT BROWN,BROWN,TRIM4#

main71460-91688-02iMX62..WG198305-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-91688-04iMX62..WG198305-198407

FB,BLUE,BLUE,TRIM8#

main71460-91688-06iMX62..WG198305-198407

FB,LIGHT BROWN,BROWN,TRIM4#

71460TPAD SUB-ASSY, REAR SEAT CUSHION, NO.1

main71611-22100iLX60,MX62,RX60,TX62..SED198009-198208

sub71611-22110

main71611-22111iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

main71611-91605iLX60,RX60..WG198208-198504

main71611-91605iRX60..WG..3H;LX60..WG..STD198009-198208

PF

main71611-91606iMX62..WG198208-198407

main71611-91607iLX60,MX62,RX6#..WG198009-198208

FB-E

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-22510-03iLX60..SED..STD..EUG198009-198110

PF,*ELR,GRAY,GRAY,TRIM2#

main71480-22510-04iLX60..SED..STD..EUG198009-198110

PF,*ELR,BLUE,BLUE,TRIM8#

main71480-22510-05iLX60..SED..STD..EUG198009-198110

PF,*ELR,GREIGE,BEIGE,TRIM4#

main71480-22511-03iLX60..SED..STD..EUG198110-198208

PF,*ELR,GRAY,GRAY,TRIM2#

main71480-22511-04iLX60..SED..STD..EUG198110-198208

PF,*ELR,BLUE,BLUE,TRIM8#

main71480-22511-05iLX60..SED..STD..EUG198110-198208

PF,*ELR,GREIGE,BEIGE,TRIM4#

main71480-22530-03iLX60,TX62..SED..STD198009-198110

PF,GRAY,GRAY,TRIM2#

main71480-22530-04iLX60,TX62..SED..STD198009-198110

PF,BLUE,BLUE,TRIM8#

main71480-22530-05iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71480-22531-03iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198110-198208

PF,GRAY,GRAY,TRIM2#

main71480-22531-04iLX60,TX62..SED..STD198110-198208

PF,BLUE,BLUE,TRIM8#

main71480-22531-05iLX60,RX60..SED..(3FC,4F,4FC,5F)..DLX..GEN198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71480-22532-02iTX62;RX60..4H..ME198209-198504

PF,DEEP MAROON,RED/MAROON,TRIM3#

main71480-22532-02iLX60,RX60..SED..DLX..GEN198208-198407

PF,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22532-04iLX60,RX60..SED..DLX..GEN198208-198504

PF,BLUE,BLUE,TRIM8#

main71480-22532-06iLX60,RX60..SED..DLX..GEN198208-198407

PF,L-BROWN,BROWN,TRIM4#

main71480-22532-06iTX62198209-198504

PF,D-BROWN,BROWN,TRIM4#

main71480-22610-03iRX60..SED..(3H,4H)..GEN198009-198208

PF,GRAY,GRAY,TRIM2#

main71480-22610-04iRX60..SED..(3H,4H)..GEN198009-198208

PF,BLUE,BLUE,TRIM8#

main71480-22610-05iRX60..SED..(3H,4H)..GEN198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71480-22620-03iLX60,RX60..SED..(DLX,STD,XL)..(GEN,ME,SA)198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71480-22620-04iLX60,RX60..SED..(DLX,STD,XL)..(GEN,ME,SA)198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71480-22620-05iLX60..SED;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71480-22620-08iLX60,RX60..SED..(DLX,XL)..(GEN,ME,SA)198009-198208

FB-E,IVORY,IVORY,TRIM0#

main71480-22621-02iLX60,RX60..SED..DLX..(GEN,ME,SA)198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22621-04iLX60,RX60..SED..DLX..(GEN,ME,SA)198208-198504

FB,BLUE,BLUE,TRIM8#

main71480-22621-06iLX60,RX60..SED..DLX..(GEN,ME,SA)198208-198504

FB,L-BROWN,BROWN,TRIM4#

main71480-22630-03iMX62,RX60..GL,SXL198009-198108

FB-F,GRAY,GRAY,TRIM2#

main71480-22630-04iMX62,RX60..GL,SXL198009-198108

FB-F,BLUE,BLUE,TRIM8#

main71480-22630-05iMX62,RX60..GL,SXL198009-198108

FB-F,GREI,BEIGE

main71480-22631-03iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198108-198208

FB-F,GRAY,GRAY,TRIM2#

main71480-22631-04iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198108-198208

FB-F,BLUE,BLUE,TRIM8#

main71480-22631-05iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198108-198208

FB-F,GREI,BEIGE

main71480-22632-02iGX60..RHD198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22632-04iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,BLUE,BLUE,TRIM8#

main71480-22632-06iGX60,MX62,RX60..GL..(ARL,GEN,ME,SA)198208-198308

FB,L-BROWN,BROWN,TRIM4#

main71480-22632-12iGX60..LHD198208-198308

FB,WINE,RED/MAROON,TRIM5#

main71480-22633-02iGX60..RHD198308-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22633-02iGX60..RHD198308-198504

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71480-22633-04iGX60,MX63,RX60..GL198308-198504

FB,BLUE,BLUE,TRIM8#

main71480-22633-06iGX60,MX63,RX60..GL198308-198504

FB,L-BROWN,BROWN,TRIM4#

main71480-22633-12iRX60..ME198308-198407

FB,DARK WINE,RED/MAROON,TRIM5#

main71480-22633-12iGX60..LHD198308-198407

FB,WINE,RED/MAROON,TRIM5#

main71480-22640-03iRX60..GL..(EUR,GEN)198009-198108

FB-F,*ELR,GRAY,GRAY,TRIM2#

main71480-22640-04iRX60..GL..(EUR,GEN)198009-198108

FB-F,*ELR,BLUE,BLUE,TRIM8#

main71480-22640-05iRX60..GL..(EUR,GEN)198009-198108

FB-F,*ELR,GREIGE,BEIGE,TRIM4#

main71480-22641-03iRX60..GL..(EUR,GEN)198108-198208

FB-F,*ELR,GRAY,GRAY,TRIM2#

main71480-22641-04iRX60..GL..(EUR,GEN)198108-198208

FB-F,*ELR,BLUE,BLUE,TRIM8#

main71480-22641-05iRX60..GL..(EUR,GEN)198108-198208

FB-F,*ELR,GREIGE,BEIGE,TRIM4#

main71480-22642-02iRX60..GL..GEN198208-198308

FB,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22642-04iGX60,RX60..GL..GEN198208-198308

FB,*ELR,BLUE,BLUE,TRIM8#

main71480-22642-06iGX60,RX60..GL..GEN198208-198308

FB,*ELR,L-BROWN,BROWN,TRIM4#

main71480-22643-02iGX60,MX62,RX60..GL..(ARL,GEN)198308-198407

FB,*ELR,DEEP MAROON,RED/MAROON,TRIM3#

main71480-22643-02iGX60..RHD198308-198504

FB,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22643-04iMX62,RX60..GL198308-198407

FB,*ELR,BLUE,BLUE,TRIM8#

main71480-22643-06iGX60,MX62,RX60..GL..(ARL,GEN,ME)198308-198407

FB,*ELR,L-BROWN,BROWN,TRIM4#

main71480-22643-12iRX60..ME198308-198407

FB,*ELR,WINE,RED/MAROON,TRIM5#

main71480-22643-12iGX60..LHD198308-198407

FB,*ELR,DARK WINE,RED/MAROON,TRIM5#

main71480-22660-03iLX60,RX60..SED..(DLX,STD)..EUR198009-198208

FB-E,*ELR,GRAY,GRAY,TRIM2#

main71480-22660-04iLX60,RX60..SED..(DLX,STD)..EUR198009-198208

FB-E,*ELR,BLUE,BLUE,TRIM8#

main71480-22660-05iLX60,RX60..SED..(DLX,STD)..EUR198009-198208

FB-E,*ELR,GREIGE,BEIGE,TRIM4#

main71480-22661-02iLX60,RX60..SED..DLX..EUR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22661-02iLX60..SED..EUG;RX60..SED..LHD..(4F,4FC,5F)..DLX..(EUR,GEN)198308-198407

FB-H,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22661-02iRX60..RHD..DLX..GEN198208-198407

FB,NEW ZEALAND SPEC,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22661-04iRX60..RHD..DLX..GEN198208-198407

FB,NEW ZEALAND SPEC,BLUE,BLUE,TRIM8#

main71480-22661-04iLX60..SED..EUG;RX60..SED..LHD..(4F,4FC,5F)..DLX..(EUR,GEN)198208-198407

FB,BLUE,BLUE,TRIM8#

main71480-22661-04iLX60..SED..EUG;RX60..SED..LHD..(4F,4FC,5F)..DLX..(EUR,GEN)198308-198407

FB-H,*ELR,BLUE,BLUE,TRIM8#

main71480-22661-06iLX60..SED..EUG;RX60..SED..LHD..(4F,4FC,5F)..DLX..(EUR,GEN)198308-198407

FB-H,*ELR,L-BROWN,BROWN,TRIM4#

main71480-22661-06iLX60..SED..EUG;RX60..SED..LHD..(4F,4FC,5F)..DLX..(EUR,GEN)198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71480-22661-06iRX60..RHD..DLX..GEN198208-198407

FB,NEW ZEALAND SPEC,L-BROWN,BROWN,TRIM4#

main71480-22760-02iGX61,RX60..GL..EUR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22760-04iGX61,RX60..GL..EUR198208-198407

FB,BLUE,BLUE,TRIM8#

main71480-22760-06iGX61,RX60..GL..EUR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71480-22780-02iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

PF,*ELR,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22780-02iLX60..LHD..EUG198208-198407

PF,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22780-04iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

PF,*ELR,BLUE,BLUE,TRIM8#

main71480-22780-04iLX60..LHD..EUG198208-198407

PF,BLUE,BLUE,TRIM8#

main71480-22780-06iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

PF,*ELR,L-BROWN,BROWN,TRIM4#

main71480-22780-06iLX60..LHD..EUG198208-198407

PF,L-BROWN,BROWN,TRIM4#

main71480-91A07-03iLX60,RX6#..WG..(DLX,XL)198009-198208

FB-E,*HR,FR SEAT,GRAY,GRAY,TRIM2#

main71480-91A07-03iLX60,RX6#..WG..(DLX,XL)198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71480-91A07-04iLX60..WG..STD..GEN198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71480-91A07-04iLX60..WG..STD..GEN198009-198208

FB-E,*HR,FR SEAT,BLUE,BLUE,TRIM8#

main71480-91A07-05iLX60..WG..STD..GEN198009-198208

FB-E,*HR,FR SEAT,GREIGE,BEIGE,TRIM4#

main71480-91A07-05iLX60..WG..STD..GEN198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71480-91A08-03iLX60..WG..STD198009-198110

PF,GRAY,GRAY,TRIM2#

main71480-91A08-04iLX60..WG..STD198009-198110

PF,BLUE,BLUE,TRIM8#

main71480-91A08-05iLX60..WG..STD198009-198110

PF,GREIGE,BEIGE,TRIM4#

main71480-91A09-03iMX62..DLX198009-198208

FB-E,GRAY,GRAY,TRIM2#

main71480-91A09-04iMX62..DLX198009-198208

FB-E,BLUE,BLUE,TRIM8#

main71480-91A09-05iMX62..DLX198009-198208

FB-E,GREIGE,BEIGE,TRIM4#

main71480-91A10-03iLX60..WG..STD198009-198208

FB-E,W/O *HR,FR SEAT,GRAY,GRAY,TRIM2#

main71480-91A10-04iLX60..WG..STD198009-198208

FB-E,W/O *HR,FR SEAT,BLUE,BLUE,TRIM8#

main71480-91A10-05iLX60..WG..STD198009-198208

FB-E,W/O *HR,FR SEAT,GREIGE,BEIGE,TRIM4#

main71480-91A11-03iRX60..WG..(3H,4H)198009-198208

PF,GRAY,GRAY,TRIM2#

main71480-91A11-04iRX60..WG..(3H,4H)198009-198208

PF,BLUE,BLUE,TRIM8#

main71480-91A11-05iRX60..WG..(3H,4H)198009-198208

PF,GREIGE,BEIGE,TRIM4#

main71480-91A15-03iLX60..WG..STD198110-198208

PF,GRAY,GRAY,TRIM2#

main71480-91A15-04iLX60..WG..STD198110-198208

PF,BLUE,BLUE,TRIM8#

main71480-91A15-05iLX60..WG..STD198110-198208

PF,GREIGE,BEIGE,TRIM4#

main71480-91A18-02iLX60,RX60..WG198208-198504

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-91A18-04iLX60,RX60..WG198208-198504

FB,BLUE,BLUE,TRIM8#

main71480-91A18-06iLX60,RX60..WG198208-198504

FB,LIGHT BROWN,BROWN,TRIM4#

main71480-91A19-02iMX62..WG198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-91A19-04iMX62..WG198208-198308

FB,BLUE,BLUE,TRIM8#

main71480-91A19-06iMX62..WG198208-198308

FB,LIGHT BROWN,BROWN,TRIM4#

main71480-91A23-02iMX62..WG198308-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-91A23-04iMX62..WG198308-198407

FB,BLUE,BLUE,TRIM8#

main71480-91A23-06iMX62..WG198308-198407

FB,LIGHT BROWN,BROWN,TRIM4#

71480CPAD SUB-ASSY, REAR SEATBACK, NO.1 (FOR BENCH TYPE)

main71507-22030iLX60,TX62..SED..STD198009-198504

PF

main71507-22040iLX60..SED;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198504

FB-E,FB

main71507-22050iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198009-198504

main71507-22090iGX6#..EUR,GEN;RX60..RHD..GL;RX60..LHD..5F..GL..GEN;RX60..LHD..5F..GL..EUG;RX60..LHD..ATM..GL..(EUR,GEN)198009-198407

*ELR

main71507-22100iRX60..SED..LHD..(4F,4FC)..DLX..GEN198009-198407

PF,*ELR

main71507-22110iRX60..SED..(4F,4FC)..DLX..GEN198208-198407

*ELR

main71507-22110iLX60,RX60..SED..(DLX,STD)..EUR198009-198407

FB-E,*ELR

main71507-22110iRX60..SED..(4F,4FC)..DLX..GEN198308-198407

FB-H,*ELR

71650SPRING ASSY, REAR SEAT CUSHION

main71650-22070iLX60,MX62,RX60,TX62..SED198009-198208

sub71650-22080

main71650-22081iGX6#,LX60,MX6#,RX60,TX62198208-198504

main71650-91608iLX60,MX62,RX6#..WG198009-198504

main71650-91609iMX62..WG198208-198407

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-22130iLX60,RX60..SED..DLX..GEN198009-198208

PF

main71670-22150iLX60..SED;RX60..SED..RHD..(DLX,XL);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198407

FB-E

main71670-22151iLX60,RX60..SED..DLX..(GEN,ME,SA)198208-198504

FB

main71670-22170iRX60..GL..(EUR,GEN)198009-198208

*ELR

sub71670-22171

main71670-22171iGX6#..EUR,GEN;RX60..GL..GEN198208-198407

*ELR

main71670-22180iLX60,RX60..SED..(DLX,STD)..EUR198009-198208

FB-E,*ELR

main71670-22181iRX60..SED..(4F,4FC)..DLX..GEN198208-198407

*ELR

main71670-22181iLX60,RX60..SED..DLX..EUR198208-198407

FB

main71670-22181iRX60..SED..(4F,4FC)..DLX..GEN198308-198407

FB-H,*ELR

main71670-22190iRX60..LHD..GL..EUG;MX62,RX60..(GL,SXL)..(ARL,GEN,ME,SA)198009-198208

main71670-22191iGX60,MX62,RX60..SED..GL..(ARL,GEN,ME)198208-198504

main71670-22200iLX60..SED..STD..EUG198009-198208

PF,*ELR

main71670-22210iRX60..SED..LHD..(4F,4FC)..DLX..GEN198308-198407

PF,*ELR

main71670-22210iLX60..LHD..EUG198208-198407

PF

main71670-22220iRX60..SED..DLX..GEN;LX60,TX62..SED..(GEN,SA)198208-198504

PF

main71670-91628iLX60,RX6#..WG198009-198208

FB-E

sub71670-91633

main71670-91629iLX60..WG..STD;RX60..WG..(3H,4H)198009-198407

PF

main71670-91629iLX60,RX60..WG198208-198504

main71670-91631iMX62..DLX198009-198208

sub71670-91635

main71670-91635iMX62..WG198208-198407

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub90468-18008

71893GARNISH, REAR SEATBACK SIDE, LOWER RH

main71893-22010iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

72693HOOK, REAR SEAT CUSHION LOCK

main72693-22010iLX60,MX62,RX60,TX62..SED198009-198208

main72693-32010iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

9166560825

main91665-60825

12 parts on this diagram · 5 diagrams in section
