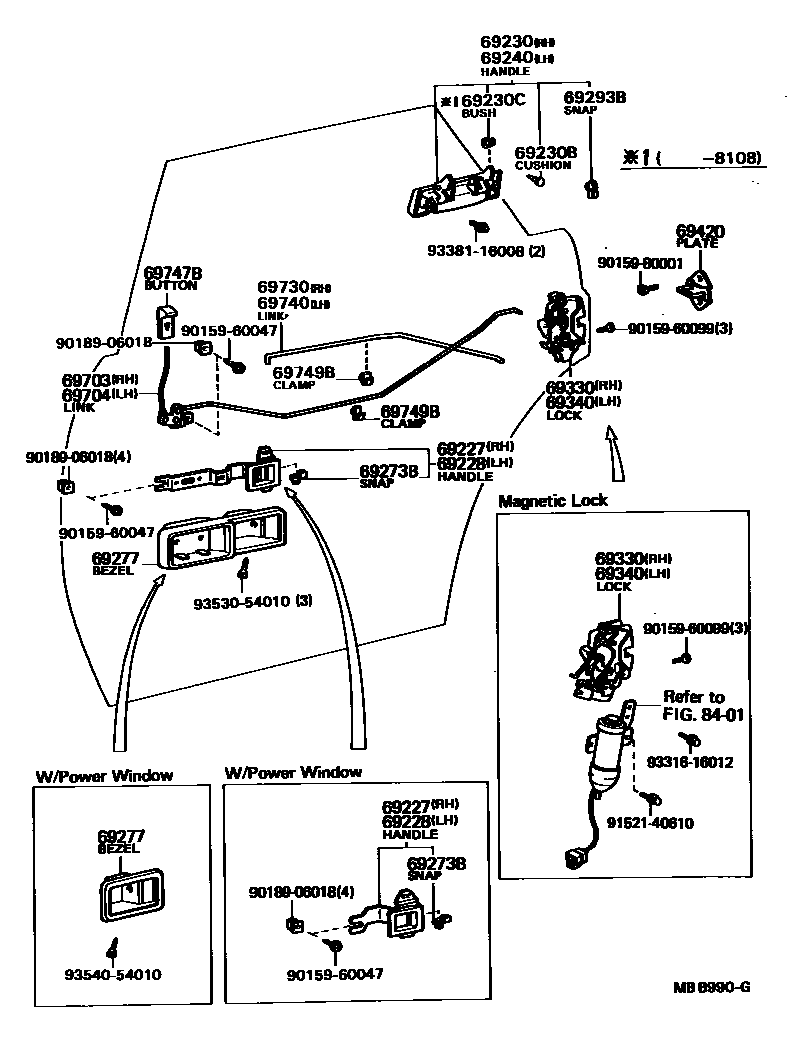

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69206-30010iGX6#,MX6#,RX60..GL,SXL198009-198504

W/*PW

main69208-22030iRX60..RHD..GL..EUG198102-198208

W/O *PW

69228HANDLE, REAR DOOR INSIDE, LH

main69205-30010iGX6#,MX6#,RX60..GL,SXL198009-198504

W/*PW

main69207-22030iRX60..RHD..GL..EUG198102-198208

W/O *PW

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-22040iLX60,MX62,RX60198009-198101

main69210-22050iGX6#,LX60,MX6#,RX6#,TX62198101-198504

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×4iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main69395-20020×2iLX60,MX62,RX6#,TX62198009-198108

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-22040iLX60,MX62,RX60198009-198101

main69220-22050iGX6#,LX60,MX6#,RX6#,TX62198101-198504

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69279-12020iGX6#,LX60,MX6#,RX6#,TX62198009-198504

LH

main69288-12010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

RH

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-01×2iMX62,RX60..GL,SXL198009-198208

W/*PW,BLACK,BLACK,TRIM2#

sub69277-89104

main69277-16040-04×2iMX62,RX60..GL,SXL198009-198208

W/*PW,BLUE,BLUE,TRIM8#

sub69277-89104

main69277-16040-06×2iGX6#,MX6#,RX60..GL,SXL198009-198504

W/*PW,D-BROWN,BROWN,TRIM4#

sub69277-89104

main69277-16040-14iGX6#,MX6#,RX60..GL198208-198504

W/*PW,BLUE,BLUE,TRIM8#

sub69277-89104

main69277-16040-22iGX6#,MX6#,RX60..GL198208-198504

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

sub69277-89104

main69277-22040-01iRX60..RHD..GL..EUG198102-198208

RH,W/O *PW,BLACK,BLACK,TRIM2#

main69277-22040-02iLX60,RX60,TX62..DLX,STD198208-198504

RH,W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

main69277-22040-04iRX60..RHD..GL..EUG198102-198208

RH,W/O *PW,BLUE,BLUE,TRIM8#

main69277-22040-06iLX60,RX60,TX62..DLX,STD198208-198504

RH,W/O *PW,D-BROWN,BROWN,TRIM4#

main69277-22040-14iLX60,RX60,TX62..DLX,STD198208-198504

RH,W/O *PW,BLUE,BLUE,TRIM8#

main69278-22010-01iRX60..RHD..GL..EUG198102-198208

LH,W/O *PW,BLACK,BLACK,TRIM2#

main69278-22010-02iLX60,RX60,TX62..DLX,STD198208-198504

LH,W/O *PW,DEEP MAROON,RED/MAROON,TRIM3#

main69278-22010-04iRX60..GL..GEN;RX60..LHD..GL..EUG;LX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

LH,W/O *PW,BLUE,BLUE,TRIM8#

main69278-22010-06iRX60..GL..GEN;RX60..LHD..GL..EUG;LX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

LH,W/O *PW,D-BROWN,BROWN,TRIM0#,4#

main69278-22010-14iLX60,RX60,TX62..DLX,STD198208-198504

LH,W/O *PW,BLUE,BLUE,TRIM8#

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-22010iGX6#,LX60,MX6#,RX6#,TX62198108-198504

RH

main69293-22020iGX6#,LX60,MX6#,RX6#,TX62198108-198504

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-22070iGX6#,MX6#,RX60..GL198208-198504

W/*PW

main69330-22080iLX60,RX60,TX62..DLX,STD198208-198504

main69330-22100iRX60..LHD..GL..(GEN,ME)198102-198208

W/MAGNET LOCK

69340LOCK ASSY, REAR DOOR, LH

main69340-22080iGX6#,MX6#,RX60..GL198208-198504

W/*PW

main69340-22090iGX61..LHD198208-198407

main69340-22110iRX60..LHD..GL..(GEN,ME)198102-198208

W/MAGNET LOCK

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-22030×2iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub69410-90B01

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-30020-01×2iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub69741-30030

main69741-30020-04×2iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub69741-30030

main69741-30020-06×2iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub69741-30030

main69741-30020-12×2iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub69741-30030

main69741-30020-14×2iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub69741-30030

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010×4iLX60,MX62,RX6#,TX62198009-198208

main69749-30020×4iGX6#,LX60,MX6#,RX60,TX62198208-198504

8401

9015960047

main90159-60047

9015960099

main90159-60099

9015980001

main90159-80001

9018906018

main90189-06018

9152140610

main91521-40610

9331616012

main93316-16012

9338116008

main93381-16008

9353054010

main93530-54010

9354054010

main93540-54010

28 parts on this diagram · 1 diagram in section
