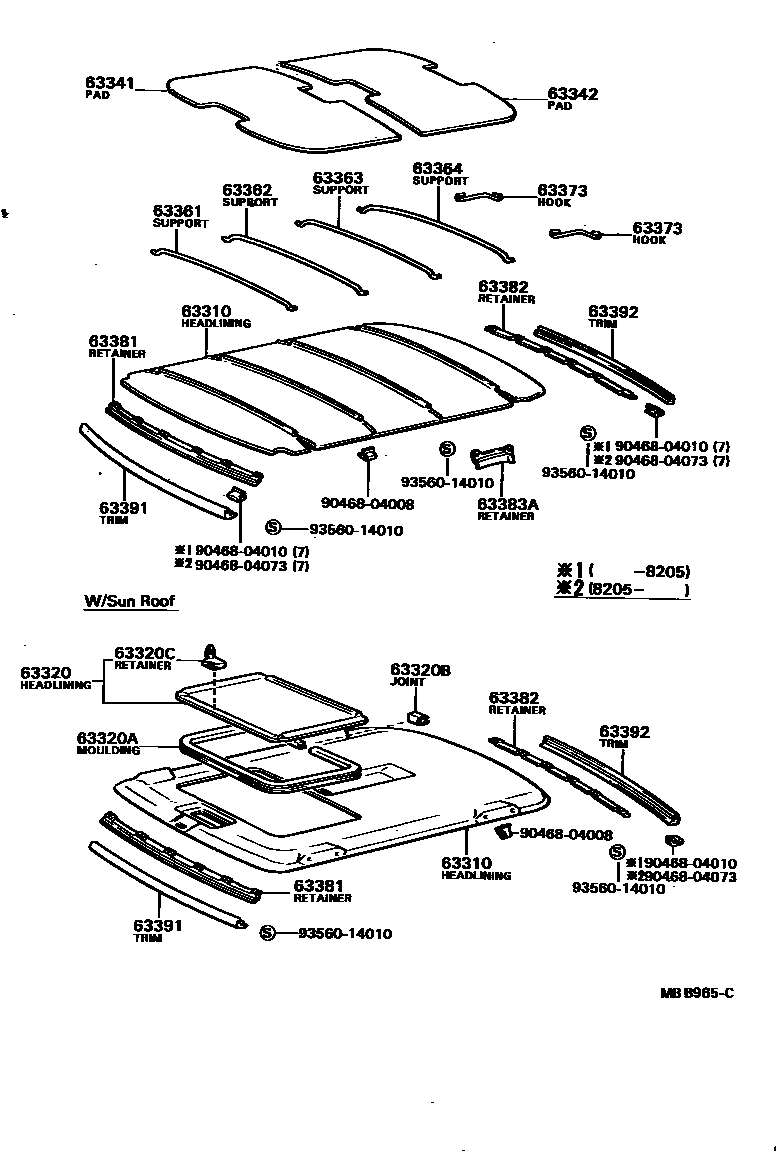

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-22140-04iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

main63310-22140-08iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

W/SUN ROOF,IVORY,IVORY,TRIM3#,4#

main63310-22140-08iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

W/SUN ROOF,IVORY,IVORY,TRIM2#,4#

main63310-22140-14iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

W/SUN ROOF,BLUE,BLUE,TRIM8#

main63310-22150-04iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198208

BLUE,BLUE,TRIM8#

sub63310-22150

main63310-22150-08iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198304

IVORY,IVORY,TRIM2#,3#,4#

sub63310-22150

main63310-22150-08iRX60,TX62..SED..(DLX,STD)198304-198504

IVORY,IVORY,TRIM3#,4#

sub63310-22150

main63310-22150-14iLX60..SED..GEN198208-198504

BLUE,BLUE,TRIM8#

sub63310-22150

main63310-22160-04iMX62,RX60..GL,SXL198009-198203

BLUE,BLUE,TRIM8#

sub63310-22161

main63310-22160-08iMX62,RX60..GL,SXL198009-198203

IVORY,IVORY,TRIM2#,4#

sub63310-22161

main63310-22161-04iMX62,RX60..GL,SXL198203-198208

BLUE,BLUE,TRIM8#

sub63310-22161

main63310-22161-08iGX6#,MX6#,RX60..GL198203-198504

IVORY,IVORY,TRIM2#,3#,4#

sub63310-22161

main63310-22161-14iGX6#,MX6#,RX60..GL198208-198504

BLUE,BLUE,TRIM8#

sub63310-22161

main63310-22270-08iLX60..SED..EUG198304-198407

IVORY,IVORY,TRIM3#,4#

main63310-22270-14iLX60..SED..EUG198304-198407

BLUE,BLUE,TRIM8#

main63310-91614-04iLX60,MX62,RX6#..WG198009-198208

BLUE,BLUE,TRIM8#

sub63310-91614

main63310-91614-08iRX60..WG;LX60..WG..GEN198208-198504

IVORY,IVORY,TRIM3#,4#

sub63310-91614

main63310-91614-08iLX60,MX62,RX6#..WG198009-198208

IVORY,IVORY,TRIM2#,4#

sub63310-91614

main63310-91614-14iRX60..WG;LX60..WG..GEN198208-198504

BLUE,BLUE,TRIM8#

sub63310-91614

main63310-91618-08iMX62..WG198208-198308

IVORY,IVORY,TRIM3#,4#

sub63310-91618

main63310-91618-14iMX62..WG198208-198308

BLUE,BLUE,TRIM8#

sub63310-91618

main63310-91618-18iMX62..WG198308-198407

IVORY & DEEP MAROON,IVORY

sub63310-91618

main63310-91618-28iMX62..WG198308-198407

IVORY & DEEP MAROON,IVORY

sub63310-91618

main63310-91619-08iLX60..WG..EUG198304-198407

IVORY,IVORY,TRIM3#,4#

main63310-91619-14iLX60..WG..EUG198304-198407

BLUE,BLUE,TRIM8#

63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF

main63320-22020-04iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

BLUE,BLUE,TRIM8#

sub63320-22021

main63320-22020-08iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

IVORY,IVORY,TRIM2#,4#

sub63320-22021

main63320-22020-08iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198308

IVORY,IVORY,TRIM3#,4#

sub63320-22021

main63320-22020-14iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198308

BLUE,BLUE,TRIM8#

sub63320-22021

main63320-22021-04iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198308-198504

BLUE,BLUE,TRIM8#

main63320-22021-08iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198308-198504

IVORY,IVORY,TRIM3#,4#

63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM

main63318-30010-04iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

BLUE,BLUE,TRIM8#

main63318-30010-08iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

IVORY,IVORY,TRIM2#,4#

main63318-30010-08iRX60..SED..DLX..SDZ198208-198504

IVORY,IVORY,TRIM3#,4#

main63318-30010-14iRX60..SED..DLX..SDZ198208-198504

BLUE,BLUE,TRIM8#

63320BJOINT, SUN ROOF OPENING TRIM

main63319-14011iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198504

63320CRETAINER, TRIM BOARD(FOR SUN ROOF)

main62581-10010iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198504

63341PAD, ROOF SILENCER, NO.1

main63341-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63341-22090iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

sub63341-22H92

main63343-91607iLX60,MX62,RX6#..WG198009-198504

sub63341-22H92

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-22070iGX6#,LX60,MX6#,RX6#,TX62198009-198504

MARK=WHITE,L=1067

sub63361-22090

main63361-22080iGX6#,LX60,MX6#,RX6#,TX62198009-198504

MARK=BLACK,L=1063

sub63361-22090

main63361-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

L=1070

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-22070iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

MARK=WHITE,L=1067

sub63361-22090

main63361-22080iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

MARK=BLACK,L=1063

sub63361-22090

main63361-22090iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

L=1070

main63361-91606iLX60,MX62,RX6#..WG198009-198203

L=1066

main63362-91602iLX60,MX62,RX6#..WG198203-198504

L=1066

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-22070iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

MARK=WHITE,L=1067

sub63361-22090

main63361-22080iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

MARK=BLACK,L=1063

sub63361-22090

main63361-22090iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

L=1070

main63361-91606iLX60,MX62,RX6#..WG198009-198203

L=1066

main63362-91602iLX60,MX62,RX6#..WG198203-198504

L=1066

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-22070iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

MARK=WHITE,L=1067

sub63361-22090

main63361-22080iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

MARK=BLACK,L=1063

sub63361-22090

main63361-22090iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

L=1070

main63361-91606iLX60,MX62,RX6#..WG198009-198203

L=1066

main63362-91602iLX60,MX62,RX6#..WG198203-198504

L=1066

63373HOOK, ROOF HEADLINING SUPPORT, NO.1

main63372-22010iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

63381RETAINER, HEADLINING, FRONT

main63381-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

63382RETAINER, HEADLINING, REAR CENTER

main63383-22020iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

63383ARETAINER, ROOF HEADLINING TRIM, SIDE, NO.1

main63385-22010iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

RH

main63386-22010iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

LH

63391TRIM, ROOF HEADLINING, FRONT

main63391-22030-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub63391-22030

main63391-22030-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub63391-22030

main63391-22030-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub63391-22030

main63391-22030-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub63391-22030

main63391-22030-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub63391-22030

63392TRIM, ROOF HEADLINING, REAR

main63392-22020-01iLX60,MX62,RX60,TX62..SED198009-198208

BLACK,BLACK,TRIM2#

sub63391-22030

main63392-22020-02iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub63391-22030

main63392-22020-04iLX60,MX62,RX60,TX62..SED198009-198208

BLUE,BLUE,TRIM8#

sub63391-22030

main63392-22020-06iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub63391-22030

main63392-22020-14iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

BLUE,BLUE,TRIM8#

sub63391-22030

9046804008

main90468-04008

9046804010

main90468-04010

9046804073

main90468-04073

9356014010

main93560-14010

21 parts on this diagram · 2 diagrams in section
