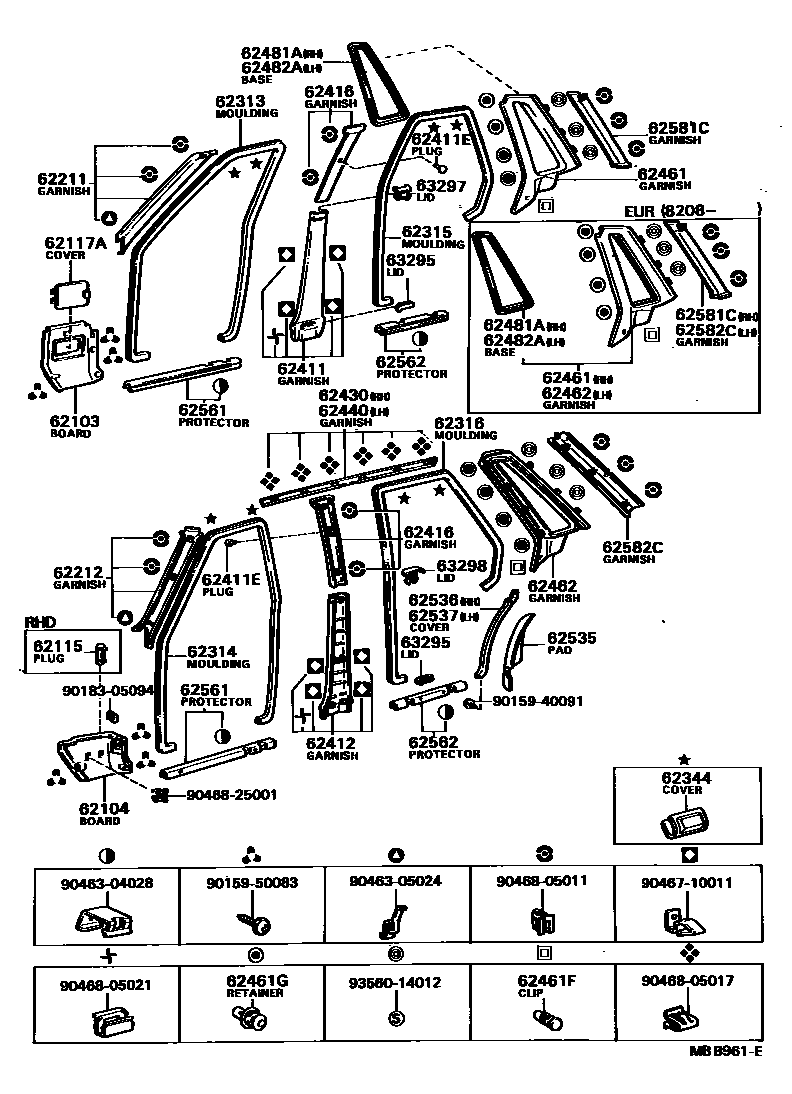

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-22100-01iLX60,MX62,RX6#,TX62..RHD..(DLX,STD,XL)198009-198208

BLACK,BLACK,TRIM2#

sub62101-22100¥3,760

main62101-22100-02iLX60,RX60,TX62..RHD..(DLX,STD)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-22100¥3,760

main62101-22100-04iLX60,MX62,RX6#,TX62..RHD..(DLX,STD,XL)198009-198208

BLUE,BLUE,TRIM8#

sub62101-22100¥3,760

main62101-22100-06iGX60,MX63..SA198112-198504

D-BROWN,BROWN,TRIM4#

sub62101-22100¥3,760

main62101-22100-06iLX60,MX62,RX6#,TX62..RHD..(DLX,STD,XL)198009-198112

D-BROWN,BROWN,TRIM0#,4#

sub62101-22100¥3,760

main62101-22100-14iLX60,RX60,TX62..RHD..(DLX,STD)198208-198504

BLUE,BLUE,TRIM8#

sub62101-22100¥3,760

main62101-22110-01iMX62,RX60..RHD..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main62101-22110-04iMX62,RX60..RHD..GL198009-198208

BLUE,BLUE,TRIM8#

main62101-22110-06iMX62,RX60..RHD..(GL,SXL)198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main62101-22111-02iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62101-22111-06iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198208-198308

D-BROWN,BROWN,TRIM4#

main62101-22111-14iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198208-198308

BLUE,BLUE,TRIM8#

main62101-22111-16iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198308-198407

D-BROWN,BROWN,TRIM4#

main62101-22111-24iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198308-198407

BLUE,BLUE,TRIM8#

main62101-22120-01iLX60,RX60..LHD..(DLX,STD)198009-198208

BLACK,BLACK,TRIM2#

sub62101-22120

main62101-22120-02iLX60,RX60..LHD..DLX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-22120

main62101-22120-04iLX60,RX60..LHD..(DLX,STD)198009-198208

BLUE,BLUE,TRIM8#

sub62101-22120

main62101-22120-06iLX60,RX60..LHD..(DLX,STD)198009-198407

D-BROWN,BROWN,TRIM4#

sub62101-22120

main62101-22120-14iLX60,RX60..LHD..DLX198208-198407

BLUE,BLUE,TRIM8#

sub62101-22120

main62101-22130-01iRX60..LHD..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main62101-22130-04iRX60..LHD..GL198009-198208

BLUE,BLUE,TRIM8#

main62101-22130-06iRX60..LHD..GL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main62101-22131-02iGX6#,RX60..LHD..GL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62101-22131-06iGX6#,RX60..LHD..GL198208-198308

D-BROWN,BROWN,TRIM4#

main62101-22131-14iGX6#,RX60..LHD..GL198208-198308

BLUE,BLUE,TRIM8#

main62101-22131-16iGX6#,RX60..LHD..GL198308-198407

D-BROWN,BROWN,TRIM4#

main62101-22131-24iGX6#,RX60..LHD..GL198308-198407

BLUE,BLUE,TRIM8#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-22110-01iLX60,MX62,RX6#,TX62..RHD..(DLX,STD,XL)198009-198208

BLACK,BLACK,TRIM2#

sub62102-22110¥3,570

main62102-22110-02iGX60,MX63..SA198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-22110¥3,570

main62102-22110-04iLX60,MX62,RX6#,TX62..RHD..(DLX,STD,SXL,XL)198009-198208

BLUE,BLUE,TRIM8#

sub62102-22110¥3,570

main62102-22110-06iLX60,MX62,RX6#,TX62..RHD..(DLX,STD,SXL,XL)198112-198504

D-BROWN,BROWN,TRIM4#

sub62102-22110¥3,570

main62102-22110-06iLX60,MX62,RX6#,TX62..RHD..(DLX,STD,XL)198009-198112

D-BROWN,BROWN,TRIM0#,4#

sub62102-22110¥3,570

main62102-22110-14iLX60,RX60,TX62..RHD..(DLX,STD)198208-198504

BLUE,BLUE,TRIM8#

sub62102-22110¥3,570

main62102-22120-01iMX62,RX60..RHD..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main62102-22120-04iMX62,RX60..RHD..(GL,SXL)198009-198208

BLUE,BLUE,TRIM8#

main62102-22120-06iMX62,RX60..RHD..GL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main62102-22121-02iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62102-22121-06iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198208-198308

D-BROWN,BROWN,TRIM4#

main62102-22121-14iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198208-198308

BLUE,BLUE,TRIM8#

main62102-22121-16iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198308-198407

D-BROWN,BROWN,TRIM4#

main62102-22121-24iGX6#,MX62,RX60..RHD..GL..(ARL,EUR,GEN)198308-198407

BLUE,BLUE,TRIM8#

main62102-22130-01iLX60,RX60..LHD..(DLX,STD)198009-198208

BLACK,BLACK,TRIM2#

sub62102-22130

main62102-22130-02iLX60,RX60..LHD..DLX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-22130

main62102-22130-04iLX60,RX60..LHD..(DLX,STD)198009-198208

BLUE,BLUE,TRIM8#

sub62102-22130

main62102-22130-06iLX60,RX60..LHD..(DLX,STD)198009-198407

D-BROWN,BROWN,TRIM4#

sub62102-22130

main62102-22130-14iLX60,RX60..LHD..DLX198208-198407

BLUE,BLUE,TRIM8#

sub62102-22130

main62102-22140-01iRX60..LHD..GL198009-198208

BLACK & GRAY,BLACK,TRIM2#

main62102-22140-04iRX60..LHD..GL198009-198208

BLUE,BLUE,TRIM8#

main62102-22140-06iRX60..LHD..GL198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main62102-22141-02iGX6#,RX60..LHD..GL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62102-22141-06iGX6#,RX60..LHD..GL198208-198308

D-BROWN,BROWN,TRIM4#

main62102-22141-14iGX6#,RX60..LHD..GL198208-198308

BLUE,BLUE,TRIM8#

main62102-22141-16iGX6#,RX60..LHD..GL198308-198407

D-BROWN,BROWN,TRIM4#

main62102-22141-24iGX6#,RX60..LHD..GL198308-198407

BLUE,BLUE,TRIM8#

62115PLUG, COWL SIDE TRIM

main90950-01267-01iRX60,TX62..SA198009-198504

BLACK,BLACK,TRIM2#

sub90950-01267¥330

main90950-01267-06iRX60,TX62..SA198208-198504

D-BROWN,BROWN,TRIM4#

sub90950-01267¥330

main90950-01267-06iRX6#,TX62..SA198009-198208

D-BROWN,BROWN,TRIM0#,4#

sub90950-01267¥330

main90950-01267-12iGX6#,LX60,MX62,RX60..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01267¥330

main90950-01267-14iRX6#,TX62..SA198009-198504

BLUE,BLUE,TRIM8#

sub90950-01267¥330

main90950-01267-24iGX6#,LX60,MX62,RX60..RHD198208-198504

BLUE,BLUE,TRIM8#

sub90950-01267¥330

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22010-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main62117-22010-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main62117-22010-06iLX60,MX62,RX6#,TX62..RHD198009-198208

D-BROWN,BROWN,TRIM0#,4#

main62117-22011-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62117-22011-06iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

D-BROWN,BROWN,TRIM4#

main62117-22011-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

main62117-22020-01iLX60,RX60..LHD198009-198208

BLACK,BLACK,TRIM2#

main62117-22020-04iLX60,RX60..LHD198009-198208

BLUE,BLUE,TRIM8#

main62117-22020-06iLX60,RX60..LHD198009-198208

D-BROWN,BROWN,TRIM0#,4#

main62117-22021-02iLX60,RX60..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62117-22021-06iLX60,RX60..LHD198208-198407

D-BROWN,BROWN,TRIM4#

main62117-22021-14iLX60,RX60..LHD198208-198407

BLUE,BLUE,TRIM8#

62211GARNISH, FRONT PILLAR, RH

main62211-22070-01iLX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

BLACK,BLACK,TRIM2#

main62211-22070-02iLX60,RX60,TX62..DLX,STD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62211-22070-04iLX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

BLUE,BLUE,TRIM8#

main62211-22070-06iLX60,MX62,RX6#,TX62..DLX,STD,XL198009-198504

D-BROWN,BROWN,TRIM0#,4#

main62211-22070-14iLX60,RX60,TX62..DLX,STD198208-198504

BLUE,BLUE,TRIM8#

main62211-22080-01iMX62,RX60..GL,SXL198009-198208

BLACK,BLACK,TRIM2#

sub62211-22080¥1,750

main62211-22080-01iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62211-22080¥1,750

main62211-22080-02iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

sub62211-22080¥1,750

main62211-22080-02iGX6#,MX6#,RX60..GL198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62211-22080¥1,750

main62211-22080-04iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

BLUE,BLUE,TRIM8#

sub62211-22080¥1,750

main62211-22080-04iMX62,RX60..GL,SXL198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62211-22080¥1,750

main62211-22080-06iGX6#,MX6#,RX60..GL198009-198504

D-BROWN,BROWN,TRIM4#

sub62211-22080¥1,750

main62211-22080-06iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62211-22080¥1,750

main62211-22080-06iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM0#,4#

sub62211-22080¥1,750

main62211-22080-14iGX6#,MX6#,RX60..GL198208-198504

BLUE,BLUE,TRIM8#

sub62211-22080¥1,750

main62211-22080-14iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62211-22080¥1,750

62212GARNISH, FRONT PILLAR, LH

main62212-22070-01iLX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

BLACK,BLACK,TRIM2#

main62212-22070-02iLX60,RX60,TX62..DLX,STD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62212-22070-04iLX60,MX62,RX6#,TX62..DLX,STD,XL198009-198208

BLUE,BLUE,TRIM8#

main62212-22070-06iLX60,MX62,RX6#,TX62..DLX,STD,XL198009-198504

D-BROWN,BROWN,TRIM0#,4#

main62212-22070-14iLX60,RX60,TX62..DLX,STD198208-198504

BLUE,BLUE,TRIM8#

main62212-22080-01iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62212-22080¥1,750

main62212-22080-01iMX62,RX60..GL,SXL198009-198208

BLACK,BLACK,TRIM2#

sub62212-22080¥1,750

main62212-22080-02iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

sub62212-22080¥1,750

main62212-22080-02iGX6#,MX6#,RX60..GL198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62212-22080¥1,750

main62212-22080-04iMX62,RX60..GL,SXL198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62212-22080¥1,750

main62212-22080-04iMX62,RX60..GL,SXL198009-198208

BLUE,BLUE,TRIM8#

sub62212-22080¥1,750

main62212-22080-06iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM0#,4#

sub62212-22080¥1,750

main62212-22080-06iGX6#,MX6#,RX60..GL198009-198504

D-BROWN,BROWN,TRIM4#

sub62212-22080¥1,750

main62212-22080-06iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62212-22080¥1,750

main62212-22080-14iGX6#,MX6#,RX60..GL198208-198504

BLUE,BLUE,TRIM8#

sub62212-22080¥1,750

main62212-22080-14iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62212-22080¥1,750

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-22090-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090¥2,950

main62313-22090-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090¥2,950

main62313-22090-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

main62313-22090-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub62313-22090¥2,950

main62313-22090-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-22090-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090¥2,950

main62313-22090-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090¥2,950

main62313-22090-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

main62313-22090-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub62313-22090¥2,950

main62313-22090-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

62315MOULDING, REAR DOOR OPENING TRIM, RH

main62333-22040-01iLX60,MX62,RX60,TX62..SED198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090¥2,950

main62333-22040-02iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090¥2,950

main62333-22040-04iLX60,MX62,RX60,TX62..SED198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

main62333-22040-06iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub62313-22090¥2,950

main62333-22040-14iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

main62333-91603-01iLX60,MX62,RX6#..WG198009-198208

BLACK,BLACK,TRIM2#

main62333-91603-02iLX60,MX62,RX60..WG198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62333-91603-04iLX60,MX62,RX6#..WG198009-198208

BLUE,BLUE,TRIM8#

main62333-91603-06iLX60,MX62,RX6#..WG198009-198504

D-BROWN,BROWN,TRIM4#

main62333-91603-14iLX60,MX62,RX60..WG198208-198504

BLUE,BLUE,TRIM8#

62316MOULDING, REAR DOOR OPENING TRIM, LH

main62333-22040-01iLX60,MX62,RX60,TX62..SED198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090¥2,950

main62333-22040-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090¥2,950

main62333-22040-04iLX60,MX62,RX60,TX62..SED198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

main62333-22040-06iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

D-BROWN,BROWN,TRIM0#,4#

sub62313-22090¥2,950

main62333-22040-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

sub62313-22090¥2,950

main62333-91603-01iLX60,MX62,RX6#..WG198009-198208

BLACK,BLACK,TRIM2#

main62333-91603-02iLX60,MX62,RX60..WG198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62333-91603-04iLX60,MX62,RX6#..WG198009-198208

BLUE,BLUE,TRIM8#

main62333-91603-06iLX60,MX62,RX6#..WG198009-198504

D-BROWN,BROWN,TRIM4#

main62333-91603-14iLX60,MX62,RX60..WG198208-198504

BLUE,BLUE,TRIM8#

62344COVER, DOOR OPENING TRIM MOULDING

main62315-22010-01iLX60,MX62,RX60198103-198208

BLACK,BLACK,TRIM2#

main62315-22010-02iMX63,RX60,TX62;GX6#,LX60,MX62..ARL,EUR,GEN,ME198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62315-22010-04iLX60,MX62,RX60198103-198208

BLUE,BLUE,TRIM8#

main62315-22010-06iMX63,RX6#,TX62;GX6#,LX60,MX62..ARL,EUR,GEN,ME198103-198504

D-BROWN,BROWN,TRIM0#,4#

main62315-22010-14iLX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

62411GARNISH, CENTER PILLAR, RH

main62413-22020-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main62413-22020-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62413-22020-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main62413-22020-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

main62413-22020-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

62411EPLUG, HOLE (FOR SEAT BELT)

main90950-01159-01iLX60,RX60..(DLX,STD)..GEN198009-198208

BLACK,BLACK,TRIM2#

sub90950-01159¥270

main90950-01159-02iLX60,RX60..DLX..GEN198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub90950-01159¥270

main90950-01159-04iLX60,RX60..(DLX,STD)..GEN198009-198208

BLUE,BLUE,TRIM8#

sub90950-01159¥270

main90950-01159-14iLX60,RX60..DLX..GEN198208-198407

BLUE,BLUE,TRIM8#

sub90950-01159¥270

main90950-01159-26iLX60,RX60..(DLX,STD)..GEN198009-198407

D-BROWN,BROWN,TRIM0#,4#

sub90950-01159¥270

62412GARNISH, CENTER PILLAR, LH

main62414-22020-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main62414-22020-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62414-22020-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main62414-22020-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

main62414-22020-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

62416GARNISH, CENTER PILLAR, UPPER

main62411-22130-01iLX60,MX62,RX6#,TX62198009-198208

RH,BLACK,BLACK,TRIM2#

main62411-22130-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

RH,DEEP MAROON,RED/MAROON,TRIM3#

main62411-22130-04iLX60,MX62,RX6#,TX62198009-198208

RH,BLUE,BLUE,TRIM8#

main62411-22130-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

RH,D-BROWN,BROWN,TRIM0#,4#

main62411-22130-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

RH,BLUE,BLUE,TRIM8#

main62412-22150-01iLX60,MX62,RX6#,TX62198009-198208

LH,BLACK,BLACK,TRIM2#

main62412-22150-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

LH,DEEP MAROON,RED/MAROON,TRIM3#

main62412-22150-04iLX60,MX62,RX6#,TX62198009-198208

LH,BLUE,BLUE,TRIM8#

main62412-22150-06iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

LH,D-BROWN,BROWN,TRIM0#,4#

main62412-22150-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

LH,BLUE,BLUE,TRIM8#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-22030-01iMX62,RX60..GL,SXL198009-198208

BLACK,BLACK,TRIM2#

sub62431-22030¥2,300

main62431-22030-01iMX62,RX60..GL,SXL198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62431-22030¥2,300

main62431-22030-02iMX63;GX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62431-22030¥2,300

main62431-22030-02iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

sub62431-22030¥2,300

main62431-22030-04iMX62,RX60..GL,SXL198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62431-22030¥2,300

main62431-22030-04iMX62,RX60..GL,SXL198009-198208

BLUE,BLUE,TRIM8#

sub62431-22030¥2,300

main62431-22030-06iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62431-22030¥2,300

main62431-22030-06iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM0#,4#

sub62431-22030¥2,300

main62431-22030-06iMX63,RX60..GL,SXL;GX6#,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

D-BROWN,BROWN,TRIM4#

sub62431-22030¥2,300

main62431-22030-14iMX63;GX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

BLUE,BLUE,TRIM8#

sub62431-22030¥2,300

main62431-22030-14iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62431-22030¥2,300

main62431-91601-02iMX62..WG198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62431-91601

main62431-91601-06iMX62..WG198208-198407

DARK BROWN,BROWN,TRIM4#

sub62431-91601

main62431-91601-14iMX62..WG198208-198407

BLUE,BLUE,TRIM8#

sub62431-91601

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-22030-01iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62432-22030¥2,300

main62432-22030-01iMX62,RX60..GL,SXL198009-198208

BLACK,BLACK,TRIM2#

sub62432-22030¥2,300

main62432-22030-02iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,DEEP MAROON,RED/MAROON,TRIM3#

sub62432-22030¥2,300

main62432-22030-02iMX63;GX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62432-22030¥2,300

main62432-22030-04iMX62,RX60..GL,SXL198009-198208

BLUE,BLUE,TRIM8#

sub62432-22030¥2,300

main62432-22030-04iMX62,RX60..GL,SXL198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62432-22030¥2,300

main62432-22030-06iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62432-22030¥2,300

main62432-22030-06iGX6#,MX6#,RX60..GL,SXL198009-198504

D-BROWN,BROWN,TRIM4#

sub62432-22030¥2,300

main62432-22030-06iLX60,RX60..SED..DLX..(EUR,GEN)198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM0#,4#

sub62432-22030¥2,300

main62432-22030-14iMX63;GX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198504

BLUE,BLUE,TRIM8#

sub62432-22030¥2,300

main62432-22030-14iRX60..SED..DLX..SDZ198208-198407

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62432-22030¥2,300

main62432-91601-02iMX62..WG198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62432-91601¥2,300

main62432-91601-06iMX62..WG198208-198407

DARK BROWN,BROWN,TRIM4#

sub62432-91601¥2,300

main62432-91601-14iMX62..WG198208-198407

BLUE,BLUE,TRIM8#

sub62432-91601¥2,300

62461GARNISH, ROOF SIDE TRIM, RH

main62470-22050-01iMX62,RX60..GL,SXL198009-198208

BLACK,BLACK,TRIM2#

main62470-22050-04iMX62,RX60..GL,SXL198009-198208

BLUE,BLUE,TRIM8#

main62470-22050-06iMX62,RX60..GL,SXL198009-198208

D-BROWN,BROWN,TRIM4#

main62473-22050-01iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198208

BLACK,BLACK,TRIM2#

main62473-22050-02iLX60,RX60,TX62..SED..(DLX,STD)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62473-22050-04iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198208

BLUE,BLUE,TRIM8#

main62473-22050-06iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198504

D-BROWN,BROWN,TRIM4#

main62473-22050-14iLX60,RX60,TX62..SED..(DLX,STD)198208-198504

BLUE,BLUE,TRIM8#

main62473-22100-02iMX63;GX61..LHD;GX60,RX60..GL..(EUR,GEN,ME)198208-198504

W/O RR SEAT BELT,DEEP MAROON,RED/MAROON,TRIM3#

main62473-22100-04iMX63;GX61..LHD;GX60,RX60..GL..(EUR,GEN,ME)198208-198504

W/O RR SEAT BELT,BLUE,BLUE,TRIM8#

main62473-22100-06iMX63;GX61..LHD;GX60,RX60..GL..(EUR,GEN,ME)198208-198504

W/O RR SEAT BELT,D-BROWN,BROWN,TRIM4#

main62473-22110-02iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62473-22110-04iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198407

BLUE,BLUE,TRIM8#

main62473-22110-06iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198407

D-BROWN,BROWN,TRIM4#

62461FCLIP (FOR ROOF SIDE TRIM GARNISH)

main90467-09084-01iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

BLACK,BLACK,TRIM2#

sub90467-09084¥170

62461GRETAINER, DOOR TRIM

main67771-12010iLX60,MX62,RX60..SED¥170198009-198010

main67771-22010iLX60,MX62,RX60..SED¥230198010-198101

main67771-22020iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)¥260198101-198504

62462GARNISH, ROOF SIDE TRIM, LH

main62474-22050-01iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198208

BLACK,BLACK,TRIM2#

main62474-22050-02iLX60,RX60,TX62..SED..(DLX,STD)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62474-22050-04iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198208

BLUE,BLUE,TRIM8#

main62474-22050-06iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198504

D-BROWN,BROWN,TRIM4#

main62474-22050-14iLX60,RX60,TX62..SED..(DLX,STD)198208-198504

BLUE,BLUE,TRIM8#

main62474-22100-02iMX63;GX61..LHD;GX60,RX60..GL..(EUR,GEN,ME)198208-198504

W/O RR SEAT BELT,DEEP MAROON,RED/MAROON,TRIM3#

main62474-22100-04iMX63;GX61..LHD;GX60,RX60..GL..(EUR,GEN,ME)198208-198504

W/O RR SEAT BELT,BLUE,BLUE,TRIM8#

main62474-22100-06iMX63;GX61..LHD;GX60,RX60..GL..(EUR,GEN,ME)198208-198504

W/O RR SEAT BELT,D-BROWN,BROWN,TRIM4#

main62474-22110-02iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62474-22100¥6,200

main62474-22110-04iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN)198208-198407

BLUE,BLUE,TRIM8#

sub62474-22100¥6,200

main62474-22110-06iGX6#,MX62,RX60..SED..GL..(ARL,EUR,GEN,ME)198208-198407

D-BROWN,BROWN,TRIM4#

sub62474-22100¥6,200

main62480-22050-01iMX62,RX60..GL,SXL198009-198208

BLACK,BLACK,TRIM2#

main62480-22050-04iMX62,RX60..GL,SXL198009-198208

BLUE,BLUE,TRIM8#

main62480-22050-06iMX62,RX60..GL,SXL198009-198208

D-BROWN,BROWN,TRIM4#

62481ABASE, ROOF SIDE INNER GARNISH, RH

main62487-22030iLX60,RX60,TX62..SED..(DLX,STD,XL)¥1,940198009-198504

62482ABASE, ROOF SIDE INNER GARNISH, LH

main62488-22020iLX60,RX60,TX62..SED..(DLX,STD,XL)198009-198504

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-22030iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

62536COVER, QUARTER WHEEL HOUSE TRIM FRONT, RH

main62551-22010-01iLX60,MX62,RX60,TX62..SED198009-198208

BLACK,BLACK,TRIM2#

sub62551-22010¥4,150

main62551-22010-02iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62551-22010¥4,150

main62551-22010-04iLX60,MX62,RX60,TX62..SED198009-198208

BLUE,BLUE,TRIM8#

sub62551-22010¥4,150

main62551-22010-06iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

D-BROWN,BROWN,TRIM4#

sub62551-22010¥4,150

main62551-22010-14iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

BLUE,BLUE,TRIM8#

sub62551-22010¥4,150

main62610-91601-02iMX62..WG198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62610-91601-06iMX62..WG198208-198308

DARK BROWN,BROWN,TRIM4#

main62610-91601-14iMX62..WG198208-198308

BLUE,BLUE,TRIM8#

main62610-91601-16iMX62..WG198308-198407

BROWN,BROWN,TRIM4#

main62610-91601-24iMX62..WG198308-198407

BLUE,BLUE,TRIM8#

main62610-91603-01iLX60,MX62,RX6#..WG198009-198208

BLACK,BLACK,TRIM2#

sub62610-91603¥8,500

main62610-91603-02iLX60,RX60..WG198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62610-91603¥8,500

main62610-91603-04iLX60,MX62,RX6#..WG198009-198208

BLUE,BLUE,TRIM8#

sub62610-91603¥8,500

main62610-91603-06iLX60,RX60..WG198009-198504

D-BROWN,BROWN,TRIM4#

sub62610-91603¥8,500

main62610-91603-14iLX60,RX60..WG198208-198504

BLUE,BLUE,TRIM8#

sub62610-91603¥8,500

62537COVER, QUARTER WHEEL HOUSE TRIM FRONT, LH

main62552-22010-01iLX60,MX62,RX60,TX62..SED198009-198208

BLACK,BLACK,TRIM2#

sub62552-22010¥4,150

main62552-22010-02iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62552-22010¥4,150

main62552-22010-04iLX60,MX62,RX60,TX62..SED198009-198208

BLUE,BLUE,TRIM8#

sub62552-22010¥4,150

main62552-22010-06iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

D-BROWN,BROWN,TRIM4#

sub62552-22010¥4,150

main62552-22010-14iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

BLUE,BLUE,TRIM8#

sub62552-22010¥4,150

main62620-91601-02iMX62..WG198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62620-91601-06iMX62..WG198208-198308

DARK BROWN,BROWN,TRIM4#

main62620-91601-14iMX62..WG198208-198308

BLUE,BLUE,TRIM8#

main62620-91601-16iMX62..WG198308-198407

BROWN,BROWN,TRIM4#

main62620-91601-24iMX62..WG198308-198407

BLUE,BLUE,TRIM8#

main62620-91603-01iLX60,MX62,RX6#..WG198009-198208

BLACK,BLACK,TRIM2#

sub62620-91603¥8,500

main62620-91603-02iLX60,RX60..WG198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub62620-91603¥8,500

main62620-91603-04iLX60,MX62,RX6#..WG198009-198208

BLUE,BLUE,TRIM8#

sub62620-91603¥8,500

main62620-91603-06iLX60,MX62,RX6#..WG198009-198504

D-BROWN,BROWN,TRIM4#

sub62620-91603¥8,500

main62620-91603-14iLX60,RX60..WG198208-198504

BLUE,BLUE,TRIM8#

sub62620-91603¥8,500

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-22010iGX6#,LX60,MX6#,RX6#,TX62¥2,220198009-198504

RH

main62562-22010iGX6#,LX60,MX6#,RX6#,TX62¥2,220198009-198504

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-22010iGX6#,LX60,MX6#,RX6#,TX62¥1,450198009-198504

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-22030-01iLX60,MX62,RX60,TX62..SED198009-198208

BLACK,BLACK,TRIM2#

main62581-22030-02iMX63,RX60,TX62..SED;GX6#,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62581-22030-04iMX63,RX60,TX62..SED;GX6#,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

BLUE,BLUE,TRIM8#

main62581-22030-06iMX63,RX60,TX62..SED;GX6#,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

D-BROWN,BROWN,TRIM4#

main62581-22030-06iLX60,MX62,RX60,TX62..SED198009-198208

D-BROWN,BROWN,TRIM0#,4#

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-22010-01iLX60,MX62,RX60,TX62..SED198009-198208

BLACK,BLACK,TRIM2#

main62582-22010-02iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main62582-22010-04iLX60,MX62,RX60,TX62..SED198009-198208

BLUE,BLUE,TRIM8#

main62582-22010-06iLX60,MX62,RX60,TX62..SED198009-198208

D-BROWN,BROWN,TRIM0#,4#

main62582-22010-06iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

D-BROWN,BROWN,TRIM4#

main62582-22010-14iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

BLUE,BLUE,TRIM8#

63295LID, CENTER PILLAR GARNISH BELT HOLE, LOWER

main73295-22010-01iLX60,RX60..(DLX,STD)..GEN198009-198208

RH,BLACK,BLACK,TRIM2#

main73295-22010-02iLX60,RX60..DLX..GEN198208-198407

RH,DEEP MAROON,RED/MAROON,TRIM3#

main73295-22010-04iLX60,RX60..(DLX,STD)..GEN198009-198208

RH,BLUE,BLUE,TRIM8#

main73295-22010-06iLX60,RX60..(DLX,STD)..GEN198009-198407

RH,D-BROWN,BROWN,TRIM0#,4#

main73295-22010-14iLX60,RX60..DLX..GEN198208-198407

RH,BLUE,BLUE,TRIM8#

main73296-22010-01iLX60,RX60..(DLX,STD)..GEN198009-198208

LH,BLACK,BLACK,TRIM2#

main73296-22010-02iLX60,RX60..DLX..GEN198208-198407

LH,DEEP MAROON,RED/MAROON,TRIM3#

main73296-22010-04iLX60,RX60..(DLX,STD)..GEN198009-198208

LH,BLUE,BLUE,TRIM8#

main73296-22010-06iLX60,RX60..(DLX,STD)..GEN198009-198407

LH,D-BROWN,BROWN,TRIM0#,4#

main73296-22010-14iLX60,RX60..DLX..GEN198208-198407

LH,BLUE,BLUE,TRIM8#

63297LID, CENTER PILLAR GARNISH BELT HOLE, RH

main73297-22020-01iLX60,RX60..(DLX,STD)..GEN198009-198208

BLACK,BLACK,TRIM2#

sub73297-22020

main73297-22020-02iLX60,RX60..DLX..GEN198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub73297-22020

main73297-22020-04iLX60,RX60..(DLX,STD)..GEN198009-198208

BLUE,BLUE,TRIM8#

sub73297-22020

main73297-22020-06iLX60,RX60..(DLX,STD)..GEN198009-198407

D-BROWN,BROWN,TRIM0#,4#

sub73297-22020

main73297-22020-14iLX60,RX60..DLX..GEN198208-198407

BLUE,BLUE,TRIM8#

sub73297-22020

63298LID, CENTER PILLAR GARNISH BELT HOLE, LH

main73298-22020-01iLX60,RX60..(DLX,STD)..GEN198009-198208

BLACK,BLACK,TRIM2#

main73298-22020-02iLX60,RX60..DLX..GEN198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73298-22020-04iLX60,RX60..(DLX,STD)..GEN198009-198208

BLUE,BLUE,TRIM8#

main73298-22020-06iLX60,RX60..(DLX,STD)..GEN198009-198407

D-BROWN,BROWN,TRIM0#,4#

main73298-22020-14iLX60,RX60..DLX..GEN198208-198407

BLUE,BLUE,TRIM8#

9015940091

main90159-40091¥180

9015950083

main90159-50083¥90

9018305094

main90183-05094¥90

9046304028

main90463-04028¥250

9046305024

main90463-05024¥140

9046710011

main90467-10011¥180

9046805011

main90468-05011¥120

9046805017

main90468-05017¥90

9046805021

main90468-05021¥200

9046825001

main90468-25001¥200

9356014012

main93560-14012¥70

44 parts on this diagram · 2 diagrams in section
