SIDE MEMBER

0001 1 0002 1

6105

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-22030iRX6#..RHD198009-198203

sub90950-01345

main61021-22031iGX6#,LX60,MX6#,RX6#,TX62..RHD198203-198504

main61021-22040iLX60,RX60..LHD198009-198203

sub90950-01345

main61021-22041iGX6#,LX60,RX60..LHD198203-198407

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-22030iRX6#..RHD198009-198203

sub90950-01345

main61022-22031iGX6#,LX60,MX6#,RX6#,TX62..RHD198203-198504

main61022-22040iLX60,RX60..LHD198009-198203

sub90950-01345

main61022-22041iGX6#,LX60,RX60..LHD198203-198407

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61025-22903iRX6#..RHD198009-198203

sub90950-01345

main61025-22904iLX60,RX60..LHD198009-198203

sub90950-01345

main61025-22907iGX6#,LX60,MX6#,RX6#,TX62..RHD198203-198504

main61025-22908iGX6#,LX60,RX60..LHD198203-198407

sub61025-22910

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61026-22903iRX6#..RHD198009-198203

sub90950-01345

main61026-22904iLX60,RX60..LHD198009-198203

sub90950-01345

main61026-22908iGX6#,LX60,MX6#,RX6#,TX62..RHD198203-198504

main61026-22909iGX6#,LX60,RX60..LHD198203-198407

61123PANEL, COWL SIDE LOWER, RH

main61123-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61124PANEL, COWL SIDE LOWER, LH

main61124-22030iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-22090iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-22090iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main61203-91608iLX60,MX62,RX6#..WG198009-198504

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-22090iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main61204-91605iLX60,MX62,RX6#..WG198009-198504

61211RAIL, ROOF SIDE, OUTER RH

main61211-22050iLX60,MX62,RX60,TX62..SED198009-198208

main61211-22060iGX60,RX60..SED..ME198208-198407

main61211-91607iLX60,MX62,RX6#..WG198009-198504

61212RAIL, ROOF SIDE, OUTER LH

main61212-22050iMX63,RX60,TX62..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)198208-198504

main61212-22060iGX60,RX60..SED..ME198208-198407

main61212-91607iLX60,MX62,RX6#..WG198009-198504

61261CHANNEL, ROOF DRIP, RH

main61261-22050iRX60,TX62..SED..SA198208-198504

main61261-22051iGX6#,LX60,MX62,RX60..SED..(ARL,EUR,GEN,ME)198208-198407

main61265-91602iLX60,MX62,RX6#..WG198009-198203

main61265-91603iLX60,MX62,RX6#..WG198203-198504

61262CHANNEL, ROOF DRIP, LH

main61262-22050iLX60,MX62,RX60,TX62..SED198009-198208

main61262-22051iMX63198312-198504

main61266-91602iLX60,MX62,RX6#..WG198009-198203

main61266-91603iLX60,MX62,RX6#..WG198203-198504

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-22010×2iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-22010iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-22010iLX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)198009-198208

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-22220iGX6#,LX60,MX63,RX6#,TX62198009-198504

main61301-22260iMX62198009-198407

61301BPILLAR, CENTER BODY, OUTER RH

main61301-22902iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-22240iGX6#,LX60,MX63,RX6#,TX62198009-198504

main61302-22280iMX62198009-198407

61302BPILLAR, CENTER BODY, OUTER LH

main61302-22902iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-22060iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-22080iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61411PANEL, ROCKER, OUTER RH

main61411-22101iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub61411-22111

61412PANEL, ROCKER, OUTER LH

main61412-22101iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub61412-22111

61412BREINFORCEMENT, ROCKER PANEL, NO.2

main61414-22010×2iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61419REINFORCEMENT, ROCKER OUTER PANEL

main61418-22010×2iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61511PILLAR, QUARTER LOCK, RH

main61501-22901iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61512PILLAR, QUARTER LOCK, LH

main61502-22901iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61611PANEL, QUARTER, RH

main61601-22938iRX60..SED..DLX..ME198208-198407

W/ARCH MOULDING

main61601-22939iLX60..SED..DLX;MX62,RX60,TX62..SED198009-198208

W/FUEL LID

main61601-22942iLX60,MX62,RX6#..WG198009-198208

main61601-22943iLX60,MX62,RX6#..WG..(DLX,XL)198009-198208

W/FUEL LID

main61601-22950iLX60,RX60..SED..LHD..DLX..EUR198208-198407

main61601-22951iMX63,RX60..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)198208-198504

W/FUEL LID OPENER

main61601-22952iRX60..SED..DLX..ME198308-198407

main61601-22953iTX62;GX60,RX60..SED..ME198208-198407

W/FUEL LID & ARCH MOULDING

main61601-22954iLX60..WG;RX60..WG..EUG;RX60..WG..(GEN,ME)198208-198407

main61601-22956iLX60,MX62,RX60..WG198208-198504

W/FUEL LID OPENER

61612PANEL, QUARTER, LH

main61602-22912iLX60,RX60,TX62..SED..(GEN,SA)198009-198208

main61602-22913iLX60,MX62..SED;RX60..SED..LHD..EUG;RX60..SED..RHD..(DLX,GL,XL);RX60..SED..LHD..(GEN,ME,SAA)198009-198208

W/ANTENNA

main61602-22916iLX60,MX62,RX6#..WG198009-198504

main61602-22919iGX61,LX60,RX60..SED..LHD..EUG198208-198407

main61602-22920iMX63,RX60..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)198208-198504

W/ANTENNA

main61602-22921iTX62;GX60,RX60..SED..ME198208-198407

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-22907iGX61,LX60,RX60..EUR198208-198407

main61607-22908iLX60,MX62,RX60,TX62..SED198009-198208

sub61607-22906

main61607-91604iLX60,MX62,RX6#..WG198009-198504

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61603-22905iLX60,MX62,RX60,TX62..SED..(ARL,GEN,ME,SA,SAA)198009-198203

sub77201-22121

sub77201-22130

main61603-22906iLX60,RX60..SED..EUR198009-198203

sub77201-22111

sub77201-22130

main61603-22907iRX60..SED..SDZ;MX63,RX60,TX62..SED..(GEN,ME,SA);GX60,LX60,MX62..SED..(ARL,GEN,ME)198208-198504

main61603-22908iGX61,LX60,RX60..SED..EUG198208-198407

main61631-91604iLX60,MX62,RX6#..WG198009-198504

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-22906iGX61;RX60..SDZ198208-198407

main61608-22907iRX60..SED..EUG;RX60,TX62..SED..(GEN,ME,SA);GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198208-198504

sub61608-22905

main61608-91606iLX60,MX62,RX6#..WG198009-198504

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22070iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

sub61632-22080

main61632-91604iLX60,MX62,RX6#..WG198009-198504

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61641-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61642-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22050iRX60..SED..LHD..(3FC,4F)..DLX..GEN;LX60,RX60..SED..(3H,4FC,4H,5F)..(DLX,STD)..GEN198203-198407

main61705-22060iRX60..SED..RHD..(3FC,4F)..DLX..GEN198203-198407

main61705-22080iMX62..SED198009-198407

main61705-91605iLX60,MX62,RX6#..WG198009-198504

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22050iGX60,RX60..SED..ME198009-198407

main61706-22060iGX60,RX60..GL..GEN198009-198308

main61706-22080iMX62..SED198009-198407

main61706-91606iLX60,MX62,RX6#..WG198009-198504

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-22060iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-22050iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

9095001006

main90950-01006

9095001022

main90950-01022

9095001027

main90950-01027

9095001029

main90950-01029

9095001061

main90950-01061

9095001327

main90950-01327

9095001345

main90950-01345

9095801060

main90958-01060

9163140612

main91631-40612

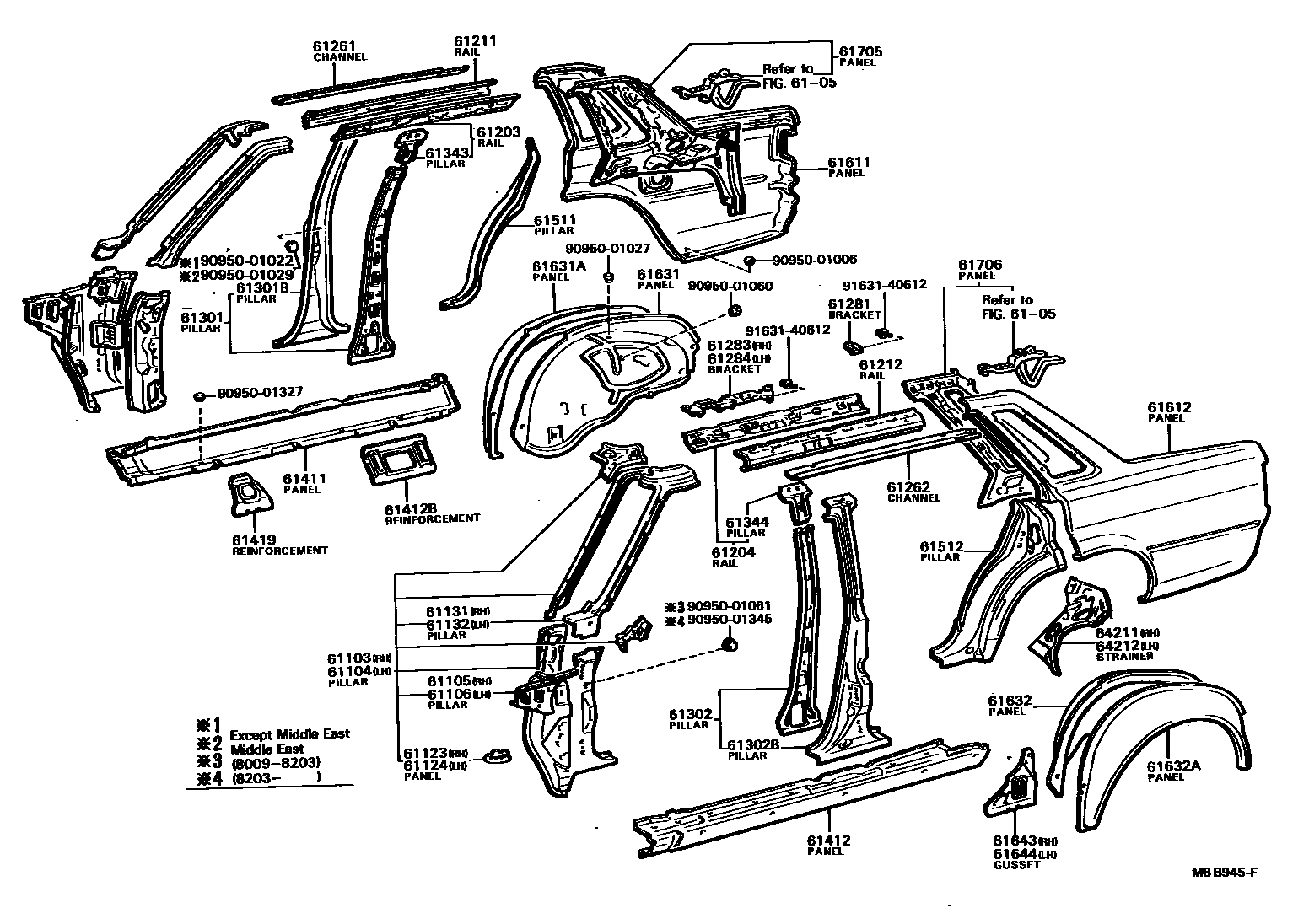

51 parts on this diagram · 2 diagrams in section
