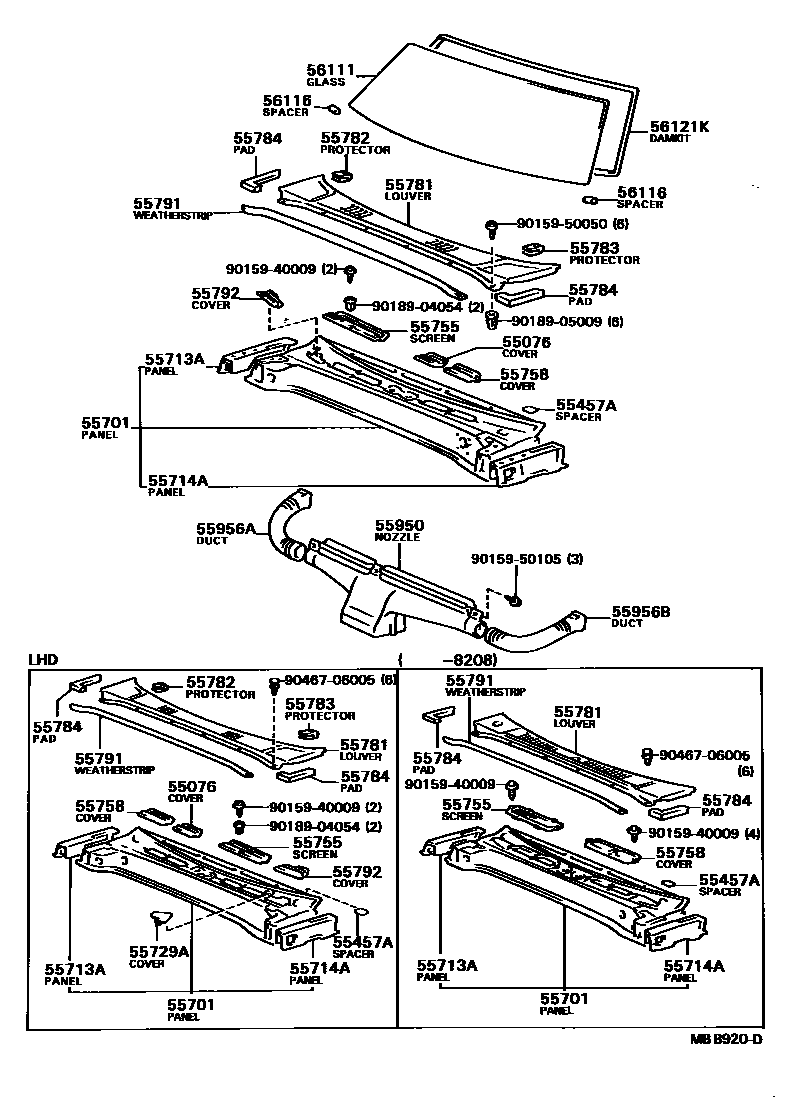

COWL PANEL & WINDSHIELD GLASS

55076COVER, HEATER AIR DUCT HOLE

main55792-22030iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

main55792-22040iGX6#,LX60,RX60..LHD198208-198407

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-12010×5iGX6#,LX60,MX6#,RX6#,TX62198102-198504

main55457-22030×3iLX60,MX62,RX60198009-198102

55701PANEL SUB-ASSY, COWL

main55700-22250iMX62,RX62,TX62;RX60..RHD..ATM198009-198208

main55700-22280iRX60..LHD198009-198208

sub55700-22730

sub91651-40612

sub91651-40812

main55700-22300iLX60..LHD198009-198208

sub55700-22740

sub91651-40612

main55700-22310iLX60..RHD198009-198208

sub55700-22720

sub91651-40612

main55700-22320iRX60..5F..SA198208-198504

sub55700-22720

sub91651-40612

sub91651-40812

main55700-22390iGX60,MX6#,RX60,TX62..RHD198208-198504

sub55700-22760

sub91651-40612

sub91651-40812

main55700-22410iLX60..RHD198208-198407

sub55700-22760

sub91651-40612

main55700-22460iRX60..LHD..ATM198208-198407

sub55700-22780

sub91651-40612

sub91651-40812

main55700-22470iRX60..LHD..(4H,5F)198208-198407

sub55700-22770

sub91651-40612

sub91651-40812

main55700-22480iLX60..4FC198208-198407

sub55700-22780

sub91651-40612

main55700-22490iLX60..LHD..5F198208-198407

sub55700-22770

sub91651-40612

main55700-22500iGX6#..LHD198208-198407

sub55700-22780

sub91651-40612

sub91651-40812

main55700-22510iGX6#..LHD..5F198208-198407

sub55700-22770

sub91651-40612

sub91651-40812

55713APANEL, COWL TOP SIDE, RH

main55713-22030iLX60,MX62,RX6#,TX62198009-198205

main55713-22031iGX6#,LX60,MX6#,RX6#,TX62198205-198504

55714APANEL, COWL TOP SIDE, LH

main55714-22030iLX60,MX62,RX6#,TX62198009-198205

main55714-22031iGX6#,LX60,MX6#,RX6#,TX62198205-198504

55729ACOVER, COWL PANEL HOLE

main55729-22010iGX6#,LX60,RX60..LHD198208-198407

55755SCREEN, HEATER AIR DUCT

main55731-22020iLX60,MX62,RX6#,TX62198009-198208

main55731-22030iGX6#,LX60,MX6#,RX60,TX62198208-198504

55758COVER, HEATER AIR DUCT

main55077-22040iLX60,MX62,RX6#,TX62198009-198208

main55077-22050iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

main55077-22060iGX6#,LX60,RX60..LHD198208-198407

55781LOUVER, COWL VENTILATOR

main55708-22020iGX60,RX60..ME198308-198407

main55708-22030iMX63198312-198504

main55781-22090iRX60,TX62..SA198208-198504

main55781-22100iLX60,RX60..LHD198009-198208

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55788-22060iGX6#,LX60,MX6#,RX60,TX62198208-198504

55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH

main55788-22060iGX6#,LX60,MX6#,RX60,TX62198208-198504

55784PAD, COWL OUTER PANEL, NO.1

main55783-22030iLX60,MX62,RX6#,TX62198009-198208

RH

main55783-22040iGX6#,LX60,MX6#,RX60,TX62198208-198504

RH

main55784-22030iLX60,MX62,RX6#,TX62198009-198208

LH

main55784-22040iGX6#,LX60,MX6#,RX60,TX62198208-198504

LH

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-22020iLX60,MX62,RX6#,TX62198009-198208

main53383-22030iGX6#,LX60,MX6#,RX60,TX62198208-198504

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-22030iGX6#,LX60,MX6#,RX60..RHD198208-198504

main55793-22040iGX6#,LX60,RX60..LHD198208-198407

55950NOZZLE ASSY, DEFROSTER

main55950-22030iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

main55950-22040iGX6#,LX60,RX60..LHD198009-198407

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

56111GLASS, WINDSHIELD

main56111-22170iLX60..DLX198009-198208

*TZT,T=5.0

main56111-22180iLX60,RX60..EUR;LX60,TX62..STD..(GEN,SA)198009-198208

*TL,T=5.3

main56111-22190iLX60..STD198009-198208

*TEM,T=5.0

main56111-22200iLX60..DLX..GEN198009-198208

*TL,T=5.3

main56111-22210iMX62198009-198208

*LAM,T=5.3

main56111-22280iMX62,TX62198208-198504

*LAM,T=5.3

main56111-22290iRX60..GEN;RX60..EUG;GX6#..EUR,GEN198208-198407

*TZT,T=5.0

sub56111-22230

main56111-22300iGX61,LX60,RX60..LHD..EUR198208-198407

*TL,T=5.3

main56111-22310iGX60,LX60,MX63,RX60..GEN,ME,SA198208-198504

*TL,T=5.3

main56111-22320iRX60..GL..ME198208-198407

*LAM,T=5.3,BRONZE

sub56111-22330

56116SPACER, WINDSHIELD GLASS

main56116-22010×2iGX6#,LX60,MX6#,RX6#,TX62198009-198504

sub56116-32040

56121KDAM KIT, WINDSHIELD GLASS

main04562-30030iGX6#,LX60,MX62,RX6#,TX62198009-198308

main04562-30040iGX6#,LX60,MX6#,RX60,TX62198308-198504

9015940009

main90159-40009

9015950050

main90159-50050

9015950105

main90159-50105

9018904054

main90189-04054

9018905009

main90189-05009

9046706005

main90467-06005

26 parts on this diagram · 1 diagram in section
