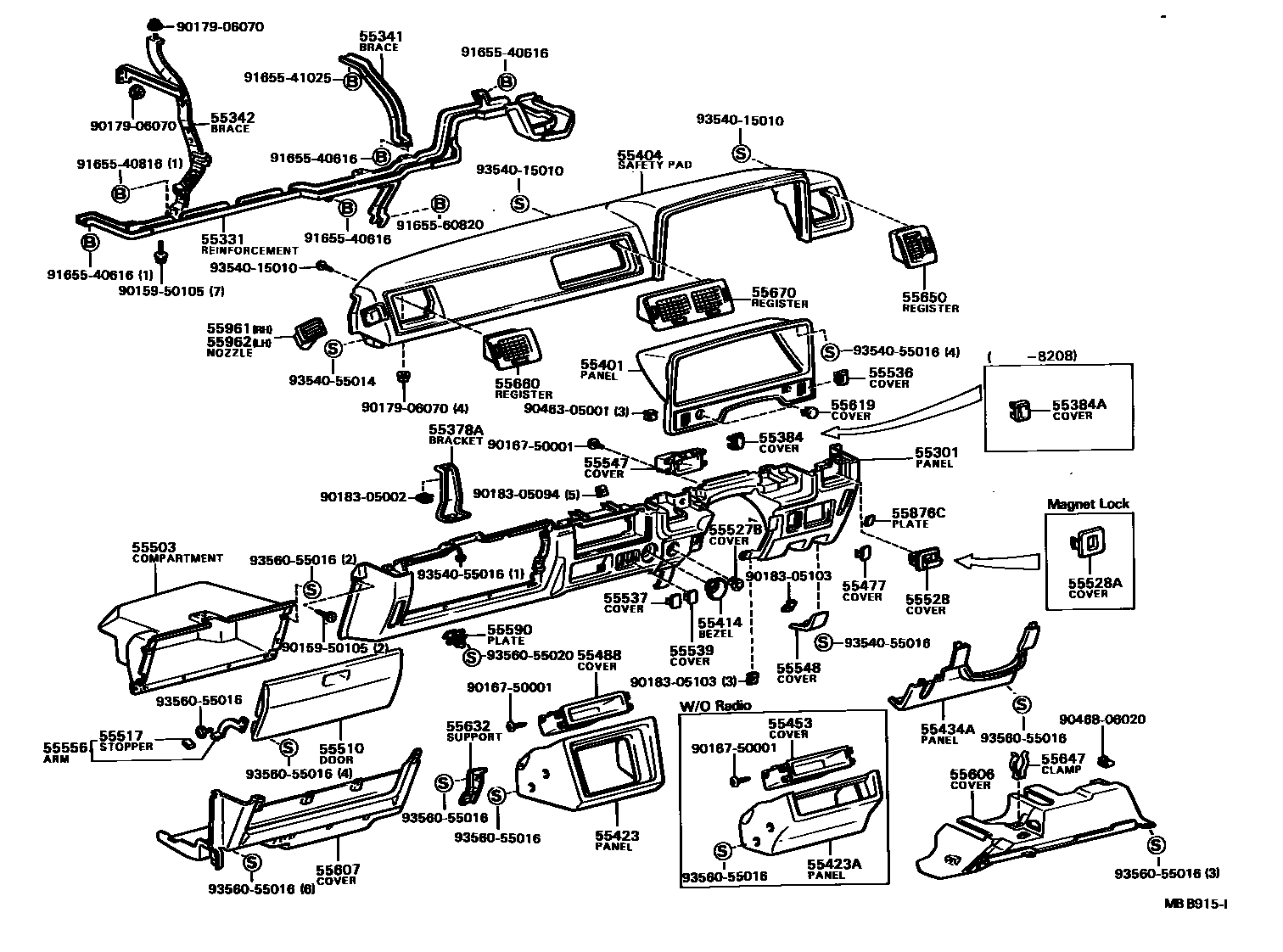

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-22080-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main55311-22080-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55311-22080-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main55311-22080-06iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55311-22080-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

main55311-22090-01iLX60,RX60..LHD198009-198208

BLACK,BLACK,TRIM2#

main55311-22090-02iGX6#,LX60,RX60..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55311-22090-04iLX60,RX60..LHD198009-198208

BLUE,BLUE,TRIM8#

main55311-22090-06iGX6#,LX60,RX60..LHD198009-198407

D-BROWN,BROWN,TRIM0#,4#

main55311-22090-14iGX6#,LX60,RX60..LHD198208-198407

BLUE,BLUE,TRIM8#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-22090iLX60,MX62,RX6#,TX62..RHD198009-198203

main55305-22100iGX6#,LX60,RX60..LHD198009-198407

main55305-22140iGX6#,LX60,MX6#,RX6#,TX62..RHD198203-198504

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-22040iGX6#,LX60,MX6#,RX6#,TX62..RHD..(3FC,4F,4FC,5F)198009-198504

main55341-22050iGX6#,LX60,RX60..LHD..(3FC,4F,4FC,5F)198009-198407

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-22070iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

main55306-22080iGX6#,LX60,RX60..LHD198009-198407

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22020iGX6#,LX60,MX6#,RX6#,TX62198009-198504

55384COVER, BASE SWITCH HOLE

main55384-20011-01iLX60,RX60..WG..EUR;GX60,LX60,MX6#,RX60,TX62..ARL,GEN,ME,SA198208-198504

BLACK

55384ACOVER, PARKING LAMP SWITCH HOLE

main55384-20011iLX60..WG;RX60..WG..EUG;LX60..SED..GEN;MX62,RX6#,TX62..ARL,GEN,ME,SA,SAA198009-198208

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-22150iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

main55411-22170iLX60,RX60..LHD198009-198208

main55411-22210iGX6#,LX60,RX60..LHD198208-198407

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-22190-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main55401-22190-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55401-22190-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main55401-22190-06iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55401-22190-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

main55401-22200-01iLX60,RX60..LHD198009-198208

BLACK,BLACK,TRIM2#

main55401-22200-02iGX6#,LX60,RX60..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55401-22200-04iLX60,RX60..LHD198009-198208

BLUE,BLUE,TRIM8#

main55401-22200-06iGX6#,LX60,RX60..LHD198009-198407

D-BROWN,BROWN,TRIM0#,4#

main55401-22200-14iGX6#,LX60,RX60..LHD198208-198407

BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-22010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

55423PANEL, STEREO PLAYER FINISH

main55423-22020-01iLX60,MX62,RX60..ARL,GEN,ME198108-198205

BLACK,BLACK,TRIM2#

main55423-22020-04iLX60,MX62,RX60..ARL,GEN,ME198108-198205

BLUE,BLUE,TRIM8#

main55423-22020-06iLX60,MX62,RX60..ARL,GEN,ME198108-198205

D-BROWN,BROWN,TRIM0#,4#

main55423-22030-01iLX60,MX62,RX60..ARL,GEN,ME198205-198208

BLACK,BLACK,TRIM2#

main55423-22030-02iGX60,LX60,MX62,RX60..ARL,GEN,ME198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55423-22030-04iLX60,MX62,RX60..ARL,GEN,ME198205-198208

BLUE,BLUE,TRIM8#

main55423-22030-06iLX60,RX60..LHD..EUR198205-198208

D-BROWN,BROWN,TRIM0#,4#

main55423-22030-14iLX60,RX60..LHD..EUR198208-198308

BLUE,BLUE,TRIM8#

55423APANEL, RADIO TUNER FINISH

main55424-22010-01iLX60,RX6#,TX62..EUR,GEN,SA198009-198208

BLACK,BLACK,TRIM2#

main55424-22010-04iLX60,RX6#,TX62..EUR,GEN,SA198009-198208

BLUE,BLUE,TRIM8#

main55424-22010-06iLX60,RX6#,TX62..EUR,GEN,SA198009-198208

D-BROWN,BROWN,TRIM4#

main55424-22020-02iGX61,LX60,RX60..EUR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55424-22020-06iGX61,LX60,RX60..EUR198208-198407

D-BROWN,BROWN,TRIM4#

main55424-22020-14iGX61,LX60,RX60..EUR198208-198407

BLUE,BLUE,TRIM8#

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55432-22080-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main55432-22080-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55432-22080-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main55432-22080-06iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55432-22080-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

main55432-22090-01iLX60,RX60..LHD198009-198208

BLACK,BLACK,TRIM2#

main55432-22090-02iGX6#,LX60,RX60..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55432-22090-04iLX60,RX60..LHD198009-198208

BLUE,BLUE,TRIM8#

main55432-22090-06iGX6#,LX60,RX60..LHD198009-198407

D-BROWN,BROWN,TRIM0#,4#

main55432-22090-14iGX6#,LX60,RX60..LHD198208-198407

BLUE,BLUE,TRIM8#

55453COVER, RADIO TUNER OPENING

main55521-22020iLX60,RX6#,TX62..GEN,SA198009-198208

main55522-14070iGX61,LX60,RX60..LHD..EUR198208-198407

main55522-14080iRX60,TX62..SA198208-198504

sub55522-20070

55477COVER, OVERDRIVE KNOB HOLE

main55534-30050-01iLX60,RX6#,TX62..3FC,3H,4F,4H,5F198009-198208

BLACK,BLACK,TRIM2#

main55534-30050-04iLX60,RX6#,TX62..3FC,3H,4F,4H,5F198009-198208

BLUE,BLUE,TRIM8#

main55534-30050-06iGX6#,LX60,RX6#,TX62..3FC,3H,4F,4H,5F198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55534-30050-12iGX6#,LX60,RX60,TX62..3FC,4F,4H,5F198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55534-30050-14iGX6#,LX60,RX60,TX62..3FC,4F,4H,5F198208-198504

BLUE,BLUE,TRIM8#

55488COVER, STEREO OPENING

main55521-22020iLX60,RX60..LHD..EUR198108-198208

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-22030iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main55581-22040iGX6#,LX60,RX60..LHD198009-198407

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22040-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main55550-22040-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55550-22040-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main55550-22040-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55550-22040-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

55527BCOVER, DIESEL THROTTLE KNOB HOLE

main55527-22020-01iMX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main55527-22020-04iMX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main55527-22020-06iGX6#,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55527-22020-12iGX6#,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55527-22020-14iGX6#,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

55528COVER, AUTO DRIVE OPENING

main55528-30010-01iLX60,RX60..RHD..(GEN,SA)198009-198208

BLACK,BLACK,TRIM2#

main55528-30010-04iLX60,RX60..RHD..GEN198009-198208

BLUE,BLUE,TRIM8#

main55528-30010-06iGX60,MX62,RX60..RHD..(ARL,GEN)198208-198407

D-BROWN,BROWN,TRIM4#

main55528-30010-12iGX60,MX62,RX60..RHD..(ARL,GEN)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55528-30010-14iGX60,MX62,RX60..RHD..(ARL,GEN)198208-198407

BLUE,BLUE,TRIM8#

main55528-30020-01iRX6#,TX62..RHD..(EUR,SA)198009-198208

BLACK,BLACK,TRIM2#

main55528-30020-04iRX6#,TX62..RHD..(EUR,SA)198009-198208

BLUE,BLUE,TRIM8#

main55528-30020-06iRX6#,TX62..RHD..(EUR,SA)198009-198208

D-BROWN,BROWN,TRIM0#,4#

main55528-30020-12iGX6#,LX60,MX63,RX60,TX62..RHD..(EUR,SA)198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55528-30020-14iGX6#,LX60,MX63,RX60,TX62..RHD..(EUR,SA)198208-198504

BLUE,BLUE,TRIM8#

55528ACOVER, MAGNETIC DOOR LOCK

main55528-22010-01iLX60,MX62,RX60..WG..DLX198009-198208

BLACK,BLACK,TRIM2#

main55528-22010-04iLX60,MX62,RX60..WG..DLX198009-198208

BLUE,BLUE,TRIM8#

main55528-22010-06iLX60,MX62,RX60..WG..DLX198009-198208

D-BROWN,BROWN,TRIM0#,4#

main55528-22010-12iMX62..WG;RX60..WG..EUG198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55528-22010-14iMX62..WG;RX60..WG..EUG198208-198407

BLUE,BLUE,TRIM8#

55536COVER, REAR WINDOW WIPER SWITCH HOLE

main55384-20011iGX6#,LX60..LHD;RX60..SED..SDZ;RX60..LHD..(EUG,SDN);RX60..LHD..(GEN,ME,SAA)198009-198407

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55534-30050-01iTX62;LX60,MX62,RX60..ARL,GEN198009-198208

BLACK,BLACK,TRIM2#

main55534-30050-04iTX62;LX60,MX62,RX60..ARL,GEN198009-198208

BLUE,BLUE,TRIM8#

main55534-30050-06iRX60..DLX..ME198009-198407

D-BROWN,BROWN,TRIM0#,4#

main55534-30050-12iRX60..DLX..ME198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55534-30050-14iRX60..DLX..ME198208-198407

BLUE,BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55534-30050-01iRX60..RHD..GL..GEN;LX60,RX6#,TX62..RHD..(DLX,STD,SXL,XL)198009-198208

BLACK,BLACK,TRIM2#

main55534-30050-04iRX60..RHD..GL..GEN;LX60,RX6#,TX62..RHD..(DLX,STD,SXL,XL)198009-198208

BLUE,BLUE,TRIM8#

main55534-30050-06iRX60..RHD..GL..GEN;LX60,RX6#,TX62..RHD..(DLX,STD,SXL,XL)198009-198208

D-BROWN,BROWN,TRIM0#,4#

main55534-30050-12iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55534-30050-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-22010-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main55547-22010-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55547-22010-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main55547-22010-06iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55547-22010-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

55548COVER, FUEL LID OPENER OPENING

main55548-22020-01iLX60,MX62,RX6#,TX62..DLX,STD,SXL,XL198009-198208

BLACK,BLACK,TRIM2#

main55548-22020-02iLX60,RX60..DLX198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55548-22020-04iLX60,MX62,RX6#,TX62..DLX,STD,SXL,XL198009-198208

BLUE,BLUE,TRIM8#

main55548-22020-06iLX60,RX60..DLX198208-198504

D-BROWN,BROWN,TRIM4#

main55548-22020-14iLX60,RX60..DLX198208-198504

BLUE,BLUE,TRIM8#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22040iGX6#,LX60,MX6#,RX6#,TX62198009-198504

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-12010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22020iLX60,RX60..RHD..GEN198009-198204

HEATER & BOOST VENTILATOR

main55606-22030iLX60,RX60..RHD..GEN198009-198204

main55606-22040iGX6#,LX60,RX60..LHD..(EUR,ME)198208-198407

HEATER&BOOST VENTILATOR

main55606-22050iGX60,LX60,RX60..LHD..GEN198208-198407

main55606-22070iGX60,LX60,RX60..RHD..GEN198204-198302

HEATER & BOOST VENTILATOR

main55606-22071iGX6#,LX60,MX6#,RX60,TX62..RHD..(ARL,EUR,SA)198302-198504

main55606-22080iGX60,LX60,RX60..RHD..GEN198204-198302

main55606-22081iGX60,RX60..RHD..GEN198302-198407

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22010-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main55607-22010-02iRX60..EUG;RX60..GEN,SA;GX6#,LX60,MX6#,TX62..ARL,EUR,GEN,SA198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55607-22010-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main55607-22010-06iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55607-22010-14iRX60..EUG;RX60..GEN,SA;GX6#,LX60,MX6#,TX62..ARL,EUR,GEN,SA198208-198504

BLUE,BLUE,TRIM8#

main55607-22020-01iLX60,RX60..LHD198009-198208

BLACK,BLACK,TRIM2#

main55607-22020-02iGX6#,LX60,RX60..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55607-22020-04iLX60,RX60..LHD198009-198208

BLUE,BLUE,TRIM8#

main55607-22020-06iGX6#,LX60,RX60..LHD198009-198407

D-BROWN,BROWN,TRIM0#,4#

main55607-22020-14iGX6#,LX60,RX60..LHD198208-198407

BLUE,BLUE,TRIM8#

55619COVER, SWITCH HOLE

main55617-10010iLX60,TX62..STD198009-198407

55632SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.1

main55631-22050iGX6#,LX60,RX60..LHD198009-198407

main55631-22060iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGX6#,LX60,MX62,RX6#,TX62..RHD198204-198504

main55647-30010iLX60,RX60..LHD198009-198203

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22040-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main55650-22040-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55650-22040-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main55650-22040-06iGX6#,LX60,MX6#,RX6#,TX62..RHD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55650-22040-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

main55650-22050-01iLX60,RX60..LHD198009-198208

BLACK,BLACK,TRIM2#

main55650-22050-02iGX6#,LX60,RX60..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55650-22050-04iLX60,RX60..LHD198009-198208

BLUE,BLUE,TRIM8#

main55650-22050-06iGX6#,LX60,RX60..LHD198009-198407

D-BROWN,BROWN,TRIM0#,4#

main55650-22050-14iGX6#,LX60,RX60..LHD198208-198407

BLUE,BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22040-01iLX60,MX62,RX6#,TX62..RHD198009-198208

BLACK,BLACK,TRIM2#

main55660-22040-02iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55660-22040-04iLX60,MX62,RX6#,TX62..RHD198009-198208

BLUE,BLUE,TRIM8#

main55660-22040-06iGX6#,LX60,MX6#,RX60,TX62..RHD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55660-22040-14iGX6#,LX60,MX6#,RX60,TX62..RHD198208-198504

BLUE,BLUE,TRIM8#

main55660-22050-01iLX60,RX60..LHD198009-198208

BLACK,BLACK,TRIM2#

main55660-22050-02iGX6#,LX60,RX60..LHD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55660-22050-04iLX60,RX60..LHD198009-198208

BLUE,BLUE,TRIM8#

main55660-22050-06iGX6#,LX60,RX60..LHD198009-198407

D-BROWN,BROWN,TRIM0#,4#

main55660-22050-14iGX6#,LX60,RX60..LHD198208-198407

BLUE,BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22060-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main55670-22060-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55670-22060-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main55670-22060-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55670-22060-24iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

55876CPLATE,SIDE VENTILATOR CONTROL NAME, NO.2

main55876-20010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22030-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main55961-22030-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55961-22030-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main55961-22030-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55961-22030-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22030-01iLX60,MX62,RX6#,TX62198009-198208

BLACK,BLACK,TRIM2#

main55962-22030-02iGX6#,LX60,MX6#,RX60,TX62198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main55962-22030-04iLX60,MX62,RX6#,TX62198009-198208

BLUE,BLUE,TRIM8#

main55962-22030-06iGX6#,LX60,MX6#,RX6#,TX62198009-198504

D-BROWN,BROWN,TRIM0#,4#

main55962-22030-14iGX6#,LX60,MX6#,RX60,TX62198208-198504

BLUE,BLUE,TRIM8#

9015950105

main90159-50105

9016750001

main90167-50001

9017906070

main90179-06070

9018305002

main90183-05002

9018305094

main90183-05094

9018305103

main90183-05103

9046305001

main90463-05001

9046806020

main90468-06020

9165540616

main91655-40616

9165540816

main91655-40816

9165541025

main91655-41025

9165560820

main91655-60820

9354015010

main93540-15010

9354055014

main93540-55014

9354055016

main93540-55016

9356055016

main93560-55016

9356055020

main93560-55020

57 parts on this diagram · 2 diagrams in section
