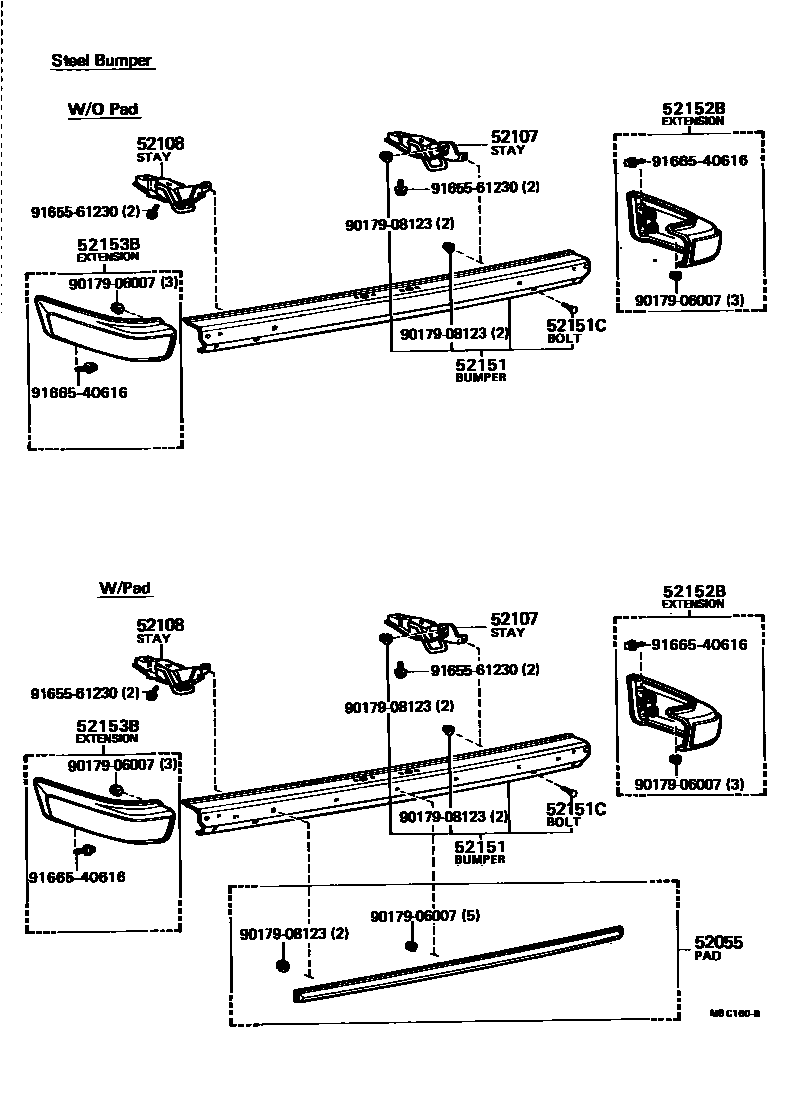

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-29065iLX60,RX6#..(DLX,STD,XL)..(EUR,GEN,SA)¥16,800198009-198504

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-22010iTX62¥5,600198009-198504

main52015-91601iLX60,RX6#..WG..(EUR,GEN,SA)¥6,200198009-198208

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-22010iLX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA)¥5,600198009-198504

main52016-91601iLX60,RX6#..WG..(EUR,GEN,SA)¥6,200198009-198208

52151BUMPER ASSY, REAR

main52151-29385iTX62¥42,400198209-198504

sub52151-29515¥43,800

main52151-29385iLX60,RX60..SED..(DLX,STD,XL)..(EUR,GEN,SA)¥42,400198009-198208

W/PAD

sub52151-29515¥43,800

main52151-29435iLX60,RX6#..WG..(EUR,GEN,SA)¥46,800198009-198208

W/PAD

sub52151-29565¥49,400

main52151-29445iLX60..WG..STD¥47,000198009-198208

sub52151-29555¥49,400

main52151-29455iLX60,TX62..SED..STD¥43,600198009-198208

sub52151-29525¥43,800

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08017iRX6#..(DLX,XL)..(EUR,GEN,SA)¥370198009-198504

52152BEXTENSION, REAR BUMPER, RH

main52106-29065iTX62¥18,900198009-198504

main52106-29095iLX60,RX6#..WG..(EUR,GEN,SA)¥18,900198009-198208

main52152-22040iMX63,RX60..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)¥10,600198208-198504

main52152-22060-06iGX60,RX60..LHD..GL..GEN198208-198308

BROWN,BROWN,2K3

sub52152-22900¥10,700

main52152-22060-16iGX60,RX60..LHD..GL..GEN198308-198404

BROWN-M,BROWN,2R2

sub52152-22900¥10,700

main52152-22900iGX60,RX60..LHD..GL..GEN¥10,700198404-198407

52153BEXTENSION, REAR BUMPER, LH

main52107-29185iLX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA)¥18,900198009-198504

main52107-29215iLX60,RX6#..WG..(EUR,GEN,SA)¥18,900198009-198208

main52153-22040iMX63,RX60..SED..(EUR,GEN,SA);GX6#,LX60,MX62..SED..(ARL,EUR,GEN)¥10,600198208-198504

main52153-22060-06iGX60,RX60..LHD..GL..GEN198208-198308

BROWN,BROWN,2K3

sub52153-22900¥10,700

main52153-22060-16iGX60,RX60..LHD..GL..GEN198308-198404

BROWN-M,BROWN,2R2

sub52153-22900¥10,700

main52153-22900iGX60,RX60..LHD..GL..GEN¥10,700198404-198407

9017906007

main90179-06007¥80

9017908123

main90179-08123¥160

9165561230

main91655-61230¥250

9166540616

main91665-40616¥70

11 parts on this diagram · 6 diagrams in section
