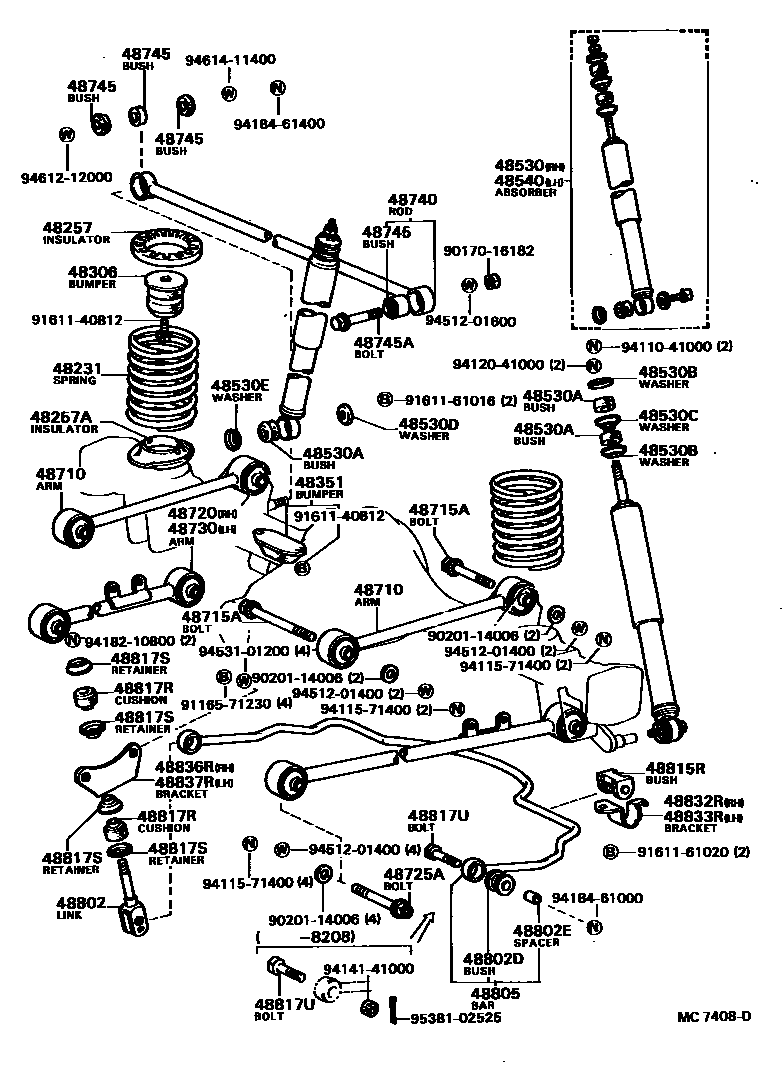

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48231SPRING, COIL, REAR

main48231-22290iRX60..SED..EUR198009-198205

main48231-22291iRX60..SED..EUR198205-198208

main48231-22300iMX62..GL198009-198208

main48231-22330iRX60,TX62..SED..(GEN,ME,SA,SAA)198009-198208

main48231-22450iRX60..SED..EUR198208-198407

LH

main48231-22460iRX60..SED..EUR198208-198407

RH

main48231-22470iGX60..RHD..GEN;RX60,TX62..SED..RHD198208-198504

RH

main48231-22470iGX60..LHD198208-198407

LH

main48231-22480iGX60..RHD..GEN;RX60,TX62..SED..RHD198208-198504

LH

main48231-22480iGX60..LHD198208-198407

RH

main48231-22490iMX62..SED198208-198407

RH

sub48231-22300

main48231-22500iMX62..SED198208-198407

LH

sub48231-22330

main48231-22570iGX61..RHD198208-198407

RH

sub48231-22580

main48231-22570iGX61..RHD198208-198407

LH

sub48231-22580

main48231-22580iGX61..LHD198208-198407

RH

main48231-22580iGX61..LHD198208-198407

LH

main48231-22610iRX60..SED..ME198208-198407

LH

main48231-22610iLX60..SED..LHD198208-198407

RH

main48231-22620iRX60..SED..ME198208-198407

RH

main48231-22620iRX60..SED..ME198208-198407

LH

main48231-22650iRX60..SED..RHD..4F198308-198407

RH,INDONESIA SPEC

main48231-22660iRX60..SED..RHD..4F198308-198407

LH,INDONESIA SPEC

main48231-23020iRX60..WG..EUG198009-198208

sub48231-23040

main48231-23030iMX62..DLX198009-198208

sub48231-23110

main48231-23040iLX60..WG198009-198208

sub48231-23110

main48231-23050iMX62..WG198208-198407

RH

sub48231-23060

main48231-23060iMX62..WG198208-198407

LH

main48231-23090iLX60,RX60..WG..EUR198208-198407

LH

main48231-23100iLX60,RX60..WG..EUR198208-198407

RH

main48231-23110iLX60,RX60..WG..LHD..(GEN,ME)198208-198407

LH

main48231-23110iRX60..WG..RHD198208-198504

RH

main48231-23120iRX60..WG..RHD198208-198504

LH

sub48231-23070

main48231-23120iLX60,RX60..WG..LHD..(GEN,ME)198208-198407

RH

sub48231-23070

48257INSULATOR, REAR COIL SPRING

main48257-22020iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main48257-22030iGX61,MX63198208-198504

main48257-23010iLX60,MX62,RX6#..WG198009-198504

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-22010iLX60,MX62,RX60,TX62..SED198009-198504

sub48258-14030

main48258-22040iGX61198208-198305

RH

sub48258-22041

main48258-22041iGX61,MX63198305-198504

RH

main48258-22050iGX61,MX63198208-198504

LH

main48258-30010iLX60,MX62,RX6#..WG198009-198504

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030iLX60,MX62,RX6#..WG198009-198504

main48341-22080iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main48341-22100iGX61,MX63198208-198504

48351BUMPER, DIFFERENTIAL CARRIER

main48351-29015iMX62..SED;GX60,LX60,RX6#,TX62198009-198504

sub48351-20020

main48351-29065iMX62..WG198009-198407

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29375iMX63198312-198504

sub48531-29377

main48531-29695iRX60,TX62..SED..(GEN,ME,SA,SAA)198009-198504

sub48531-29696

main48531-29735iRX60..SED..EUR198009-198205

sub48531-29737

main48531-29736iRX60..SED..EUR198205-198407

sub48531-80037

main48531-29775iLX60,RX60..WG..EUG198009-198208

sub48531-29776

main48531-29785iMX62..WG198009-198407

sub48531-80370

main48531-29795iLX60,RX6#..WG..(GEN,ME,SA)198009-198208

sub48531-80375

main48531-29805iMX62..GL198009-198208

sub48531-80008

main48531-29815iLX60..SED..GEN198009-198208

sub48531-80380

main48531-29835iLX60..SED..EUG198009-198208

sub48531-29735

main48531-80004iGX61198208-198407

sub48531-29705

main48531-80005iLX60,RX60..WG..EUR198208-198407

sub48531-80158

main48531-80006iLX60,RX60..WG..(GEN,ME,SA)198208-198504

sub48531-80365

main48531-80008iRX60..SED..SA198208-198504

sub48531-80159

main48531-80009iLX60,MX62..SED..(ARL,GEN)198208-198407

sub48531-29695

main48531-80037iRX60..SED..RHD..4F198308-198407

INDONESIA SPEC

sub48531-80183

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iGX6#,LX60,MX6#,RX6#,TX62198109-198504

ABSORBER X AXLE HOUSING

main90385-16060iLX60,MX62,RX6#,TX62198009-198109

ABSORBER X AXLE HOUSING

sub90385-16004

main90540-10004iGX6#,LX60,MX6#,RX6#,TX62198009-198504

ABSORBER X BODY(LWR)

main90540-10005iLX60,MX62,RX6#..WG198009-198504

ABSORBER X BODY(UPR)

main90948-01003iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

ABSORBER X BODY(UPR)

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

T=2.3,LWR

main90948-02045iLX60,MX62,RX6#..WG198009-198504

T=3.2,UPR

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02007iMX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

main90948-02050iLX60,MX62,RX6#..WG198009-198407

main90948-02075iRX60..WG198408-198504

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iGX6#,LX60,MX6#,RX6#,TX62198009-198504

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGX6#,LX60,MX6#,RX6#,TX62198009-198504

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29375iMX63198312-198504

sub48531-29377

main48531-29695iGX60,TX62..SA198009-198504

sub48531-29696

main48531-29735iRX60..SED..EUR198009-198205

sub48531-29737

main48531-29736iLX60,RX60..SED..EUR198205-198407

sub48531-80037

main48531-29775iLX60,RX60..WG..EUG198009-198208

sub48531-29776

main48531-29785iMX62..WG198009-198407

sub48531-80370

main48531-29795iLX60,RX6#..WG..(GEN,ME,SA)198009-198208

sub48531-80375

main48531-29805iMX62..GL198009-198208

sub48531-80008

main48531-29815iLX60..SED..GEN198009-198208

sub48531-80380

main48531-29835iLX60..SED..EUG198009-198208

sub48531-29735

main48531-80004iGX61198208-198407

sub48531-29705

main48531-80005iLX60,RX60..WG..EUR198208-198407

sub48531-80158

main48531-80006iLX60,RX60..WG..(GEN,ME,SA)198208-198504

sub48531-80365

main48531-80008iGX60,RX60..SED..(GEN,ME)198208-198504

sub48531-80159

main48531-80009iLX60,MX62..SED..(ARL,GEN)198208-198407

sub48531-29695

main48531-80036iRX60..SED..RHD..4F198308-198407

INDONESIA SPEC

sub48531-80203

48710ARM ASSY, UPPER CONTROL

main48710-22080iGX60,MX62..SED..(ARL,GEN,ME)198009-198504

main48710-22130iTX62198107-198504

main48710-22160iLX60,RX60..SED198009-198504

main48710-23010iRX60..WG..EUR198009-198407

main48710-23020iMX62..DLX198009-198208

main48710-23030iRX6#..WG..(GEN,ME,SA)198009-198504

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14006iGX60,LX60,MX62,RX6#,TX62198009-198504

AXLE HOUSING X CONTROL ARM

main90105-14008iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

BODY X CONTROL ARM

main90105-14009iLX60,MX62,RX6#..WG198009-198504

BODY X CONTROL ARM

48720ARM ASSY, LOWER CONTROL, RH

main48720-22060iLX60..SED198009-198504

main48720-22090iGX60,MX62..SED..(ARL,GEN,ME)198009-198504

main48720-22110iRX60..SED..EUR198009-198205

main48720-22111iRX60..SED..EUR198205-198504

main48720-23010iMX62..WG198208-198407

main48720-23020iLX60..WG198009-198504

main48720-23030iMX62..DLX198009-198208

main48720-23040iRX60..WG..EUG198009-198407

48725BUSH, LOWER CONTROL ARM

main48725-22030iGX61,MX63198208-198504

OUTER

main48725-22040iGX61,MX63198208-198504

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14006iLX60,MX62,RX6#..WG198009-198504

main90105-14007iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

48730ARM ASSY, LOWER CONTROL, LH

main48720-22060iTX62198009-198504

main48720-22090iGX60,MX62..SED..(ARL,GEN,ME)198009-198504

main48720-22110iRX60..SED..EUR198009-198205

main48720-22111iRX60..SED..(GEN,ME,SA)198205-198504

main48720-23010iMX62..WG198208-198407

main48720-23020iRX6#..WG..(GEN,ME,SA)198009-198504

main48720-23030iMX62..DLX198009-198208

main48720-23040iLX60..WG..EUG198009-198407

48740ROD ASSY, REAR LATERAL CONTROL

main48740-22030iTX62;GX60,MX62..SED..(ARL,GEN,ME)198009-198504

main48740-22050iLX60,RX60..SED198009-198504

main48740-23010iLX60,MX62,RX6#..WG198009-198504

48745BUSH, LATERAL CONTROL ROD

main48706-14010iLX60,MX62,RX6#..WG198009-198504

BODY SIDE

main48706-22010iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

BODY SIDE

main90385-20001iGX60,LX60,MX62,RX6#,TX62198009-198504

L=15,HOUSING SIDE

main90386-20001iGX60,LX60,MX62,RX6#,TX62198009-198504

L=12,HOUSING SIDE

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iLX60,MX62,RX6#..WG198009-198504

main90105-16006iRX60,TX62..SED;GX60,LX60,MX62..SED..(ARL,EUR,GEN,ME)198009-198504

48802LINK SUB-ASSY, STABILIZER

main48802-14020iMX62,RX60..ARL,EUR198009-198504

48802DBUSH, STABILIZER LINK

main90385-11021iLX60..EUG198009-198504

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iGX60,TX62;RX60..SED..(GEN,SA)198009-198504

48805BAR SUB-ASSY, REAR STABILIZER

main48805-22010iMX62..GL198009-198504

OD=12

main48805-22030iRX60..SED..EUR198205-198407

OD=16

main48805-22040iMX62,RX60..SED..(ARL,GEN)198208-198407

OD=13

main48805-22050iLX60..SED..EUG198208-198407

OD=14

main48805-23010iRX60..WG..EUR198009-198407

OD=14

main48805-23020iMX62..DLX198011-198407

OD=12

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030iMX63198312-198504

main48815-14050iMX62,RX60..SED..(ARL,GEN)198208-198407

ID=13

main48815-14060iMX62,RX60..WG..(ARL,EUR)198009-198407

ID=14

main48815-22010iRX60,TX62..SED..SA198009-198504

ID=12

main48815-30070iRX60..SED..EUR198205-198407

ID=16

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iGX61,MX63198208-198504

main48817-30010iMX62,RX60..ARL,EUR198009-198504

main48817-30020iLX60..EUG198205-198407

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015iLX60..EUG198009-198504

T=1.2

main90948-02024iGX61,MX63198208-198504

T=3.5

main90948-02025iGX61,MX63198208-198504

T=5.0

main90948-02032iMX62,RX60..ARL,EUR198009-198504

T=1.6

48817UBOLT(FOR REAR STABILIZER)

main90101-08019iGX61,MX63198208-198504

main90102-10015iMX62,RX60..ARL,EUR198009-198208

main91121-41045iMX62,RX60..ARL,EUR198208-198504

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-22020iMX62,RX60..ARL,EUR198009-198504

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-22020iMX62,RX60..ARL,EUR198009-198504

48836RBRACKET, REAR STABILIZER END, RH

main48825-22010iMX62,RX60..ARL,EUR198009-198504

48837RBRACKET, REAR STABILIZER END, LH

main48825-22010iMX62,RX60..ARL,EUR198009-198504

9017016182

main90170-16182

9020114006

main90201-14006

9116571230

main91165-71230

9161140812

main91611-40812

9161161016

main91611-61016

9161161020

main91611-61020

9411041000

main94110-41000

9411571400

main94115-71400

9412041000

main94120-41000

9414141000

main94141-41000

9418210800

main94182-10800

9418461000

main94184-61000

9418461400

main94184-61400

9451201400

main94512-01400

9451201600

main94512-01600

9453101200

main94531-01200

9461212000

main94612-12000

9461411400

main94614-11400

9538102525

main95381-02525

52 parts on this diagram · 3 diagrams in section
