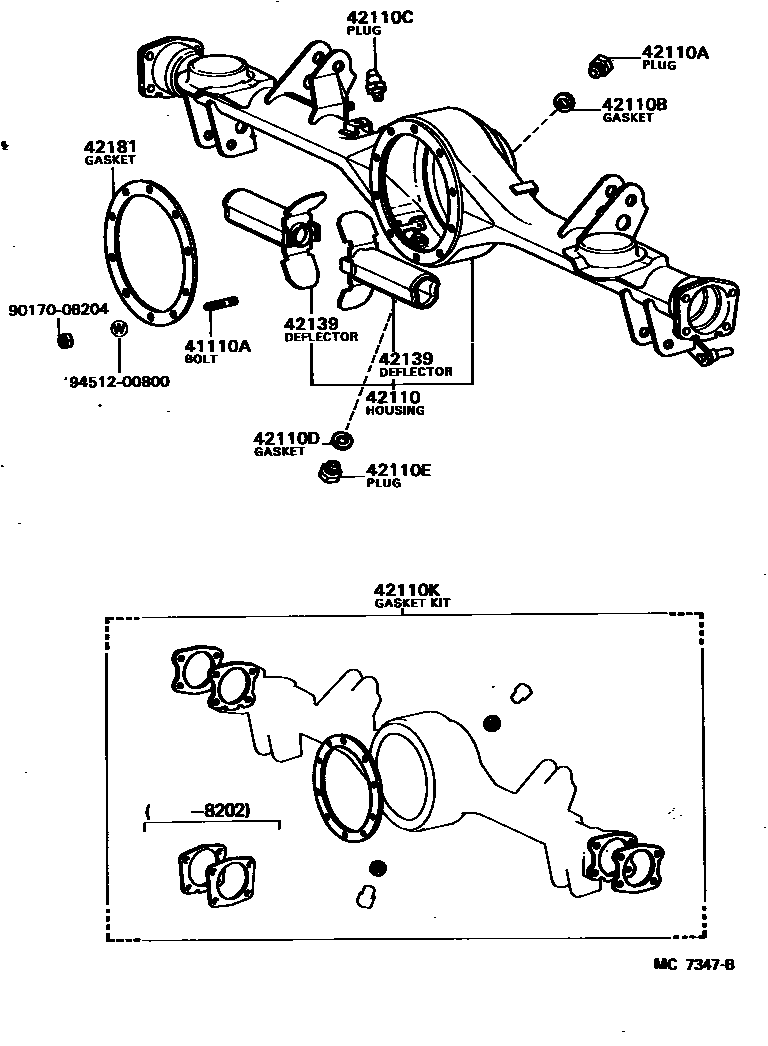

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14180iMX63198312-198504

*FGR=41:11=3.727,R=41:11=3.727,*AXC=F302

main41110-20241iTX62198009-198504

*FGR=41:10=4.100,R=41:10=4.100,*AXC=E292

main41110-20251iRX60;GX60,LX60..5F198009-198504

*FGR=43:11=3.909,R=43:11=3.909,*AXC=E312

sub41110-22240

main41110-22131iGX61198208-198407

*FGR=43:11=3.909,R=43:11=3.909,*AXC=F312

main41110-22170iMX62198009-198407

*FGR=41:11=3.727,R=41:11=3.727,*AXC=E302

sub41110-22171

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08106iMX62198009-198407

S=17 & 12,L=72,L=86,S=15 & S=12

main90116-08235iGX60,LX60,RX6#,TX62198009-198504

S=12 & 15,L=34,L=34,S=15 & S=12

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-22110iLX60,RX60,TX62..SED..(GEN,ME,SA,SAA)198009-198208

sub42110-22150

main42110-22130iLX60,RX60..SED..EUR198009-198208

sub42110-22160

main42110-22140iMX62..GL198009-198208

sub42110-22180

main42110-22150iGX60..SA198208-198504

sub42110-22170

main42110-22160iLX60..SED..EUG198208-198407

T=3.2

sub42110-22180

main42110-22180iRX60..SED..(4F,4FC,5F)..GEN198308-198407

T=4.5

main42110-22180iMX62..SED198208-198407

main42110-23070iLX60,MX62,RX60..WG..(ARL,EUR)198009-198407

sub42110-23090

main42110-23080iLX60,RX6#..WG..(GEN,ME,SA)198009-198504

sub42110-23090

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iGX60,LX60,MX62,RX6#,TX62198009-198504

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iGX60,LX60,MX62,RX6#,TX62198009-198504

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iGX60,LX60,MX62,RX6#,TX62198009-198504

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iGX60,LX60,MX62,RX6#,TX62198009-198504

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iGX60,LX60,MX62,RX6#,TX62198009-198504

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-20030iGX60,LX60,MX62,RX6#,TX62198202-198504

main04412-22050iLX60,MX62,RX6#,TX62198009-198202

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iGX60,LX60,MX62,RX6#,TX62198009-198504

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iGX60,LX60,MX62,RX6#,TX62198009-198504

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 3 diagrams in section
