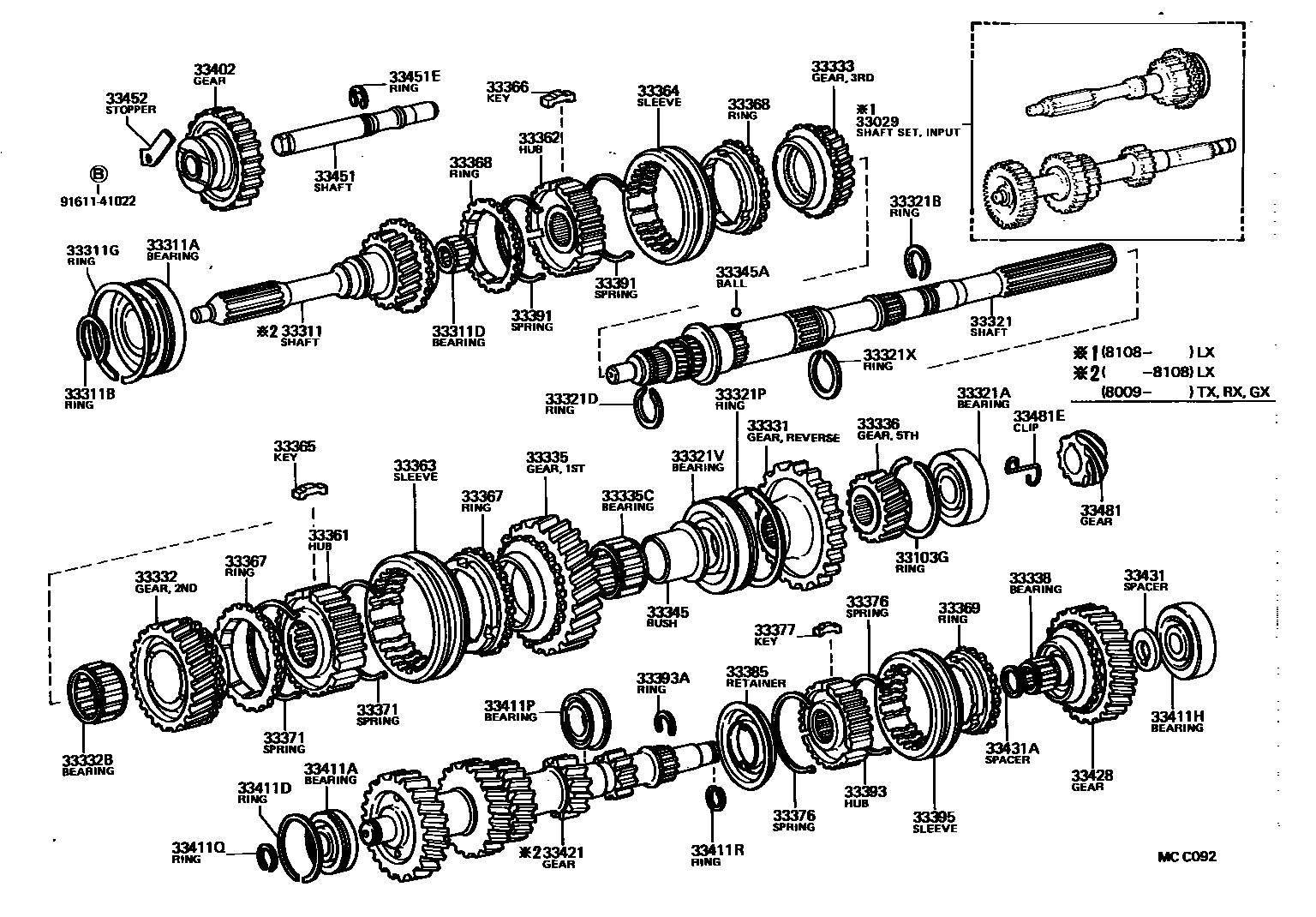

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1 0004 1

33029SHAFT SET, INPUT

main33029-22020iLX60..5F198108-198307

main33029-22021iLX60..5F198307-198402

main33029-22022iLX60..5F198402-198407

33103GRING, HOLE SNAP(FOR REAR BEARING SET)

main90521-66002iGX6#,LX60,RX6#,TX62..5F198009-198504

33311SHAFT, INPUT

main33301-22020iRX6#,TX62..4F,4H,5F198108-198208

main33301-22021iLX60,RX60,TX62..MTM198208-198307

main33301-22022iLX60,RX60,TX62..MTM198307-198402

sub33301-30090

sub33368-30130

sub90363-35038

main33301-22024iLX60,RX60,TX62..MTM198402-198504

sub33301-30080

sub33368-30130

sub90363-35038

main33301-24010iGX6#..5F198208-198307

main33301-24011iGX6#..5F198307-198402

sub33301-30100

sub33368-30130

sub90363-35038

main33301-24013iGX6#..5F198402-198504

sub33301-30070

sub33368-30130

sub90363-35038

main33301-30020iRX60..LHD..3H198009-198108

main33301-30050iRX60..RHD..3H198009-198208

sub33301-30051

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32008iRX60..RHD..3H198009-198208

main90363-35005iRX60..LHD..3H198009-198108

main90363-35007iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iRX60..RHD..3H198009-198208

T=2.05,MARK 0,T=2.05-2.10

main90520-30215iRX60..RHD..3H198009-198208

T=2.10,MARK 1,T=2.10-2.15

main90520-30216iRX60..RHD..3H198009-198208

T=2.15,MARK 2,T=2.15-2.20

main90520-30217iRX60..RHD..3H198009-198208

T=2.20,MARK 3,T=2.20-2.25

main90520-30218iRX60..RHD..3H198009-198208

T=2.25,MARK 4,T=2.25-2.30

main90520-30219iRX60..RHD..3H198009-198208

T=2.30,MARK 5,T=2.30-2.35

main90520-33107iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.30-2.35,MARK 11,T=2.30-2.35

main90520-33132iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.35-2.40,MARK 12,T=2.35-2.40

main90520-33168iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.05,MARK 1,T=2.05-2.10

main90520-33169iRX60..LHD..3H198009-198108

T=2.10,MARK 2

main90520-33170iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.15,MARK 3,T=2.15-2.20

main90520-33171iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.20,MARK 4,T=2.20-2.25

main90520-33172iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.25,MARK 5,T=2.25-2.30

33311DBEARING, INPUT SHAFT

main90361-06047×14iRX60..3H198009-198208

main90364-19043iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

sub90364-19006

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-68183iRX60..LHD..3H198009-198108

main90520-71221iRX60..RHD..3H198009-198208

main90520-76001iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

33321SHAFT, OUTPUT

main33321-22050iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main33321-30100iRX60..LHD..3H198009-198108

main33321-30110iRX60..RHD..3H198009-198101

main33321-30111iRX60..RHD..3H198101-198208

sub33321-30112

33321ABEARING (FOR OUTPUT SHAFT REAR)

main33350-22010iGX6#,LX60,RX6#,TX62..5F198010-198504

main90363-30012iRX60..LHD..3H198009-198108

main90363-30024iRX60..RHD..3H198009-198208

sub90363-30031

main90365-28002iLX60,RX60..5F198009-198010

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25003iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.68,MARK 14,T=2.68-2.73

main90520-25004iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.74,MARK 15,T=2.74-2.79

main90520-25005iRX60..RHD..3H198101-198208

T=2.67-2.72,MARK A,T=2.67-2.72

main90520-25006iRX60..RHD..3H198101-198208

T=2.73-2.78,MARK B,T=2.73-2.78

main90520-25009iRX60..RHD..3H198101-198208

T=2.79-2.84,MARK C,T=2.79-2.84

main90520-25010iRX60..RHD..3H198101-198208

T=2.85-2.90,MARK D,T=2.85-2.90

main90520-25011iRX60..RHD..3H198101-198208

T=2.91-2.96,MARK E,T=2.91-2.96

main90520-25012iRX60..RHD..3H198101-198208

T=2.97-3.02,MARK F,T=2.97-3.02

main90520-25013iRX60..RHD..3H198101-198208

T=3.03-3.08,MARK G,T=3.03-3.08

main90520-25014iRX60..RHD..3H198101-198208

T=3.09-3.14,MARK H,T=3.09-3.14

main90520-25015iRX60..RHD..3H198101-198208

T=3.15-3.20,MARK J,T=3.15-3.20

main90520-25016iRX60..RHD..3H198101-198208

T=3.21-3.26,MARK K,T=3.21-3.26

main90520-25017iRX60..RHD..3H198101-198208

T=3.27-3.32,MARK L,T=3.27-3.32

main90520-25270iRX60..RHD..3H198009-198101

T=2.43-2.48,MARK 10,T=2.43-2.48

main90520-25271iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.49-2.54,MARK 11,T=2.49-2.54

main90520-25272iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.55-2.60,MARK 12,T=2.55-2.60

main90520-25273iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.61-2.66,MARK 13,T=2.61-2.66

main90520-25277iRX60..RHD..3H198009-198101

T=1.84-1.94

main90520-25278iRX60..RHD..3H198009-198101

T=1.95-2.00

main90520-25279iRX60..RHD..3H198009-198101

T=2.01-2.06

main90520-25280iRX60..RHD..3H198009-198101

T=2.07-2.12

main90520-25281iRX60..RHD..3H198009-198101

T=2.13-2.18

main90520-25282iRX60..RHD..3H198009-198101

T=2.19-2.24

main90520-25283iRX60..RHD..3H198009-198101

T=2.25-2.30

main90520-25284iRX60..RHD..3H198009-198101

T=2.31-2.36,MARK 8,T=2.31-2.36

main90520-25285iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.37-2.42,MARK 9,T=2.37-2.42

main90520-28002iRX60..LHD..3H198009-198108

T=1.85-1.90

sub90520-28001

main90520-28003iRX60..LHD..3H198009-198108

T=1.95-2.00

main90520-28004iRX60..LHD..3H198009-198108

T=2.05-2.10

main90520-28005iRX60..LHD..3H198009-198108

T=2.15-2.20

main90520-28006iRX60..LHD..3H198009-198108

T=2.25-2.30

main90520-28007iRX60..LHD..3H198009-198108

T=2.35-2.40

main90520-28008iRX60..LHD..3H198009-198108

T=2.45-2.50

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28014iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=1.86,MARK 11,T=1.86-1.91

main90520-28015iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=1.92,MARK 12,T=1.92-1.97

main90520-28016iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=1.98,MARK 13,T=1.98-2.03

main90520-28017iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.04,MARK 14,T=2.04-2.09

main90520-28018iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.10,MARK 15,T=2.10-2.15

main90520-28245iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=1.80-1.85,MARK D,T=1.80-1.85

33321PRING, SNAP (FOR OUTPUT SHAFT CENTER BEARING)

main90520-76001iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=1.65

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-35009iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)

main90520-33001iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.61,MARK 17,T=2.61-2.66

main90520-33002iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.67,MARK 18,T=2.67-2.72

main90520-33003iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.73,MARK 19,T=2.73-2.78

main90520-33004iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.79,MARK 20,T=2.79-2.84

main90520-33005iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.85,MARK 21,T=2.85-2.90

main90520-33006iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.91,MARK 22,T=2.91-2.96

main90520-33007iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.97,MARK 23,T=2.97-3.02

main90520-33107iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.30-2.35,MARK 11,T=2.30-2.35

main90520-33108iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.40,MARK 13,T=2.40-2.45

main90520-33109iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.50,MARK 15,T=2.50-2.55

main90520-33132iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.35-2.40,MARK 12,T=2.35-2.40

main90520-33133iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.45,MARK 14,T=2.45-2.50

main90520-33134iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.55,MARK 16,T=2.55-2.60

main90520-33172iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.25,MARK 5,T=2.25-2.30

33331GEAR, REVERSE

main33031-30010iRX60..LHD..3H198009-198108

main33031-30020iRX60..RHD..3H198009-198208

sub33031-30030

main33331-22020iLX60,RX6#,TX62..4F,4H,5F198009-198111

main33331-22021iLX60,RX60,TX62..MTM198301-198304

main33331-22030iGX6#..5F198301-198304

33332GEAR, 2ND

main33033-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

main33033-22021iGX6#,LX60,RX60,TX62..MTM198307-198504

sub33033-35080

sub33367-30110

main33033-30010iRX60..LHD..3H198009-198108

main33033-30020iRX60..RHD..3H198009-198208

sub33033-30021

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-35004iRX60..RHD..3H198009-198407

KOYO

main90364-35005iRX60..RHD..3H198009-198208

NSK

main90364-43001iGX6#,LX60,RX60,TX62..MTM198210-198504

sub90364-43004

main90364-43002iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198210

33333GEAR, 3RD

main33034-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

main33034-22021iGX6#,LX60,RX60,TX62..MTM198307-198504

sub33034-30020

sub33368-30130

33335GEAR, 1ST

main33032-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

main33032-22021iGX6#,LX60,RX60,TX62..MTM198307-198504

sub33032-30030

sub33367-30110

main33032-30010iRX60..LHD..3H198009-198108

main33032-30020iRX60..RHD..3H198009-198208

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38002iRX60..RHD..3H198009-198208

main90364-38034iRX60..LHD..3H198009-198108

main90364-43001iGX6#,LX60,RX60,TX62..MTM198210-198504

sub90364-43004

main90364-43002iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198210

33336GEAR, 5TH

main33336-22020iLX60,RX6#,TX62..5F198009-198402

main33336-22021iLX60,RX60,TX62..5F198402-198504

sub33336-30030

main33336-24010iGX6#..5F198208-198402

main33336-24011iGX6#..5F198402-198504

sub33336-30020

33338BUSH OR BEARING, 5TH GEAR

main90364-27002iGX6#,LX60,RX6#,TX62..5F198009-198504

33345BUSH, 1ST GEAR

main33345-22010iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

33345ABALL (FOR 1ST GEAR BUSH)

main90360-06004iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main33361-35020iRX60..3H198009-198208

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main33362-30030iRX60..LHD..3H198009-198108

main33362-30040iRX60..RHD..3H198009-198208

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

main33363-22021iGX6#,LX60,RX60,TX62..MTM198307-198504

main33364-30020iRX60..3H198009-198208

sub33364-30021

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

main33364-22021iGX6#,LX60,RX60,TX62..MTM198307-198504

main33364-30020iRX60..3H198009-198208

sub33364-30021

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-30040×3iRX60..3H198009-198208

main33366-20011×3iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-20011×3iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main33366-30030×3iRX60..3H198009-198208

33367RING, SYNCHRONIZER, NO.1

main33367-22020×2iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

main33367-22021×2iGX6#,LX60,RX60,TX62..MTM198307-198504

main33367-30040iRX60..3H198009-198208

33368RING, SYNCHRONIZER, NO.2

main33368-20012×2iGX6#,LX60,RX6#,TX62..MTM198009-198307

main33368-20013×2iGX6#,LX60,RX60,TX62..MTM198307-198504

33369RING, SYNCHRONIZER, NO.3

main33367-14010iGX6#,LX60,RX6#,TX62..5F198009-198504

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031×2iRX60..3H198009-198208

main33371-22030×2iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

sub33371-22032

main33371-22033×2iGX6#,LX60,RX60,TX62..MTM198307-198504

33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

main33371-14010×2iGX6#,LX60,RX6#,TX62..5F198009-198504

33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

main33366-14010×3iGX6#,LX60,RX6#,TX62..5F198009-198504

33385RETAINER, SHIFTING KEY

main33385-22010iGX6#,LX60,RX6#,TX62..5F198009-198504

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14031×2iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198307

main33371-20010×2iRX60..LHD..3H198009-198108

main33391-22030×2iGX6#,LX60,RX60,TX62..MTM198307-198504

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-22020iGX6#,LX60,RX6#,TX62..5F198009-198504

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-24002iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.06-2.11,T=2.06-2.11

main90520-24003iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.12-2.17,T=2.12-2.17

main90520-24004iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.18-2.23,T=2.18-2.23

main90520-24005iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.24-2.29,T=2.24-2.29

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-22010iGX6#,LX60,RX6#,TX62..5F198009-198504

main33395-22011iGX6#,LX60,RX60,TX62..5F198307-198504

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-22020iLX60,RX6#,TX62..4F,4H,5F198009-198111

main33402-22022iGX6#,LX60,RX6#,TX62..4F,4H,5F198111-198504

main33461-20021iRX60..LHD..3H198009-198108

main33461-30030iRX60..RHD..3H198009-198208

sub33461-30031

33411COUNTERSHAFT

main33411-30030iRX60..LHD..3H198009-198108

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90361-03002×21iRX60..LHD..3H198009-198108

main90365-25009iLX60,RX60..4F,4H,5F198009-198110

main90365-25010iRX60..RHD..3H198009-198208

sub90365-25025

main90365-25014iGX6#,LX60,RX6#,TX62..4F,4H,5F198110-198504

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-49222iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=1.07,OD=55.6

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-22003iGX6#,LX60,RX6#,TX62..5F198009-198504

sub90363-22007

main90364-39001iRX60..LHD..3H198009-198108

33411PBEARING, COUNTERSHAFT CENTER

main33430-22010iGX6#,LX60,RX6#,TX62..4F,4H,5F198010-198504

main90365-30011iLX60,RX60..4F,5F198009-198010

main90365-31001iRX60..RHD..3H198009-198208

main90365-31002iRX60..RHD..3H198009-198208

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23089iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.10-2.15,T=2.10-2.15

main90520-23090iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.20-2.25,T=2.20-2.25

main90520-23115iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.05-2.10,T=2.05-2.10

main90520-23143iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.15-2.20,T=2.15-2.20

main90520-23144iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.25-2.30,T=2.25-2.30

main90520-23145iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.30-2.35,T=2.30-2.35

main90520-23146iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

T=2.35-2.40,T=2.35-2.40

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90520-20008iGX6#,LX60,RX6#,TX62..5F198009-198504

T=1.90-1.95,MARK 1,T=1.90-1.95

main90520-20009iGX6#,LX60,RX6#,TX62..5F198009-198504

T=1.96-2.01,MARK 2,T=1.96-2.01

main90520-20010iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.02-2.07,MARK 3,T=2.02-2.07

main90520-20011iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.08-2.13,MARK 4,T=2.08-2.13

main90520-20012iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.14-2.19,MARK 5,T=2.14-2.19

main90520-20013iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.20-2.25,MARK 6,T=2.20-2.25

main90520-20014iGX6#,LX60,RX6#,TX62..5F198009-198504

T=2.26-2.31,MARK 7,T=2.26-2.31

main90520-37001iRX60..LHD..3H198009-198108

33421GEAR, COUNTER

main33401-30030iRX60..LHD..3H198009-198108

main33421-22020iLX60,RX6#,TX62..5F198108-198402

sub33421-30220

sub33430-30020

main33421-22021iLX60,RX60,TX62..5F198402-198504

sub33421-30160

sub33430-30020

main33421-22030iRX60,TX62..4F,4H198009-198402

sub33421-30210

sub33430-30020

main33421-22031iRX60..MTM..DLX..(GEN,ME)198402-198407

sub33421-30190

sub33430-30020

main33421-24010iGX6#..5F198208-198402

sub33421-30230

sub33430-30020

main33421-24011iGX6#..5F198402-198504

sub33421-30180

sub33430-30020

main33421-30100iRX60..RHD..3H198009-198208

33428GEAR, COUNTERSHAFT 5TH

main33046-22010iLX60,RX6#,TX62..5F198009-198308

main33046-22011iLX60,RX60,TX62..5F198308-198402

main33046-22013iLX60,RX60,TX62..5F198402-198504

sub33046-35080

main33046-24010iGX6#..5F198208-198308

main33046-24011iGX6#..5F198308-198402

main33046-24013iGX6#..5F198402-198504

sub33046-22020

33431SPACER, COUNTER GEAR, NO.1

main33431-22030iGX6#,LX60,RX6#,TX62..5F198009-198504

main33431-30011iRX60..LHD..3H198009-198108

33431ASPACER, COUNTER GEAR, NO.2

main33431-22020iGX6#,LX60,RX6#,TX62..5F198009-198504

main33431-30020iRX60..LHD..3H198009-198108

33451SHAFT, REVERSE IDLER GEAR

main33451-22021iGX6#,LX60,RX6#,TX62..MTM198009-198504

main33451-30030iRX60..LHD..3H198009-198108

main33451-30040iRX60..RHD..3H198009-198208

main33451-30050iRX60..4H198108-198407

33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)

main90523-17001iGX6#,LX60,RX6#,TX62..4F,5F198009-198504

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-22010iRX60,TX62..4F,4H198009-198407

main33452-22020iGX6#,LX60,RX6#,TX62..5F198009-198504

main33452-30010iRX60..RHD..3H198009-198208

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-14030iRX62..5F198107-198208

N=10

sub33481-14031

main33481-22010iRX60..3H198009-198208

N=6,MARK 6X18-20

main33481-22030iGX6#,LX60,RX60,TX62..4F,4H,5F198009-198504

N=10,MARK 10X31-33

33481ECLIP (FOR SPEEDOMETER DRIVE GEAR)

main90467-25001iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

9161141022

main91611-41022

59 parts on this diagram · 4 diagrams in section
