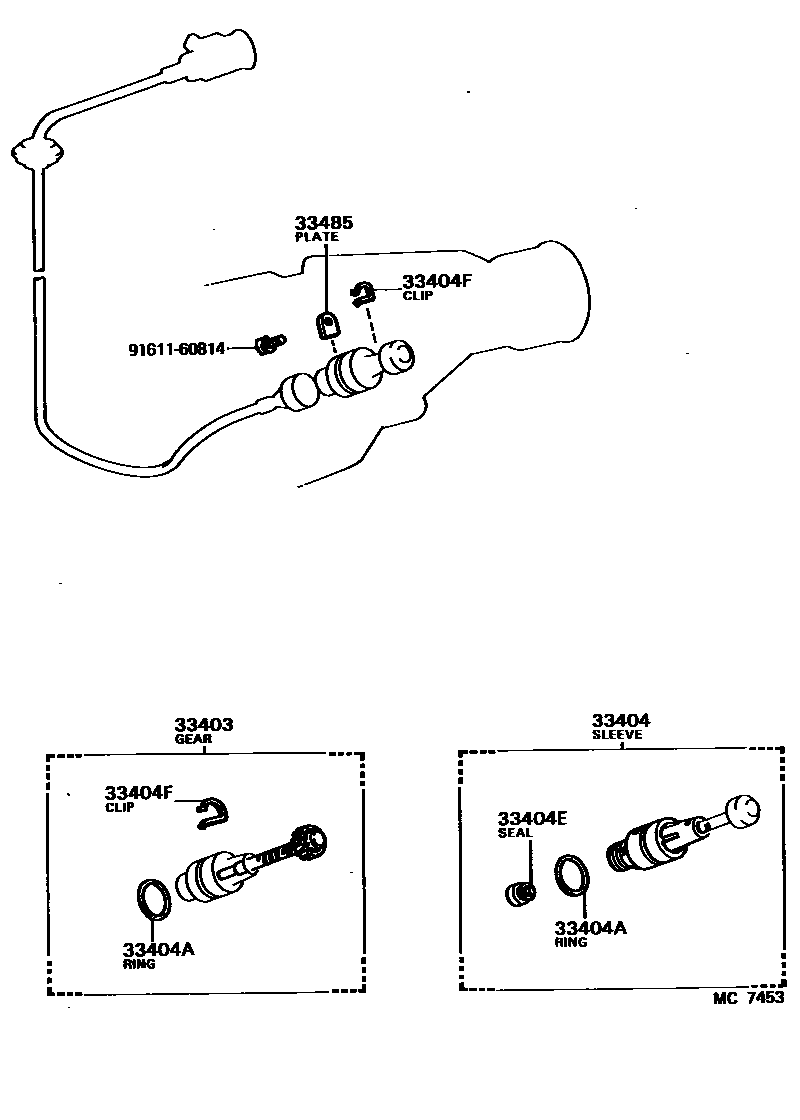

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=35,MARK 35:10,N=35
N=32,MARK 32:10,N=32,185SR14 TIRE
N=32,MARK 32:10,N=32
N=33,MARK 33:10,N=33
N=31,MARK 31:10,N=31
N=31,MARK 31:10,N=31,175SR14 TIRE
N=19,MARK 19:6,N=19
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161160814
main91611-60814
7 parts on this diagram · 1 diagram in section
