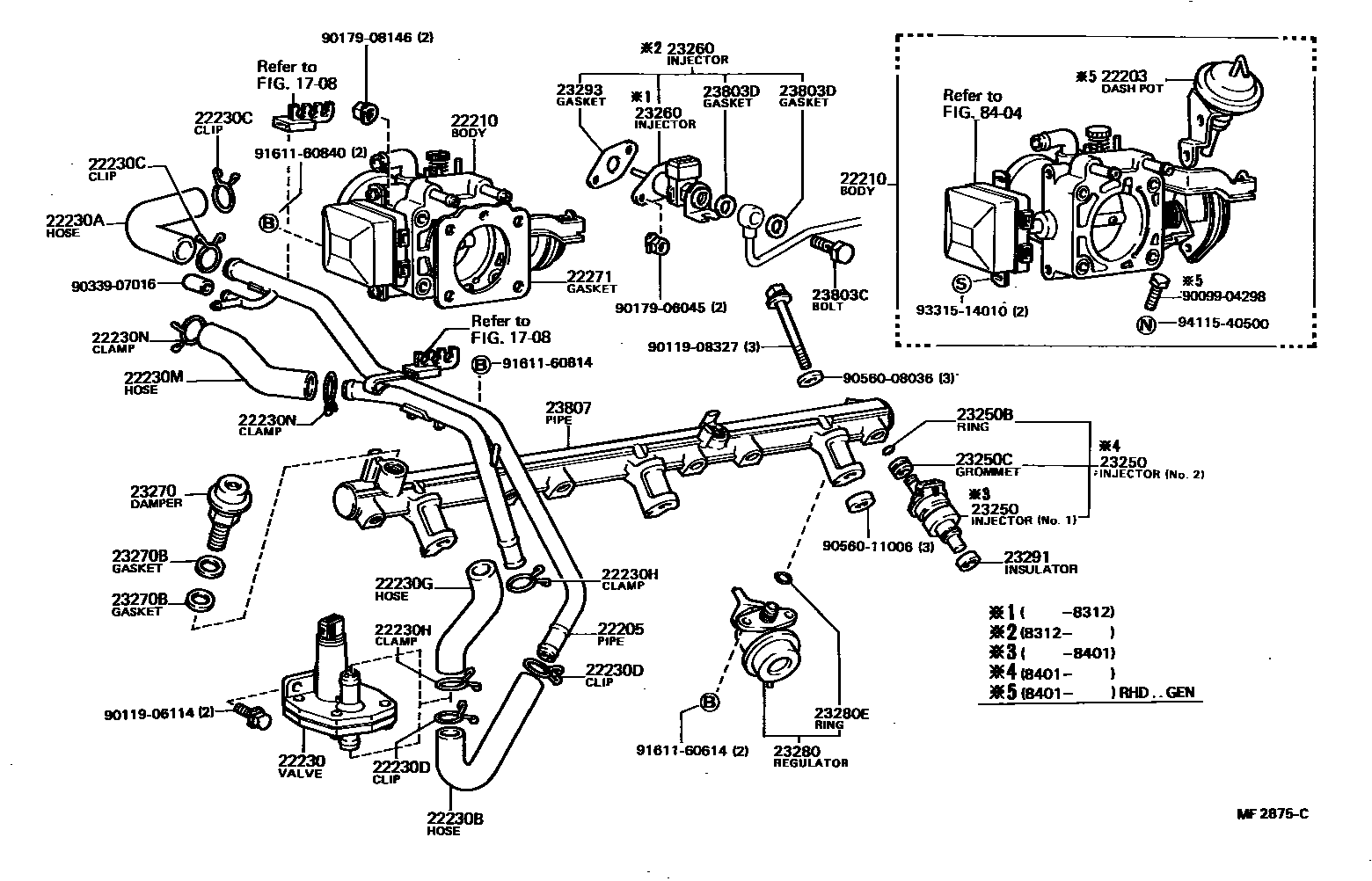

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1708VACUUM PIPING

→ Go to FIG 17-08

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22203-41010i5ME..MX62198009-198208

main22203-41020i5ME..MX62198208-198308

main22203-41040i5ME..MX6#198308-198504

main22203-70012i1GE..GX60..RHD..GEN198401-198402

main22203-70030i1GE..GX60..RHD..GEN198402-198407

22205PIPE SUB-ASSY, AUXILIARY AIR

main22205-70020i1GE..GX6#198208-198504

22210BODY ASSY, THROTTLE

main22210-43050i5ME..MX62198009-198208

main22210-43051i5ME..MX62198208-198308

main22210-43270i5ME..MX62198308-198407

main22210-43280i5ME..MX63198312-198504

main22210-70011i1GE..GX60..RHD..GEN198401-198402

main22210-70012i1GE..GX60..RHD..GEN198402-198407

main22210-70020i1GE..GX6#..LHD198208-198401

main22210-70021i1GE..GX6#..LHD198401-198407

main22210-70030i1GE..GX6#..RHD198208-198504

22230VALVE ASSY, AUXILIARY AIR

main22230-43030i5ME..MX6#198308-198504

main22230-45010i5ME..MX62198009-198308

main22230-70011i1GE..GX6#198208-198504

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main17343-41020i5ME..MX6#198009-198504

main22233-70020i1GE..GX6#198208-198504

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main17344-41010i5ME..MX6#198009-198504

main22234-70010i1GE..GX6#198208-198504

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-20002i1GE..GX6#198208-198504

main90467-21152i5ME..MX6#198009-198504

22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2

main90467-20002i1GE..GX6#198208-198504

main90467-21152i5ME..MX6#198009-198504

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main22237-70010i1GE..GX6#198208-198504

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-20002i1GE..GX6#198208-198504

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-70010i1GE..GX6#198208-198504

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-20002i1GE..GX6#198208-198504

22271GASKET, THROTTLE BODY

main22271-41030i5ME..MX6#198009-198504

main22271-70010i1GE..GX6#198208-198504

23250INJECTOR ASSY, FUEL

main23209-45011i5ME..MX6#198401-198504

main23209-70010i1GE..GX6#198208-198211

NO.1

main23209-70010i1GE..GX6#198401-198504

NO.2

main23250-45011i5ME..MX6#198009-198401

main23250-70010i1GE..GX6#198208-198401

NO.1

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1GE..GX6#198009-198504

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i5ME..MX6#198009-198504

23260INJECTOR ASSY, COLD START FUEL

main23260-45010i5ME..MX62198009-198312

main23260-49085i5ME..MX6#198312-198504

main23260-70020i1GE..GX6#198208-198312

main23260-79025i1GE..GX6#198312-198504

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-70010i1GE..GX6#198009-198504

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-14002i1GE..GX6#198208-198504

ID=14.2

main90430-17002i5ME..MX6#198009-198504

ID=17.3

23280REGULATOR ASSY, FUEL PRESSURE

main23280-41030i5ME..MX6#198009-198504

main23280-70020i1GE..GX6#198208-198504

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GE..GX6#198208-198504

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i5ME..MX6#198009-198504

23293GASKET, COLD START INJECTOR

main23293-34020i5ME..MX6#198009-198504

main23293-70010i1GE..GX6#198208-198504

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08003i1GE..GX6#198208-198504

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08005i1GE..GX6#198208-198504

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-45020i5ME..MX6#198009-198504

main23807-70020i1GE..GX6#198208-198504

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9009904298

main90099-04298

9011906114

main90119-06114

9011908327

main90119-08327

9017906045

main90179-06045

9017908146

main90179-08146

9033907016

main90339-07016

9056008036

main90560-08036

9056011006

main90560-11006

9161160614

main91611-60614

9161160814

main91611-60814

9161160840

main91611-60840

9331514010

main93315-14010

9411540500

main94115-40500

41 parts on this diagram · 6 diagrams in section
