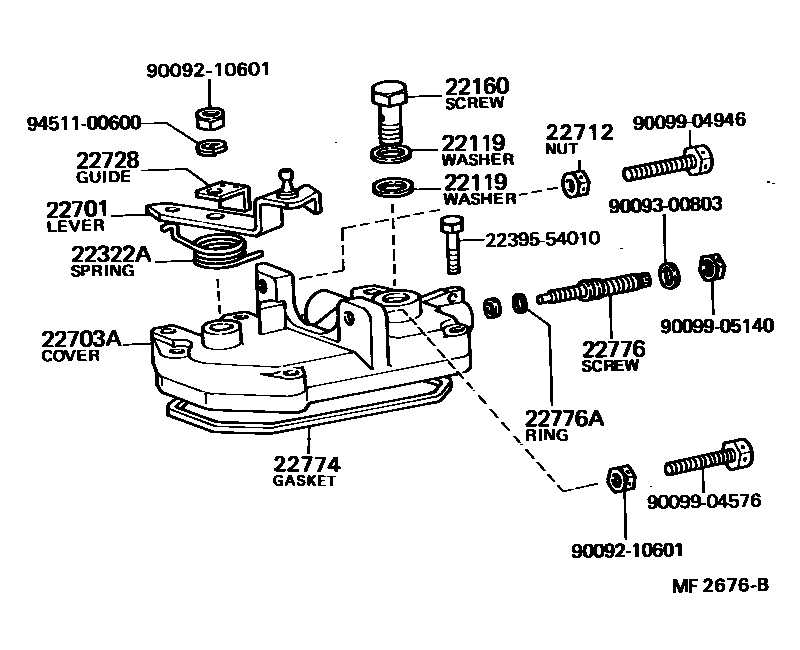

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1

22119WASHER, AIR BLEEDER NIPPLE

main22119-77020iL..LX60198009-198407

sub90201-12109

22160SCREW SUB-ASSY, OVERFLOW

main22160-54010iL..LX60198009-198109

sub22160-64010

main22160-64010iL..LX60198109-198407

22322ASPRING, RETURN

main22322-54020iL..LX60198009-198406

main22322-54450iL..LX60198406-198407

22701LEVER SUB-ASSY, ADJUSTING

main22701-54042iL..LX60198009-198406

NO MARK

main22701-54043iL..LX60198009-198406

MARK"0"

main22701-54120iL..LX60..5F..GEN198009-198406

HAC,NO MARK

sub22701-56350

main22701-54121iL..LX60..5F..GEN198009-198406

HAC,MARK"0"

sub22701-56351

main22701-54451iL..LX60198406-198407

NO MARK

main22701-54452iL..LX60198406-198407

MARK"0"

22703ACOVER SUB-ASSY, GOVERNOR

main22703-54080iL..LX60198009-198406

sub22703-64150

main22703-54120iL..LX60..5F..GEN198009-198111

HIGH ALTITUDE SPEC

main22703-54121iL..LX60..5F..GEN198111-198407

HIGH ALTITUDE SPEC

main22703-54450iL..LX60198406-198407

22712NUT, ROCK

main22775-77121iL..LX60198009-198406

main94110-40600iL..LX60198406-198407

22728GUIDE, RETURN SPRING

main22728-54010iL..LX60198009-198406

22774GASKET, GOVERNOR COVER

main22774-54010iL..LX60198009-198407

sub22774-54270

22776SCREW, SMOKE SET ADJUSTING

main22776-54110iL..LX60198009-198407

22776ARING, O(FOR SMOKE SET SCREW)

main90099-14047iL..LX60198009-198407

sub22193-54771

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

9009210601

main90092-10601

9009300803

main90093-00803

9009904576

main90099-04576

9009904946

main90099-04946

9009905140

main90099-05140

9451100600

main94511-00600

17 parts on this diagram · 5 diagrams in section
