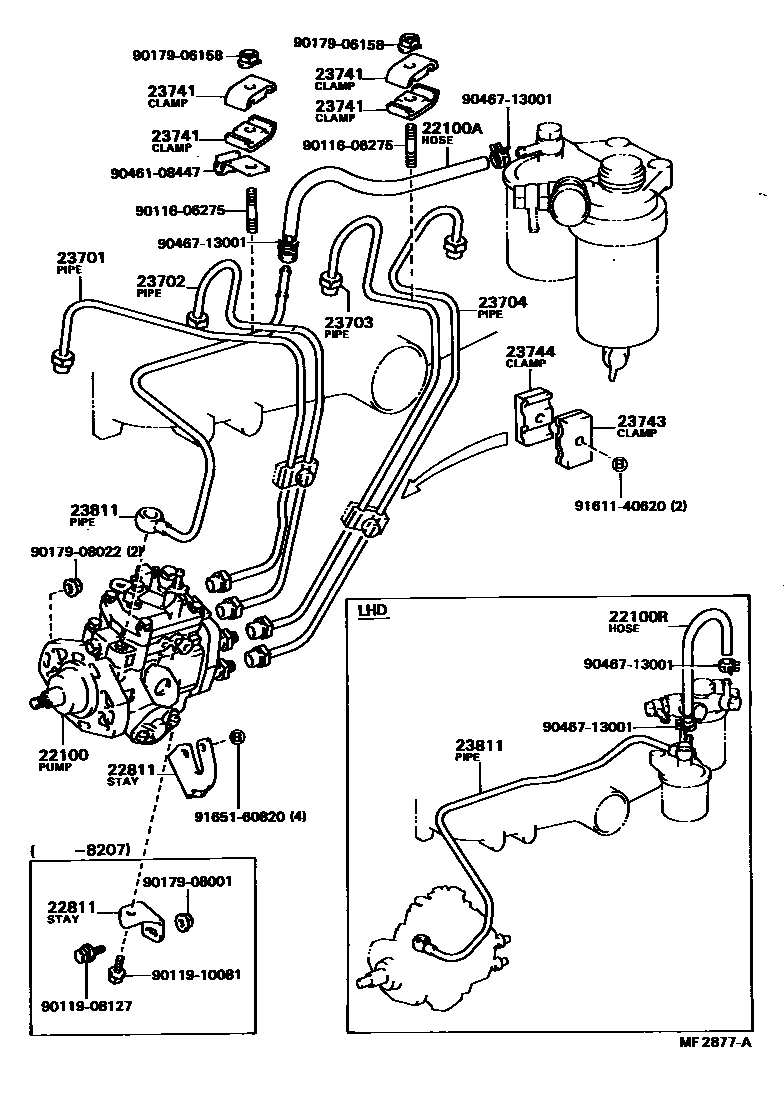

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54110iL..LX60..EUG;L..LX60..RHD..GEN;L..LX60..LHD..4FC..GEN198009-198109

sub22100-54111

sub23811-54051

sub23811-54061

main22100-54111iL..LX60..EUG;L..LX60..RHD..GEN;L..LX60..LHD..4FC..GEN198109-198406

sub22100-54112

sub90099-05166

main22100-54111iL..LX60..5F..GEN198208-198406

W/POWER STEERING

sub22100-54112

sub90099-05166

main22100-54112iL..LX60..5F..GEN198406-198407

W/POWER STEERING

main22100-54120iL..LX60..LHD..5F..GEN198009-198109

HIGH ALTITUDE SPEC

sub22100-54121

sub23811-54051

sub23811-54061

main22100-54121iL..LX60..5F..GEN198109-198208

HIGH ALTITUDE SPEC

sub22100-54122

main22100-54121iL..LX60..LHD..5F..GEN198109-198310

sub22100-54122

main22100-54122iL..LX60..5F..GEN198310-198406

sub22100-54123

sub90099-05166

main22100-54123iL..LX60..5F..GEN198406-198407

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08030iL..LX60..RHD198208-198407

L=300(*H,L=220)

sub95333-08030

main95332-08040iL..LX60..RHD198009-198407

L=400(*H,L=320)

sub95333-08040

22100RHOSE, FUEL(FOR SEDIMENTER TO FILTER)

main90923-01266iL..LX60..LHD198208-198407

main95332-08030iL..LX60..LHD198009-198208

*H,L=280

sub95333-08030

22811STAY, INJECTION PUMP, NO.1

main22811-54030iL..LX60198009-198207

main22811-54040iL..LX60198207-198407

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54050iL..LX60198009-198012

sub23701-54051

main23701-54051iL..LX60198012-198311

main23701-54082iL..LX60198311-198407

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL..LX60198009-198311

main23702-54081iL..LX60198311-198407

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL..LX60198009-198407

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL..LX60198009-198407

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LX60198009-198407

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LX60198009-198407

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LX60198009-198407

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54050iL..LX60..RHD198009-198109

main23811-54051iL..LX60..RHD198109-198208

main23811-54060iL..LX60..LHD198009-198109

main23811-54061iL..LX60..LHD198109-198208

main23811-54090iL..LX60198208-198407

9011606275

main90116-06275

9011908127

main90119-08127

9011910081

main90119-10081

9017906158

main90179-06158

9017908001

main90179-08001

9017908022

main90179-08022

9046108447

main90461-08447

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

22 parts on this diagram · 3 diagrams in section
