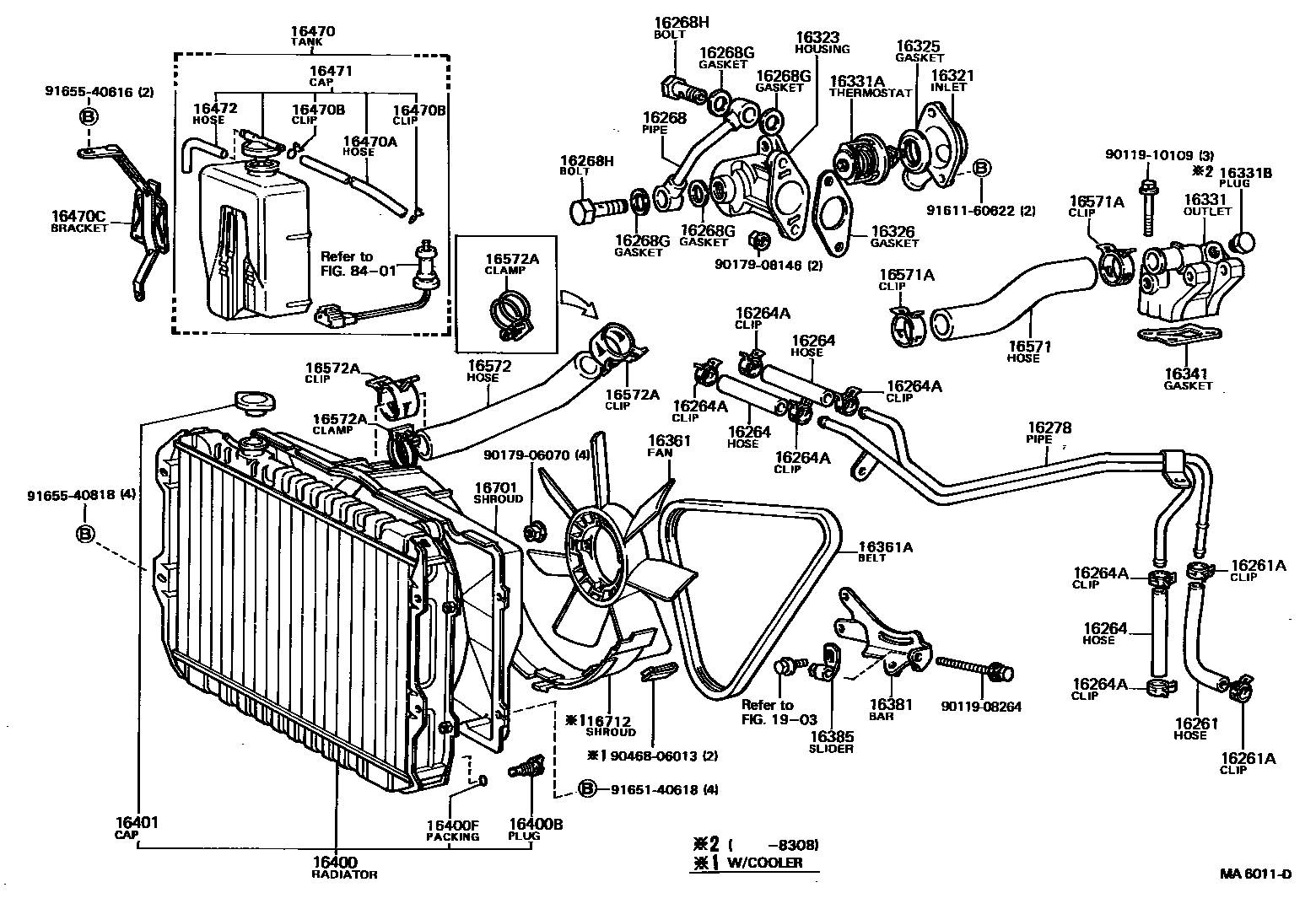

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

16261HOSE, WATER BY-PASS

main16261-25020i3T..TX62198107-198504

main16261-35040i21R..RX60198408-198504

main16261-37010i21R#..RX60198009-198407

main16261-70020i1GE..GX6#198208-198504

sub16261-70030

main90910-05106i18R..RX62198107-198208

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i1GE..GX6#198208-198504

sub96135-51300

main90467-20004i21R#..RX60198009-198010

sub90467-20005

main90467-20005i21R#..RX60198010-198504

sub96134-41900

main96112-10160i18R..RX62198107-198208

16264HOSE, WATER BY-PASS, NO.2

main99553-10100i1GE..GX6#198208-198308

sub99555-10100

main99555-10100i1GE..GX6#198308-198504

L=100

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1GE..GX6#198208-198504

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-35010i21R..RX60198408-198504

main16268-37010i21R#..RX60198009-198407

main16268-41120i5ME..MX62198009-198208

main16268-41140i5ME..MX6#198208-198504

main16268-70010i1GE..GX6#198208-198408

sub16268-70011

16268GGASKET(FOR WATER BY-PASS PIPE)

main90430-18012i1GE..GX6#198208-198504

16268HBOLT, UNION(FOR WATER BY-PASS PIPE)

main90401-18006i1GE..GX6#198208-198504

16278PIPE, WATER BY-PASS, NO.2

main16278-70021i1GE..GX6#198208-198504

16321INLET, WATER

main16321-70011i1GE..GX6#198208-198504

16323HOUSING, WATER INLET

main16323-70011i1GE..GX6#198208-198504

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1GE..GX6#198208-198504

sub16325-63011

16326GASKET, WATER INLET HOUSING, NO.2

main16326-70011i1GE..GX6#198208-198504

sub16326-70012

16331OUTLET, WATER

main16331-26031i3T..TX62198107-198209

main16331-26060i3T..TX62198209-198504

main16331-35050i21R..RX60198408-198504

sub16331-35051

main16331-37020i21R..RX60198009-198208

sub16331-37070

sub91611-60828

main16331-37050i21RC..RX60198009-198208

sub16331-37060

sub91611-60828

main16331-37060i21RC..RX60198208-198407

main16331-37070i21R..RX60198208-198407

main16331-41071i5ME..MX62198009-198308

sub16331-43020

main16331-43020i5ME..MX6#198308-198504

main16331-54010iL..LX60198009-198208

main16331-54030iL..LX60198208-198407

main16331-70010i1GE..GX6#198208-198308

main16331-70030i1GE..GX6#198308-198504

16331ATHERMOSTAT

main90916-03034i21R..RX60..GEN,SAA198009-198208

*WAX 82-95,FUJI-THOMSON

main90916-03036i21R#,18R..RX6#..EUR,SA198009-198212

*WAX 88-100,FUJI-THOMSON

sub90916-03040

main90916-03037i5ME..MX62198009-198212

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i3T..TX62198107-198212

*WAX 88-100,KUZEH

sub90916-03078

main90916-03042iL..LX60198009-198110

*WAX 82-95

sub90916-03061

main90916-03043iL..LX60..LHD..EUG198009-198110

COLD SPEC,*WAX 88-100

sub90916-03062

main90916-03054i21R..RX60..GEN,ME198208-198407

*WAX 82-95

sub90916-03083

main90916-03054i5ME..MX62198212-198308

*WAX 82-95,*WAX 82-95

sub90916-03083

main90916-03055i21R#..RX60..EUR,SA198208-198504

*WAX 88-100

sub90916-03078

main90916-03055i5ME..MX6#198308-198504

*WAX 88-100,*WAX 88-100

sub90916-03078

main90916-03060i1GE..GX6#198208-198504

*WAX 82-95

sub90916-03090

main90916-03061iL..LX60..RHD..EUG198110-198308

*WAX 82-95

main90916-03062iL..LX60..LHD..EUG198110-198407

*WAX 88-100

sub90916-03072

16331BPLUG(FOR WATER OUTLET)

main90345-53007i1GE..GX6#198208-198308

16341GASKET, WATER OUTLET

main16341-35010i21R#..RX60198208-198504

main16341-38010i18R..RX62198009-198208

sub16341-38012

main16341-38011i18R..RX62198201-198504

sub16341-38012

main16341-38020i21R#..RX60198009-198208

sub16341-38021

main16341-41010i5ME..MX6#198009-198504

sub16341-38021

main16341-54010iL..LX60198208-198304

sub16341-54011

main16341-54011iL..LX60198304-198407

sub16341-54030

main16341-70010i1GE..GX6#198208-198504

16361FAN

main16361-26040i3T..TX62198107-198504

main16361-34030i18R..RX62198107-198208

7 BLADES,OD=380

main16361-38010i21R#..RX60198009-198504

7 BLADES

main16361-41090i5ME..MX6#198009-198504

main16361-70010i1GE..GX6#198208-198504

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5ME..MX62198009-198308

DOUBLE V BELTS,L=925

main90916-02133iL..LX60198211-198407

L=990

main99321-00885i3T..TX62198107-198504

main99331-00870i21R..RX60198408-198504

L=870

main99331-00880i21R#..RX60198009-198407

L=880

main99332-00985iL..LX60198009-198104

L=985

main99332-10985iL..LX60198104-198207

L=985

main99332-11000iL..LX60198207-198211

L=1000

main99332-51130i1GE..GX6#198208-198308

main99364-01100i1GE..GX6#198308-198504

sub99364-81100

main99367-00920i5ME..MX6#198308-198504

16381BAR, FAN BELT ADJUSTING

main16381-25010i3T..TX62198107-198504

main16381-35010i21R..RX60198408-198504

main16381-38020i21R#..RX60198009-198407

main16381-43010i5ME..MX6#198308-198504

main16381-45011i5ME..MX62198009-198308

main16381-54011iL..LX60198009-198407

main16381-70010i1GE..GX6#198208-198308

main16381-70020i1GE..GX6#198308-198408

sub16381-70021

16385SLIDER, FAN BELT ADJUSTING

main16385-70010i1GE..GX6#198208-198308

sub16385-70011

main16385-70011i1GE..GX6#198308-198504

16400RADIATOR ASSY

main16400-28010i3T..TX62..MTM198107-198504

main16400-28020i3T..TX62..3FC198107-198504

main16400-34280i21R..RX60..5F..SA198012-198504

main16400-34340i21R..RX60..ATM..SA198012-198504

main16400-37070i21R#..RX60..MTM..(EUR,GEN)198009-198407

sub16400-37110

main16400-37080i21R..RX60..ATM..(EUR,GEN)198009-198407

main16400-37110i21R..RX60..MTM..(ME,SAA)198012-198407

sub16400-37130

main16400-37110i21R..RX60..MTM..GEN198208-198308

MIDDLE EAST

sub16400-37130

main16400-37120i21R..RX60..3FC..ME198012-198208

sub16400-37130

main16400-37130i21R..RX60..ATM..ME198208-198407

main16400-37130i21R..RX60..ATM..ME198208-198308

MIDDLE EAST

main16400-41280i5ME..MX62198009-198504

main16400-54120iL..LX60..5F198009-198407

sub16400-54131

main16400-54130iL..LX60..4FC198009-198208

sub16400-54131

main16400-54131iL..LX60..4FC198208-198407

sub16400-54190

main16400-70010i1GE..GX6#..5F198208-198504

sub16400-41280

main16400-70020i5ME..MX6#198404-198504

sub16400-41280

main16410-43160i5ME..MX6#198308-198404

sub16400-70020

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i1GE..GX6#198009-198504

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007iL..LX60198009-198110

sub96711-19007

main96711-19007i1GE..GX6#198110-198504

16401CAP SUB-ASSY, RADIATOR

main16401-36011i3T..TX62198009-198504

16470TANK ASSY, RADIATOR RESERVE

main16470-37010i21R#..RX60..GL198208-198407

W/OK MONITOR

main16470-63020i3T..TX62198208-198504

main16470-70040i1GE..GX6#198208-198504

W/OK MONITOR

sub16470-37010

main16480-24010i5ME..MX62198009-198407

main16480-41140i5ME..MX6#198208-198504

main16480-70010i21R#,18R..RX6#..DLX,XL198009-198208

main16480-70020i21R..RX60..GL,SXL198009-198208

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12063i21R#,18R..RX6#198009-198208

*H,L=300

sub90445-12078

main90445-12073iL..LX60198009-198407

L=420

sub90099-33370

main90445-12115i1GE..GX6#198208-198504

L=600(*H,L=280)

sub90445-12078

main90445-12117i21R#..RX60198208-198504

L=460

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1GE..GX6#198009-198504

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-18010i3T..TX62198009-198208

main16402-43010i5ME..MX62198009-198208

main16402-43020i5ME..MX6#198208-198504

main16402-70020i1GE..GX6#198208-198504

main16611-54010iL..LX60198009-198407

16471CAP SUB-ASSY, RESERVE TANK

main16405-18010i21R#,18R..RX6#198009-198208

sub16405-54030

main16405-43010iL..LX60198009-198208

main16405-43020i5ME..MX6#198208-198504

main16405-54010iL..LX60198208-198407

sub16405-56021

main16405-63020i3T..TX62198208-198504

main16405-70020i1GE..GX6#198208-198504

sub16405-63020

16472HOSE, BREATHER

main85338-22020iL..LX60198009-198504

main85338-22030i3T..TX62198208-198504

16571HOSE, RADIATOR, INLET

main16571-37040i21R#..RX60..EUR,GEN,ME,SAA198009-198407

main16571-41090i5ME..MX62198009-198308

main16571-41120i5ME..MX6#198308-198504

main16571-54070iL..LX60198009-198208

sub16571-54100

main16571-54100iL..LX60198208-198407

main16571-70010i1GE..GX6#198208-198504

main90916-01168i3T..TX62198107-198504

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i1GE..GX6#198009-198504

sub90467-37003

main90467-37001i21R#..RX60198009-198103

WATER OUTLET SIDE

sub90467-37003

main96111-10430i21R#..RX60198009-198103

RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16571-18030i3T..TX62198107-198504

main16572-37030i21R#..RX60..EUR,GEN,ME,SAA198009-198407

main16572-41080i5ME..MX6#198009-198504

main16572-54070iL..LX60198009-198407

main16572-70011i1GE..GX6#198208-198504

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-49062i3T..TX62198107-198504

WATER PUMP SIDE

sub96111-10490

main90467-37001i1GE..GX6#198210-198504

WATER INLET SIDE;RADIATOR SIDE CLIP

sub90467-37003

main90467-37001i5ME..MX6#198210-198504

WATER PUMP SIDE;RADIATOR SIDE CLIP

sub90467-37003

main96111-10430i5ME..MX62198009-198210

ID=43

main96111-10430i1GE..GX6#198210-198504

RADIATOR SIDE CLAMP

main96111-10460iL..LX60198009-198504

RADIATOR SIDE

main96111-10480i21R#..RX60198009-198504

WATER PUMP SIDE

main96111-10500iL..LX60198009-198407

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16701-54050iL..LX60198208-198407

main16711-25030i3T..TX62198107-198504

main16711-34100i21R#,18R..RX6#198009-198504

main16711-43010i5ME..MX62198009-198304

sub16711-43011

main16711-43011i5ME..MX6#198304-198504

main16711-54080iL..LX60198009-198208

sub16701-54050

main16711-70010i1GE..GX6#198208-198504

16712SHROUD, FAN, NO.2

main16712-34070i21R..RX60..EUR,GEN,ME,SAA198009-198407

W/COOLER

main16712-43010i5ME..MX6#198009-198504

W/COOLER

main16712-54060iL..LX60198009-198407

W/COOLER

main16712-70010i1GE..GX61..LHD198208-198504

W/COOLER

1903

8401

9011908264

main90119-08264

9011910109

main90119-10109

9017906070

main90179-06070

9017908146

main90179-08146

9046806013

main90468-06013

9161160622

main91611-60622

9165140618

main91651-40618

9165540616

main91655-40616

9165540818

main91655-40818

47 parts on this diagram · 11 diagrams in section
